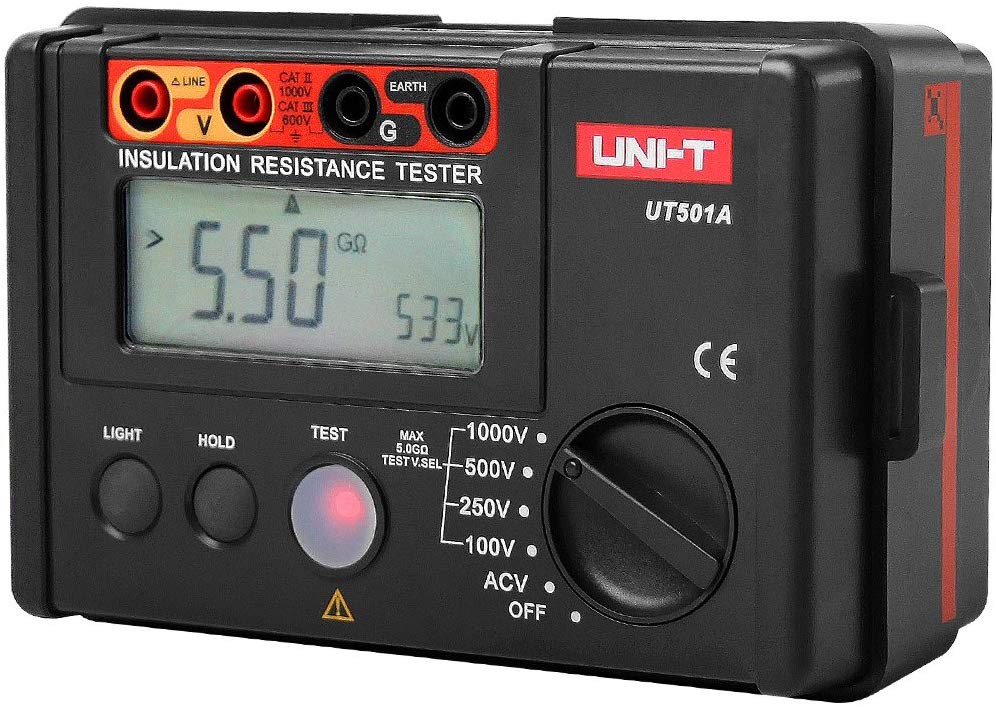

UNI-T Insulation Resistance Tester 100V - 1000V UT501A
Product Code: TT0501
$150.00
Pay it in 4 payments of $37.50 with
The UT500 Series measure insulation resistance, AC Voltage, low resistance, PI (Polarization Index) and DAR (Dielectric Absorption) and ideal tool for electric maintenance, testing and inspection.
Applications: For insulation resistance measurement for insulation materials and various kinds of electric equipments such as transformer, electric machines, cables, switches, electrical appliance, a ideal tool for electric maintenance, testing and inspection.
FEATURES
100V to 1000V
10M? internal resistance test
2000 count LCD display
AC voltage measurement
Automatic measurement
Auto power Off
Alarm Light Display
Alarm Buzzer
Auto discharge
Continuous measurements mode, red warning light and buzzer function
Overload indication
High Voltage Indication
Low Battery Indication
LCD Backlight
Meets IEC 61557: 61557-1:2007; 61557-2:2007
SPECIFICATIONS
Test voltages 100V/250V/500V/1000V 0% - 10%
Insulation resistance
100V 0M - 100M ±(3%+5)
250V 0M - 99.9M ±(3%+5)
250V 100M - 5G ±(5%+5)
500V 0M - 99.9M ±(3%+5)
500V 100M - 5G ±(5%+5)
1000V 0M - 99.9M ±(3%+5)
1000V 100M - 5G ±(5%+5)
AC voltage 30V - 750V ±(2%+3)
Powered by 6 x 1.5V battery
Size 150mm x 100mm x 71mm
Weight 500g

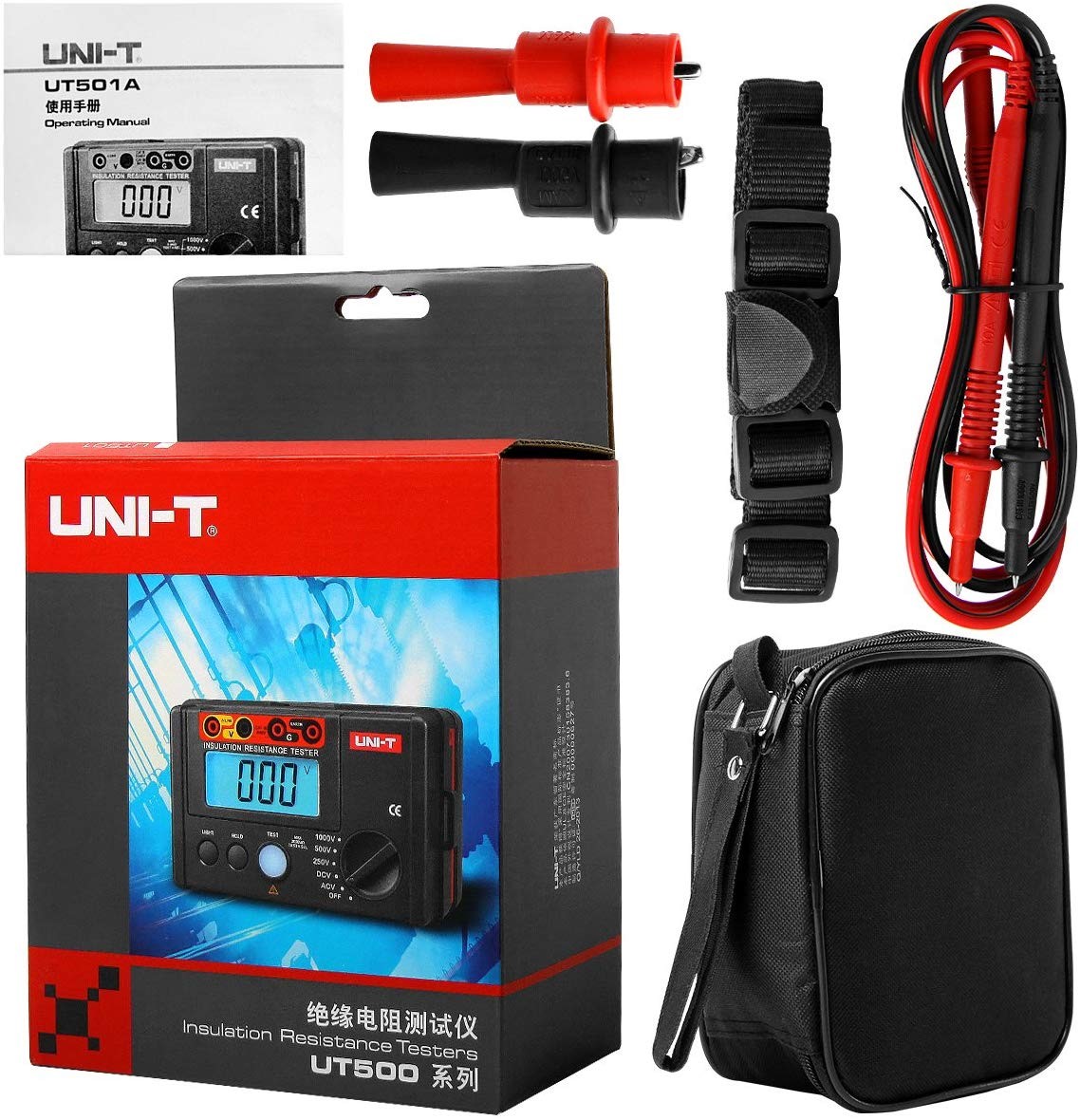

WHAT YOU GET
1 x UNI-T Insulation Resistance Tester 100V - 1000V UT501A
1 x Test Leads
1 x Set Alligator Clips
1 x Gallus
Carrying Bag
Batteries
Manual
