ESD Safe Goot Temperature Controlled Soldering Station

The RX-711AS soldering station is a precision, Japanese manufactured instrument with excellent temperature stability and anti-static characteristics.

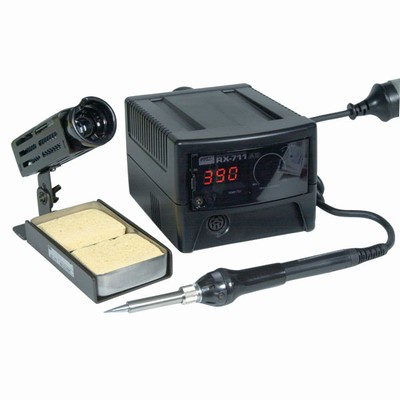

The light weight soldering pencil has a grounded tip and incorporates a ceramic heater with an integral temperature sensor. The sensor provides precise tip-temperature information to the heater controller which maintains the selected heat setting with a high degree of accuracy.  Temperature stability is further enhanced by designing the heater to actually fit within a matching recess in the tip.  This allows faster heat transfer and therefore better tip-temperature recovery during heavy soldering.  The soldering pencil is fitted with a silicon rubber grip for added handling precision and a 1.1 metre long silicone sheathed cord attaches to the console controller via a 5 pin DIN connector.  The silicone cord is incredibly supple.

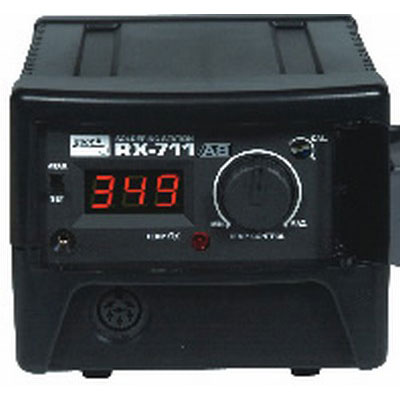

The control panel includes the digital temperature display panel, a rotary temperature control, calibration control and a display changeover switch to display either the desired or actual tip temperature.  The panel is secured behind a darkened see-through cover which prevents accidental temperature changes but can be easily accessed when required.

* Safety approval number QASTE4930.
* 230-240VAC supply voltage
* 24VAC  output voltage
* 65 Watt capacity heater
* 200 - 480C temperature range
* 3C temperature hysteresis
* 1.1Mtr iron cable
* 1.3Mtr mains cable
* 0.5mm tip supplied

REPLACEMENT TIPS/SPONGE
Cat. TS-1441  0.5mm tip  as supplied with iron
Cat. TS-1442  0.2mm tip
Cat. TS-1445  replacement sponge
