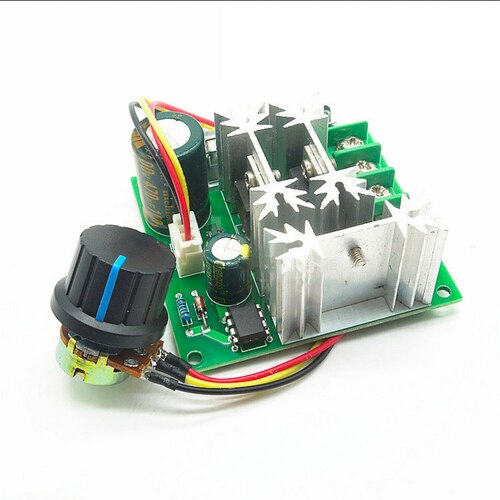

Motor Speed Regulator Controller - PWM HHO
6 - 90Volt DC - 20 Amp
Product Code: MOD0222
$14.00
Pay it in 4 payments of $3.50 with
| Buy 1+ | $14.00 (incl. GST) |
Working voltage: DC6V-DC90V (ultra-wide working voltage)
Control power: 0.01-1000W (maximum current 15A, rated 5A)
Static current: 0.005A (standby state) (5mA standby current)
PWM duty cycle: 0%-100%
PWM control frequency: 15KHz
Control voltage: 0-5V (voltage control type, can use PLC to directly control the speed of the motor)
Must be connected to the load to control speed.
With reverse power protection, control voltage overvoltage protection, 15A fast fuse ceramic fuse. Can be directly controlled by PLC voltage.
