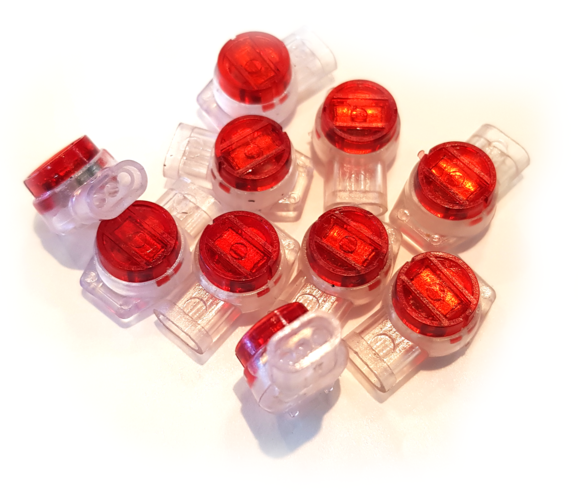

3 WIRE GEL FILLED CRIMP JOINER TELEPHONE CABLE BUTT CONNECTOR 10 Pack



The easy way to connect 2 or 3 wires together. Simply insert into the connector, & squeeze with a pair of pliers. They are filled with sealant to provide moisture resistance. Commonly used to connect solid core wires in telephone systems.



  • No stripping of wire insulation required.
  • Grease Filled, Designed for use on Telephone Cable (Solid Conductor)
  • Wire Size Range (AWG):26-19
  • Primary Insulation Material: Polypropylene
  • Contact Material: Copper
  • Insulator Material: Polypropylene
  • Max Operating Temperature:140°C
  • Max Wire Area Size:0.9mm²
  • Max Wire Size AWG:19AWG
  • Min Temperature Operating:-40°C
  • Min Wire Area Size:0.4mm²
  • Min Wire Size AWG:26AWG
  • Termination Method: IDC
  • Wire Size:19AWG
  • Pitch:3mm
  • Wire Diameter:2.08mm
