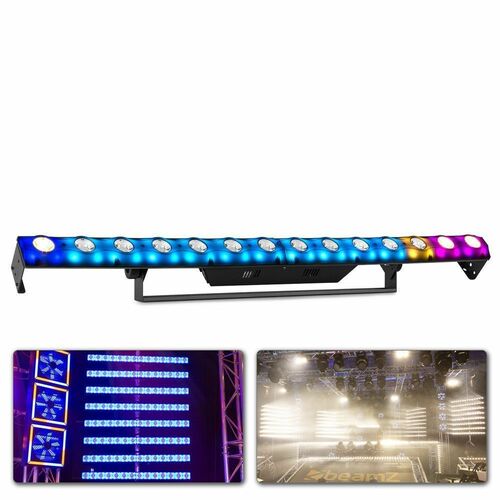

LCB14 Hybrid LED BAR Pixel Control

The LCB14 is a hybrid LED bar equipped with 14x 3W Warm White LEDs and 56x SMD RGB LEDs for spectacular backlight effect. The LEDs can be programmed in single pixels for stunning chase effects. While using the fixture in stand-alone mode there are pre-programmed shows that you can run automatically or sound activated. It’s also possible to create your own mixture of colours in RGB mode (for background light). The extra power connector output enables you to simply link the power of multiple units together into a single socket.



  • 14x 3W Warm White LEDs for sharp 5° beams
  • 56x SMD RGB LEDs (backlight)
  • Single pixel control
  • Built-in programs
  • Silent operation, natural convection cooling system.
  • Multifunctional bracket (floor and truss mounting)
  • Electronic Dimming: 0 - 100%
  • Power Connector input/output
Specifications
Lightsource Single colour LED, 3-in-1 LED
LED Colours Red, Green, Blue, Warm White
LED Power (W) 3W
Quantity of LEDs 14
LED Power:Backlight (W) SMD
Quantity of Backlight LED's 56
Beam angle (degrees) 5
Field angle (degrees) 10
Flash rate per second 0 - 25Hz
DMX Channels 6, 8, 12, 60
DMX Connector 3-pin XLR
Modes Automatic programs, DMX
Power Plug Power-connector
Power consumption 1.0 - 0.4A
Power Supply 240VAC 50Hz
Dimensions (L x W x H) 1000 x 75 x 85mm
Weight (kg) 2,20
Accessories Mounting bracket, Power Cable

Pdficon Info / Manual

Pdficon Info / Manual
