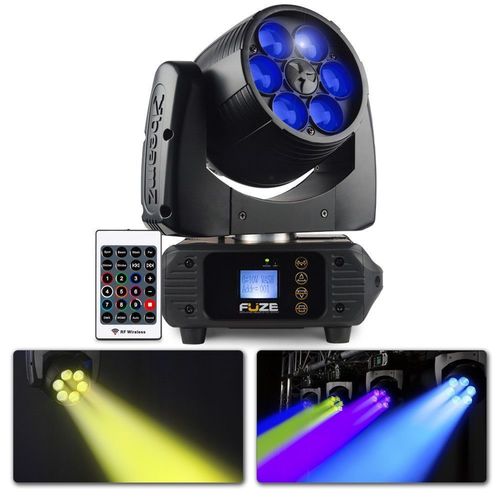

Fuze610Z Wash 6x 10W LED Moving Head Zoom


The Fuze610Z is powered by 6x 10W RGBW 4-IN-1 colour LEDs and is equipped with motorised zoom allowing for a variable beam angle from 2°- 24°. With the high-quality optics it’s also possible to combine all six light beams into one big, fat beam. Exact positioning is possible through 16-bit movement resolution (540-degree pan and 180-degree tilt). The fixture is designed in a compact housing and is ideal for lighting designers, DJs, bands, clubs, bars and installations where small footprint and low weight is critical. It can be controlled by DMX, with sound activation or used in standalone mode with the Master/Slave function.



  • 6x 10 RGBW LEDs
  • 13 or 15 DMX channels
  • DMX and Stand-alone mode
  • Master/slave synchronization
  • Sound activated with adjustable sensitivity
  • Auto mode
  • Beam angle 2°-24°
  • Electronic linear zoom
  • 0-100% Electronic Dimmer
  • Strobe: 1-21Hz
  • Automatic pan/tilt correction
  • Reset function
  • Control panel with LCD display
  • DMX in/output via 3-pin XLR
  • Powerconnector input
  • Quick lock omega clamp included
  • DMX cable included
  • Powerconnector cable and safety cord included
  • Included remote control
Lightsource 4-in-1 LED
LED Colours Red, Green, Blue, White
LED Power (W) 10
Quantity of LEDs 6
Dispersion 1° - 24°
Illuminance (lx) 39.000lx@1m
Head movement:Pan 630
Head movement:Tilt 270
Flash rate per second 1 - 21Hz
Modes Automatic programs, DMX, Master/Slave
Sound to Light mode Yes
DMX Channels 13, 15
DMX Connector 3-pin XLR
Display LCD
IP rating IP20
Cooling Temperature controlled fan
Power Plug Power-connector
Power consumption 1.1 - 0.6A
Power Supply 240VAC 50/Hz
Dimensions (L x W x H) 240 x 230 x 260
Weight (kg) 4,45
Accessories DMX Cable, Mounting bracket, Power Cable, Remote control, Safety cord
