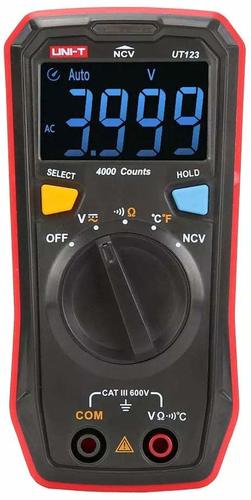

UT123 Pocket-sized Home Multimeter

UT123 Pocket-sized Home Multimeter

The UT123 is a pocket-sized residential multimeter designed for home use. The compact structure makes it easy to hold in one hand, and the EBTN screen allows users to obtain clear readings at maximum angle, it is also great for working in dark environments.    *NCV voltage values above are tested at contact distance (0cm) from the test object, it is used for reference only. When meter is at some distance away from test object, NCV indication light may change to the weaker voltage color

Specifications	Range	UT123
DC Voltage	4V/40V/400V/600V	±（0.5%＋2）
AC Voltage	4V/40V/400V/600V	±(1.0%+3)
Resistance	400Ω/4kΩ/40kΩ/400kΩ/4MΩ/20MΩ	±(0.8%+2)
Temperatue	–40℃～ 300℃/–40℉～ 572℉	±4℃
Features
Display Count		4000
Autol Range		√
NCV		√
Continuity Test		√
Acousto-optic indication(NCV/continuity/battery power)		√
Low Battery Indication	≤2.7V	√
Data Hold		√
Auto  Power Off	15Min	√
Operation Temperature		0℃～40℃
Safety		CAT III 600V
General Characteristics
Power	1.5V battery (R03) x 2
Display	44mm × 26mm
Product color	Red and grey
Product net weight	130g
Product size	130mm x 65m x 28mm
Standard accessories	Batteries,  Thermocouple
Standard individual packing	Gift Box, Manual
