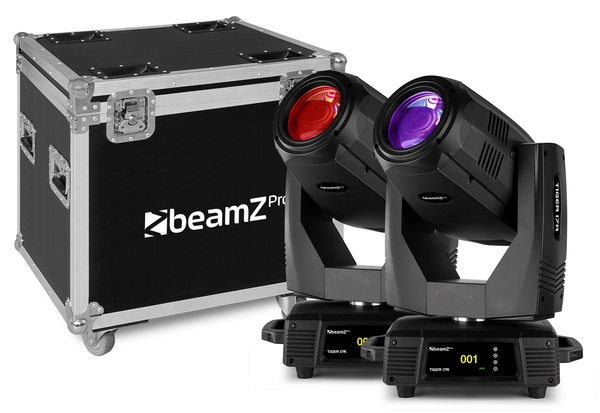

Tiger 17R Beam/Spot 350W Moving Head 2pcs in Flightcase
2pcs in Flightcase
Product Code: 150.398
$3999.00
available for orders between $0.04 to $2000.00. Info
Set of 2 professional 17R 2-in-1 moving heads with bright output due to the use of the 17R 350W high intensity discharge bulb. Equipped with a colour, frost, gobo and double prism effect wheel for ultimate control. The Tiger 17R moving head works both in DMX or stand-alone mode. When operating in DMX mode you have complete control with 16 or 20 DMX channels. Among its features are an mechanical shutter and adjustable speed strobe, frost filter, rotation prism, motorized focus and mechanical dimmer. Delivery in a customized flight case.
- 2-in-1: Beam and Spot
- 350W 17R High Intensity discharge bulb included
- Gobo Wheel : 14 static gobos + 9 rotating replaceable glass gobos
- Colour Wheel: 13 Colours + open
- Gobo shake effect
- Frost effect filter
- Prisms: rotatable 6 facet prism + rotatable 8 facet prism
- Motorized focus
- Mechanical shutter and adjustable speed strobe effect (1-13 x per sec)
- Dimmer: 0 – 100% linear dimmer
- 16 or 20 DMX Channels
- DMX, Auto mode and Master/Slave function
- Automatic pan/tilt correction
- Pan: 540° and Tilt: 250° Movement
- With pan/tilt lock mechanism
- Pan/Tilt Resolution: 16bit
- Control panel with LCD display
- Battery function (mains power not required for fixture setup)
- DMX in/output via 3-pin XLR
- Powerconnector input/output
- Quick lock omega clamp included (2x)
- DMX cable included
- Powerconnector cable included
| Colour temperature | 8000K |
|---|---|
| Lightsource | MSD 17R 350W bulb |
| Colour wheel | 13 colours + open |
| Dispersion: Beam | 5° |
| Dispersion: Spot | 17° |
| Dispersion: Wash | 17° - 43° |
| Zoom | Yes |
| Illuminance (lx) | 145.000lx@10m |
| Head movement:Pan | 540 |
| Head movement:Tilt | 270 |
| Static gobo: Quantity | 14 |
| Rotating gobos: Quantity | 9 |
| Gobo Shake | Yes |
| Interchangeable Gobos | Yes |
| Gobo dimensions | 15.8mm |
| Prisma 1 | 6 Facet |
| Prisma 2 | 8 Facet |
| Frost filter | Yes |
| Flash rate per second | 1 - 13Hz |
| Modes | Automatic programs, DMX, Manual, Master/Slave |
| Sound to Light mode | Yes |
| DMX Channels | 16, 20 |
| DMX Connector | 3-pin XLR |
| Display | LCD |
| IP rating | IP20 |
| Cooling | Temperature controlled fan |
| Power Plug | Power-connector |
| Power consumption | 3.2 - 1.8A |
| Power Supply | 240VAC 50Hz |
| Dimensions (L x W x H) | 420 x 300 x 635mm |
| Weight (kg) | 60,00 |
| Weight:each (kg) | 20.6 |
| Accessories | DMX Cable, Mounting bracket, Power Cable |
