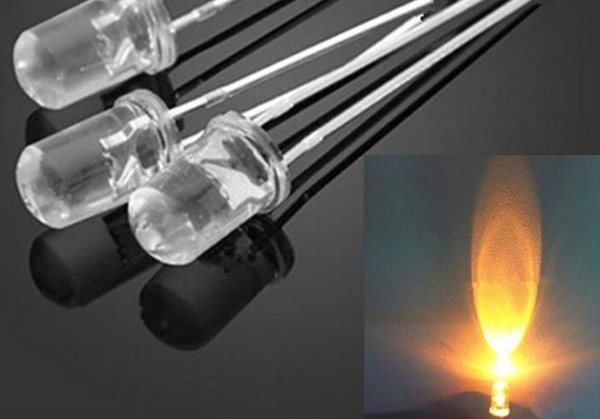

LED Candle Flashing
5mm
Product Code: LA0250
Specifications
| Type | 5mm Candle flash Yellow LED |
|---|---|
| Colour | Yellow Blinking Candle Light |
| Size (mm) | 5mm |
| Lens | Transparent / Round |
| Forward Voltage (V) | 1.8V-2.4V |
| Wavelength | 585-590NM |
| Reverse Current (uA) | <=30 |
| Luminous Intensity Typ Iv (mcd) | Average in 8000 |
| Life Rating | 100,000 Hours Viewing |
| Angle | 20 ~ 25 Degree |
| Absolute Maximum Ratings (Ta=25°C): | |
| Max Power Dissipation | 80mw Max Continuous |
| Forward Current | 20mA |
| Max Peak Forward Current | 75mA |
| Reverse Voltage | 5~6V |
| Lead Soldering Temperature | 240°C (<5Sec) |
| Operating Temperature Range | -25°C ~ +85°C |
| Preservative Temperature Range | -30°C ~ +100° |
