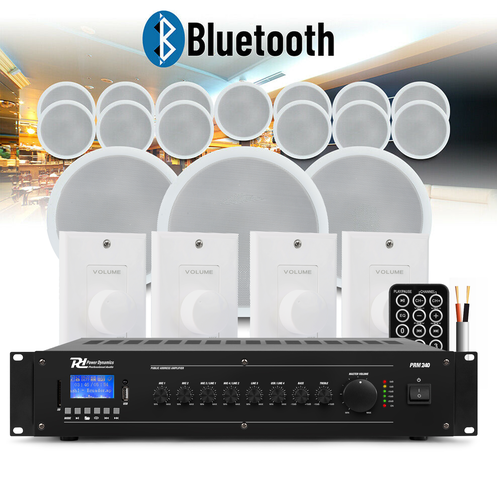

Mixer-Amplifier & 16 Speaker Bundle with 4 zone control
6 Channel 240W Bluetooth Amplifier & Cable
Product Code: 952.154SET16
$899.00
Pay it in 4 payments of $224.75 with
Bundle Contains:
- PRM240 Amplifier x 1
- 952.533 Speaker x 16
- 952.570 volume control x 4
- 801.818HO Speaker cable 100m Roll x 1
Note: if speakers are set on 10w tapping there should not be more than 4 on one single wall control. (40 - 45w max per circuit)
PRM240 100V 6-CH Mixer-Amplifier 240W
The PRM series is a series rack-mountable amplifiers that can either be used as 100V amplifier or as a standard low-impedance amplifier. These amplifiers are equipped with BT receiver and USB/SD ports for MP3 playback including a bright LCD display with ID3 Tag. All PRM amplifiers are also provided with a switchable XLR input with 24V Phantom Power, especially for paging and condenser microphones. Especially designed for applications such as paging, announcements, intercommunications, background music, broadcasting in industrial plants etc.
- 240W 100V 6-Channel mixer amplifier
- MP3 Player with USB/SD slots
- Using BT wireless technology for audio streaming
- LCD control panel with ID3 tag
- 2x Mic/line inputs 6.3mm Jack, 2x RCA line inputs and 1x RCA line output
- 2x XLR microphone inputs with switchable phantom power (24V) and VOX priority
- 100V or 8 Ohm speaker output
- Bass and treble controls
- 19" Rack mountable (2U)
- Emergency operation by 24V battery (not supplied)
- Protections: Overheat, short circuit and power on delay
- Emergency mute input
- Including remote control
Specifications
| Playback options | BT Streaming, SD-Card, USB |
|---|---|
| Output power:RMS | 240W |
| Impedance | 100V or 8 ohm |
| Frequency Response | 50Hz - 18.000Hz |
| Signal-to-noise ratio | >75dB |
| Signal-to-noise ratio:Line | >85dB |
| Signal-to-noise ratio:Mic | >72dB |
| Power Supply | 240VAC 50Hz |
| Input level:Line | 150-470mV, 10kOhm |
| Input level:Mic. | 5-8mV, 600Ohm |
| THD | <0,5% |
| Dimensions (L x W x H) | 432 x 88 x 345mm |
| Weight (kg) | 9,10 |
| Accessories | Power Cable |
952.533 Ceiling Speaker 100V 6.5"
This ceiling speaker allows good reproduction quality. The fitted high-quality 100V matching transformer prevents every loss of perfect hearing quality. The model is made of ABS material and is suitable for installation in restaurants, bars, showrooms etc.
- Perfect sound quality
- 100V operation
- Supplied per piece
| Diameter woofer | 6.5" |
|---|---|
| Frequency Response | 90Hz - 16kHz |
| SPL @ 1W/1m | 89dB |
| Mounting depth | 77mm |
| Mounting diameter | 160mm |
| Dimensions (L x W x H) | 188ø x 85mm |
| Weight (kg) | 0.70 |
