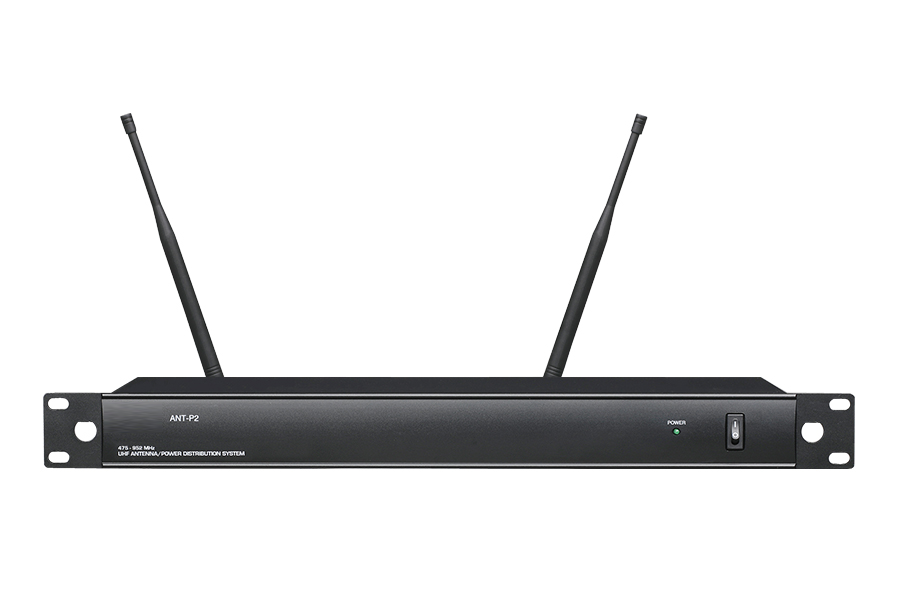

UHF Antenna Distribution Amplifier System
Frequency range 475-952MHz
Product Code: ANT-P2
ANT-P2 is the UHF antenna distribution system with compensate function. When used with a pair of external receiving antenna, this can offer at most 4 pairs of eight- way radio-frequency signal output and one pair of two-way cascade radio-frequency signal output. Antenna input connector can provide 15V 250mA DC bias, and with current overload protection function.
- Frequency Range: 475-952MHz
- Provide 2~4 kinds of self-motion receivers share one pair of antenna system, can avoid radiated interference amount antennas, increase receiving distance and efficiency
- With ultra-low internal adjustment distortion and lost feature, can avoid mixing frequency interference while multi-channel receiving system working
- Use for antenna amplifier bias DC output port (DC15V 250mA)

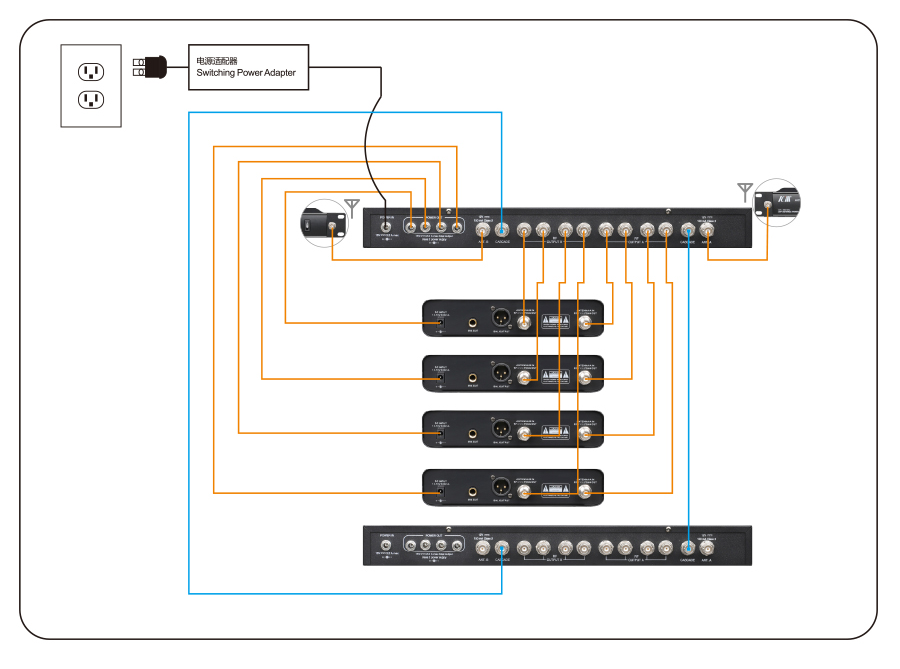

- Cascade output port can connect another antenna distribution system input port, or provide self-motion receiver antenna input
| Frequency Range： | 475-952MHz |
| Antenna Distribution： | Two groups of active one to four allocation outputs and two groups of active adjustable one to one cascaded outputs |
| RF Output Port Gain： | -4dBm、0dBm、+4dBm、+8dBm |
| RF Cascade Output Port Gain： | +1dBm |
| Output/Input Impedance： | 50Ω |

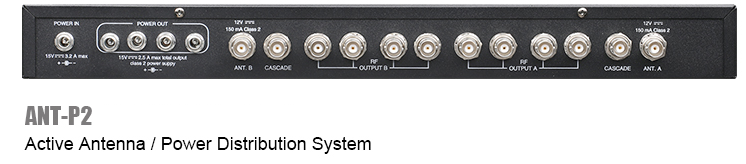

| Antenna Input Output Connector： | BNC Socket |
| Power Supply： | 5-40V |
| Current Consumption： | 100mA（in 12V DC output, unbiased output) |
| Dimensions（mm）：） | 482（L）x155（D）x44（H |
| Weight（kg）： | 1.6 |
