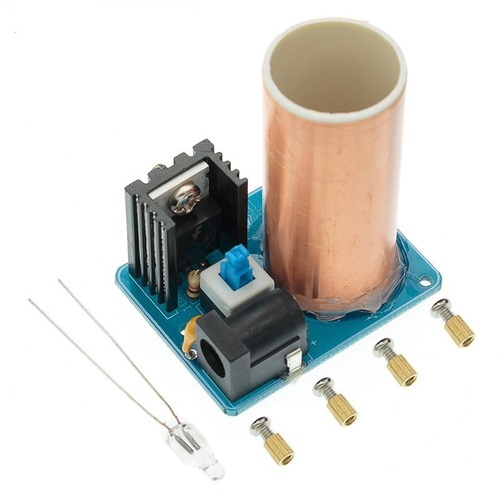

Mini Tesla Coil Kit

Input voltage: 9-12V

Product Code: KIT0100

$5.80

Pay it in 4 payments of $1.45 with Afterpay

Store Stock:
Henderson In Stock
Albany Low Stock - call to confirm
Jump to:
Videos

BD243C DIY Mini Tesla Coil Module

Input voltage: 9-12V, can be started with 9V battery, but to create an arc, the working voltage needs 12V.

PCB board size: 4CM*3.1CM

Important assembly tip. Solder the silver tip coil wire to the board hole

DIY Kit Included:



1 x PCB board

1 x Coil

2 x 3MM LED Blue

1 x DC005 seat

2 x 105 monolithic capacitor

1 x 8*8 self-locking switch

2 x 10K resistor

1 x 15*10*20 small heat sink

1 x 3*6 screw

1 x BD243

1 x Bubble

4 x M2*4 screw

4 x M2*7 double pass copper column

Tesla coils produce high-temperature and high-pressure plasmas, can ignite, wirelessly transmit electricity, illuminate fluorescent lamps, and have wonderful arcs. Very interesting scientific experiments an principals. Tesla Coil is a transformer that operates on the principle of resonance (resonance transformer)
