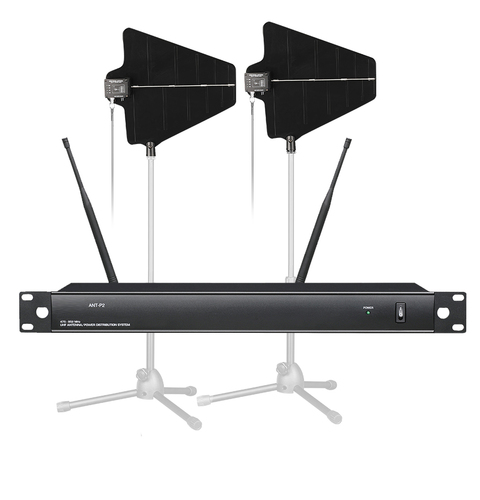

Active Antenna Paddle system for Wireless Mic
with Distribution amp and Cables
Product Code: ANT-P
This bundle includes 2 high-gain active paddles, Dual 4 way Distribution amplifier with cascade function and DC distribution to power your receivers (depending on voltage)
The high gain active paddles allow you to place antennae in a better place away from your equipment.
Comes with 2 x 7.5m long antenna cables between the paddles and distro.
Distribution amplifier:
ANT-P2 is a UHF antenna distribution system with compensate function. When used with a pair of external receiving antenna, this can offer at most 4 pairs of eight- way radio-frequency signal output and one pair of two-way cascade radio-frequency signal output. Antenna input connector can provide 15V 250mA DC bias, and with current overload protection function.
- Frequency Range: 475-952MHz
- Operate 2 to 4 diversity receivers with one pair of antenna
- Can avoid radiated interference from local equipment by placing paddles at ideal separationcefficiency .
- With ultra-low internal adjustment distortion and loss feature, can avoid mixing frequency interference while multi-channel receiving system working
- Use for antenna amplifier bias DC output port (DC15V 250mA)
- Cascade output port can connect another antenna distribution system input port.
| Frequency Range： | 475-952MHz |
| Antenna Distribution： | Two groups of active one to four allocation outputs and two groups of active adjustable one to one cascaded outputs |
| RF Output Port Gain： | -4dBm、0dBm、+4dBm、+8dBm |
| RF Cascade Output Port Gain： | +1dBm |
| Output/Input Impedance： | 50Ω |
| Antenna Input Output Connector： | BNC Socket |
| Power Supply： | 5-40V |
| Current Consumption： | 100mA（in 12V DC output, unbiased output) |
| Dimensions（mm）：） | 482（L）x155（D）x44（H |
| Weight（kg）： | 1.6 |
Paddle Antennas:
ANT-P1 is an external directional wide band active antenna, adopts log periodic dipole array. 475-952MHz frequency range.
With -4~+8 dBi high-directional feature, can achieve optimum reception in coverage area. Can be fixed on to a microphone stand or bracket (or other mounting methods )
Compatible with UHF wireless receiver and antenna distribution system.
- High reliability and durability
- Good waterproof function
- Apply to inside or outside environment
| Frequency Range： | 475-952MHz |
| Impedance： | 50Ω |
| Antenna Gain： | -4~+8dBi |
| VSWR： | ≦2︰1 |
| Receiving Mode（3dB beamwidth）： | 70° Vertical polarization |
| Connector： | BNC |
| Dimensions（mm）： | 355x330 |
| Weight（kg）： | 0.35 |
