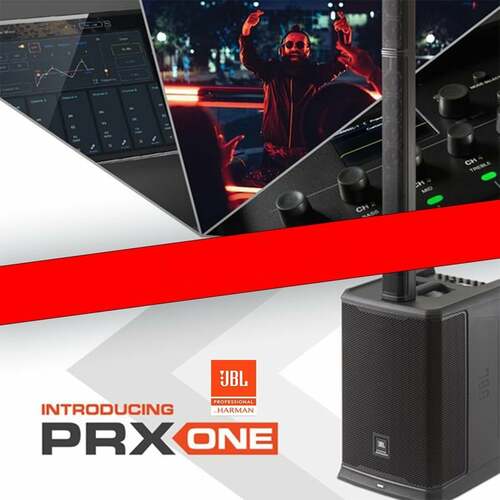

JBL PRXONE All-in-one 2000W Column PA with 7CH Mixer
with Bluetooth & full suite of dbx and Lexicon effects
Product Code: JBL-PRXONE
available for orders between $0.04 to $2000.00.
The JBL PRX ONE all-in-one powered PA features an acoustically optimized column array featuring a 7-channel digital mixer, a full suite of professional DSP, class-leading audio connectivity, Bluetooth functionality and JBL Pro Connect universal app control.
Enjoy unmatched power and performance in a sleek, compact package: PRX ONE delivers a stunning 130 dB of wide, full-bandwidth coverage with consistent front-to-back throw, thanks to its customengineered 12-tweeter column array featuring JBL AIM acoustic technology, 12-inch bass-reflex woofer and built-in 2,000-watt (peak) amplifier.
Dial in great sound fast, with fewer pieces of gear, using PRX ONE’s full suite of professional Lexicon and dbx effects including reverb, delay, compression and dbx DriveRack Inside featuring AFS Pro Automatic Feedback Suppression.
Connect microphones, instruments, mobile devices and wireless rigs using PRX ONE's versatile I/Os (featuring dedicated phantom power and Hi-Z inputs and pro-grade Neutrik connectors) and sophisticated Bluetooth 5.0 features.
Work faster and easier with an intuitive Soundcraft-designed dual-mode digital mixer that can be set to general mix functions or channel-strip control, all controllable via app or a built-in color LCD. PRX ONE is ideal for DJs, musicians, entertainment venues, corporate presenters, rental companies and houses of worship.
It’s the perfect solution for anyone who demands best-in-class power, acoustic performance, creative control and connectivity in a stylish, full-featured column PA that’s ideal for both installed and portable applications.
Superior Acoustic Performance – 2000W with clarity, low bass (35Hz), superior output (130dB), 135° x 40° dispersion JBL A.I.M. Acoustic Technology – (Array Inumbration Mechanics) geometrically optimized array-shading technology provides controlled, consistent front-to-back coverage.
Extensive I/O – 7-channel digital mixer with 4 XLR combo jacks, phantom power, Hi-Z, BT audioEffects – full suite of dbx and Lexicon effects Connect App and Bluetooth 5.0 – best-in-class control, performance, connectivity, and range For full features please click on spec sheet.
IN THE BOX
- PRX Powered Column PA System
- 3m/10ft IEC
- Padded Array Carrying Bag
- Quick Start Guide
TECHNICAL SPECIFICATIONS
| SYSTEM TYPE: | Powered Column PA Speaker |
| WOOFER SIZE: | 12” |
| TWEETER SIZE: | 2.5” |
| TWEETER COUNT: | 12 |
| MAX SPL: | 130dB |
| FREQ RANGE -10: | 35-20kHz |
| FREQ RANGE -3: | 40-20kHz |
| HOR DISPERSION: | 130° |
| VERT DISPERSION: | 30° |
| POWER RATING: | 2000W Peak 1000W RMS |
| AC POWER INPUT: | 300W 100-230V AC 50-60Hz |
| INPUT IMPEDENCE: | 4kΩ balanced Combo |
| 2MΩ balanced Hi-Z Jack | |
| 2MΩ balanced Hi-Z Jack | |
| 10kΩ 3.5mm single ended 2 channel. | |
| 10kΩ 3.5mm single ended 2 channel. | |
| CROSSOVER FREQ: | 260Hz |
| I/O: | 4 XLR Combo Jacks |
| 2 1/4” Hi-Z 1 | |
| 1/8”/BT Summed | |
| 1 XLR Pass Through | |
| CABINET: | PP |
| NET WEIGHT: | 25.7kg |
| GROSS WEIGHT: | 31.75kg |
| DIMS: | W482mm x D647mm x H850mm |
