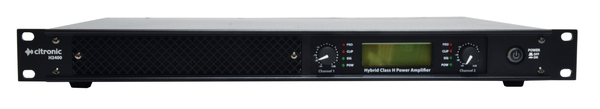

H2400 Hybrid PA Amplifier

H2400 Hybrid Amp 2x900W @ 4ohm

Lightweight power amplifiers in a 1U rack-mountable housing for generating high sound pressure levels in medium to large sound reinforcement systems. H-series amplifiers employ a new hybrid class-H architecture, which combines the streamlined efficiency of a digitally controlled power section design with the power delivery and stability of a professional class-AB output stage. Comprehensive internal protection monitors any thermal or overload conditions, automatically mutes at power on/off and provides active inrush limiting. A digital display continually shows the supply voltage, internal temperature and output level. A fully balanced signal path has 3 switchable input sensitivity levels to match different audio sources and the amplifier section can be set to operate in Stereo, Parallel or Bridge modes.

Speaker outputs can be connected using 1 or 2 Speakon leads as required. H-series amplifiers provide immediate and dynamic power on demand for sound contractors and PA installers that need dependable service with optimum sound quality.

  Power supply    240Vac, 50Hz (IEC)
Amplifier : construction   Hybrid Class-H
Protection  Short/open circuit, thermal, RF, DC fault, on/off mute, active inrush limiting.
Frequency response    20Hz-20KHz ±0.5dB
THD +N     0.2% S/N ratio     -95dB
Damping factor      >700
Input sensitivity    1.0V - 1.4V - 2.0V switchable
Input impedance    20Kohm (balanced),10Kohm (unbalanced)
Dimensions     483 x 361 x 44 mm (1U)

		172.124UK
Fuse		T8AL 250V
Power rms @ 8 Ohms		2 x 600W
Power rms @ 4 Ohms		2 x 900W
Power rms @ 2 Ohms		2 x 1200W (40ms burst 1kHz sine)
Power rms bridge @ 8 Ohms		1800W
Power rms bridge @ 4 Ohms		2400W (40ms burst 1kHz sine)
Weight		7.0kg
