100V Mixer-Amplifier 45 Watt
with 10 Speakers, Volume Control and 100m of Cable
Product Code: 952.078P1
$429.00
Pay it in 4 payments of $107.25 with
Ready to Install!
1 x PDM45 100V Mixer-Amplifier with BT and media player 45W
10 x CSPB5 Ceiling Speaker 100V 5" , 4 set to 6W and 6 set to 3W.
1 x RX12 Speaker cable Round 2x 1.5 black 100M
1 x PD VOL50 100V Volume Control 50w (flush box required)

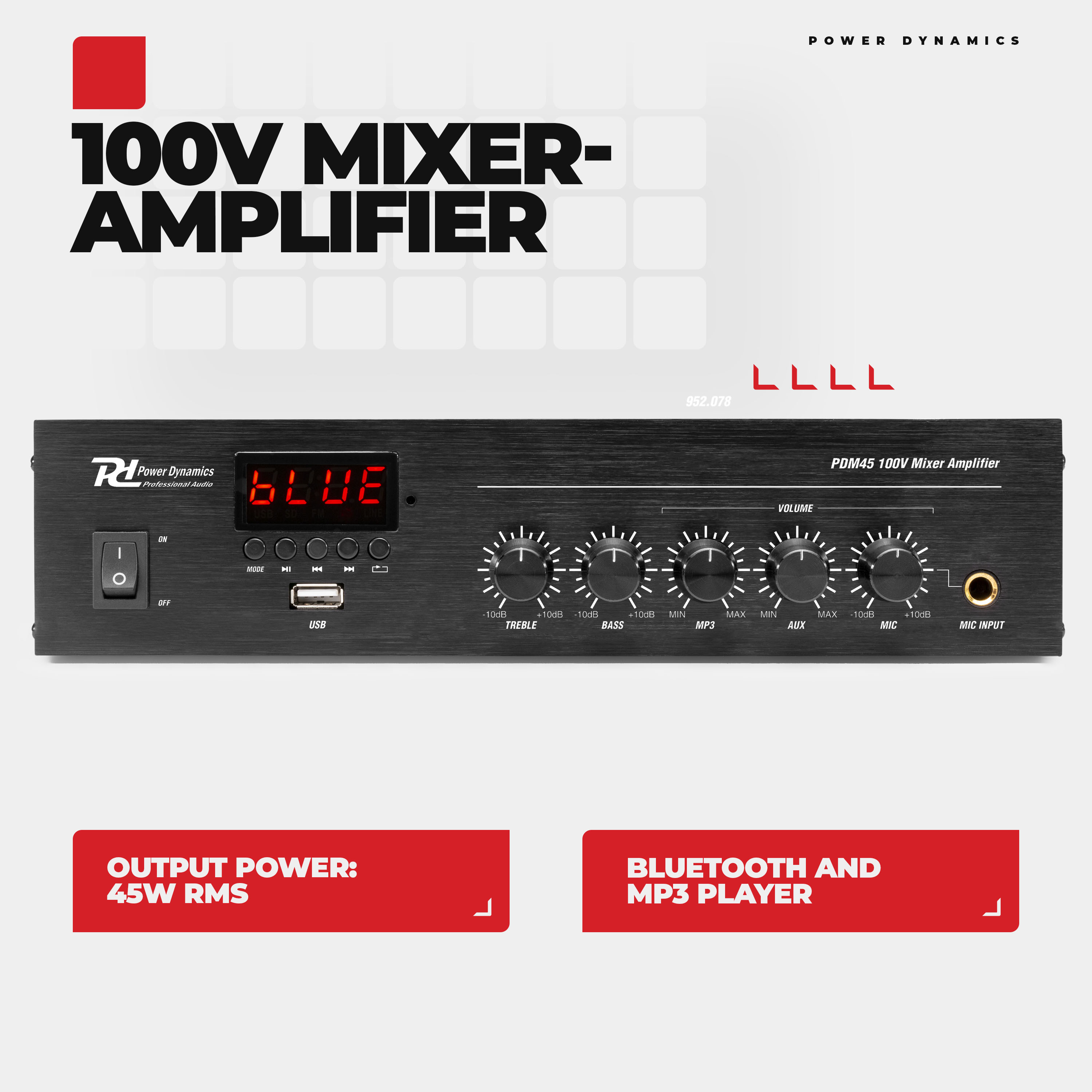

PDM45 100V Mixer-Amplifier with BT and media player 45W
The PDM-series is a range of compact 100V amplifiers offering a range of comprehensive features, excellent performance and reliability for use in a wide variety of small to medium installations. All models have a Built-in USB/FM media player and are also equipped with BT connectivity. These digital amplifiers are constructed in a strong metal cabinet and are suitable for 100V or 4-16 Ohm speakers systems. A perfect All-in-one solution for a competitive price!

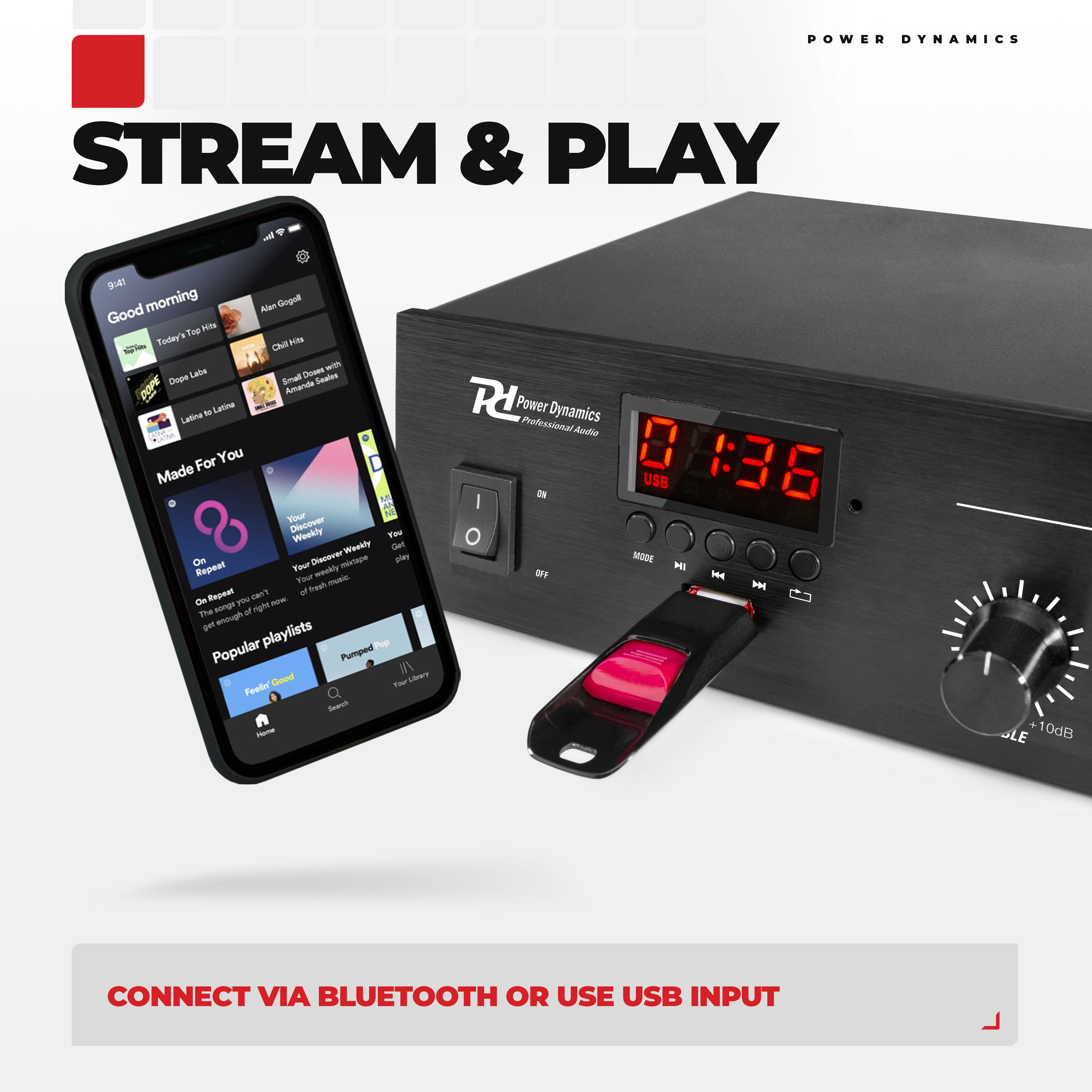

- Built-in USB player and FM tuner
- Output power: 45Wrms
- BT connectivity
- Bass and Treble control

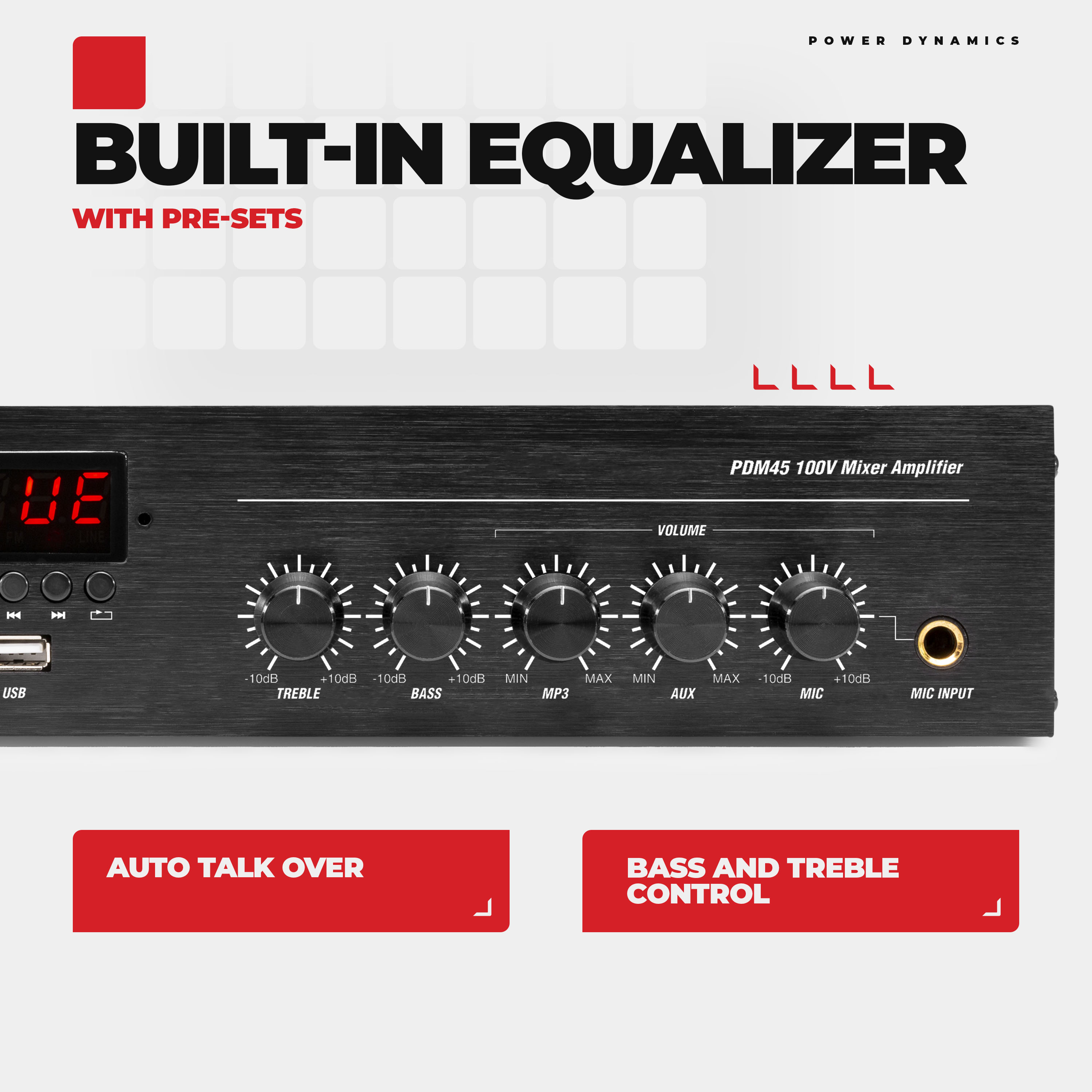

- Built-in Equalizer with pre-sets

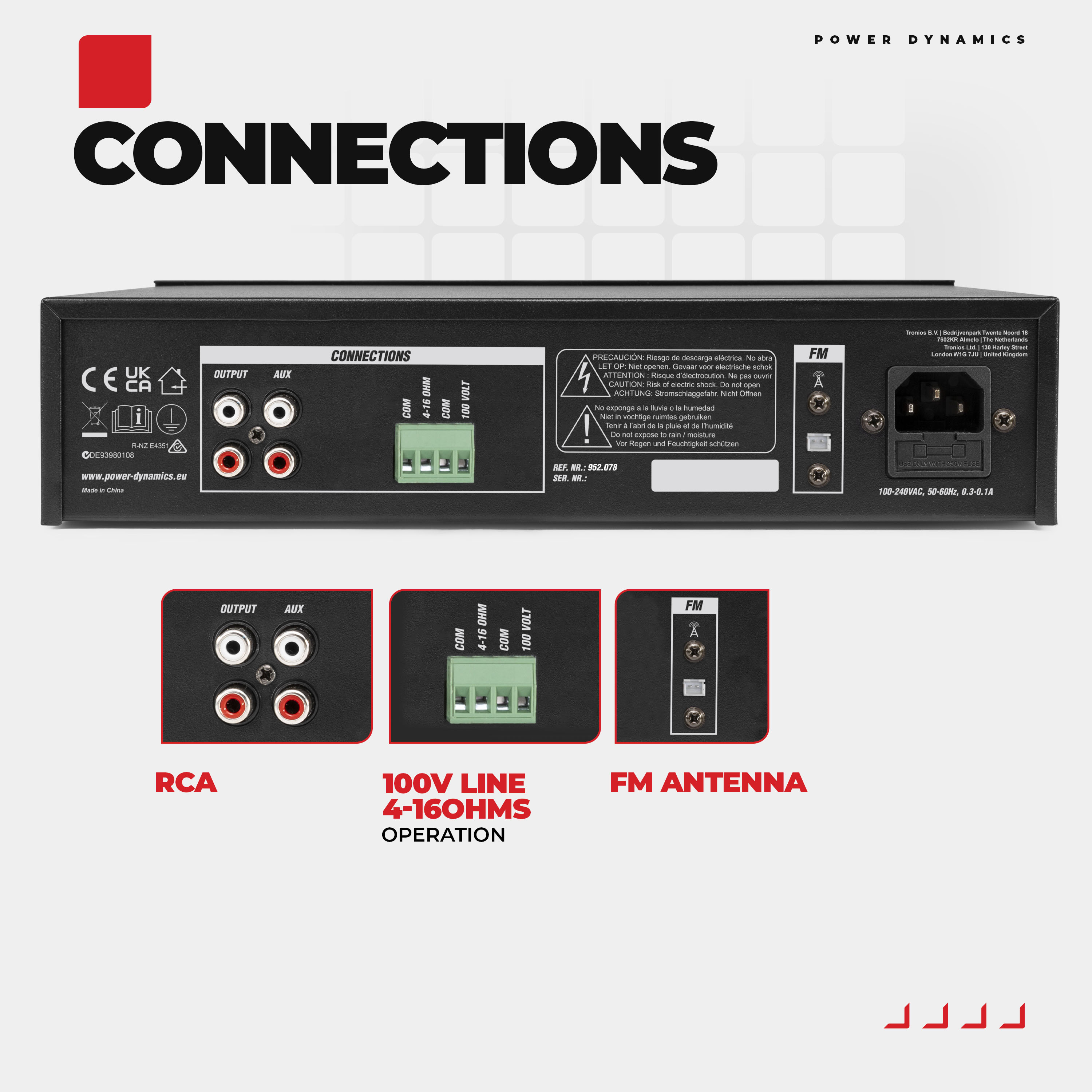

- 100V line or 4-16 Ohms operation
- Auto talk over
- Aux output for slave amplifier

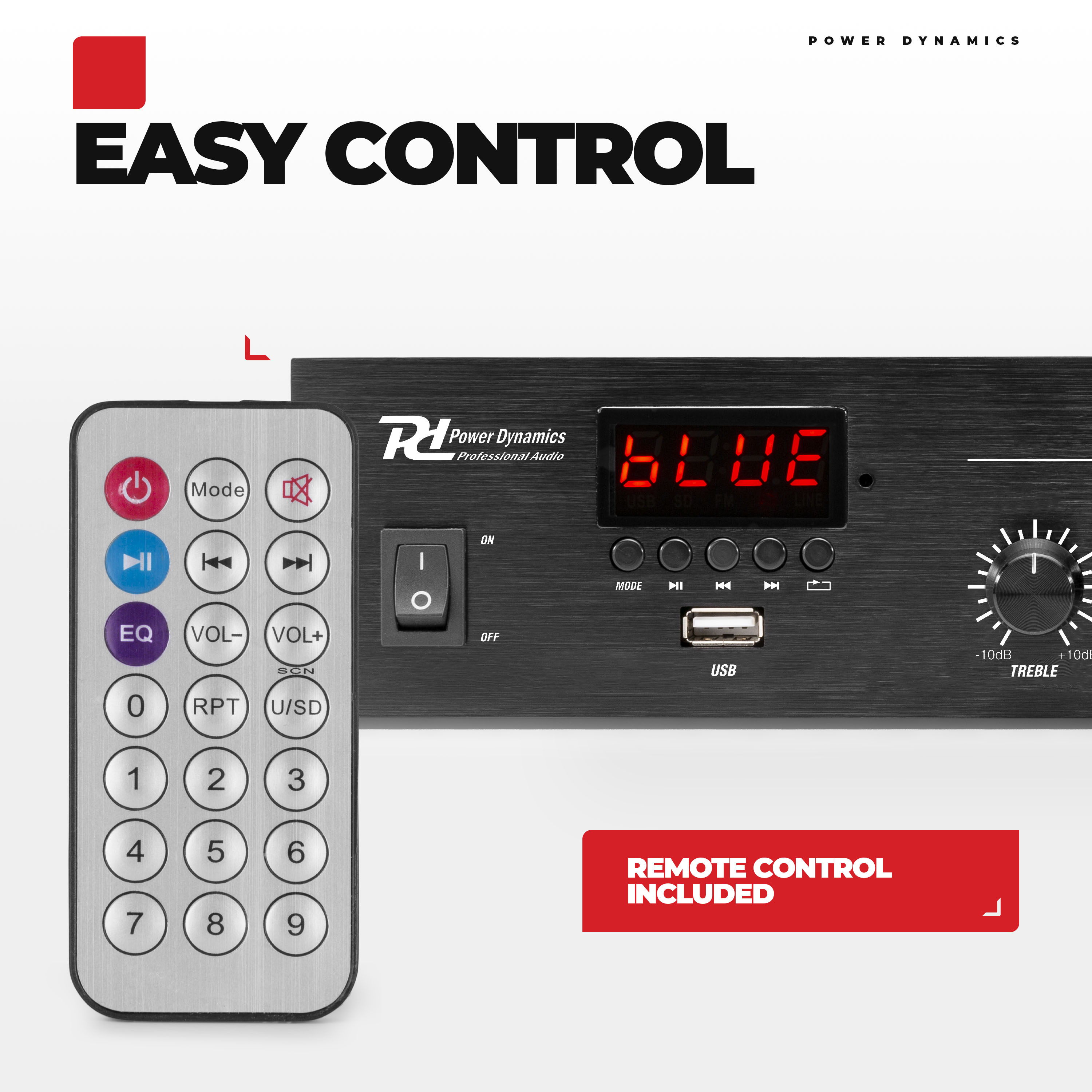

- IR-remote control
Specifications
playback options | BT Streaming, FM-Radio, USB |
---|---|
Output power:RMS | 45W |
Impedance | 100V, 16ohm, 4ohm, 8ohm |
Frequency Response | 50Hz - 18.000Hz |
Signal-to-noise ratio | >75dB |
Power Supply | 250VAC 50Hz |

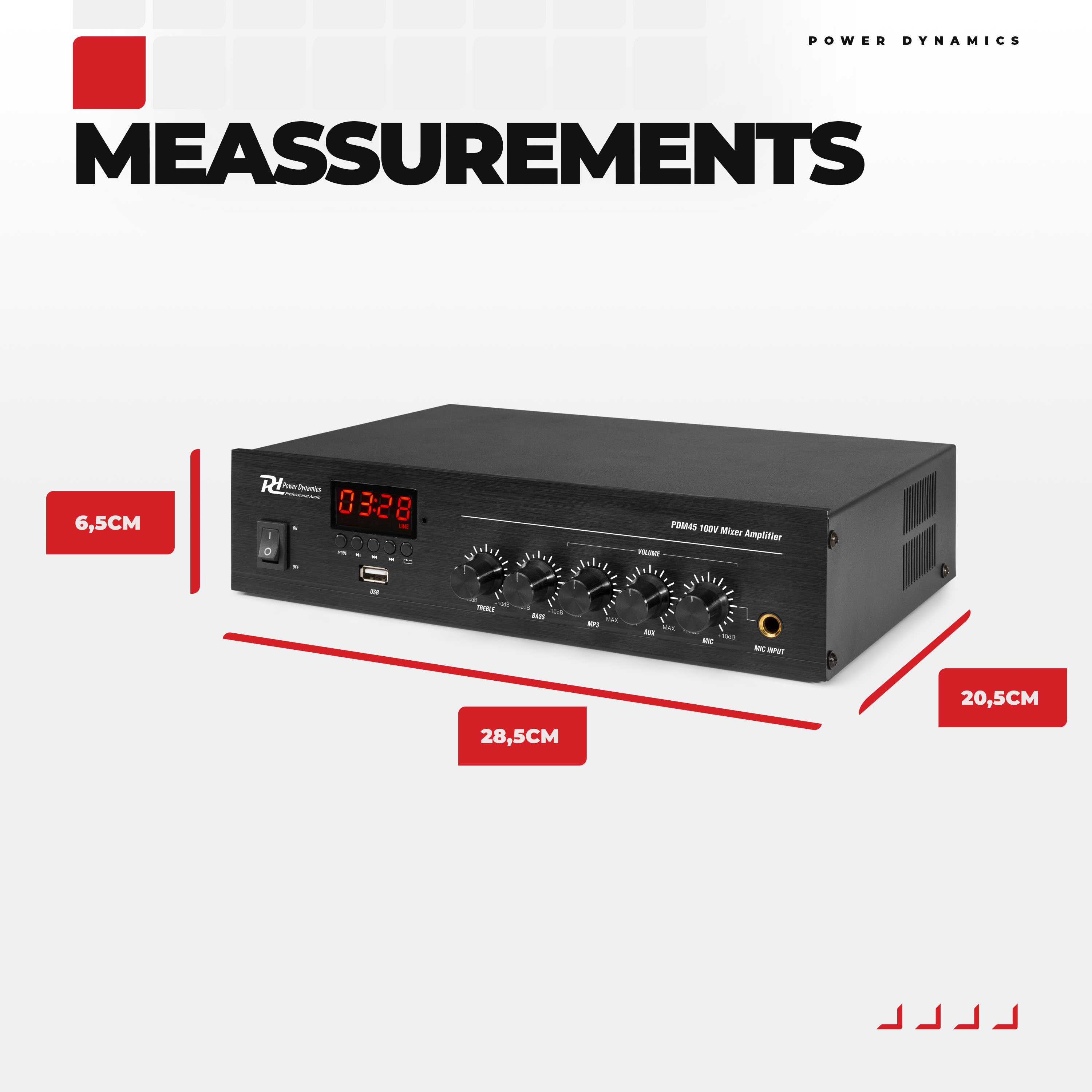

Dimensions (L x W x H) | 205 x 285 x 65mm |
Weight (kg) | 1,85 |
Accessories | Power Cable, Remote control |
CSPB5 Ceiling Speaker 100V 5"
This ceiling speaker allows good reproduction quality. The fitted high-quality 100V matching transformer prevents every loss of perfect hearing quality. The model is made of ABS material and is suitable for installation in restaurants, bars, showrooms etc.
- Perfect sound quality
- 100V operation
- Supplied per piece
Diameter woofer | 5" |
---|---|
Frequency Response | 90Hz - 16kHz |
SPL @ 1W/1m | 89dB |
Mounting depth - 0mm | 58mm |
Mounting diameter - 0mm | 150mm |
Dimensions (L x W x H) | 175Ø x 70mm |
Weight (kg) | 0,60 |
Speaker cable Round 2x 1.5 black 100M
Heavy duty 2 core speaker cable suitable for 100V line PA speaker installations.
Stranded copper conductors with red and blue inner insulation .
SPECIFICATIONS
CSA | 1.5mm2 |
Conductor | 2x 45/0.2mm |
Sheath | Black |
Polariteit | Red & Blue |
Outerdiameter | 6.5mm |
100 Volt PA Volume control 50 Watt stereo with white mounting plate. Suitable for surface and flush mounting.
- Audio transformer for 100 Volt use
- Adjustable volume control in 10 steps and off position
- White (RAL9010) plastic front panel, knob and mounting plate
- Mounting depth 62 mm
- Screw connection
Power max. | 50W |
Mounting depth | 62mm |
Dimensions | 80 x 70 x 115mm |
Weight | 0.35kg |
