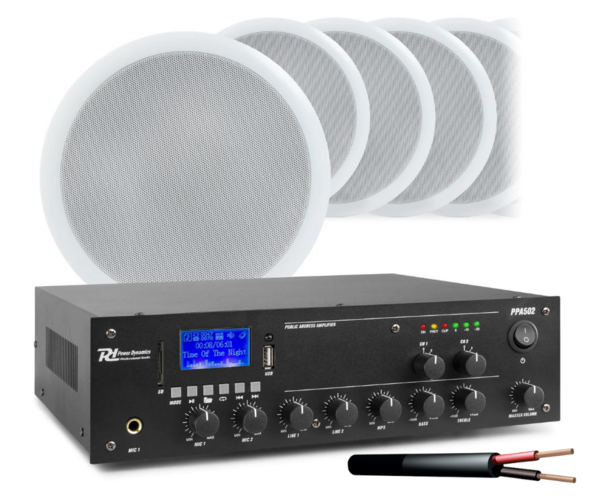

2-Zone 100V Mixer-Amplifier 50 Watt

with 10 Speakers and 100m of Cable

Product Code: 952.084P1


Pay it in 4 payments of $124.75 with Afterpay

Buy 1+ $499.00 (incl. GST)

Ready to Install!

1 x PPA502 100V Mixer-Amplifier 50W with BT and media player - 2 Zone

10 x CSPB5 Ceiling Speaker 100V 5" , For example 1 Zone - 2 Speakers set to 6W and 2 at 3W / 2 Zone - 6 Speakers set to 3W (Each Zone must not exceed 22.5W)

1 x RX12 Speaker cable Round 2x 1.5 black 100M


PPA502 100V Mixer-Amplifier 50W 2 Zones

The PPA502 is a 100V amplifier with 4/8 ohms, 70V and 100V outputs characterized by easy use, excellent performance and reliability and is therefore particularly suitable for a wide range of small and medium-sized installations. This range of amplifiers is equipped with a multimedia player (USB / SD ports and BT) for MP3 playback. It is also equipped with an equalizer (on the mp3 player), 2 microphone inputs, an auxiliary input and an external 12V connector too. The PPA502 is perfect for commercial environments which require complete control over 2 areas/rooms.

  • 50W PA amplifier with 2-zones
  • 2-Channel output, volume controllable per channel (6 steps)
  • MP3 player with USB and SD slot
  • BT receiver for Audio streaming
  • Built-in Equalizer on MP3 player
  • IR-remote control
  • 100V/70V or 4/8 Ohm
  • Bass, Treble and Master Volume control
  • 2 Microphone-/line inputs (6.3mm Jack)
  • 2 stereo line inputs (RCA)
  • Stereo RCA Line output
  • Telephone input
  • 240V mains or 12V for flexible operation


Output power:RMS 50W
Impedance 100V, 70V, 8ohm
Frequency Response 50Hz - 18.000Hz
Signal-to-noise ratio:Line >80dB
Signal-to-noise ratio:Mic >72dB
Power Supply 240VAC 50Hz
Weight (kg) 3,40
Accessories Power Cable, Remote control


CSPB5 Ceiling Speaker 100V 5"

This ceiling speaker allows good reproduction quality. The fitted high-quality 100V matching transformer prevents every loss of perfect hearing quality. The model is made of ABS material and is suitable for installation in restaurants, bars, showrooms etc.

  • Perfect sound quality
  • 100V operation
  • Supplied per piece
Diameter woofer 5"
Frequency Response 90Hz - 16kHz
SPL @ 1W/1m 89dB
Mounting depth - 0mm 58mm
Mounting diameter - 0mm 150mm
Dimensions (L x W x H) 175Ø x 70mm
Weight (kg)



Speaker cable Round 2x 1.5 black 100M

Heavy duty 2 core speaker cable suitable for 100V line PA speaker installations.

Stranded copper conductors with red and blue inner insulation .



CSA 1.5mm2
Conductor 2x 45/0.2mm
Sheath Black
Polariteit Red & Blue
Outerdiameter 6.5mm
