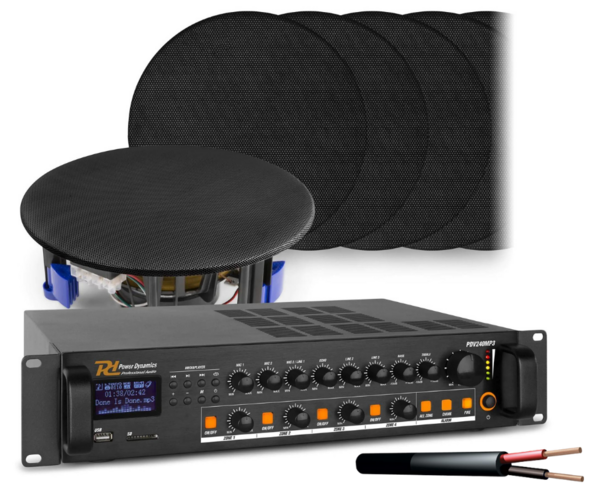

4-Zone 100V Mixer-Amplifier 240 Watt
with 24 Speakers and 200m of Cable
Product Code: 952.071P1
$1959.00
Pay it in 4 payments of $489.75 with
Ready to Install!
1 x PDV240MP3 100V Mixer-Amplifier, 4-Zone with BT and media player 240W
24 x NCSP6B Low Profile Ceiling Speaker 100V 6.5" , 6 Speakers each zone set to 7.5W (alternatively each zone must not exceed 54W.)
2 x RX12 Speaker cable Round 2x 1.5 black 100M
The PDV series is a range of fully featured, high power mixer amplifiers with 4 zone outputs, each with separate 6-step volume controls. This series amplifiers features an integral MP3 module with USB and SD Card slot, a FM tuner and internal Bluetooth receiver. Mic 1 channel has an override over all inputs and MP3 player. 24V contacts can be connected to a fire alarm panel for emergency evacuation if required. All models are designed with complete protection from overload to avoid any damage. This series of amplifiers is suitable for applications in a bank, town hall, supermarket, school, hotel, restaurant, shopping centre or any other public space.
- PA amplifier with 4 zones, independently selectable and volume controlled
- Integral media player with FM Tuner, USB and SD slot
- Bluetooth receiver for audio streaming
- Overload protection
- Chime and Fire alarm over all channels
- Zone volume control over 6 steps
- Bass/Treble control
- 3x mic inputs and 3x line inputs
- Telephone paging
- 19" Mounting with the brackets possible (2U)
- Emergency operation by 24V battery (not supplied)
| Brand | Power Dynamics |
|---|---|
| Playback options | Bluetooth, FM-Radio, SD-Card, USB |
| Output power:RMS | 240W |
| Impedance | 100V, 8ohm |
| Frequency Response | 50Hz - 19.000Hz |
| Signal-to-noise ratio | >70dB |
| Power Supply | 240VAC 50Hz |
| Dimensions (L x W x H) | 415 x 318 x 88mm |
| Weight (kg) | 11 |
Speaker cable Round 2x 1.5 black 100M
Heavy duty 2 core speaker cable suitable for 100V line PA speaker installations.
Stranded copper conductors with red and blue inner insulation .
SPECIFICATIONS
| CSA | 1.5mm2 |
| Conductor | 2x 45/0.2mm |
| Sheath | Black |
| Polariteit | Red & Blue |
| Outerdiameter | 6.5mm |
NCSP6B Low Profile Ceiling Speaker 100V 6.5" Black
The NCSP series is a series of low profile ceiling speakers with a quick fit system for easy assembly. This high quality 2-way speaker is equipped with a metal flush fitting grille (with magnetic closure) and a 100V line transformer. Ideal for the installation of several speakers at longer distances.
- 100V Ceiling speaker
- Magnetic fit steel grille
- Slim low-profile speaker grille for a sleek finish
- 2-Way coaxial speaker
- Supplied per piece
- Colour: Black
Specifications
| Output power: RMS | 30W |
|---|---|
| Diameter tweeter | 1/2" |
| Diameter woofer | 6.5" |
| Tweeter type | Mylar |
| Magnet type | Ferrite |
| Impedance | 100V |
| Tappings power (100V) | 7.5W, 15W, 30W |
| Frequency response | 50Hz - 20.000Hz |
| SPL @ 1W/1m | 90dB |
| Mounting depth | 80mm |
| Mounting diameter | 190mm |
| Dimensions (L x W x H) | Ø215mm |
| Weight | 0,95 |
