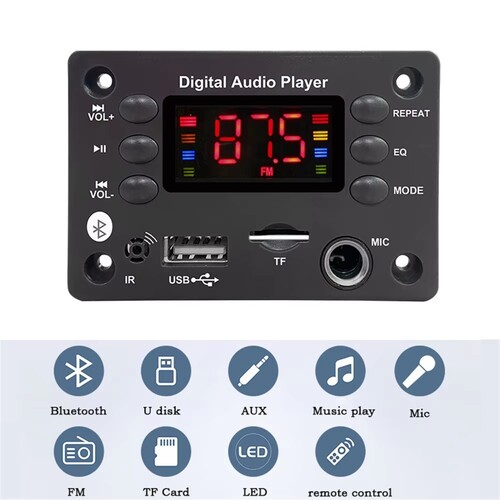

Bluetooth 5.0 Module - Panel Mount

with Card Slot / USB / FM/ AUX in & Remote

Product Code: MOD0545


Pay it in 4 payments of $4.88 with Afterpay

Buy 1+ $19.50 (incl. GST)

A panel mountable bluetooth 5.0 module with card slot, USB, AUX in and FM.

Dimensions of panel 75 x 50mm



1. Dual decoding supports MP3/WMA/WAV/FLAC/APE format music;

2. Support Bluetooth call function;

3. Recording function;

4. Digital color screen display;

5. TF card interface, support USB interface (U disk);

6. Power off memory function;

7. Infrared remote control operation at a distance of 10 meters;

8. External audio input LINE IN;

9, FM Radio, frequency band (87.5MHZ-108.0MHZ);

10. Four-button multi-directional control, VOL-/AUTO/VOL+/MODE;


Recording Function

1. Long press the MODE button to start recording, long press the MODE button again to cancel the recording function;

2. Press the MODE button again to play the recording file;

3. When recording, you need to connect a storage device, such as:U disk or TF card.


Button introduction

1. VOL- button (the volume of the previous song is reduced): In MP3 state, VOL- short press is the previous song, long press is the volume decrease; in FM state, short press is to increase the station number; in the Bluetooth function Short press for the previous Bluetooth song, long press for volume reduction.

2. AUTO button (play pause): In MP3 state, AUTO short press is play pause; in FM state, short press is play pause, long press is auto-receiving and coexisting; under Bluetooth function, short press is play/pause.

3. VOL+ button (next song volume increase): In MP3 state, VOL+ short press is the next song, long press is the volume increase; in FM state, short press is to adjust down a station number; under the Bluetooth function Short press for Bluetooth next song, long press for volume increase.

4.MODE button: switch between USB/SD/FM/audio input/Bluetooth function in sequence.

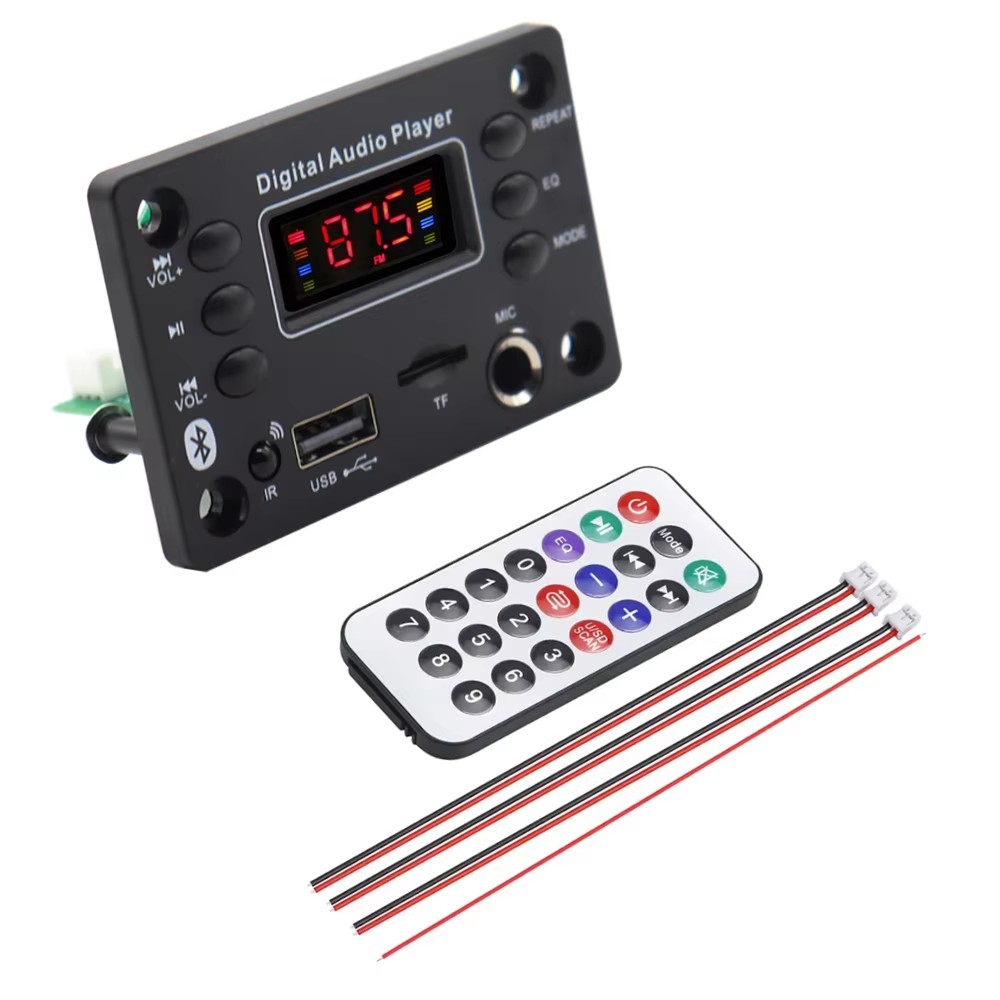

Package contents:

1 x Bluetooth MP3 decoder board

1 x Remote control 《Without the Battery》


Quick Details Audio Format Support: WMA, MP3, WAV, APE, FLAC Brand Name: JQ Model Number: JQ-D106BT Screen: Yes Battery Life: > 20 hours Style: Card Function: Voice recorder, FM Radio, bluetooth Place of Origin: Guangdong, China Product name: mp3 music module Material: Plastic+PCB Voltage: DC 5V/12V Music Format: MP3/WAV/WMA/APE/FLAC MOQ: 1 Pcs FM Radio: 87.5-108MHz Type: Bluetooth Recorder Board USB Display: Digital Display LED Screen Weight: 35g Certificate: Rohs BQB Certification: RoHS
