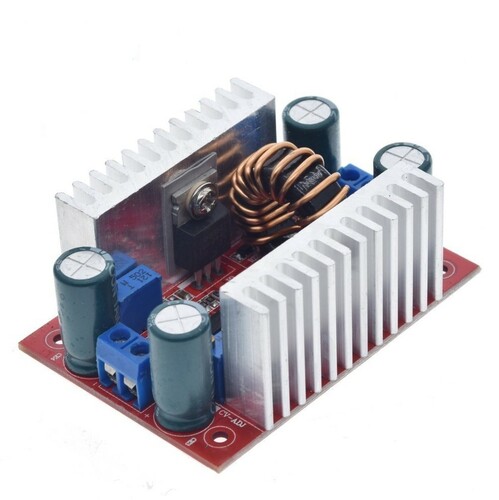

DC Step-up Boost Converter

Constant Current Power Supply LED Driver 8.5-50V to 10-60V Voltage Charger Step Up Module

400W boost constant current module

Module properties: non-isolated step-up module (BOOST)

Input voltage: DC8.5V-50V Input current: 15A (MAX) exceeds 8A please enhance heat dissipation Quiescent current: 10mA (12V liter 20V, the output voltage, the higher the current will increase

Output voltage: 10-60V continuously adjustable Constant]

range: 0.2-12A Temperature: -40 to + 85 degrees (ambient temperature is too high, please add heat dissipation)

Operating frequency: 150KHz Conversion efficiency: up to 96% Overcurrent

protection: yes Input reverse polarity

protection: no

Installation: 4 2.55mm screw holes

Connection method: Connection Output Module

size: 67mm X48mm X 28mm (LxWxH)

Single module: 60 g

Applications:

1. DIY a power supply, 12V can input and output can 12-50V adjustable.

2. the power supply for your electronic device, according to your system can set the output voltage value.

3. as the car power supply for your laptop, PDA or a variety of digital products supply.

4. DIY a mobile notebook power supply: 12V coupled with high-capacity lithium battery pack, so you can go where light where books.

5; solar panel regulator.

6 to the battery, rechargeable lithium batteries.

7. driving high-power LED lights.
