68nF 400V Polypropylene (PP) Capacitors - WIMA Germany

20 pcs

Product Code: CC0253

$24.00

Pay it in 4 payments of $6.00 with Afterpay

Buy 1+ $24.00 (incl. GST)
Buy 5+ $20.00 (incl. GST)
Store Stock:
Henderson Low Stock - call to confirm
Albany Out of Stock
Jump to:
Manuals and Downloads

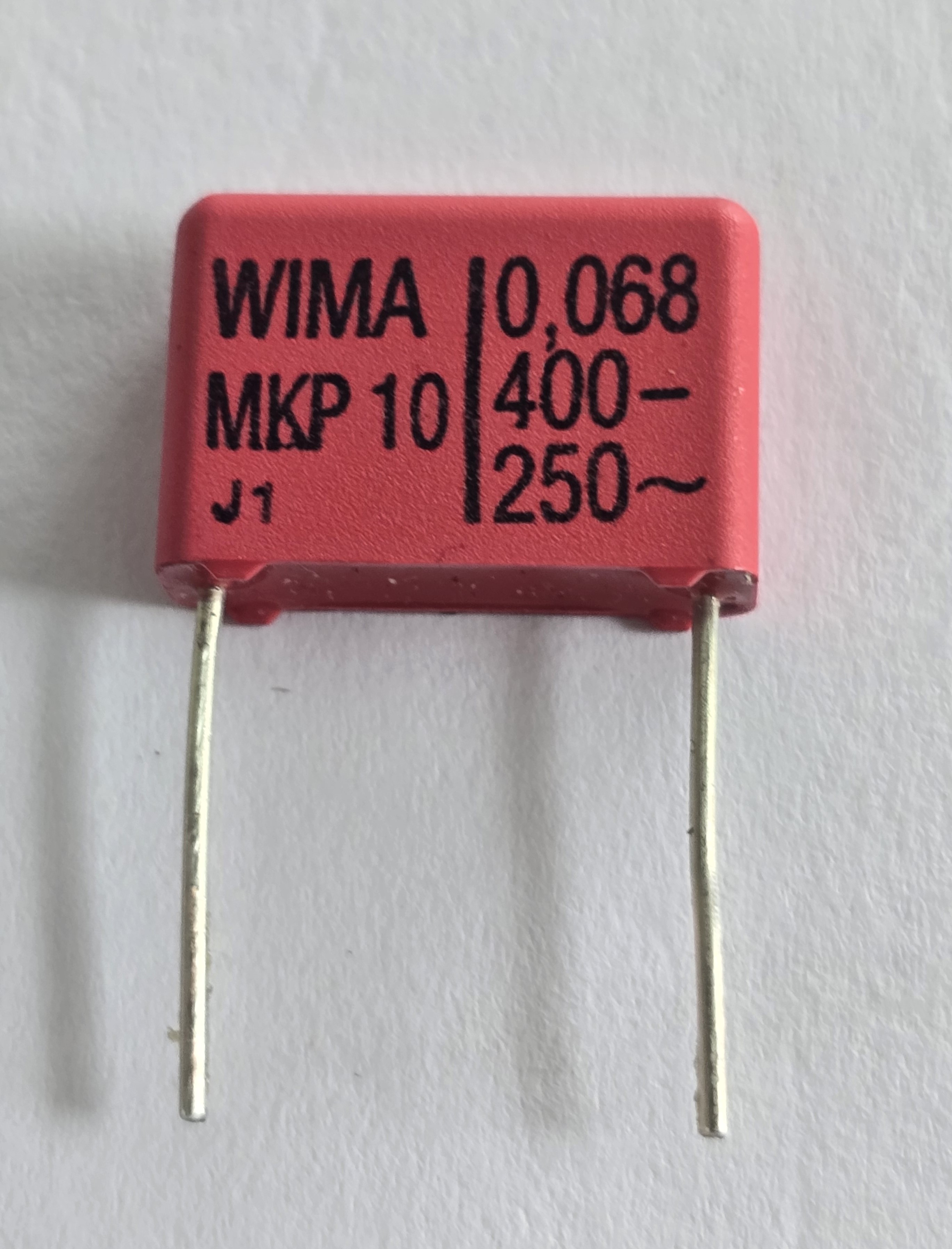

WIMA MKP 10 Polypropylene (PP) Capacitors for Pulse Applications with Double-Sided Metallized Electrodes

0.068uF / MFD    68nF    68000pF (MMFD)

Special Features

    Pulse duty construction
    Self-healing
    Very low dissipation factor
    Negative capacitance change versus temperature
    AEC-Q200 qualified
    According to RoHS 2015/863/EU

Typical Applications
For pulse applications e.g.

    Switch mode power supplies
    TV and monitor sets
    Lighting
    Audio/video equipment

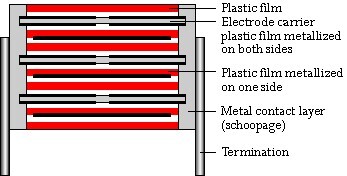

Construction



Dielectric: Polypropylene (PP) film
Capacitor electrodes: Double-sided metallized plastic film
Encapsulation: Solvent-resistant, flame retardent plastic case with epoxy resin seal, UL 94 VDC0
Terminations: Tinned wire
Marking: Colour: Red. Marking: Black.
