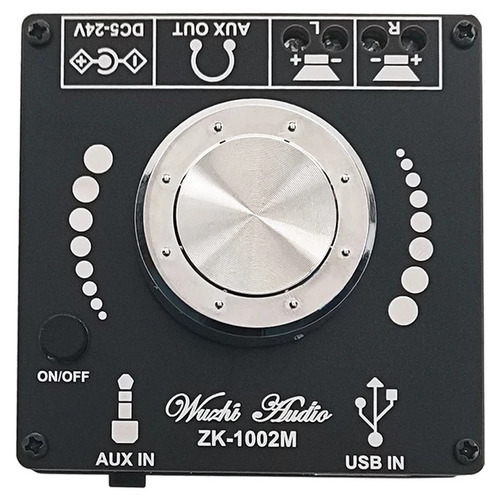

Amplifier 100W+100W 2.0 Stereo Bluetooth

ZK-1002M

Product Code: MOD0664

$30.00

Pay it in 4 payments of $7.50 with Afterpay

Store Stock:
Henderson In Stock
Albany In Stock
Jump to:

5.0 Digital Amplifier Board Module Multiple Inputs

Type: Bluetooth power amplifier board
Adapter power supply: DC5-24V
Channel: 2
input: Bluetooth+AUX+U disk+computer USB
Adapter power supply: DC5-24V
Adapted speakers: 20-200W; 4-8Ω
Bluetooth version: 5.0
Protection mechanism: over current, over heat, short circuit protection

size:60 x 60 x 29mm
Material:plastic
colour:black

NOTE:
1、8~24VDC is recommended, any higher than 26V will damage the unit.
2、While driving a 4Ω load power supply must be under 16V, while driving a 8Ω load supply must be under 24V.
3、The supply current must be 2A at least.
4、Inverting power supply is not permitted, or the chip will be damaged.
5、The module is designed for audio input signal range 0.5V~1.5V.
6、The wire connecting speaker with module should be within one meter.
7、Please release ESD (static) on your hands before you contact the module.
8、Speaker wattage of at least 30W RMS is recommended.
