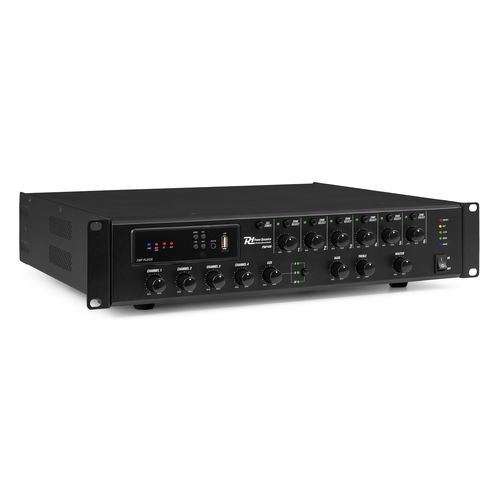

Commercial Mixer Amplifier 480W 6 zones
4 Ohm, 8 Ohm, 16 Ohm, 70V, 100V
Product Code: 954.016
$1350.00
Pay it in 4 payments of $337.50 with
The PMP 6 Zones Mixer Amplifier is an all-in-one public address system suitable for various environments such as shops, factories, schools and hospitals. Its no-nonsense design and exceptional performance make this amplifier ideal for broadcasting messages and background music, while offering perfect adaptability and unmatched reliability. Whether you require a 70V/100V or 4-16 ohm output, or mic/telephone priority muting, this series provides maximum flexibility. Additionally, the amplifier delivers crystal clear, high-quality sound and includes a priority function, volume control, chime function and more, making it user-friendly yet feature-packed.
- Public Address Amplifier for commercial and industrial use
- 6 Zone Speaker Selector with 6-step attenuator
- Four microphone or line inputs with Euro block screw terminals
- Two AUX input with RCA jacks
- Bass and Treble controls
- Remote microphone input with RJ45 terminal
- 48V Phantom power and VOX control
- Three layer priority muting with EMC (external evacuation message control) input
- Built in user selectable pre-announce chime and siren for evacuation
- Alarm message recording and playback
- Advanced protection system includes current limiting, over current and thermal protection
- Desktop and 19-inches rack mountable
Multimedia player module:
- USB Media player
- BT playback receiver
- Internet radio (WiFi or RJ45 via Legacy Player APP)
- Aux 3.5mm jack input
| Product colour | Black |
|---|---|
| Playback options | BT 5.0 streaming, USB, WiFi play, RJ45 ethernet play, Line input, Microphone (input) |
| Output power: RMS total | 480W |
| Output power: 100V zones | 240W (max. per zone) |
| Impedance | 4 Ohm, 8 Ohm, 16 Ohm, 70V, 100V |
| Frequency response (± 3dB) | 65Hz - 18kHz |
| Frequency response (-10dB) | 55Hz - 20kHz |
| Equalizer: Bass | ± 10dB (100Hz) |
| Equalizer: Treble | ± 10dB (10kHz) |
| Signal-to-noise ratio | >80dB |
| THD | <1% |
| Signal-to-noise ratio: Line | >88dB |
| Signal-to-noise ratio: Mic | >75dB |
| THD: Line | <0.2% |
| THD: Mic | <0.3% |
| Power consumption | 0.253 - 0.216A |
| Power supply | 240VAC 50Hz |
| Dimensions (L x W x H) | 370 x 482 x 90mm |
| Weight (kg) | 12,30 |
| Included accessories | Mounting bracket, Power cable |
