Mini Digital Amplifier Board Dual-Channel Power Kit Plus

Ready to Build

Product Code: MOD0560KPB

$23.00

Pay it in 4 payments of $5.75 with Afterpay

Buy 1+ $23.00 (incl. GST)
Buy 10+ $21.15 (incl. GST)
Store Stock:
Henderson In Stock
Albany Low Stock - call to confirm

Larger speaker version - Twice the volume of the MOD0560K - batteries not included

A complete amplifier kit ready to assemble. This is the most cost effective project we have and was a big hit in 2015

All you need to make a MP3, IPod, I Phone, Smart Phone amplified speaker set

Design your own original housing for a unique project

Good class notes available



Includes

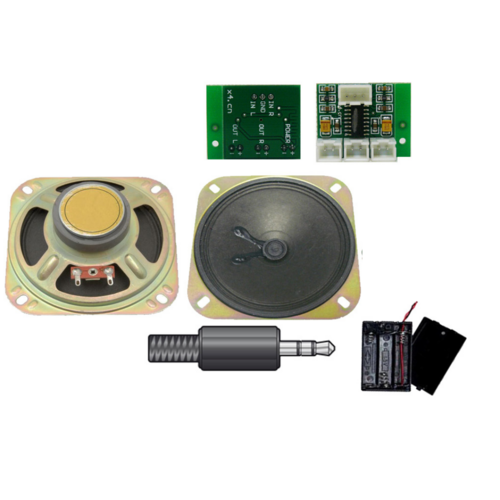

1 X MOD0560 Amp module

2 x EAS3008 Speakers

1 x 3.5mm Stereo Plug

1 x BH0062 Switched battery Holder



Please note this kit requires minimal soldering and batteries excluded





Dual channel digital amplifier board, dual channel design. This amplifier board can be powered by USB or batteries. Equipped with built-in high-gain buffer amplifier and short circuit protection on this amplifier board.

Description:

  • Built-in high-gain buffer amplifier, built-in short circuit protection
  • Powered by 1 x lithium battery or 4 x1.2V batteries, 3 x 1.5V batteries or USB power
  • 5V voltage regulator circuit is required if powered by a transformer
  • Power: 3.6-5.5V DC
  • Output Power: 3W+3W (4ohms)
  • SNR: 90dB
  • Efficiency: >90%
  • Max. Closed Loop Gain: 24dB
  • Wire Length: Approx. 18cm (short), 28cm (long)
  • Size - 29mm x 23mm

Precautions:

  • Do connect the polarity correctly, and supply voltage must be under 5.5V
  • Do not change any component parameters on board, or it will cause damage
  • Try to use shielded wire as the input line for better anti-interference performance
  • Cathode ends of left & right speaker can not be connected together
