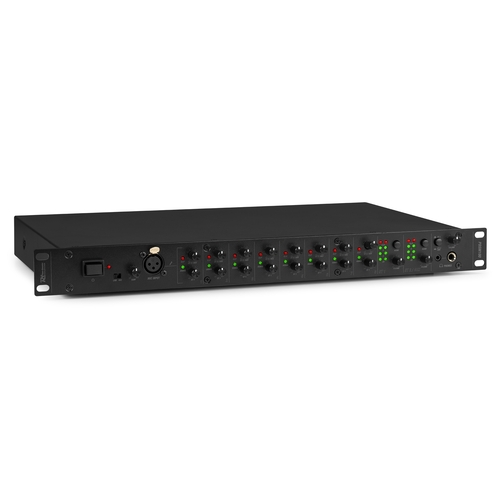

PDSM100 PA Studio Mixer
8-channel stereo mixer with 2 adjustable zone outputs
Product Code: 172.754
The PDSM100 studio mixer is a compact line mixer designed to cater to installation setups, studio submixing, keyboardists, and any scenario requiring versatile handling of line-level signal sources. This mixer supports up to eight stereo input sources, including CD/MP3 players, tuners, instruments, and more, all of which can be independently routed to a pair of stereo outputs. The PDSM100 guarantees flexibility, precision and ease of use and is housed in a rugged rack-mountable chassis.
- Multifunctional 8-channel stereo mixer with 2 adjustable zone outputs
- 8 stereo input channels for line sources like CD/MP3 players, tuners, etc.
- Additional mic/line input with level control for channel 1
- 2 Stereo outputs
- Microphone gain control
- Signal presence and overload LEDs on each channel
- Each stereo output is switchable to mono
- Headphone jack
- Ground terminal and ground lift switch
- Input level selectable between +4 dBu and –10 dBV per channel
- 19” Rack installation (1 U)
| Frequency response | 20Hz - 20.000Hz |
|---|---|
| THD | <0,9% at 1kHz |
| Signal-to-noise ratio | >92dB |
| Output level: Nominal | +4 dBu |
| Input connections | 6.3mm Jack, XLR (3-pin) |
| Output connections | 3.5mm Jack, 6.3mm Jack, RCA |
| Output channels | 2 |
| Power supply | 240VAC 50Hz |
| Is the item 19"? | Yes |
| Dimensions (L x W x H) | 280 x 483 x 44mm |
| Weight (kg) | 3.00 |
