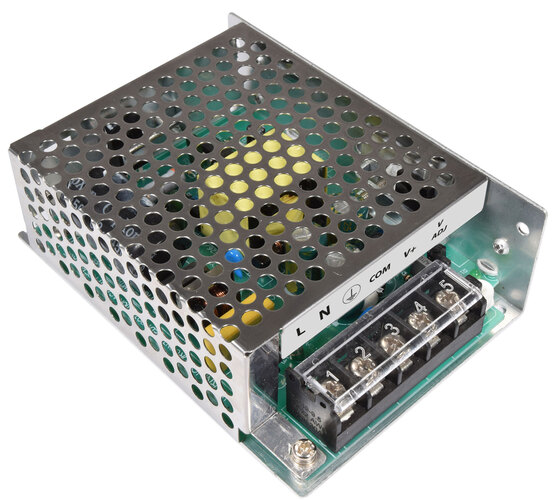

13.8V 5.4A Switch Mode PSU

Product Code: 650.756

This product is coming soon, and is due to arrive on or near February 07, 2025
Jump to:
Manuals and Downloads
13.8Vdc Switch Mode Power Supply

The specific voltage of 13.8V is commonly used because it aligns with the nominal voltage of a 12V lead-acid battery when it is fully charged. This makes these power supplies compatible with systems that are normally battery-powered allows them to provide a stable power source even when the battery voltage fluctuates. Ideal use for radio equipment, security systems, alarm systems, access control systems, 12Vdc LED Lighting systems and central monitoring systems. For indoor use only.

  • Short circuit protection
  • Overload protection
  • Auto reset
  • Easy installation, screw terminals
  • Fan cooling for higher power models
  • Higher power models with 3 channels to spread load
  • Power supply240Vac/1.3A, 50Hz
  • Power : max.74.52W
  • Output current5.4A
  • Dimensions110x35x80mm
  • Weight0.22kg
  • Output channels1
  • Output voltage13.8Vdc
  • IP ratingIP20
  • Voltage range12.42V-15.18V
  • Working temperature-10~40℃



In the Box



  • 1pcs 13.8Vdc power supply
