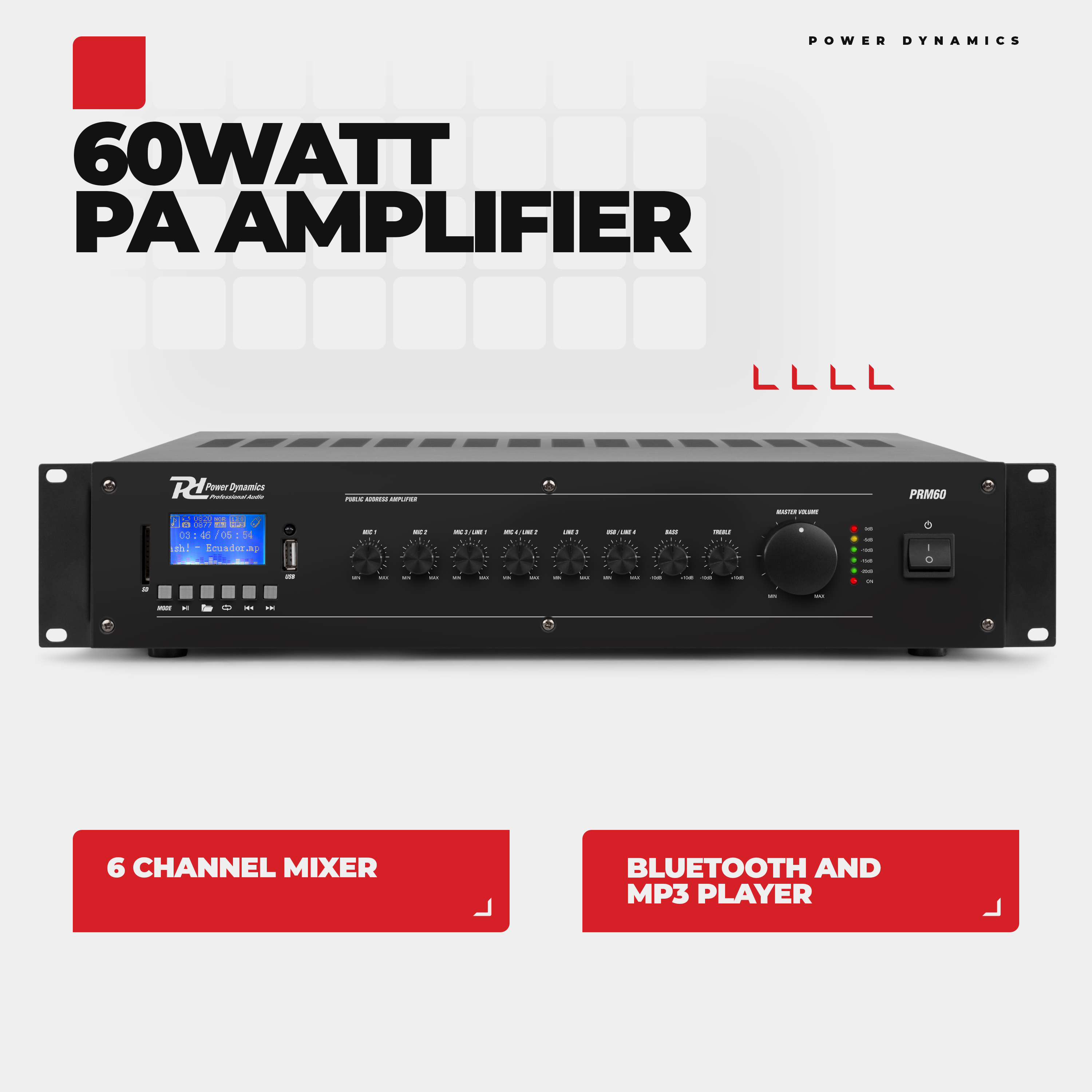

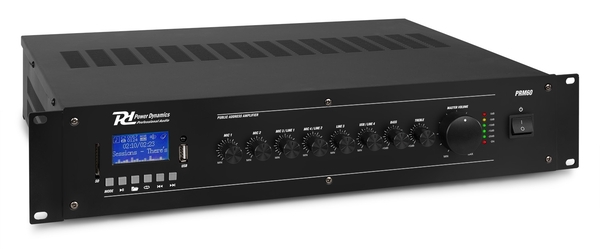

PRM60 100V 6-CH Mixer-Amplifier 60W
Product Code: 952.150
The PRM series is a series rack-mountable amplifiers that can either be used as 100V amplifier or as a standard low-impedance amplifier. These amplifiers are equipped with BT receiver and USB/SD ports for MP3 playback including a bright LCD display with ID3 Tag. All PRM amplifiers are also provided with a switchable XLR input with 24V Phantom Power, especially for paging and condenser microphones. Especially designed for applications such as paging, announcements, intercommunications, background music, broadcasting in industrial plants etc.
- 60W 100V 6-Channel mixer amplifier

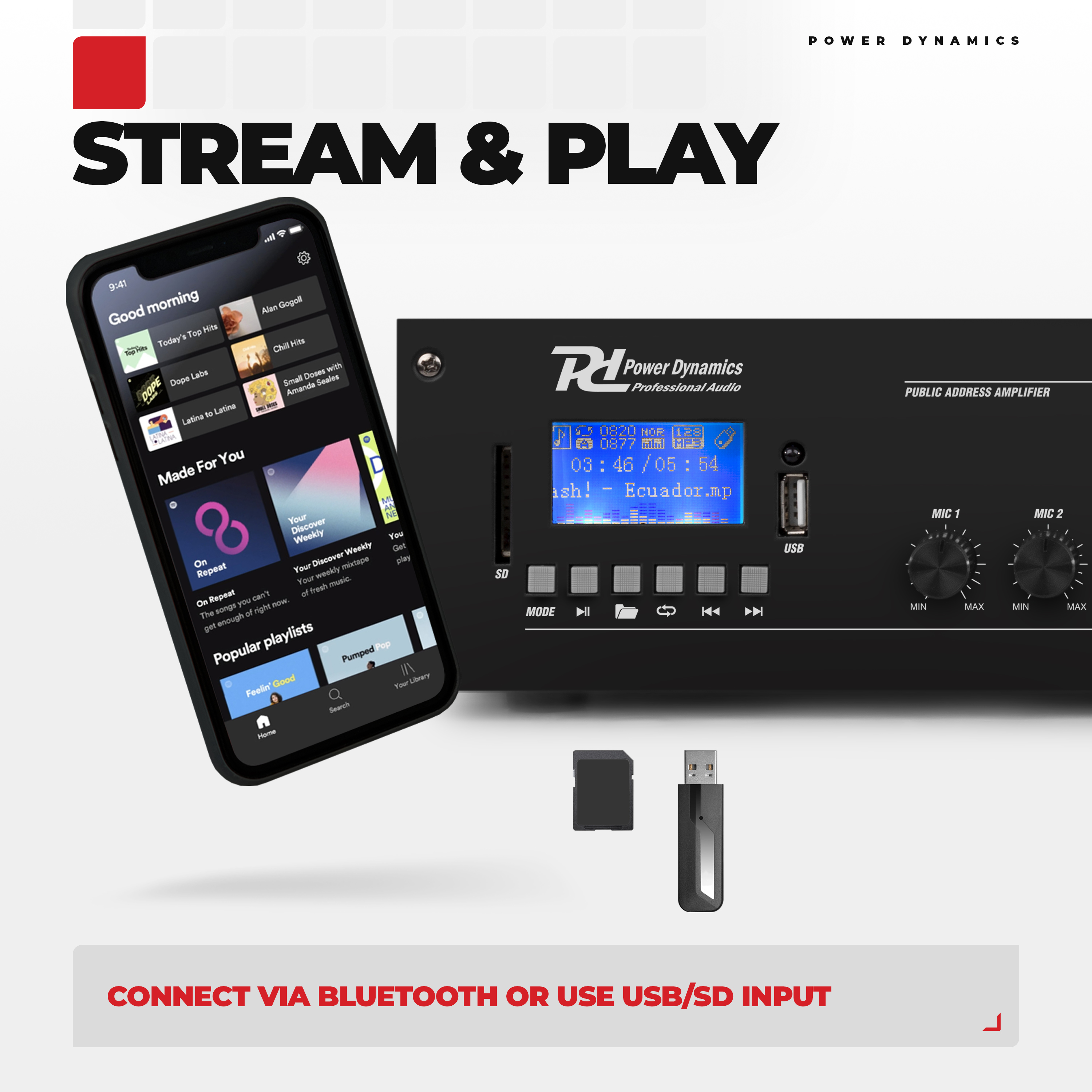

- MP3 Player with USB/SD slots
- Using BT wireless technology for audio streaming
- LCD control panel with ID3 tag

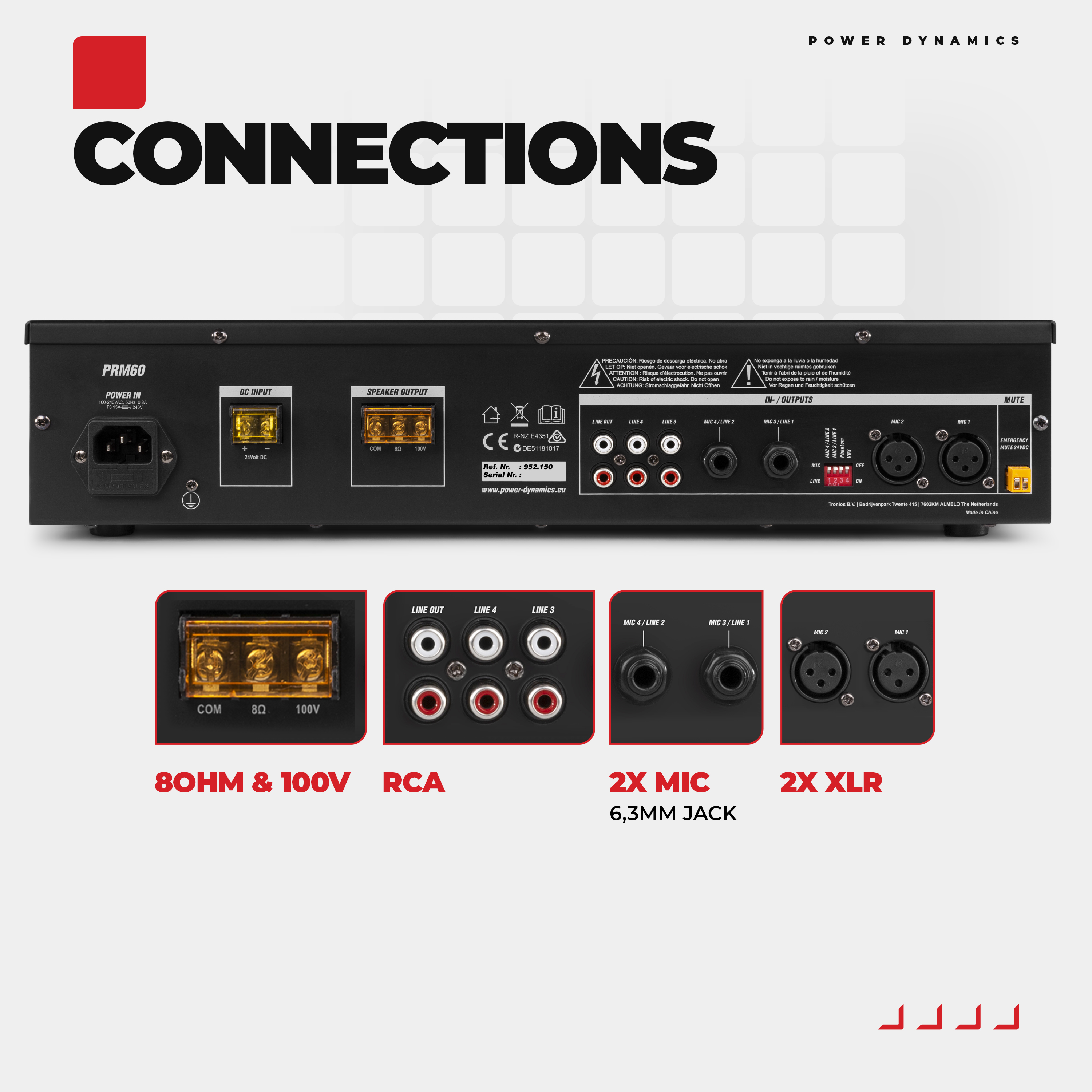

- 2x Mic/line inputs 6.3mm Jack, 2x RCA line inputs and 1x RCA line output
- 2x XLR microphone inputs with switchable phantom power (24V) and VOX priority
- 100V or 8 Ohm speaker output
- Bass and treble controls

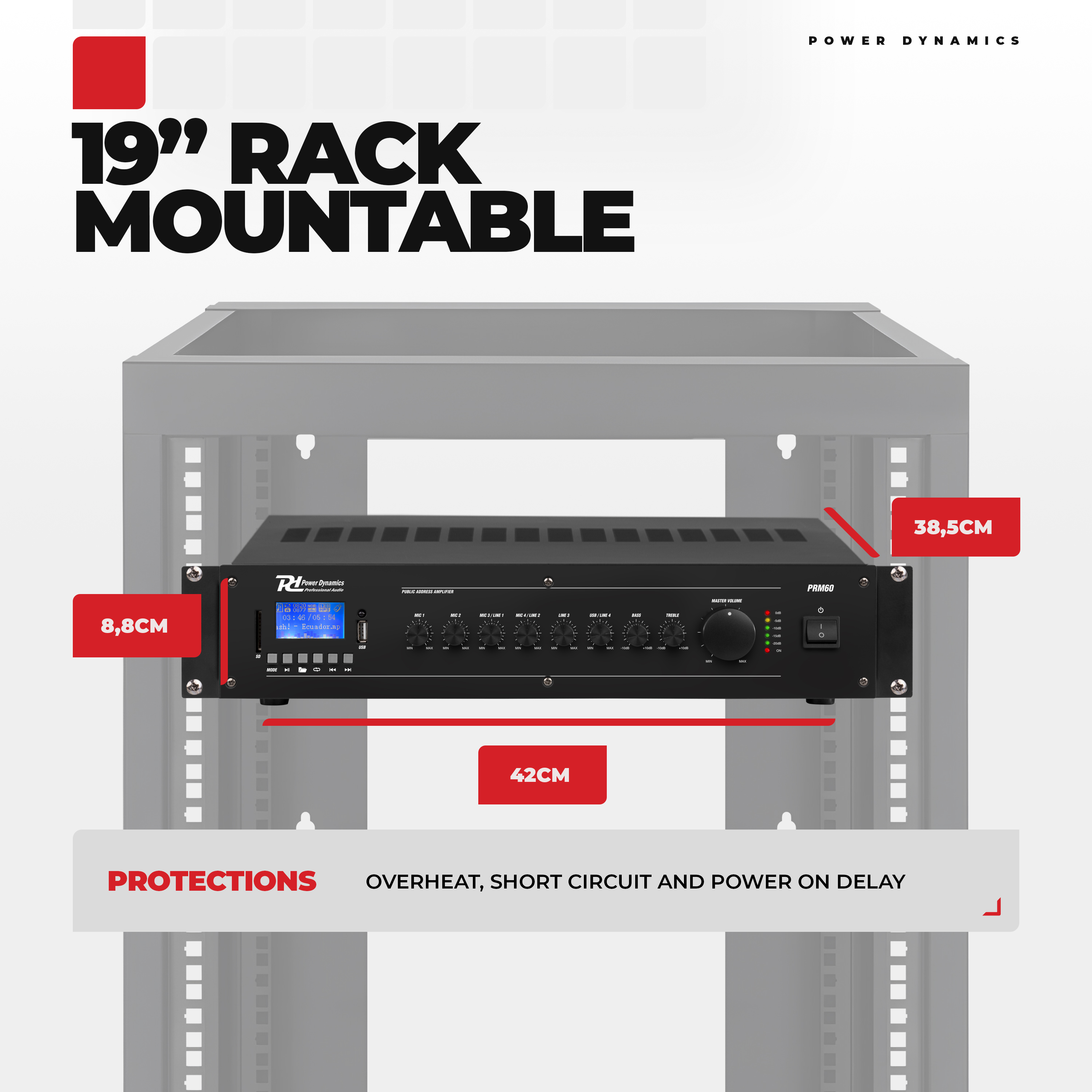

- 19" Rack mountable (2U)
- Emergency operation by 24V battery (not supplied)
- Protections: Overheat, short circuit and power on delay
- Emergency mute input

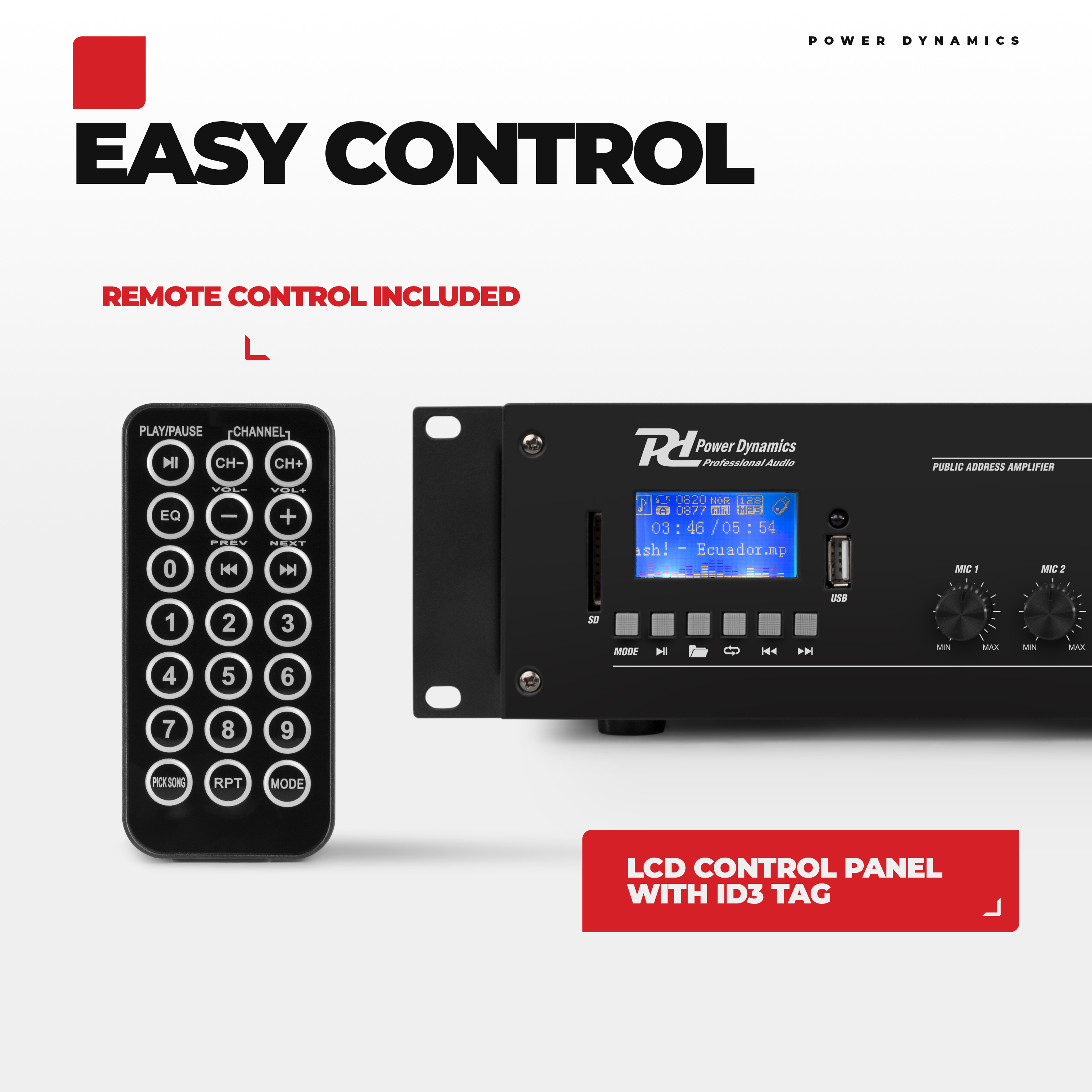

- Including remote control
| Product colour | Black |
|---|---|
| Playback options | BT streaming, USB, SD |
| Output channels | 1 |
| Output power: RMS | 60W |
| Impedance | 8 Ohm, 100V |
| Frequency response | 50Hz - 18.000Hz |
| Signal-to-noise ratio | >75dB |
| THD | <0,5% |
| Signal-to-noise ratio: Line | >85dB |
| Signal-to-noise ratio: Mic | >72dB |
| Input level: Line | 150-470mV, 10 kOhm |
| Input level: Mic. | 5-8mV, 600 Ohm |
| Power supply | 240VAC 50Hz |
| Dimensions (L x W x H) | 432 x 88 x 345mm |
| Weight (kg) | 7,90 |
| Included accessories | Power cable |
