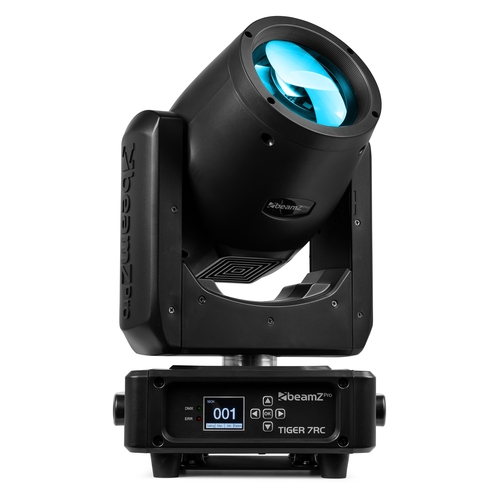

Tiger 7RC 230W Beam Moving Head
Product Code: 152.026
The new Tiger 7RC is a compact moving head that generates impressive light output with its 7R 230W high-intensity discharge lamp. This versatile moving head features a comprehensive range of effects, including colour mixing, a frost effect, various gobos and a prism, giving users precise control over their lighting designs.
The Tiger 7RC includes a gobo wheel equipped with 15 patterns plus an open position and a colour wheel with 13 colours plus an open position, offering endless creative possibilities. Enhancing its capabilities further is a 7-facet rotating prism, enabling the creation of captivating and dynamic light displays. Operating seamlessly in DMX or stand-alone mode, the Tiger 7RC offers flexibility in set-up and operation. Designed for simplicity and ease of use!
- 230W 7R High Intensity discharge bulb
- 15 Gobos + open beam
- 13 Colours + open
- Gobo shake effect
- Frost effect lens
- Rotatable 7 facet prism
- Motorized focus
- Mechanical shutter and adjustable speed strobe effect
- Mechanical dimmer
- DMX and Stand-alone mode
- Automatic pan/tilt correction
- Reset function
- Control panel with LCD display
- DMX in/output via 3/5-pin XLR
- P-Con input/output (cable included)
- Quick lock omega clamp included (2x)
| Colour temperature | 8000K |
|---|---|
| Light source | MSD 7R 230W bulb |
| Colour wheel | 13 colours + open |
| Beam angle | 1° |
| Illuminance | 197.226 lx @ 5m |
| Head movement: Pan | 540° |
| Head movement: Tilt | 180° |
| Static gobo: Quantity | 15 |
| Gobo shake | Yes |
| Prisma 1 | 7 Facet |
| Frost filter | Yes |
| Flash rate per second | 1 - 10Hz |
| Modes | Automatic programs, DMX, Manual, Master/Slave |
| Sound to light mode | Yes |
| DMX channels | 16, 20 |
| DMX connection | 3-pin XLR, 5-pin XLR |
| Display | LCD |
| IP rating | IP20 |
| Cooling | Temperature controlled fan |
| Power plug | P-Con |
| Power consumption | 2.390 - 1.176A |
| Power supply | 240VAC 50Hz |
| Dimensions (L x W x H) | 280 x 240 x 470mm |
| Weight (kg) | 11,55 |
| Included accessories | Mounting bracket, Power cable |
