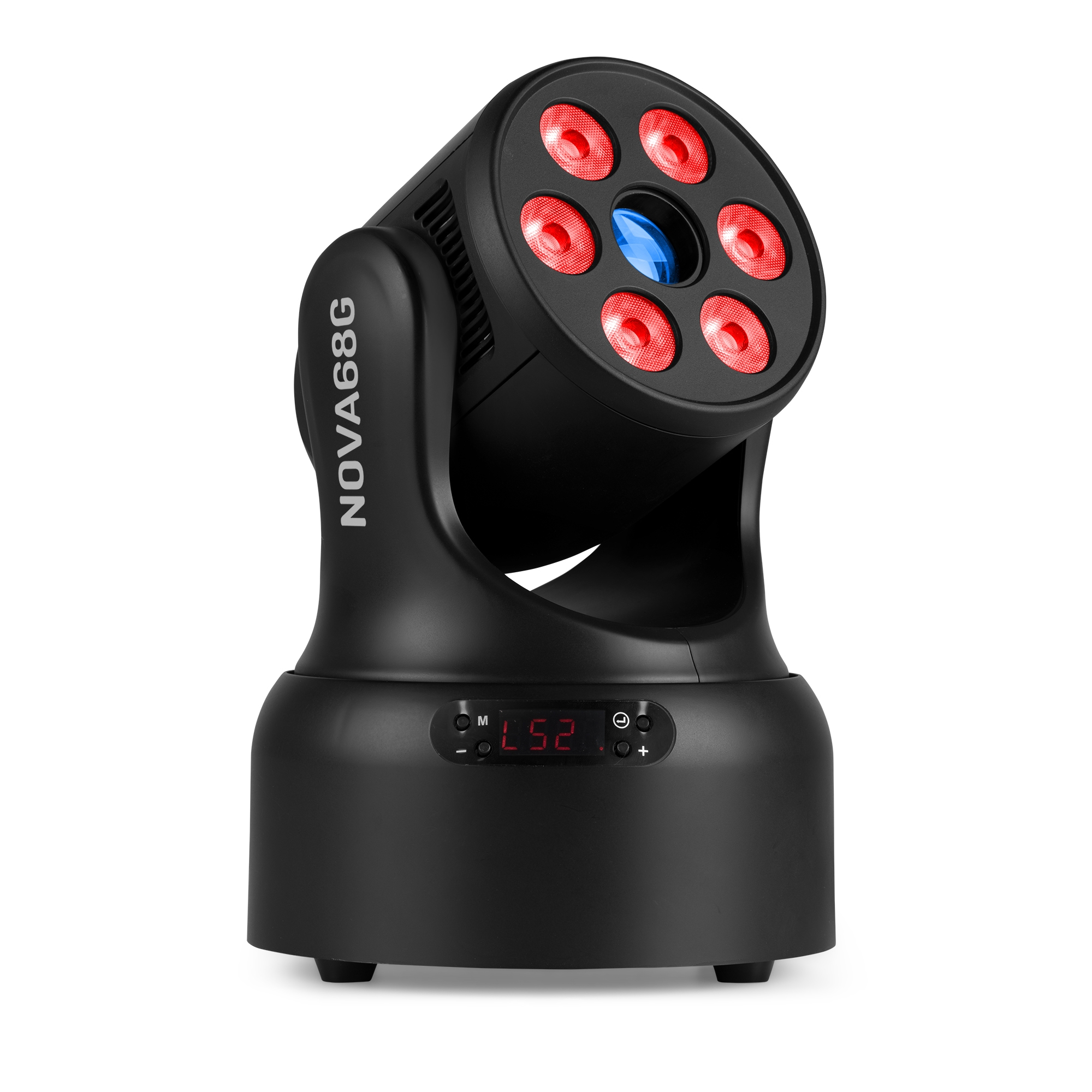

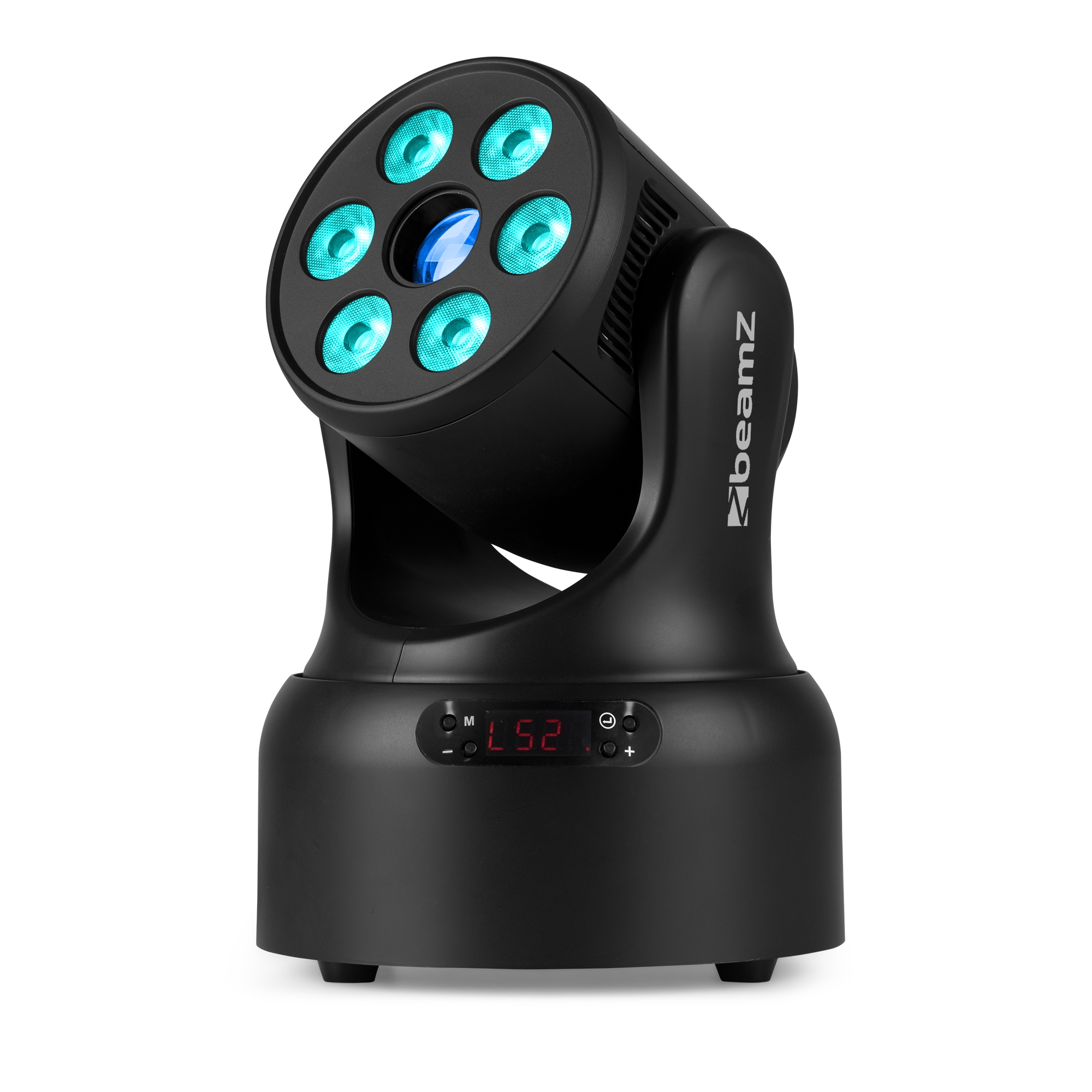

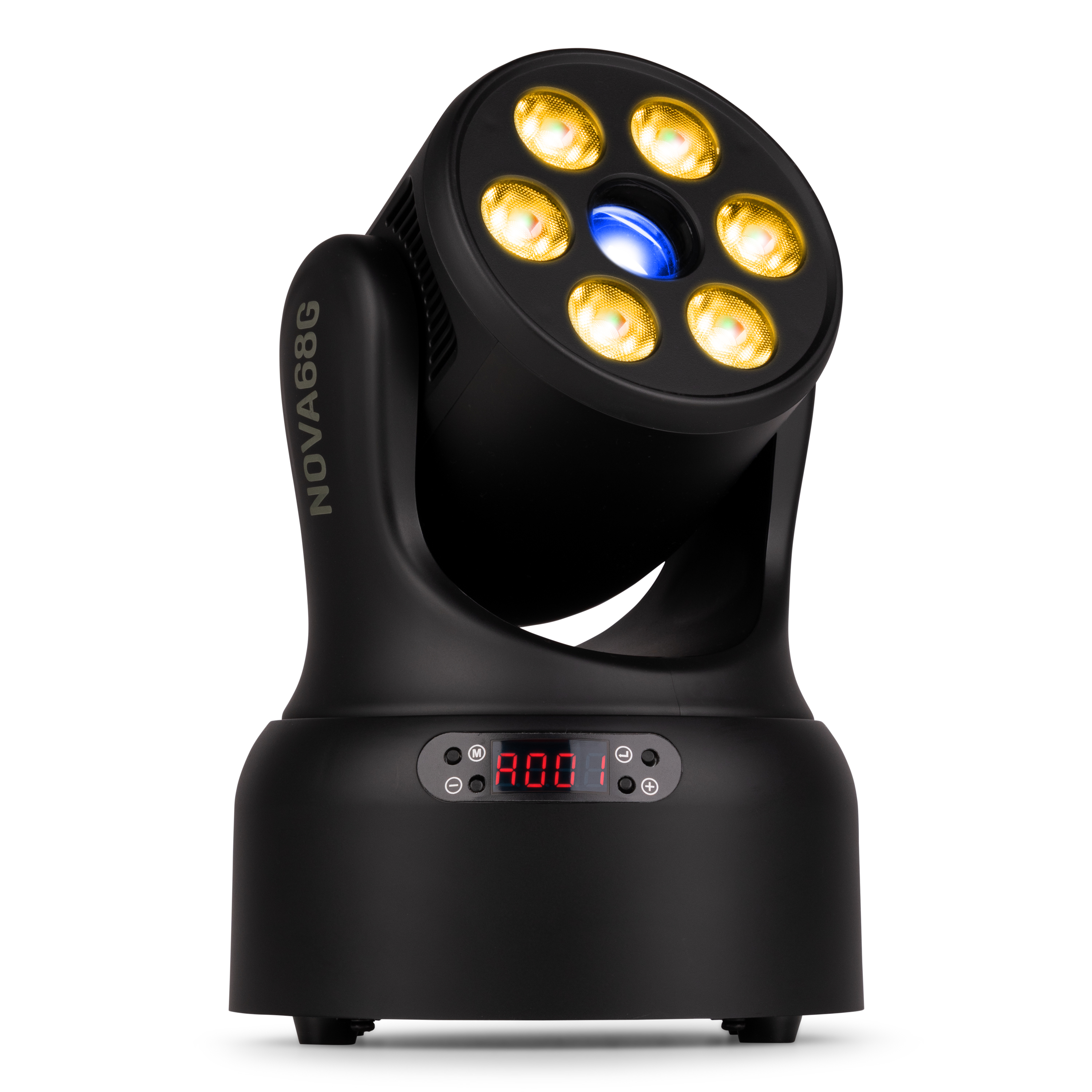

NOVA68G-BK MH Wash Moving Head with Gobo
Product Code: 156.013
Discover the Nova Series Moving Heads – the ideal solution if you are looking for compact moving heads with high power LEDs! These stylish moving heads are crafted to deliver stunning visual effects and vibrant colour washes effortlessly. Featuring an advanced LED light source, the Nova series guarantees top-tier performance, making it ideal for lighting designers, DJs, bands, clubs, bars, and any venue where space is at a premium.
With its compact design and lightweight construction, the Nova series is perfect for installation professionals and mobile setups where space efficiency is crucial. The unique thing about this series of moving heads is that they can be used as normal moving heads, but can also be ceiling-mounted with an optional mounting ring. Whether controlled by DMX, activated by sound, or used in standalone mode with the Master/Slave function, the Nova series offers unmatched versatility and ease of use.

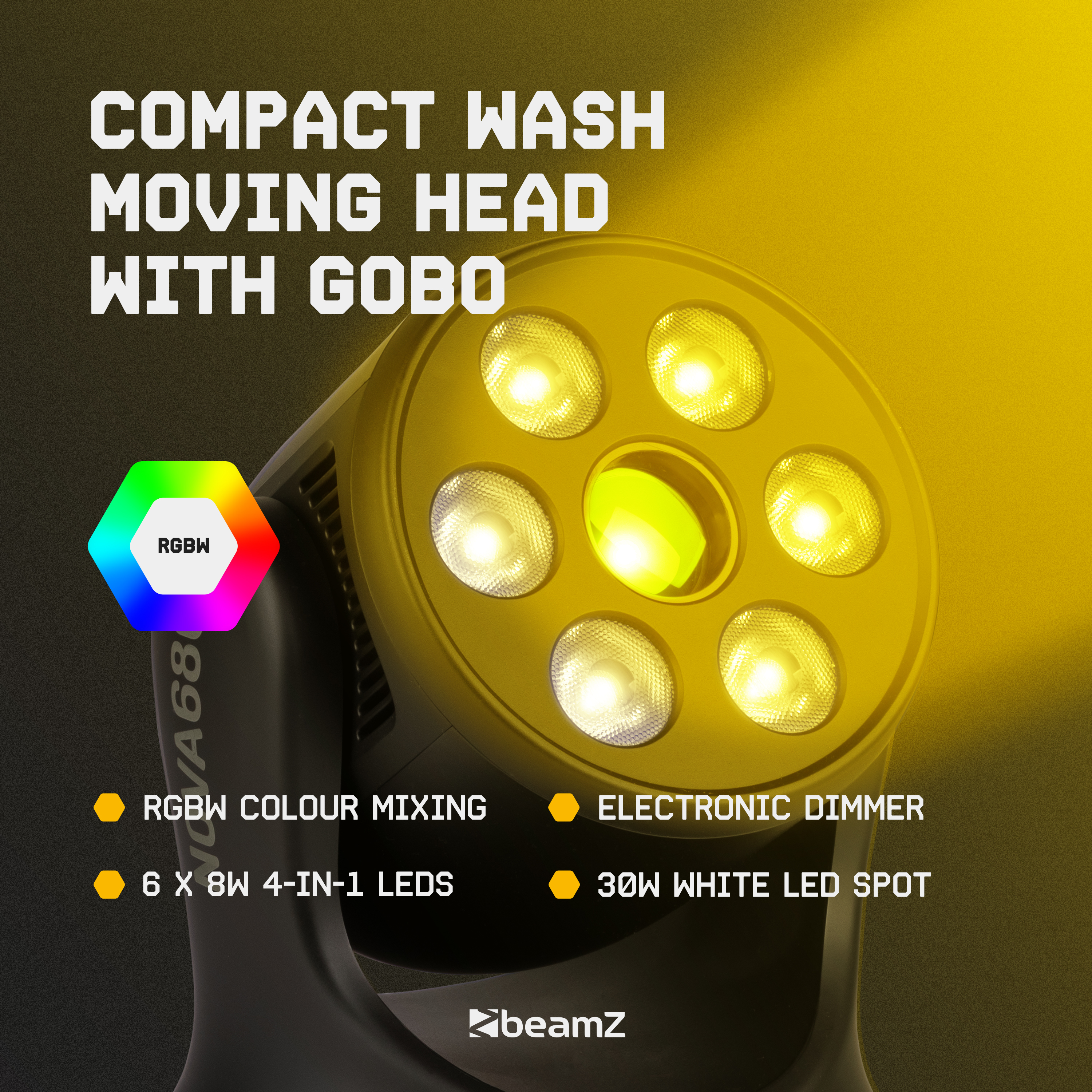

- Wash Moving Head with Gobo
- 6x 8W 4-in-1 High Power LEDs

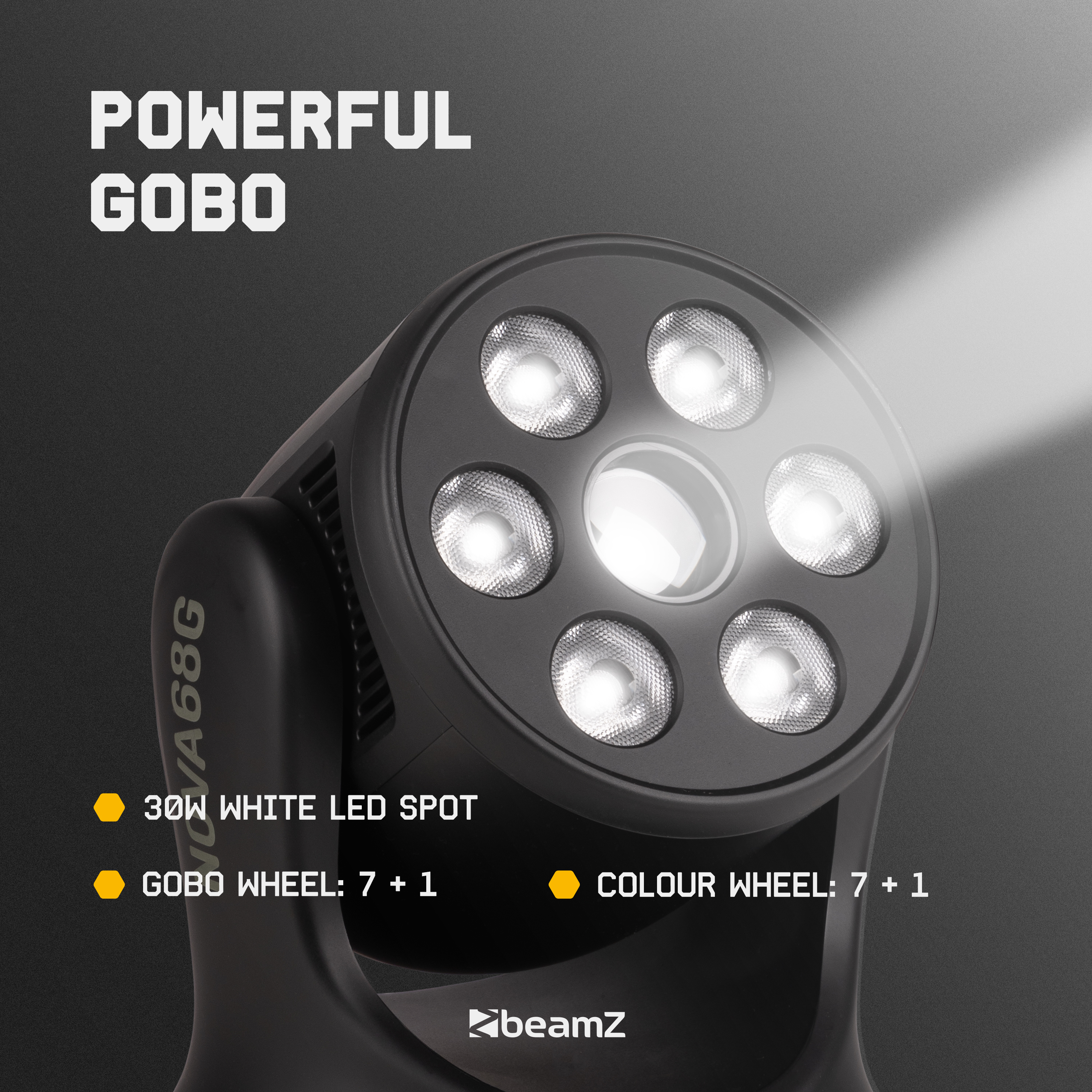

- 30W White LED Spot
- Lens with 8° degree beam angle
- Colours: RGBW
- Gobo Wheel: 7 + 1
- Colour Wheel: 7 + 1
- DMX, auto program or Stand-alone mode
- Sound activated with adjustable sensitivity
- Electronic Dimmer

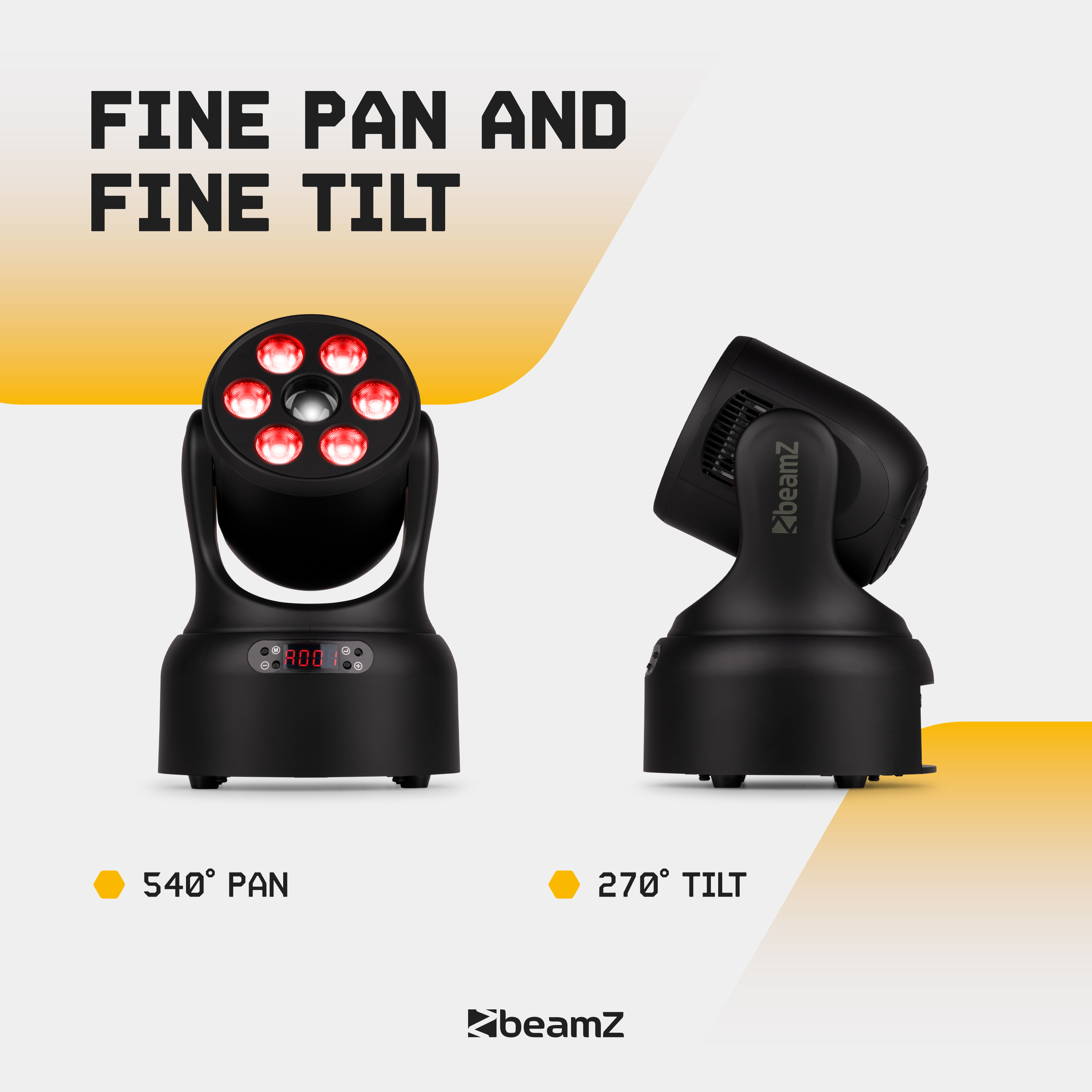

- Pan and Tilt Range: 540° pan / 270° tilt
- Fine pan and fine tilt

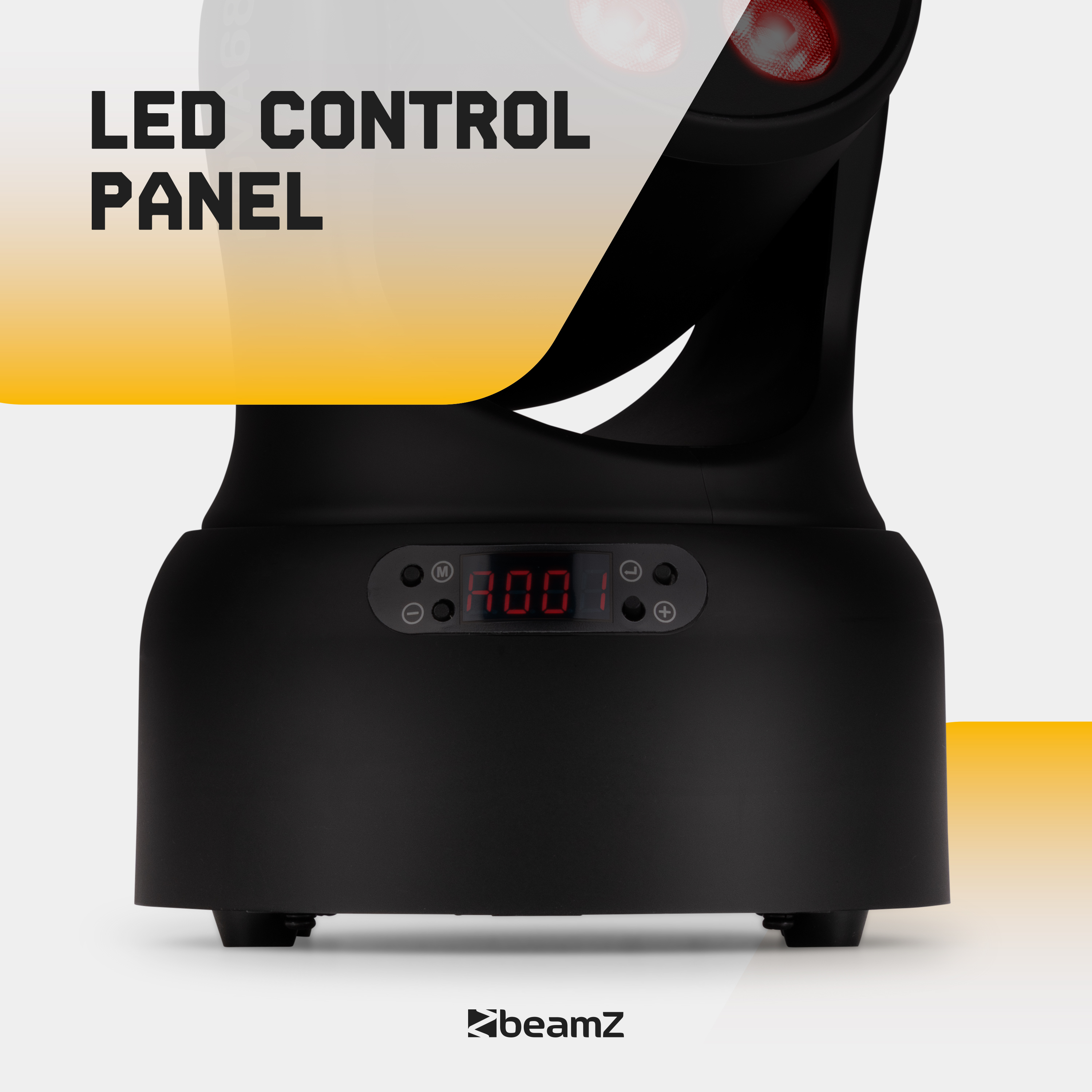

- Control panel with LED display

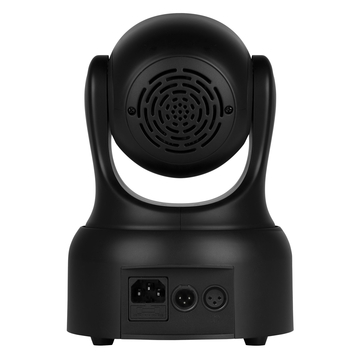

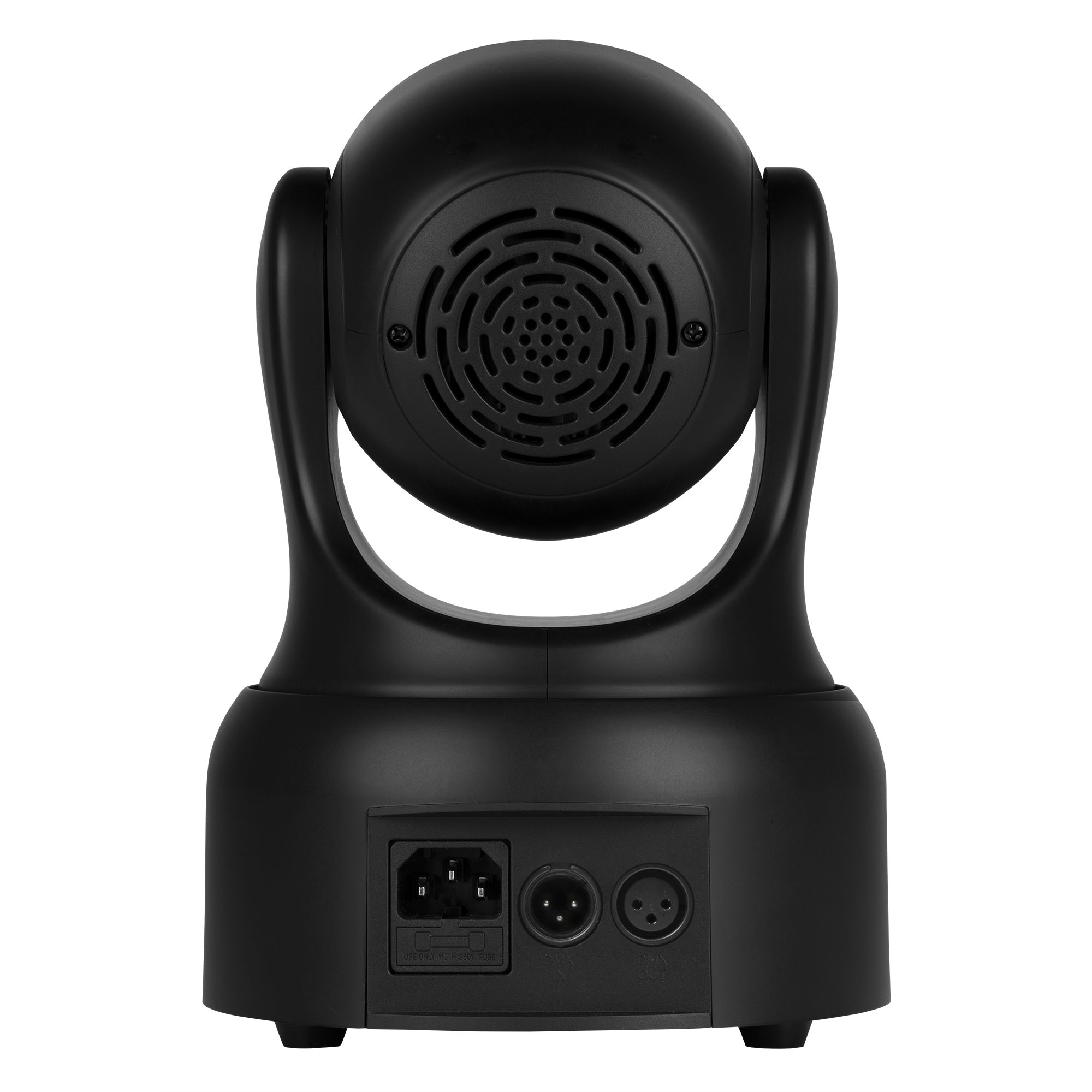

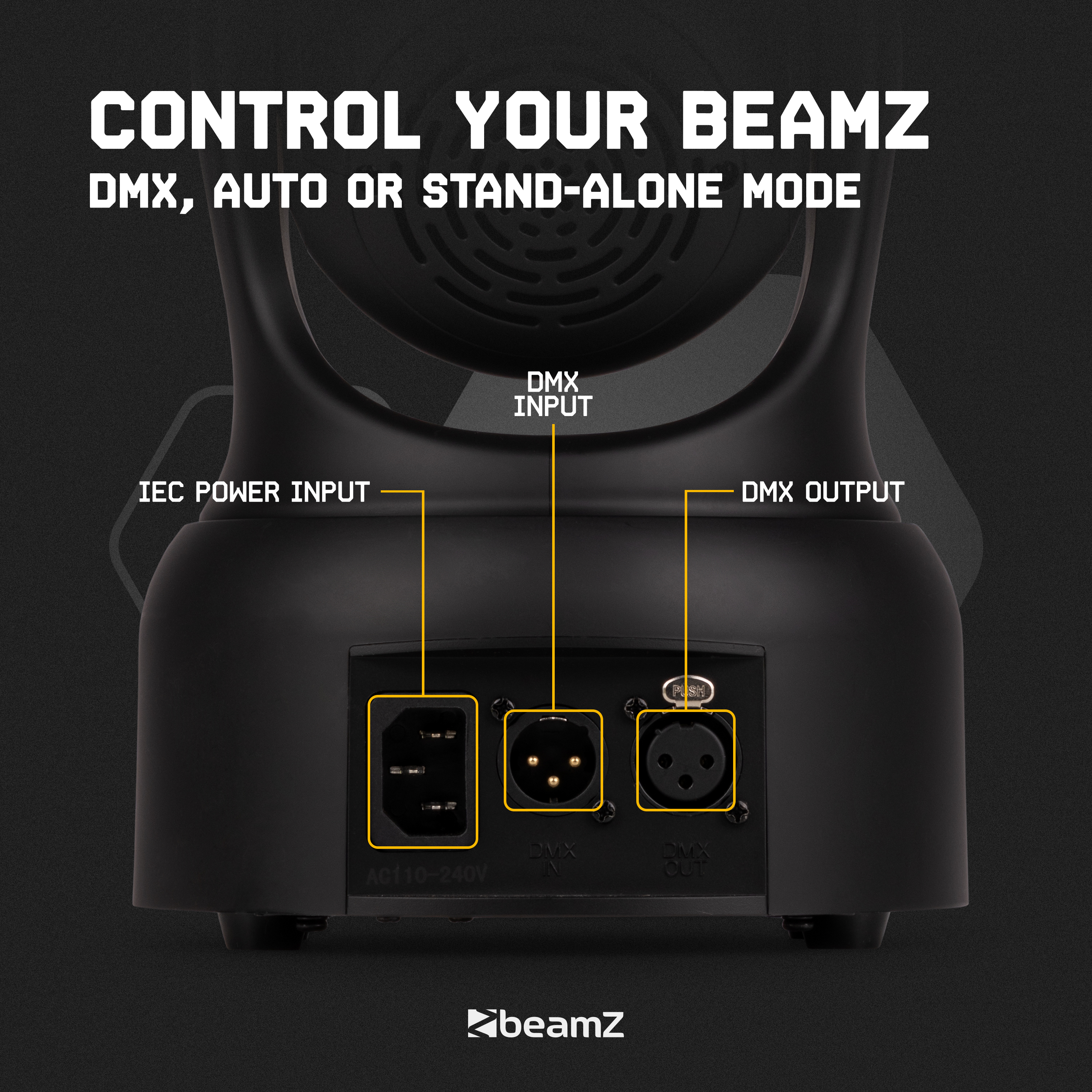

- DMX in/output via 3-pin XLR
- IEC power input

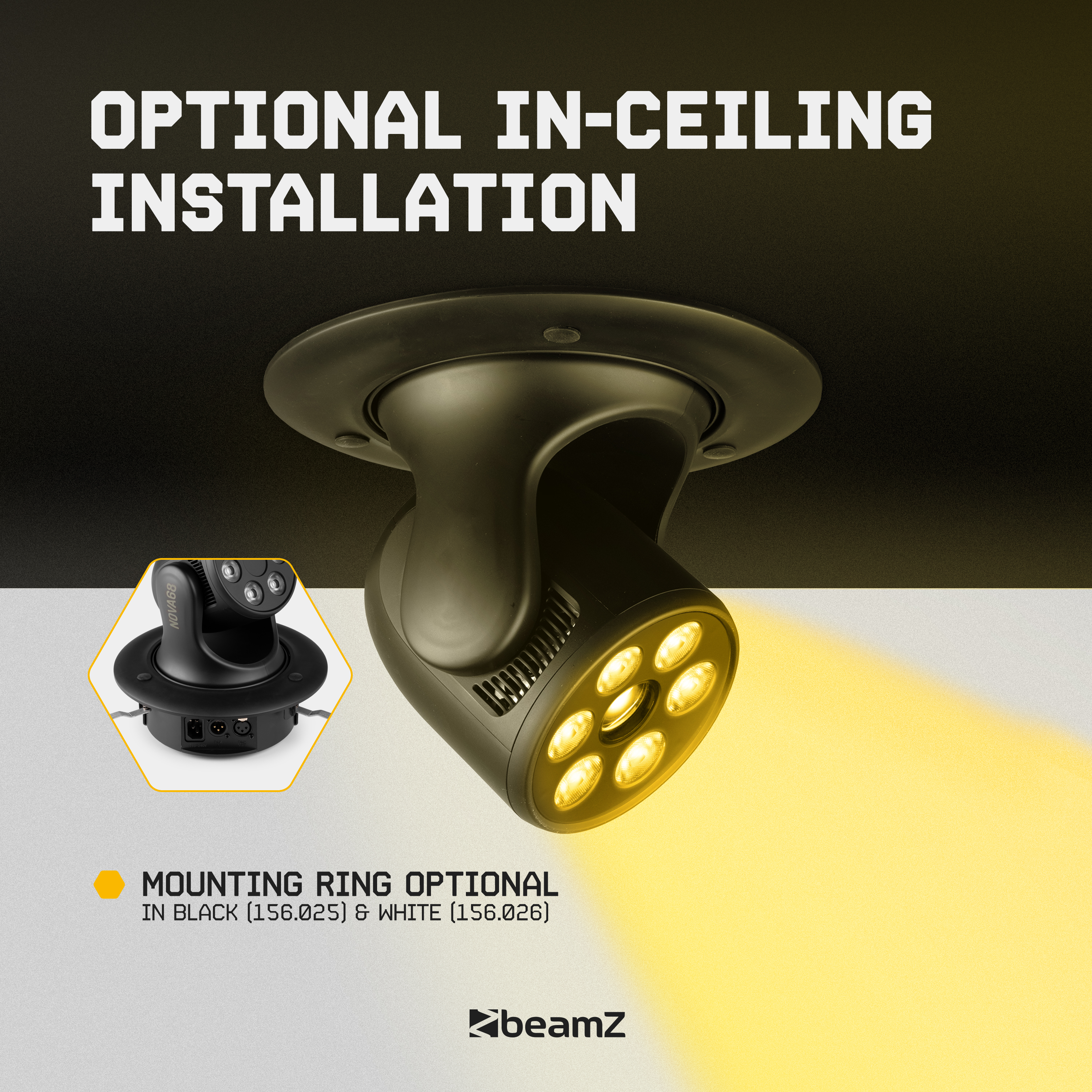

- Mounting ring for ceiling optional (156.025 Black, 156.026 White)
| Product colour | Black |
|---|---|
| Light source | Single colour LED, 4-in-1 LED |
| Colours | Red, Green, Blue, White |
| LED power (single LED) | 8W, 30W |
| Quantity of LEDs | 6 + 1 |
| Colour wheel | 7 colours + open |
| Beam angle | Wash 19° - Gobo 9° |
| Field angle | Wash 38° - Gobo 11° |
| Illuminance | Wash 6.658 lx @ 1m - Gobo 26.140 lx @ 1m |
| Head movement: Pan | 540° |
| Head movement: Tilt | 270° |
| Static gobo: Quantity | 7 |
| Flash rate per second | 1 - 30Hz |
| Modes | Automatic programs, DMX, Master/Slave |
| Sound to light mode | Yes |
| RDM | Yes |
| DMX channels | 19, 20 |
| DMX connection | 3-pin XLR |
| Display | LED |
| IP rating | IP20 |
| Cooling | Temperature controlled fan |
| Power plug | IEC |
| Power consumption | 0.620 - 0.295A |
| Power supply | 240VAC 50Hz |

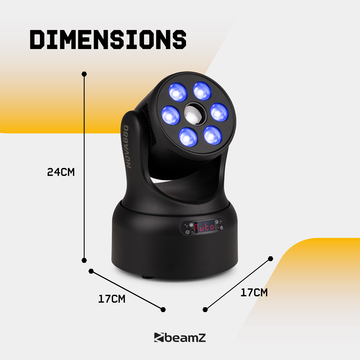

| Dimensions (L x W x H) | 170 x 170 x 240mm |
| Weight (kg) | 3,20 |
| Included accessories | Mounting bracket, Power cable |
