Professional Amplifier with 8 Ceiling Speakers
Ideal for Cafe's & Small Restaurants, Salons, Small Retail and Home.
Product Code: 953.404-NCSS6B
$1059.00
Pay it in 4 payments of $264.75 with
Professional Amplifier with 8 Ceiling Speakers - Ideal for Cafe's & Small Restaurants, Salons, Small Retail and Home.

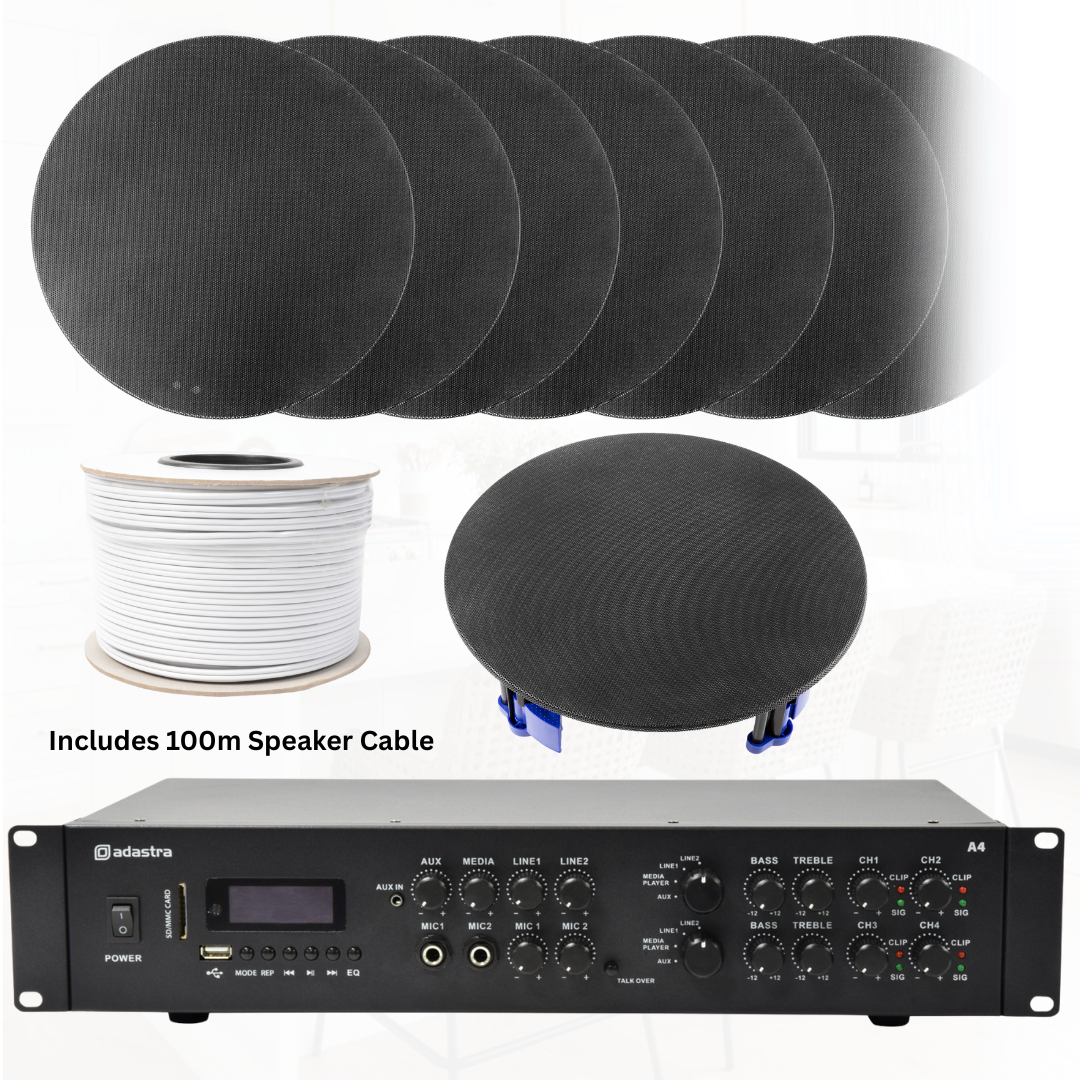

Package includes:
1 x Adastra A4 Amplifier
8 x 6.5" Full Range Ceiling Speakers with Inbuilt Tweeter
1 x 100m roll of Speaker Cable
Each of the 4 outputs can support 2 speakers, providing 4 separate speaker pair zones with individual volume control.

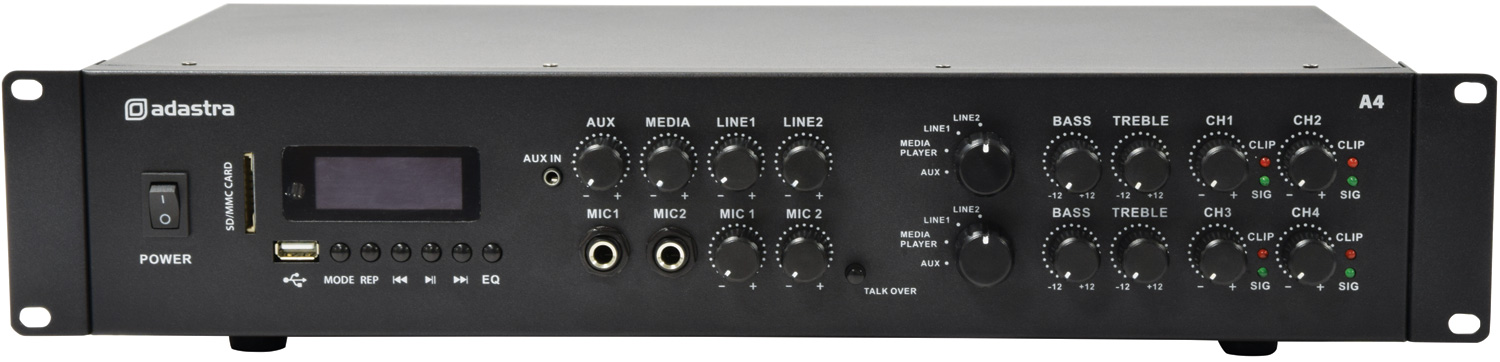

Amplifier Details:

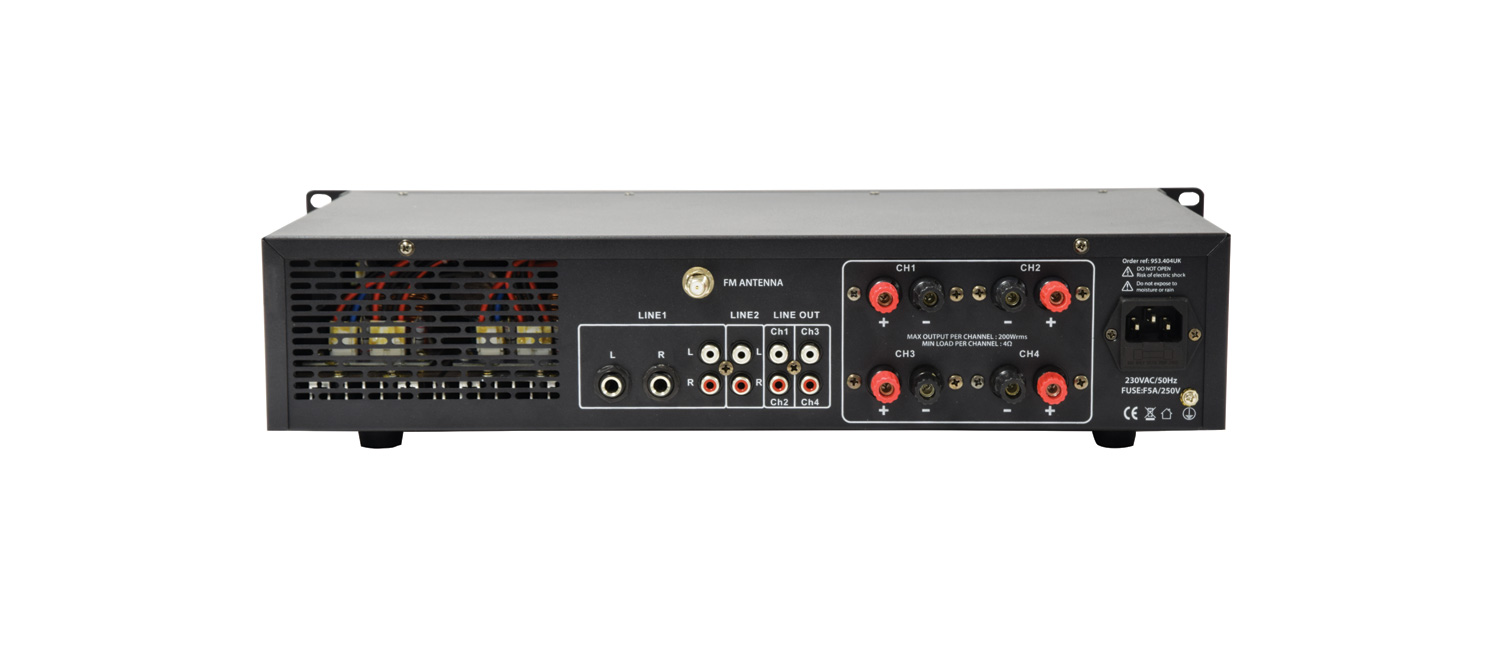

An inbuilt media player section offers playback of mp3 audio tracks from USB drive or SD card and also has a Bluetooth receiver and FM radio tuner. A rotary switch for each output zone selects the stereo playback audio from a choice of 2 rear stereo inputs, a front 3.5mm stereo input or the built-in media player. Mic inputs 1 and 2 are live to both output zones at all times. 2 pairs of speaker connections on the rear panel are via 4mm binding posts, which can drive up to 2 x 8 Ohm speakers on each of the 4 channels to deliver up to 4 x 200W. Designed to offer installers a comprehensive dual zone PA for bars, restaurants and function rooms.
Independent stereo playback to 2 separate zones
Media player with USB/SD playback
FM radio tuner with external aerial connection
Bluetooth receiver
Specification
Power supply | 230Vac, 50Hz (IEC) |
Fuse | F5A, 250V |
Output power rms | @ 4 Ohms 4 x 200W |
Output power rms | @ 8 Ohms 4 x 100W |
Amplifier : | construction Class D |
Frequency response | 20Hz - 20kHz ±0.5dB |
Microphone inputs | 2 x 6.3mm jack (mono) |
Line inputs Line 1: | L+R (6.3mm jack/RCA), Line 2: L+R (RCA) |
Input sensitivity : | line 0.775Vrms |
Auxiliary input | 3.5mm stereo jack |
Input sensitivity : | aux 0.480Vrms |
Input impedance | 20k Ohms (balanced), 10k Ohms (unbalanced) |
Audio source | USB/SD mp3 playback, FM tuner, BT receiver |
Bluetooth version | 2.3 |
Input controls | Aux, Media, Line1, Line2, Mic1, Mic2, Talkover |
Line output | 4 x RCA |
Speaker outputs | 4mm binding posts (4 channels) |
Antenna connection | F type (FM tuner) |
Output controls | 2 x source select, 2 xBass, 2 xTreble, Ch1, Ch2, Ch3, Ch4 |
Dynamic range | 92dB |
THD | +N <0.1% |
Protection | Thermal, over-current, over-voltage, short-circuit |
Dimensions | 482 x 240 x 88mm |
Weight | 5.98kg |
Speaker Details:

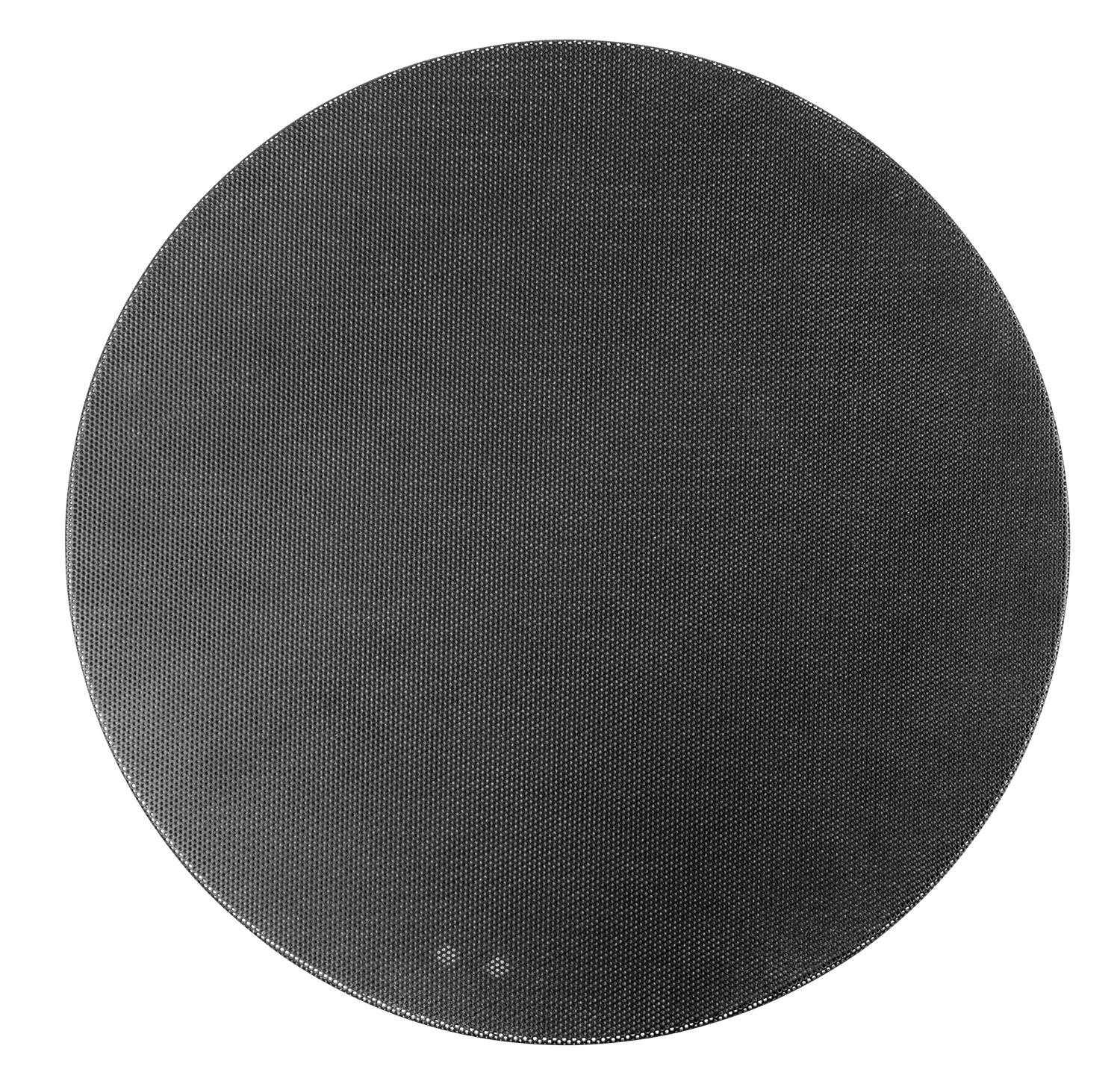

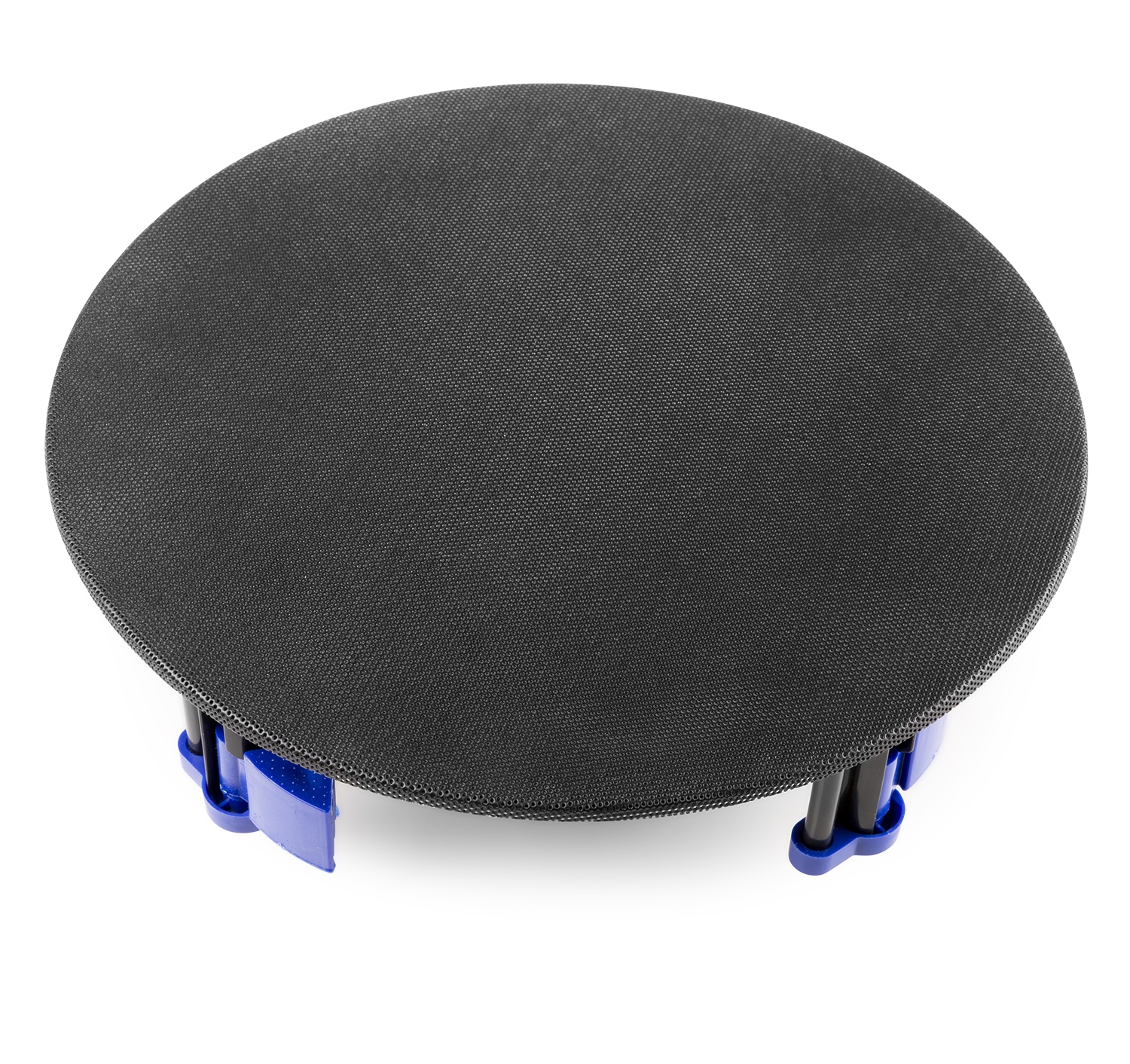

NCSS6B Low Profile Ceiling Speaker 2-way 6.5" Black
The NCSS series is a series of 8 ohm low profile ceiling speakers with a quick fit system for easy assembly. These high quality 2-way speakers are equipped with a metal flush fitting grille (with magnetic closure) and built-in high end crossover filter. Ideal for use in your living room, veranda, garage, showroom, restaurant etcetera.
- High power ceiling speaker with superior HiFi sound processing techology

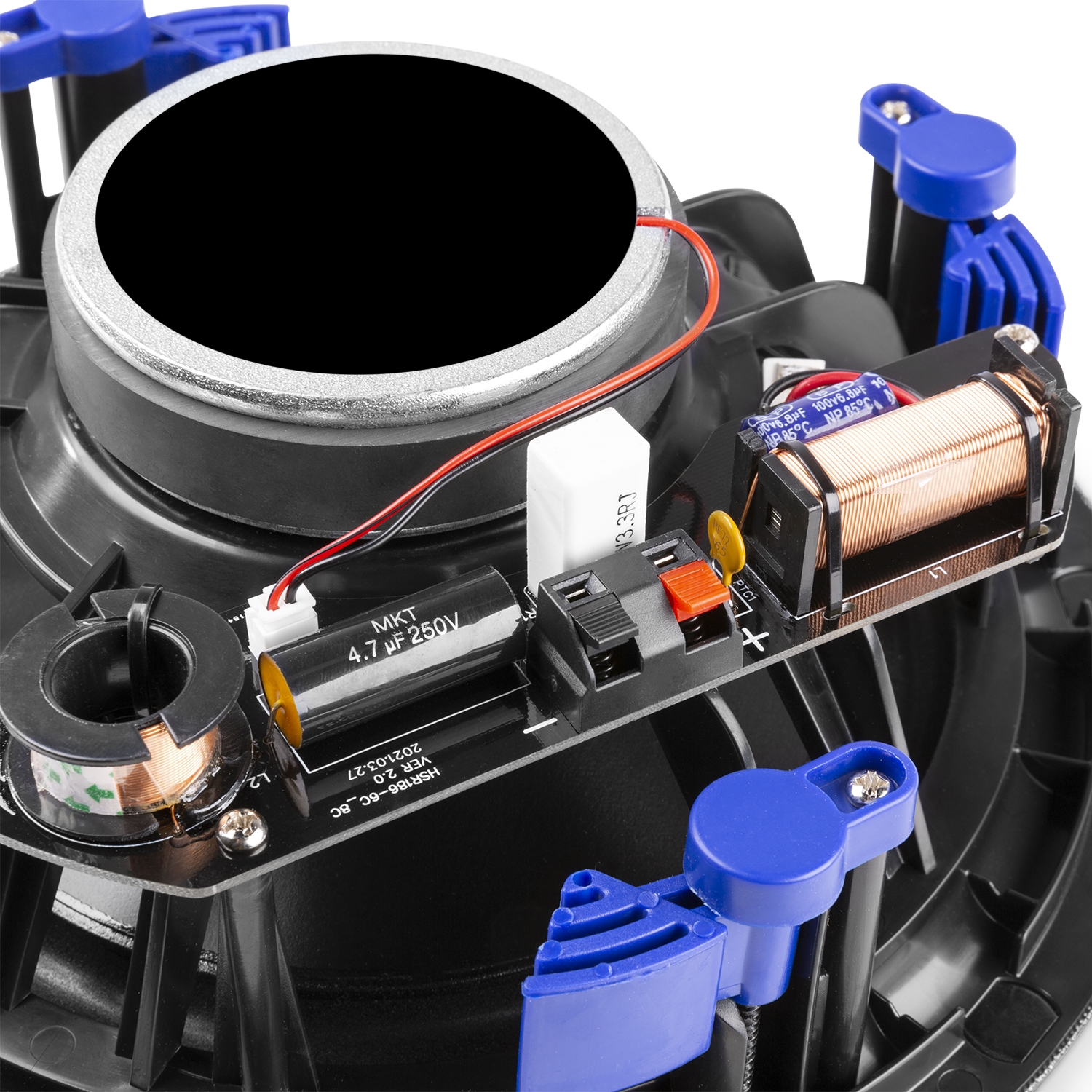

- Built-in electronics crossover network
- Magnetic fit steel grille
- Slim low-profile speaker grille for a sleek finish
- 2-Way coaxial speaker
- 8 Ohm version
- Supplied per piece
- Colour: Black
Specifications
Output power: RMS | 30W |
---|---|
Diameter tweeter | 1/2" |
Diameter woofer | 6.5" |
Tweeter type | Mylar |
Magnet type | Ferrite |
Impedance | 8 Ohm |
Frequency response | 50Hz - 20.000Hz |
SPL @ 1W/1m | 90dB |
Mounting depth | 80mm |
Mounting diameter | 190mm |
Dimensions (L x W x H) | Ø215mm |
Weight | 1,10 |
Cable Details:

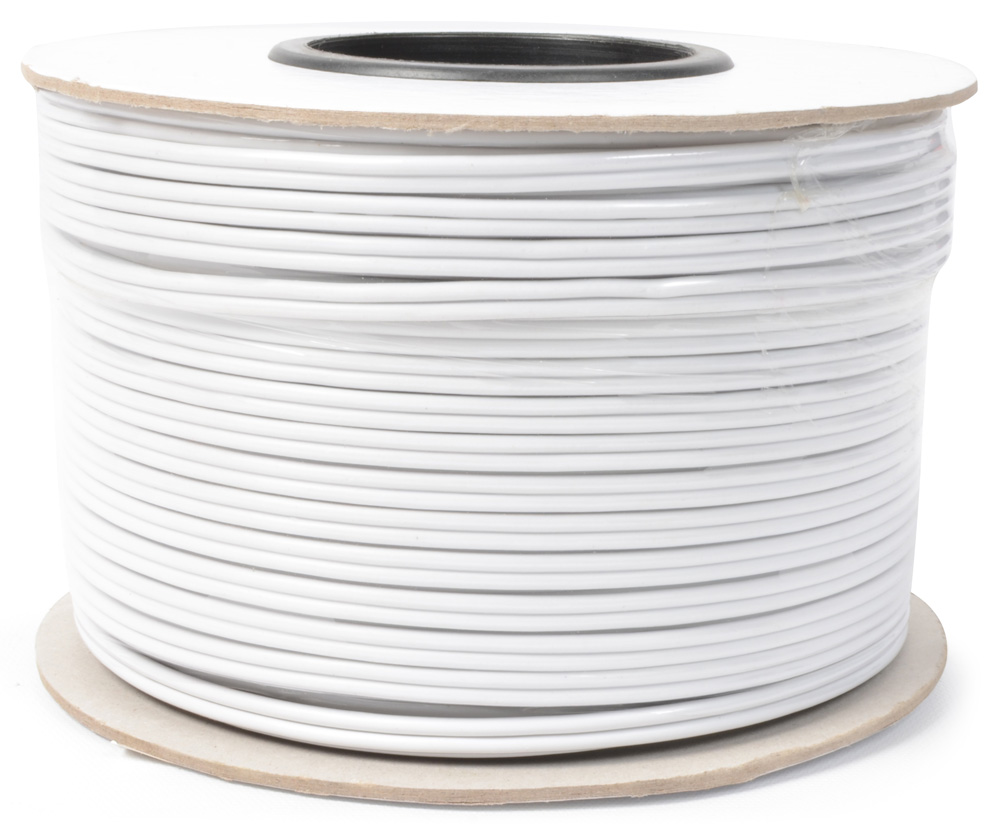

Speaker Cable 1.5mm White 100m Reel
Flexible, heavy duty speaker cable with polarity line indicator. Supplied on reels of 100m.
CSA | 1.5mm² |
---|---|
Conductor | 48x0.2mm |
Sheath | White |
Outer diameter | 3.2 x 6.6mm |
Weight | 3,20 |
