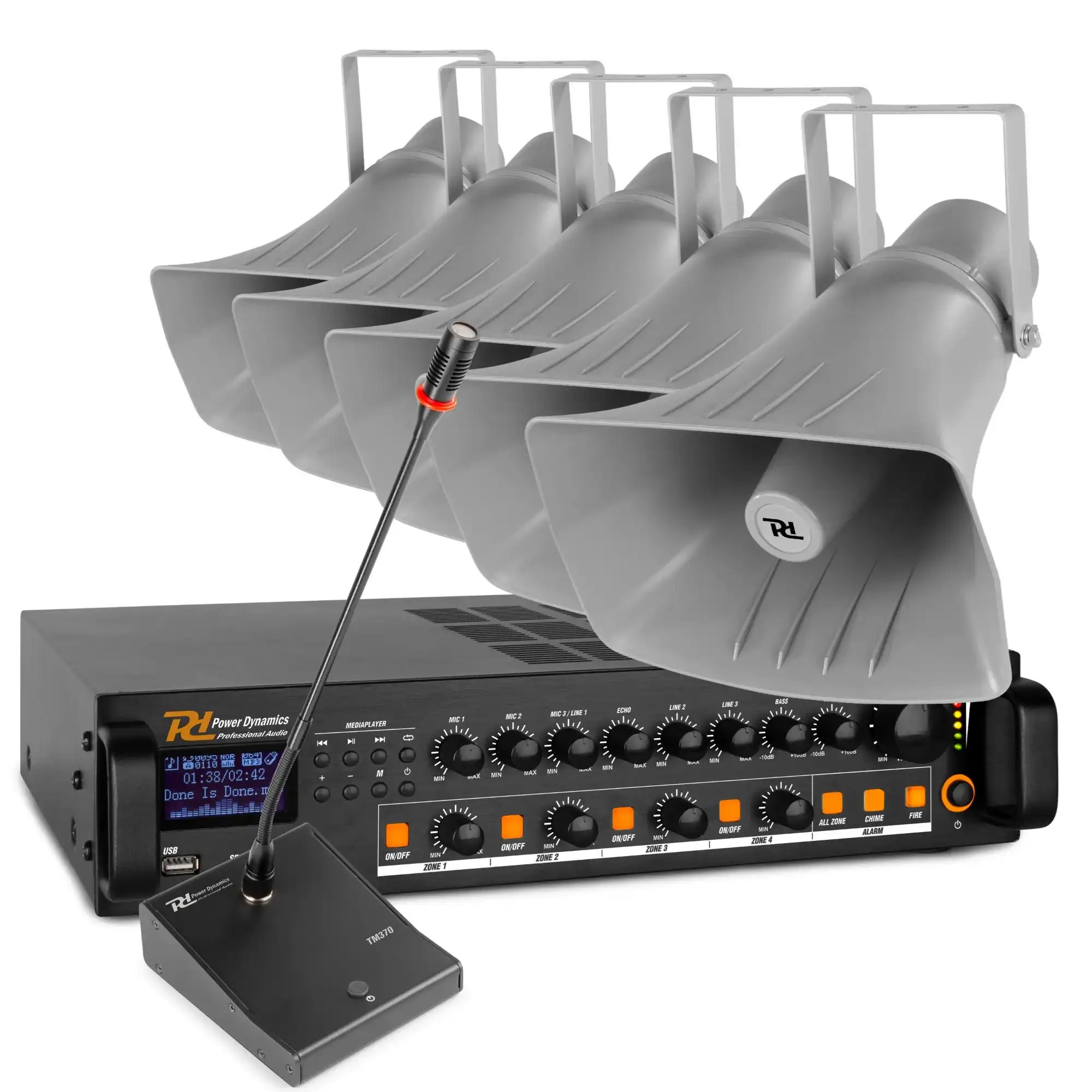

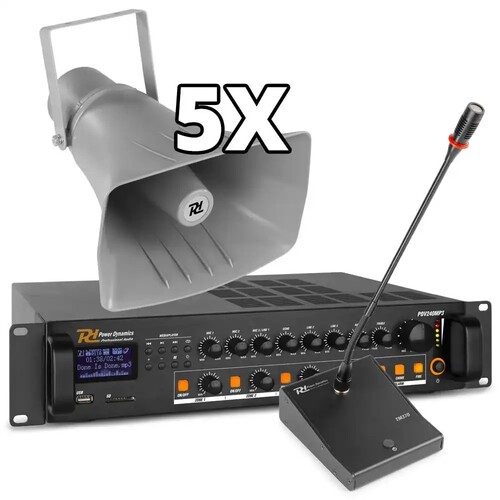

100V public address system with 5 speakers

No one has to miss the intermediate mode, switching teams or breaks with this powerful 200W caller installation. The installation consists of a powerful amplifier with a.o. Bluetooth and MP3 player, five horn speakers with a power of 40W, a table microphone and 2x 100 meters speaker cable for connecting the speakers. The system has the ability to set up 4 zones that can be switched on/off, but whose volume per zone can also be controlled. The entire set is delivered complete and ready for installation so you can get started immediately after receipt.

The power of the

With a power of 200W, this set has enough power to spread the sound over a large area. Due to the special horn shape, the sound from the speakers carries very far. The speakers are specially designed for displaying speech for maximum results with spoken messages. This does not mean that no music can be played with this installation, but the sound quality will not be optimal. The priority for this set is when displaying speech over long distances.

100 volts

This caller system is a 100V installation. The big advantage of such an installation is that there is virtually no loss with long speaker cables. So it is no problem to have dozens of meters of loudspeaker between the amplifier and speakers (or speakers between each other). This is in great contrast to conventional systems that have enormous power losses with long speaker cables. For placing the speakers you have a lot of freedom and they certainly do not have to be installed as close to the amplifier as possible. With the 2 rolls of 100 meter speaker cable you have all the freedom to hang the speakers in the desired place.

Table microphone

For recording messages, a Power Dynamics TM370 table microphone is included. This microphone is equipped with a 4-tonous announcement signal which, like the volume of the microphone, is easy to control in volume. The microphone user is clearly informed of the status of the microphone by means of LED lighting. As soon as the microphone is "on-air" a red LED ring burns on the microphone. The 'talk' button also clearly shows the status by blinking while making the announcement signal and burning green while being "un-air". Being accidentally "un-air" is certainly not necessary in this public address. If music is played via the installation, it is possible to automatically dimming it as soon as the microphone turns on. After the message, the music will return completely automatically.

Looking for a different composition? More or less speakers, a combination of different speakers or other wishes?
Feel free to contact our cousomer servicefor advice, explanations or a customized quote.

Set Includes

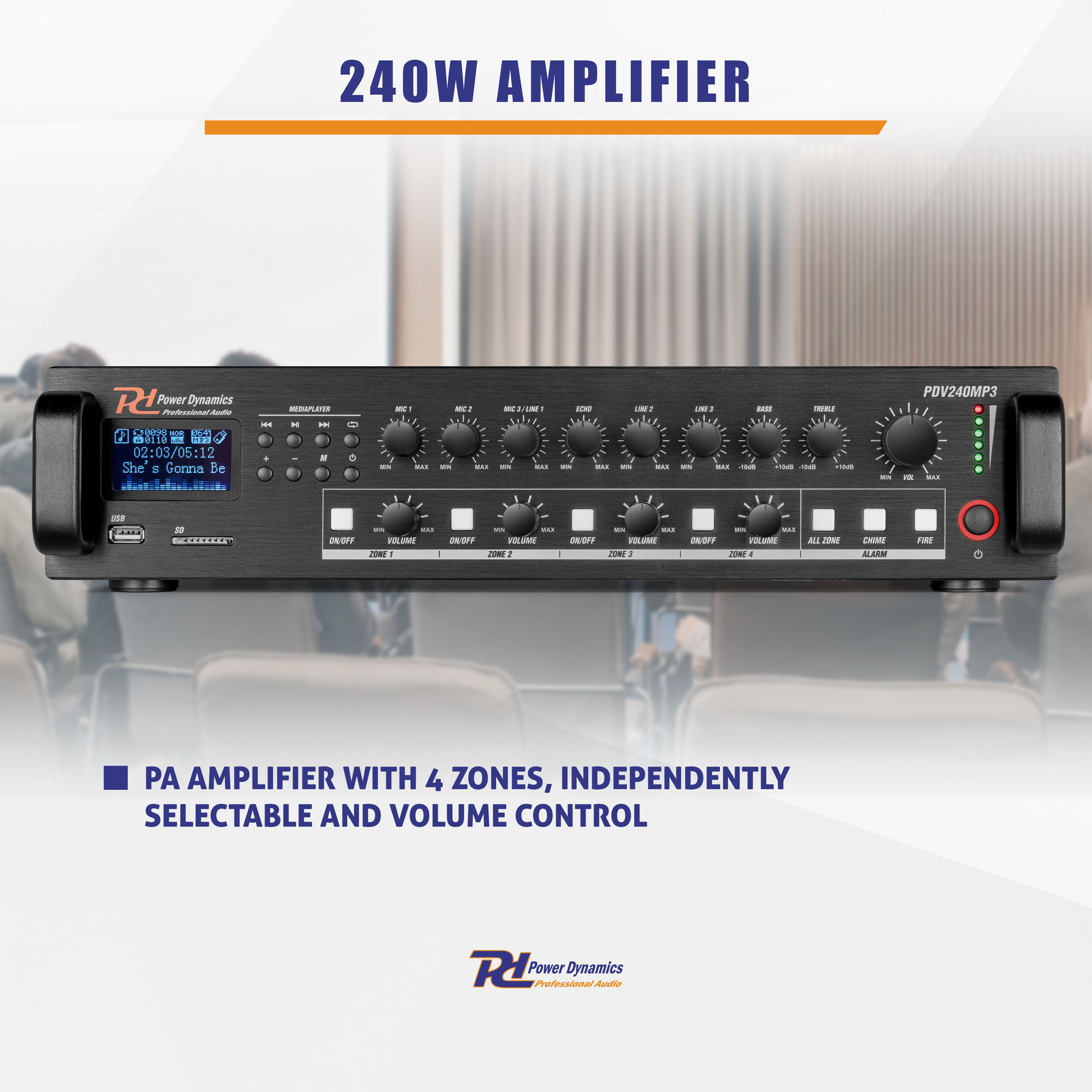

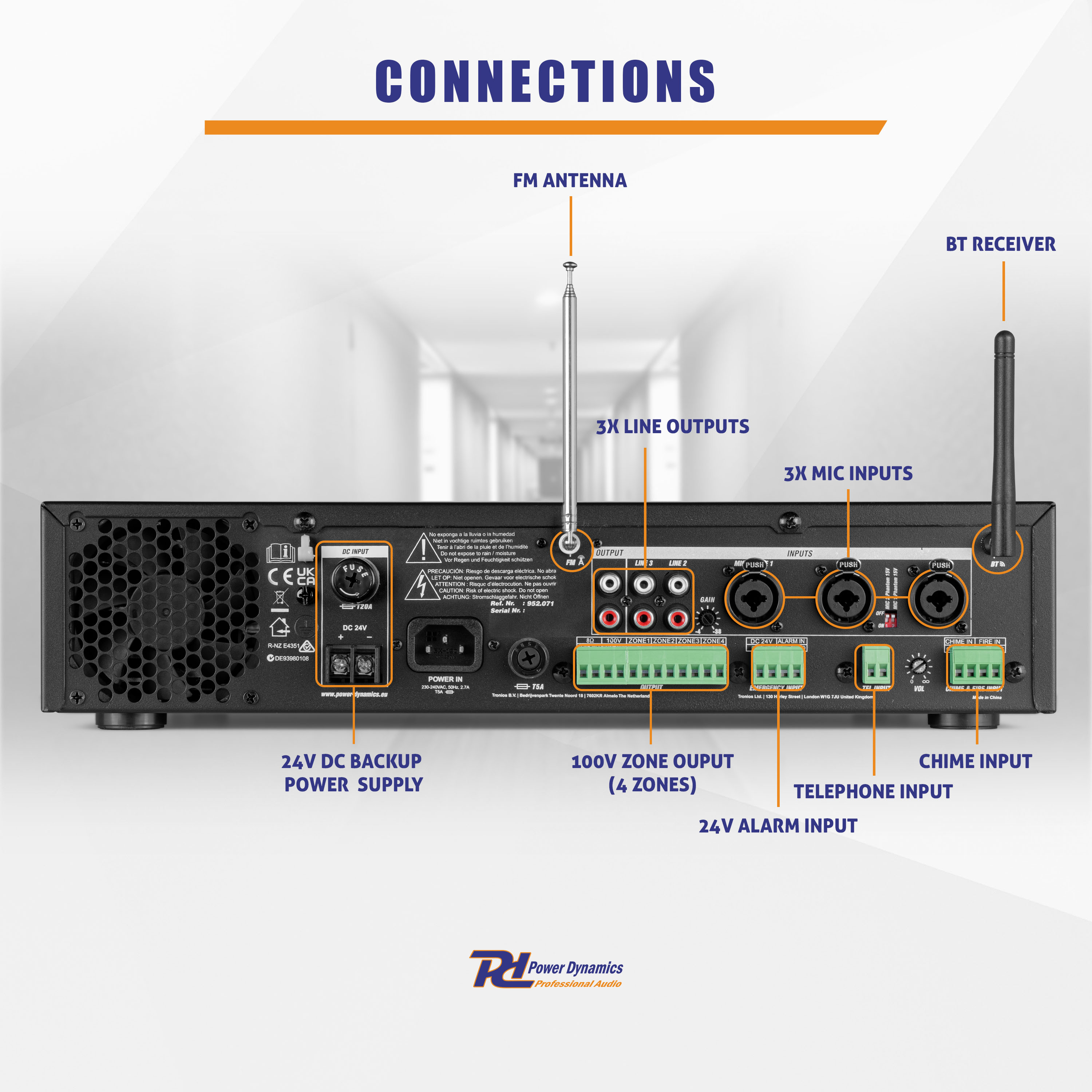

1 x Power Dynamics PDV240MP3 100V 4-zone amplifier with a.o. Bluetooth and Bluetooth

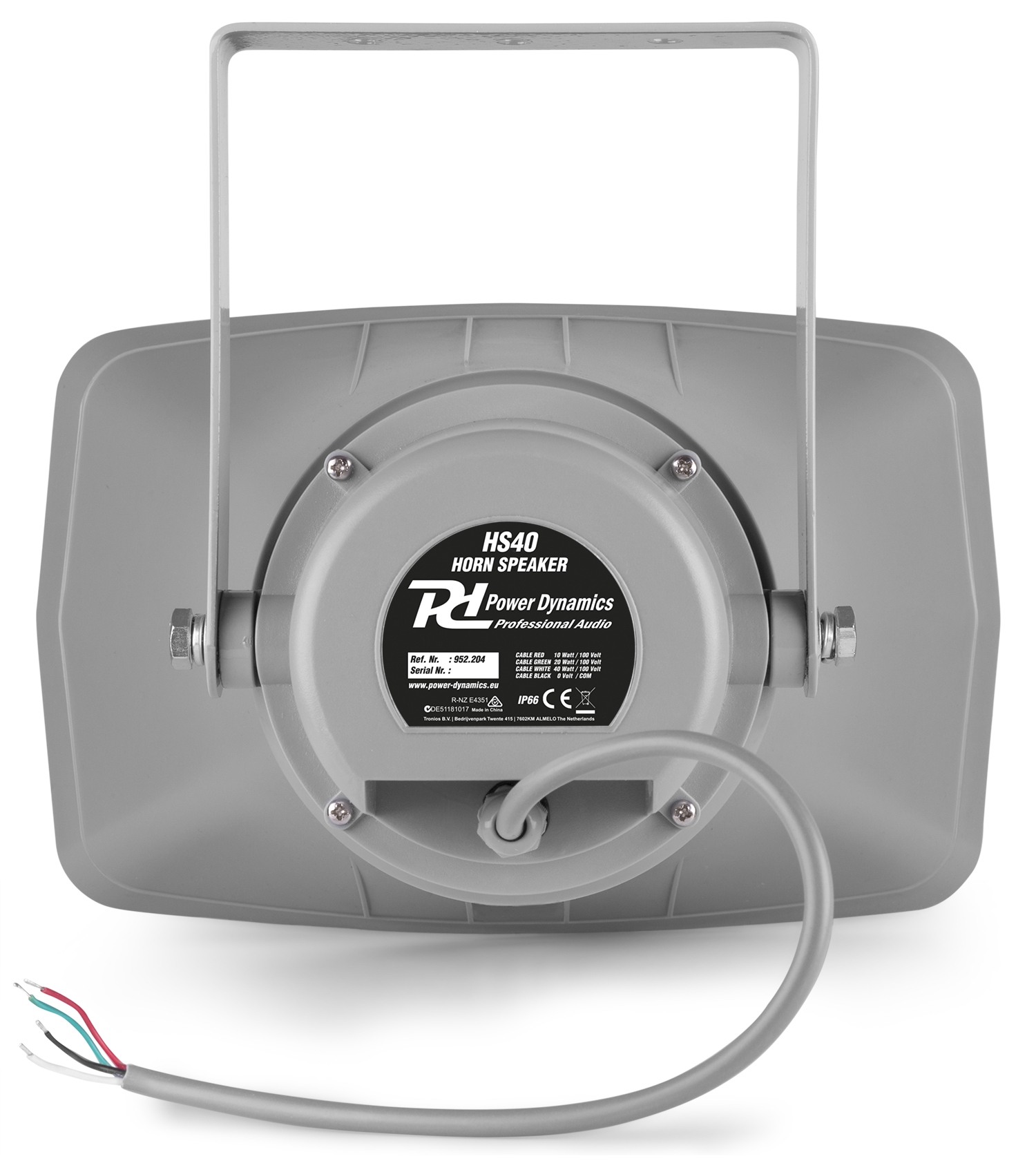

5 x Power Dynamics HS40 Hooreishow 100V for outdoor use - 40W
1 x Power Dynamics TM370 table microphone for 100V broadcasting installations
2 x PD Connex 100V Speaker Cable 2x 1.5mm2 15A - Black - 100 meter roll
1 x PD Connex Signal Cable XLR male/female 3-pin - 1.5 meter - black

Physical properties
Weight and weight
39.1 kg
Number of speakers
5
Mounting options
Wall mount
IP rating
IP 66
Weight per speaker
3 kg
Colour and colour
Grey and grey
Playback options
Playback options
Bluetooth, FM, USB stick, SD card, Microphone (input), Line input
Bluetooth and Bluetooth
Yes Yes
Bluetooth version of the
Bluetooth 4.1
Bluetooth range of Bluetooth
10 m (m)
Including remote control
No, no,
Technical properties
The power of the
240 Watts
Sensitivity 1W 1m
The 103dB of 103
Maximum frequency
10,000 Hz
Minimum frequency of water
400 Hz
Built in equalizer
Yes Yes
Type of plug
IEC C13 Power Lead 3c, External Power Supply Fixed Plug
