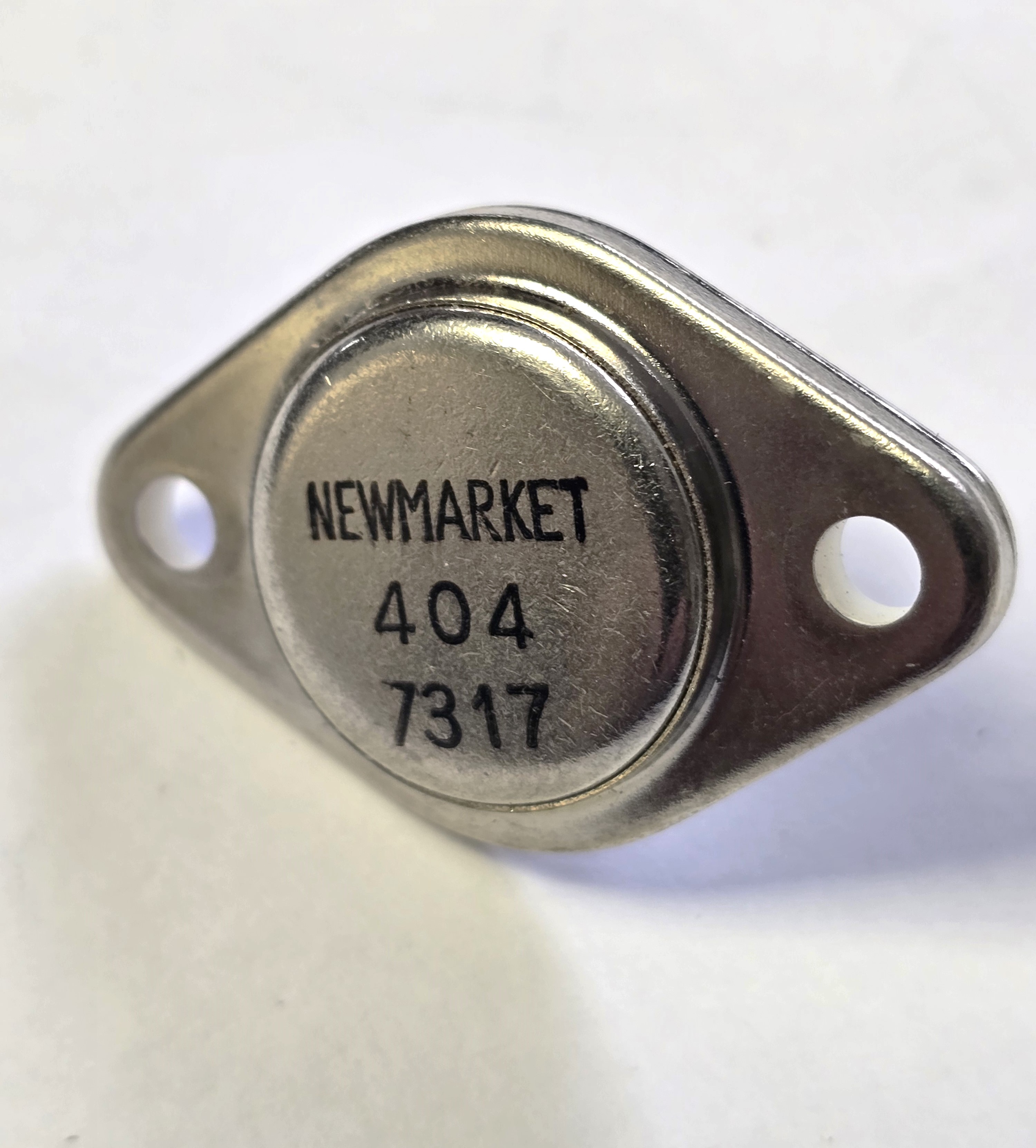

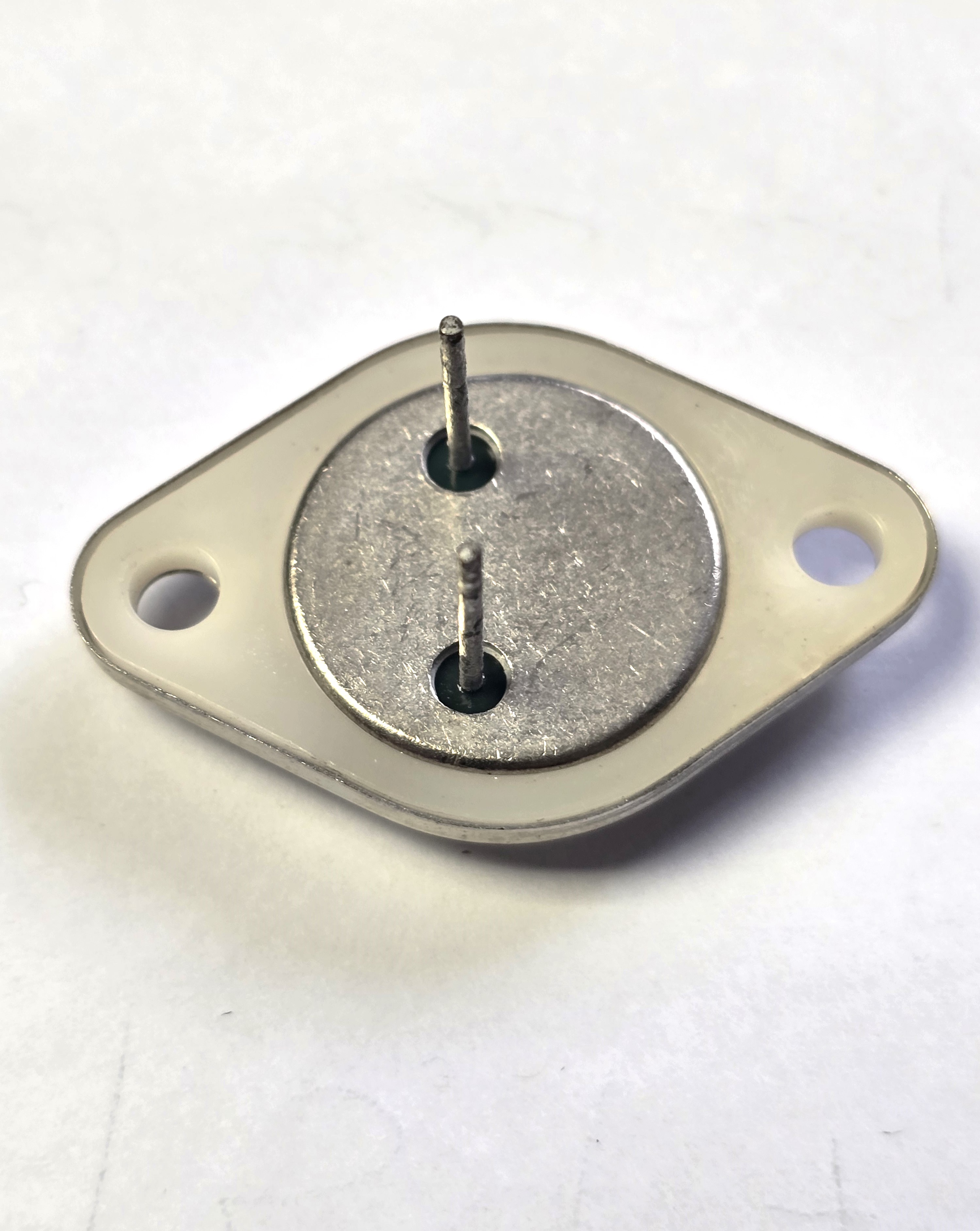

404 - NEWMARKET NKT404 TO3 - NOS
PNP germanium alloy transistor
SKU: CT0860
Available
$8.50
Volume Pricing
Buy 1+
$8.50
(incl. GST)
Buy 10+
$8.10
(incl. GST)
Henderson
In Stock
Albany
Out of Stock
NZ-wide delivery available
| Type | Transistor Germanium PNP |
|---|---|
| Manufacturer | Newmarket Transistors |
| Case | TO3 |
| Vbr CBO | 60 |
| Vbr CEO | 32 |
| Max. PD (W) | 1.3 |
| t(f) Max. (S) | 20u |
| Max. hFE | 150 |
| Min hFE | 50 |
| Ic Max. (A) | 10 |
| @Ic (test) (A) | 1.0 |
| Icbo Max. @Vcb Max. (A) | 150u |
| Polarity | PNP |
| Tr Max. (s) | 16u |
| R(sat) (Û) | 420m |
| Derate Above 25°C | 770m |
| Trans. Freq (Hz) Min. | 430k |
| Oper. Temp (°C) Max. | 100 |
| @VCE (V) | 1.0 |
| Pinout Equivalence Number | 3-14 |
| Surface Mounted Yes/No | NO |
| Maximum Collector Power Dissipation (Pc) | 50 W |
| Maximum Collector-Base Voltage |Vcb| | 60 V |
| Maximum Collector-Emitter Voltage |Vce| | 32 V |
| Maximum Emitter-Base Voltage |Veb| | 20 V |
| Maximum Collector Current |Ic max| | 10 A |
| Max. Operating Junction Temperature (Tj) | 90 °C |
| Collector Capacitance (Cc) | 250 pF |
| Transition Frequency (ft) | : 0.2 MHz |
| Forward Current Transfer Ratio (hFE), MIN | 50 |
