BTK200C Fresnel 200W CW/WW Manual Zoom
Product Code: 155.108

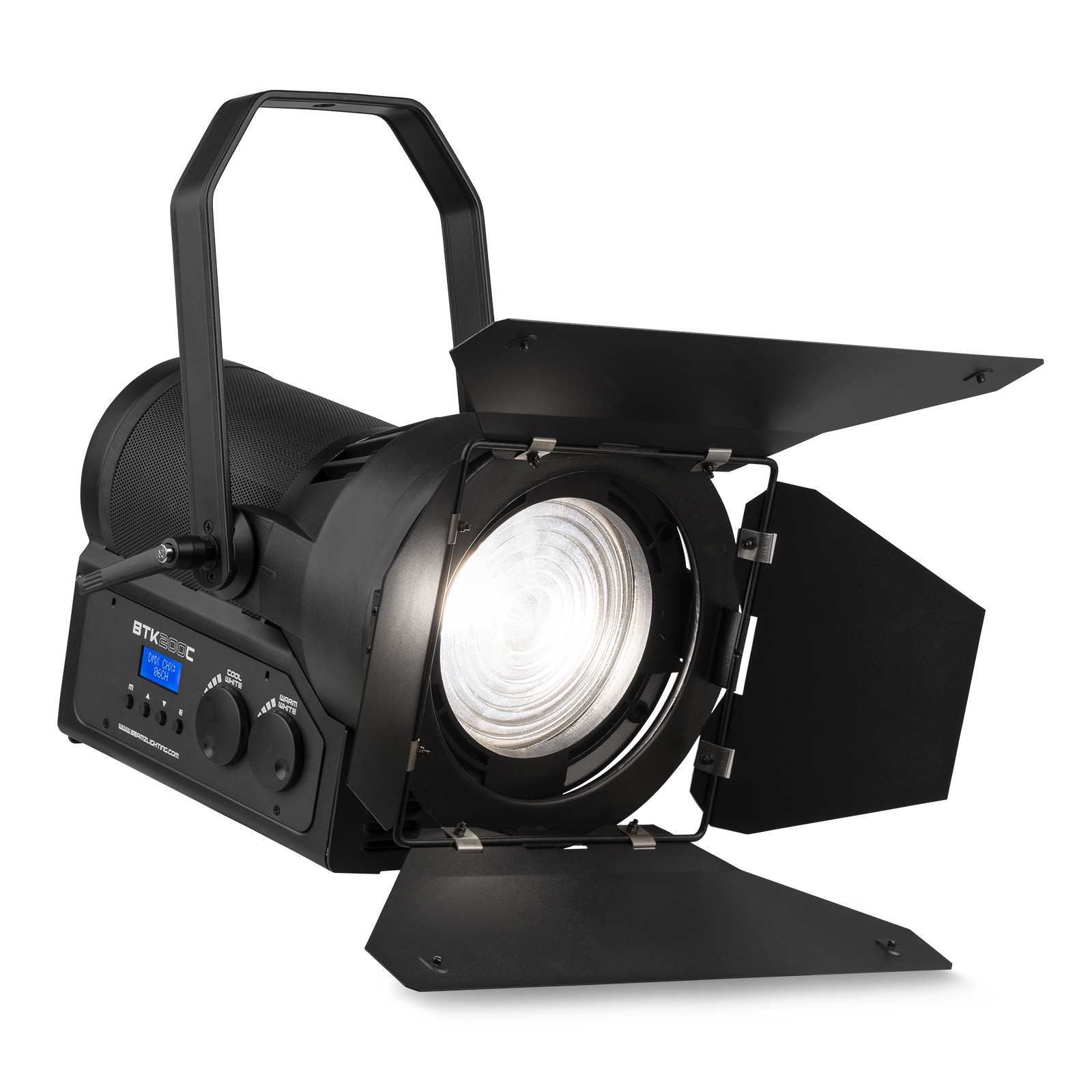

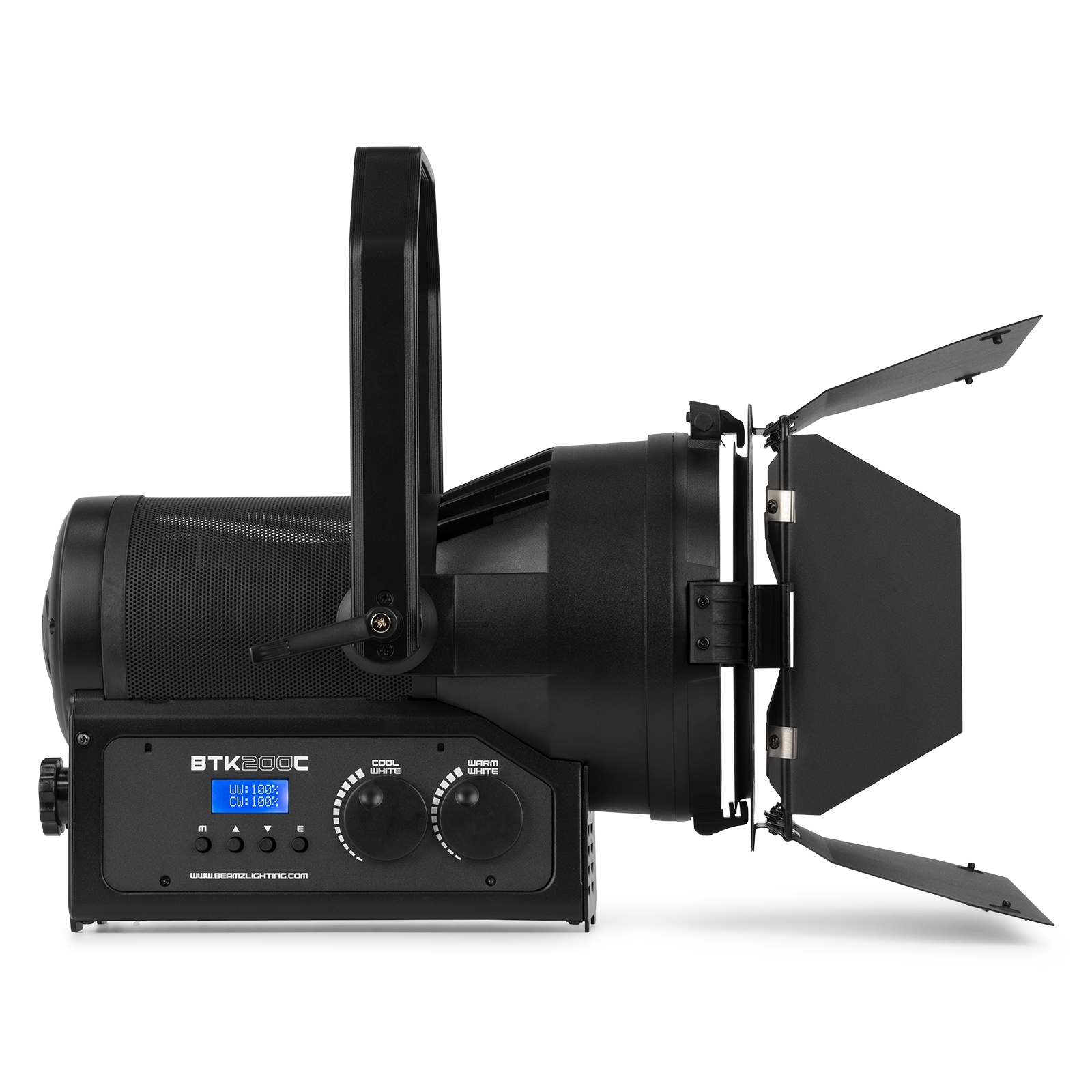

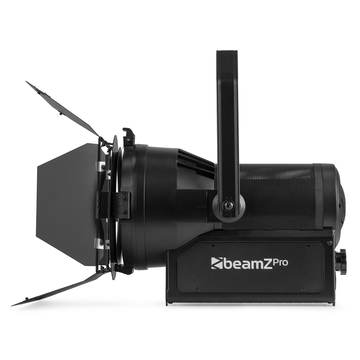

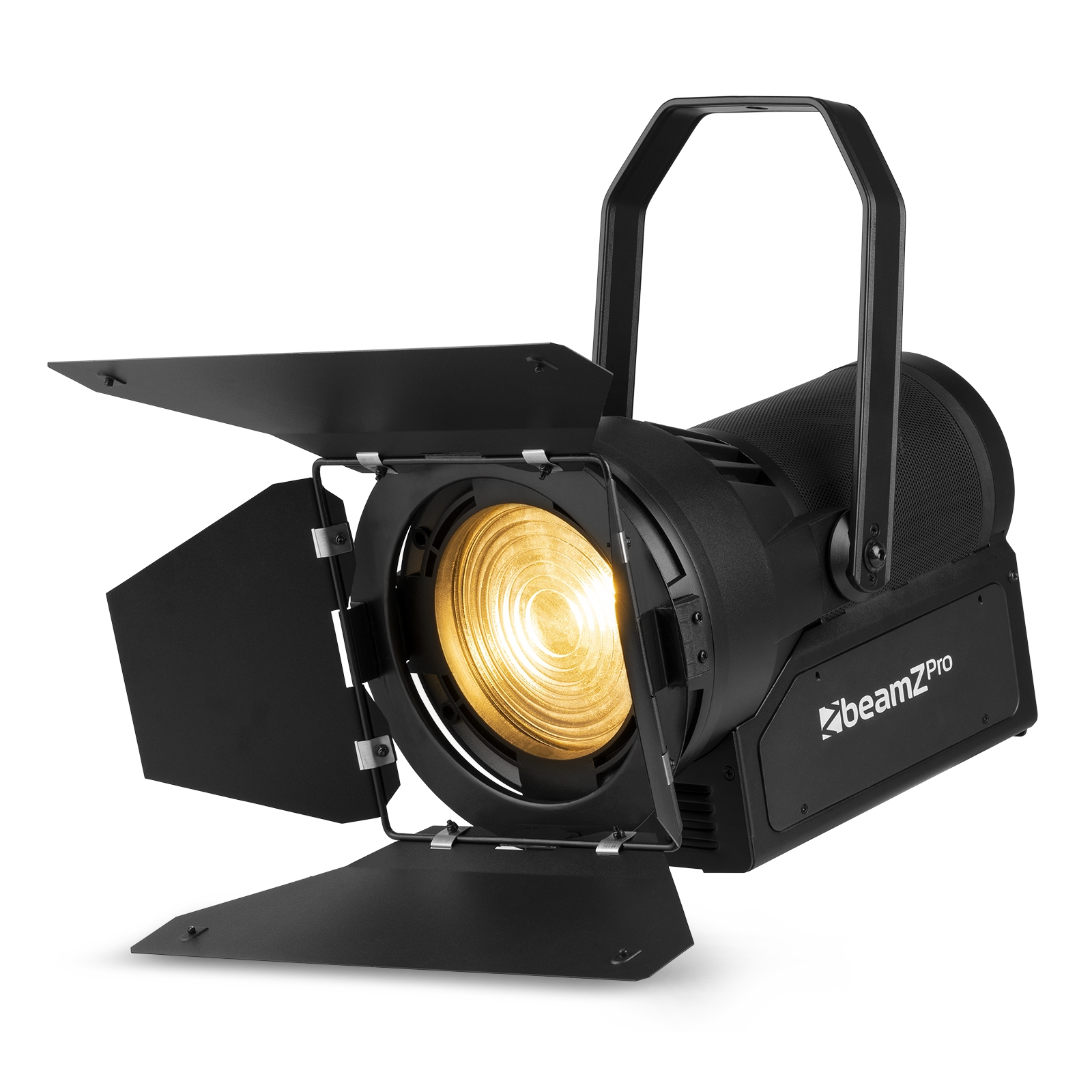

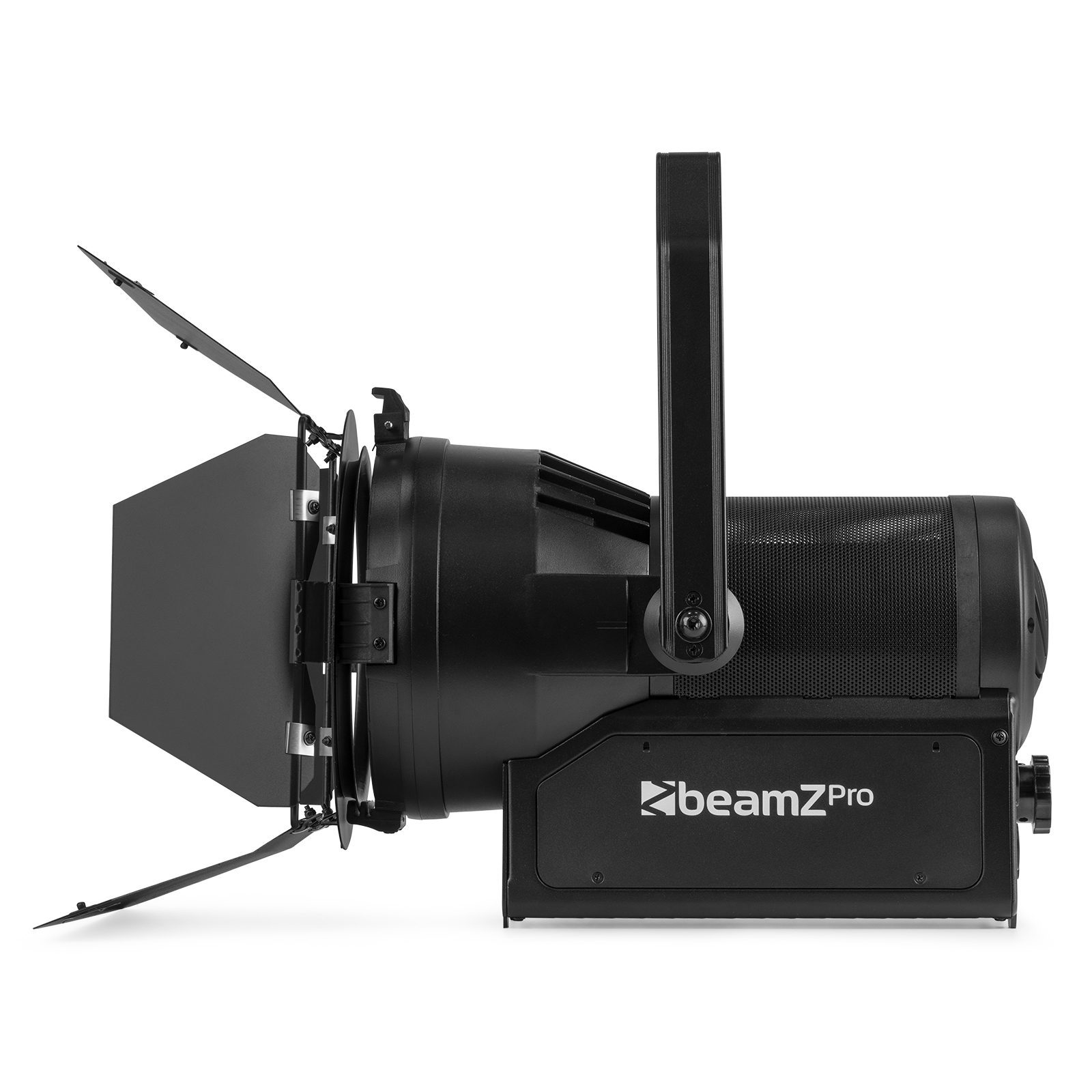

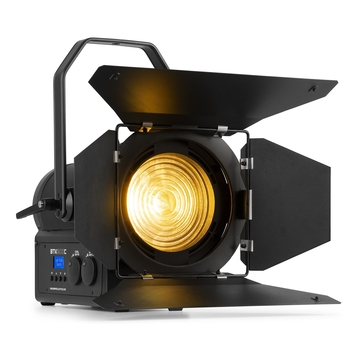

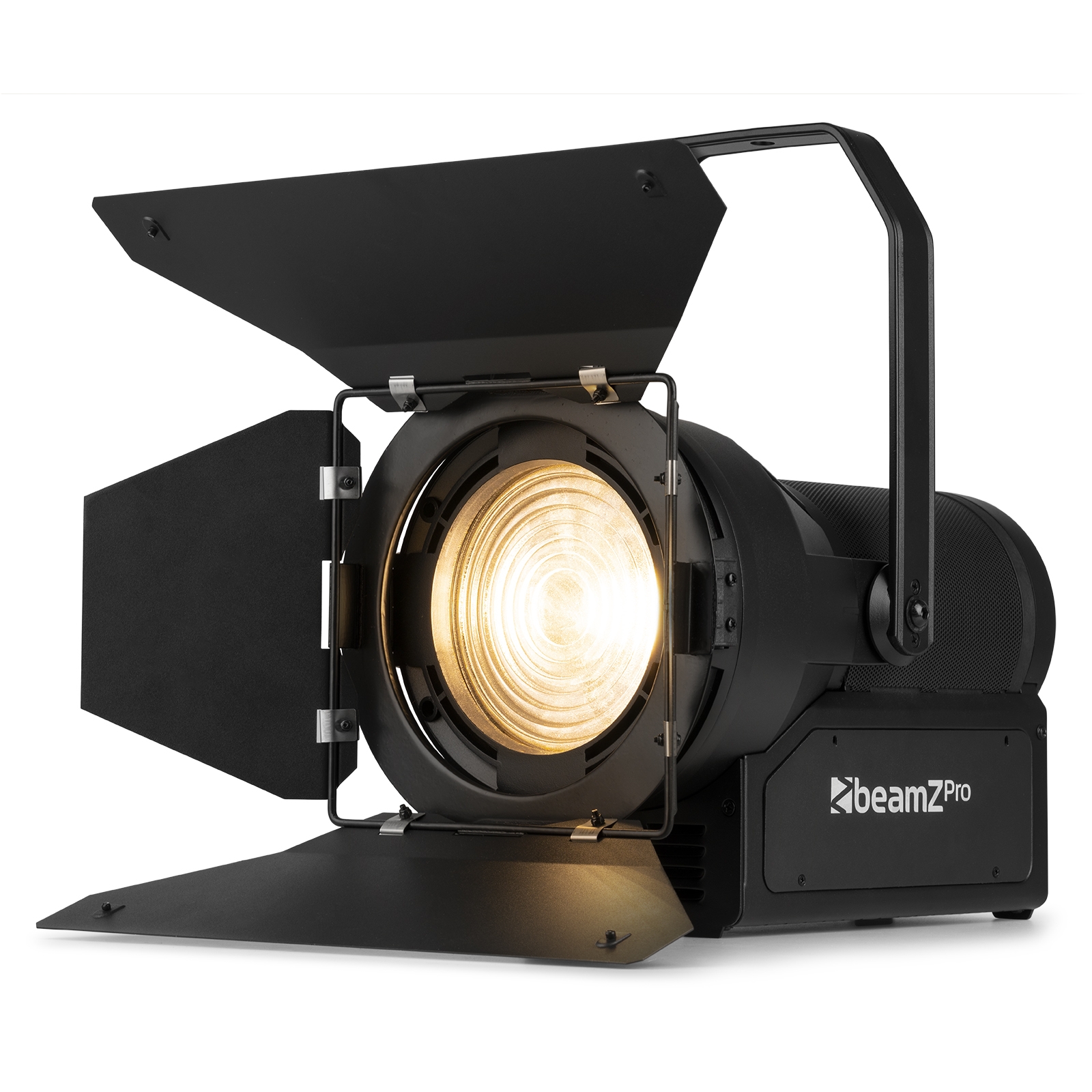

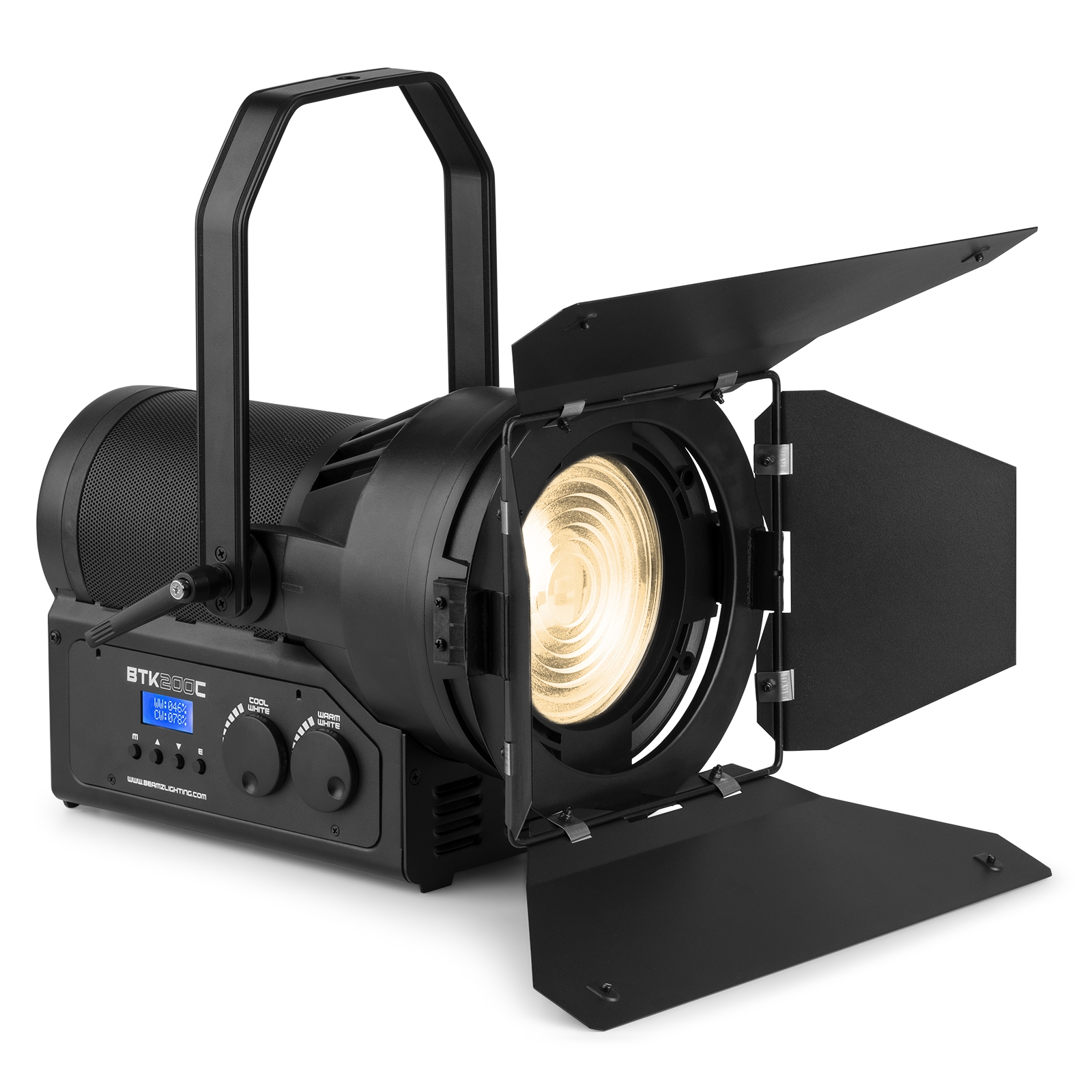

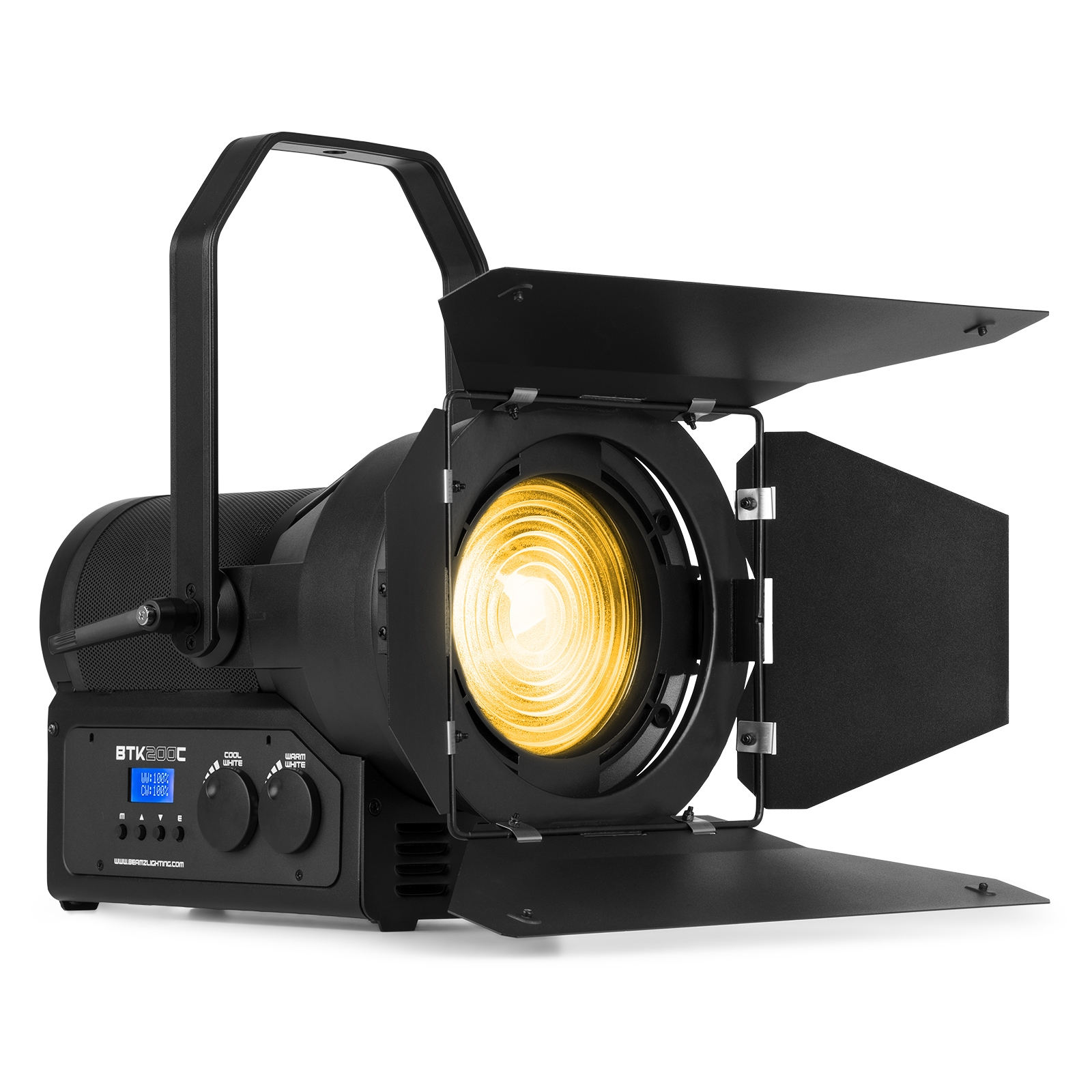

The BTK200C is a compact and easy-to-maintain LED Fresnel spotlight with a versatile 15°-40° beam angle. Utilizing a two-stage focusing optical system, this fixture creates a soft and uniformly illuminated field of cool or warm white light with a high Color Rendering Index (CRI). Crafted from durable die-cast aluminum, the stylishly designed BTK200C combines the functionality of traditional tungsten fixtures in combination with optimized color correction for video cameras. P-Con in/out and 3-pin DMX in/out connections are standard equipment on this Fresnel, ensuring compatibility with your existing equipment and a simple installation process. Ideal for TV studios, conference rooms, theaters, houses of worship, and more, the BTK200C is designed to meet your lighting needs with precision and style.
- 200W Cool White/Warm White COB LED
- Colour Temperature: between 2800K and 6000K
- Lifetime LED: 50.000 hours
- 15° to 40° Manual zoom
- Compact and lightweight Aluminium body
- HQ optical system
- CRI >95 (Colour Rendering Index)
- Dimming: 0 - 100% (2 manual dimmers)
- Flicker free
- Control Panel: LED Display
- DMX 3-pin or manual control options
- Intelligent temperature control for silent operation

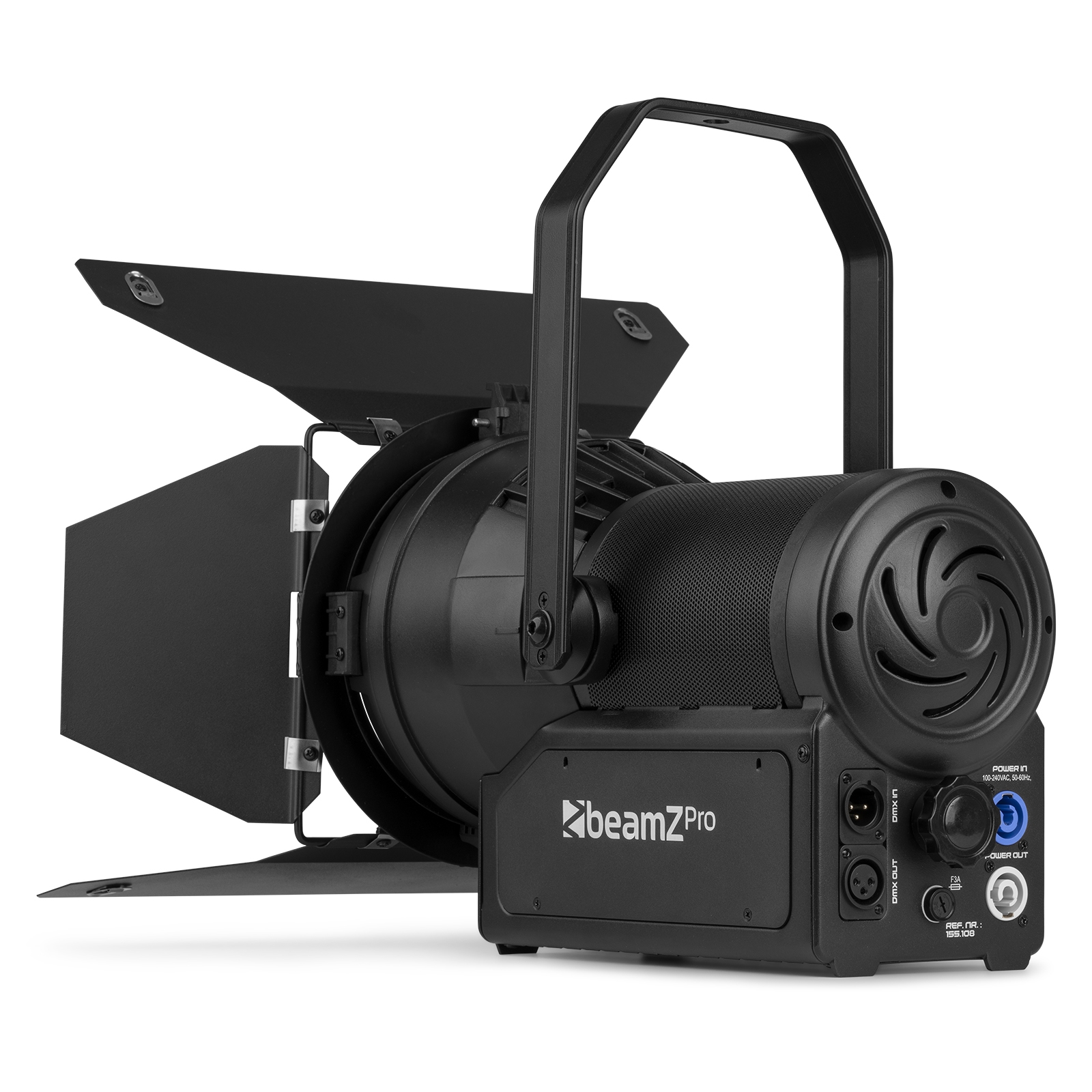

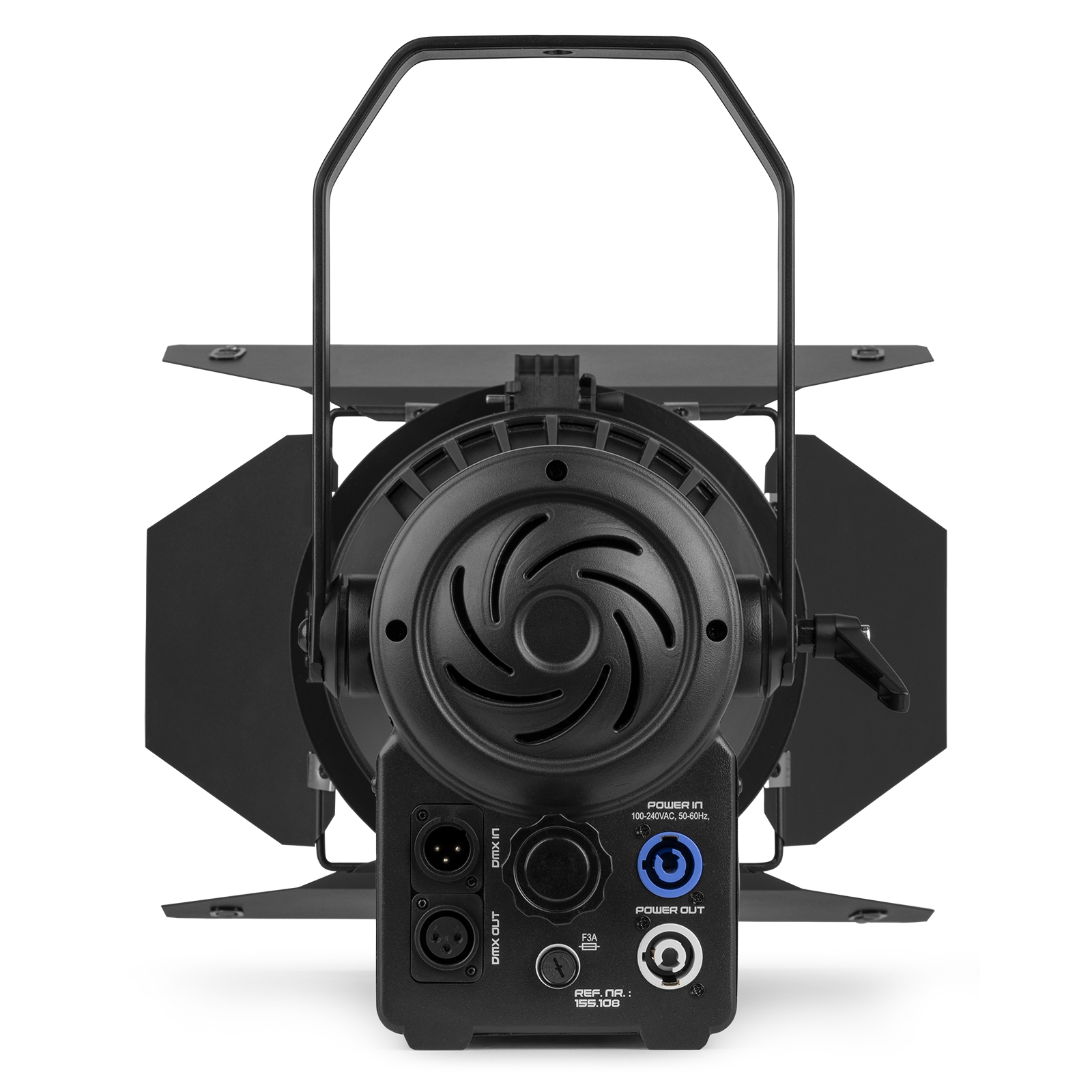

- P-Con in&out

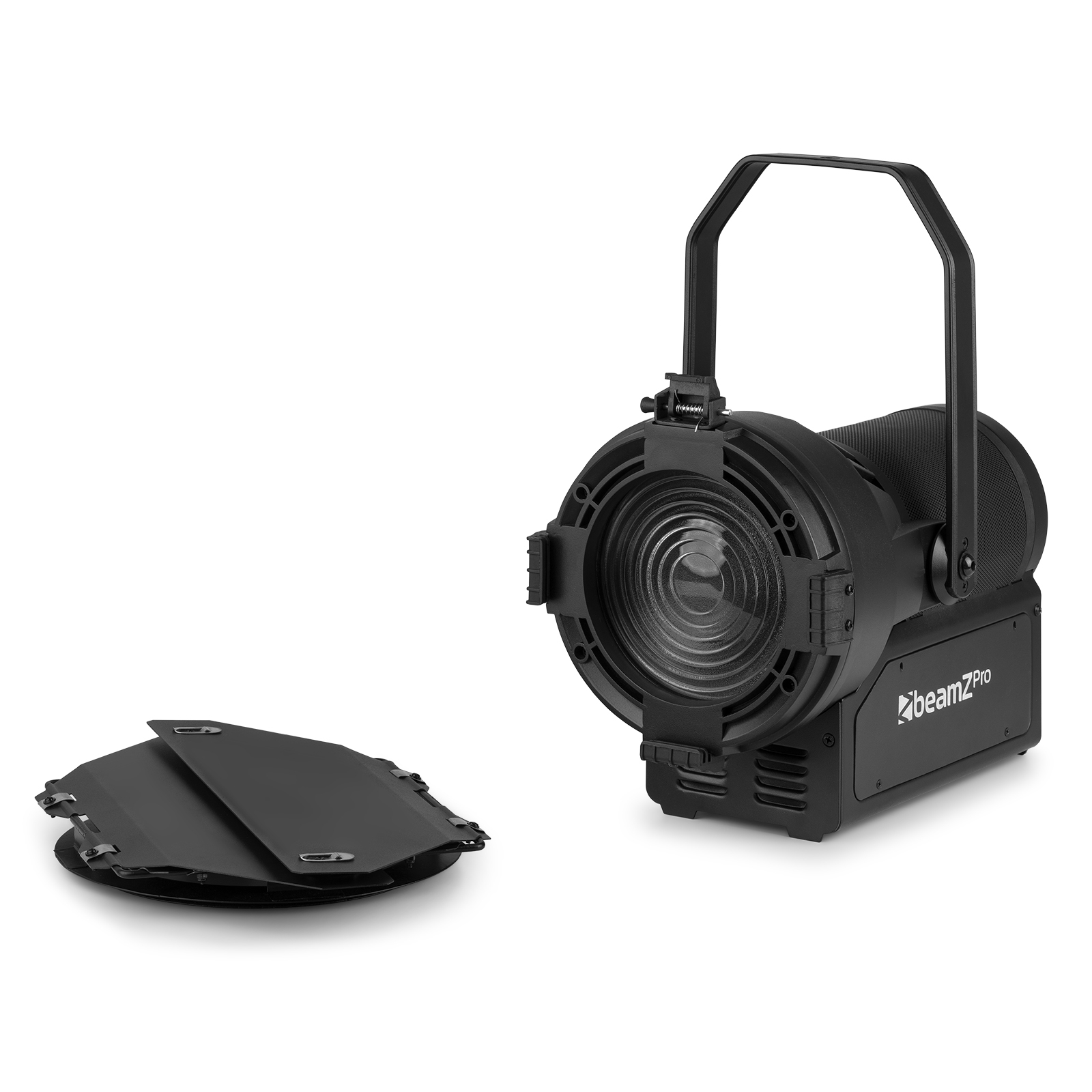

- Including power cable and barndoor
Specifications
| Product colour | Black |
|---|---|
| Light source | Single colour LED |
| Colour temperature | 2800K - 6000K |
| Colours | Cool White, Warm White |
| Quantity of LEDs | 1 |
| Beam angle: Min | 15° |
| Beam angle: Max | 40° |
| Illuminance | 55.013 lx @ 1m |
| Flash rate per second | 1 - 14Hz |
| DMX channels | 2, 6 |
| DMX connection | 3-pin XLR |
| Modes | DMX, Manual |
| IP rating | IP20 |
| Cooling | Temperature controlled fan |
| Display | LCD |
| Power plug | P-Con |
| Power consumption | 0.681A |
| Power supply |
240VAC 50Hz |
| Dimensions (L x W x H) | 355 x 395 x 210 mm |
| Weight (kg) | 6,35 |
| Included accessories | Mounting bracket, Power cable, XLR cable |
