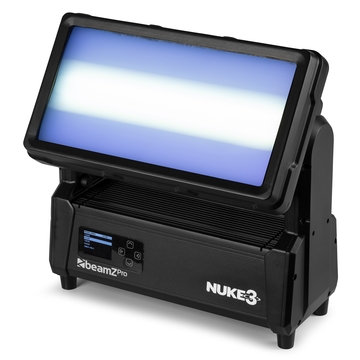

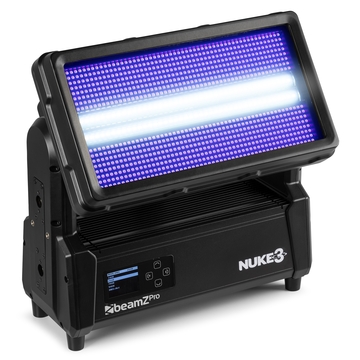

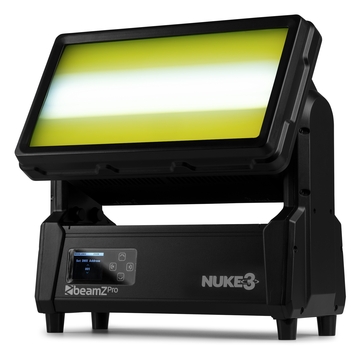

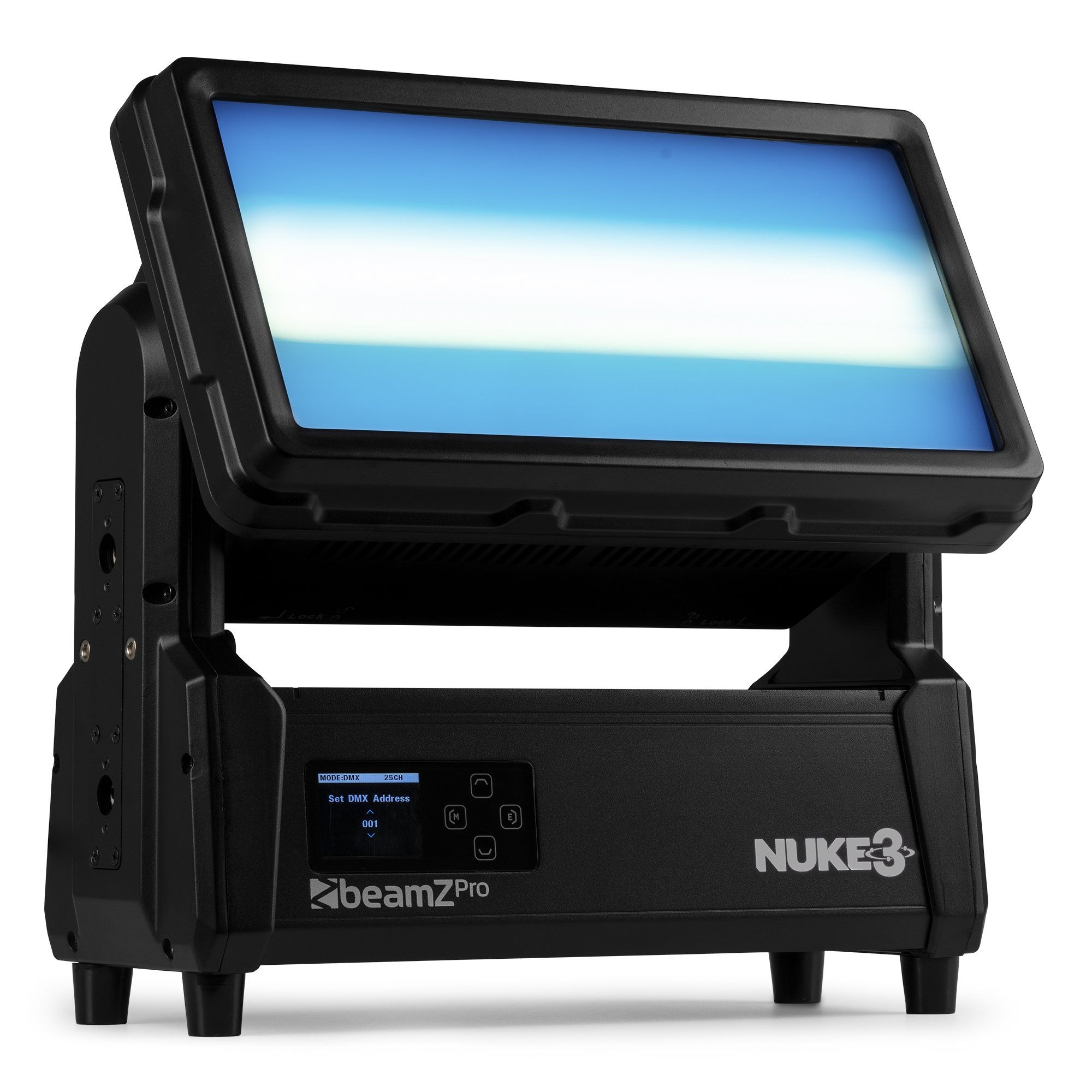

NUKE3 Motorized Twin Strobe/Wash Outdoor
Product Code: 153.297
The Nuke3 Motorized Strobe/Wash is a dynamic lighting powerhouse designed for versatility and impact. With a motorized 180° tilt range, this hybrid fixture switches seamlessly between a powerful strobe and a colourful wash, or a captivating combination of both effects. Featuring 96x 10W Cool White LEDs and 864x 0.5W RGB SMD LEDs, the Nuke3 provides a brilliant palette of colours and intense white light. Pixel-mappable zones, electronic frost filter, DMX control, and automated programs make creating stunning lighting effects a breeze. Its IP65 waterproof rating ensures reliable outdoor performance, making the Nuke3 an ideal choice for both indoor and outdoor events.
- Hybrid twin strobe/wash with motorized 180° tilt range
- Electronic Frost Filter
- 2 rows of 48x 10W Cool White LEDs
- 864x 0.5W RGB SMD LEDs controlled in 96 sections
- Pixel-mappable zones
- RGB + Cool White colour mixing
- DMX512, stand alone and Master/slave Mode
- 6 Different DMX channel modes
- DMX (RDM) and ArtNet control capability
- Automatic programs and Pre-programmed shows
- Adjustable speed

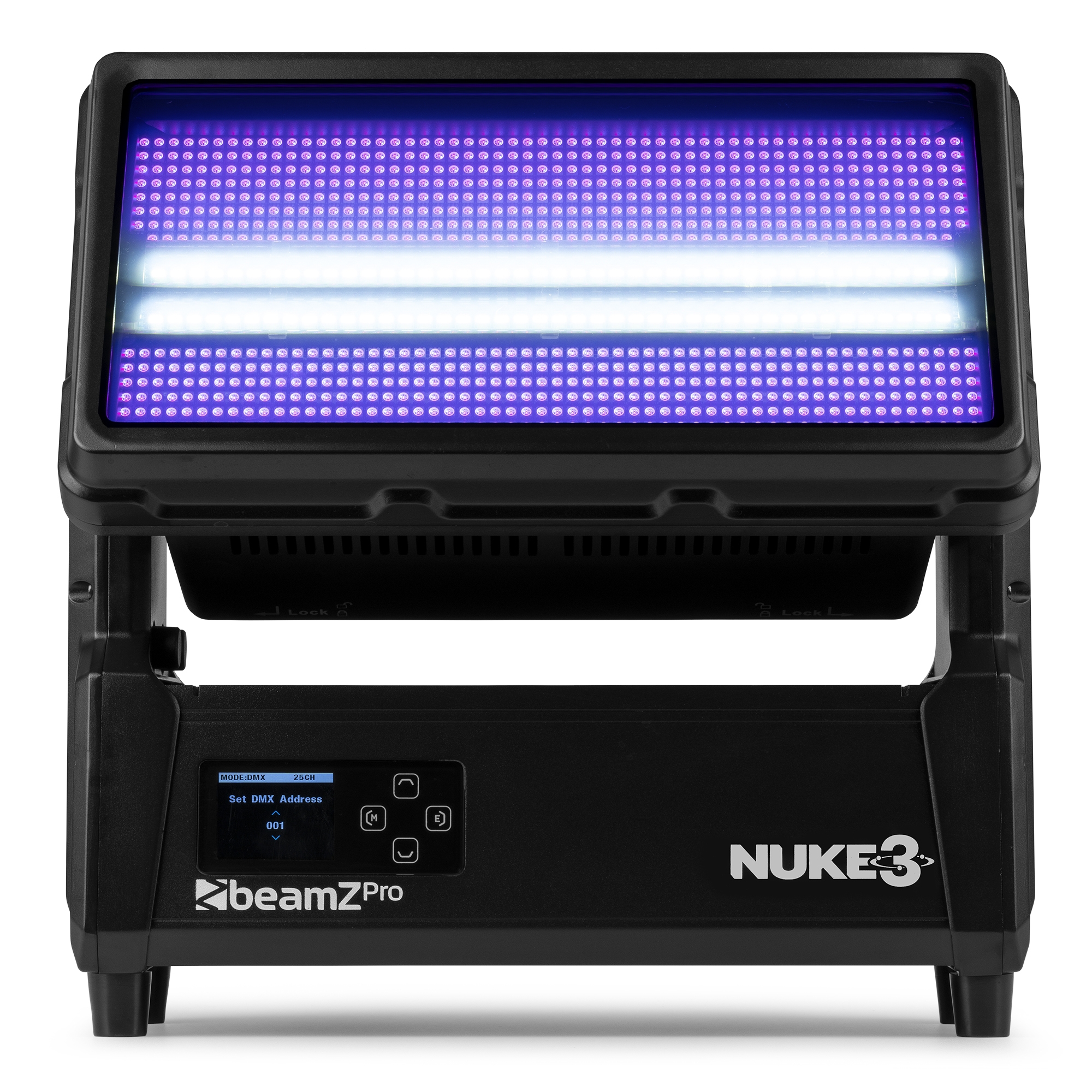

- Control panel with LCD display and key lock
- Waterproof IP65 for outdoor use
- Dimming: 0 - 100% 16 bit dimming
- Various dimmer curves adjustable
- Powerconnector P-Con TR1 input

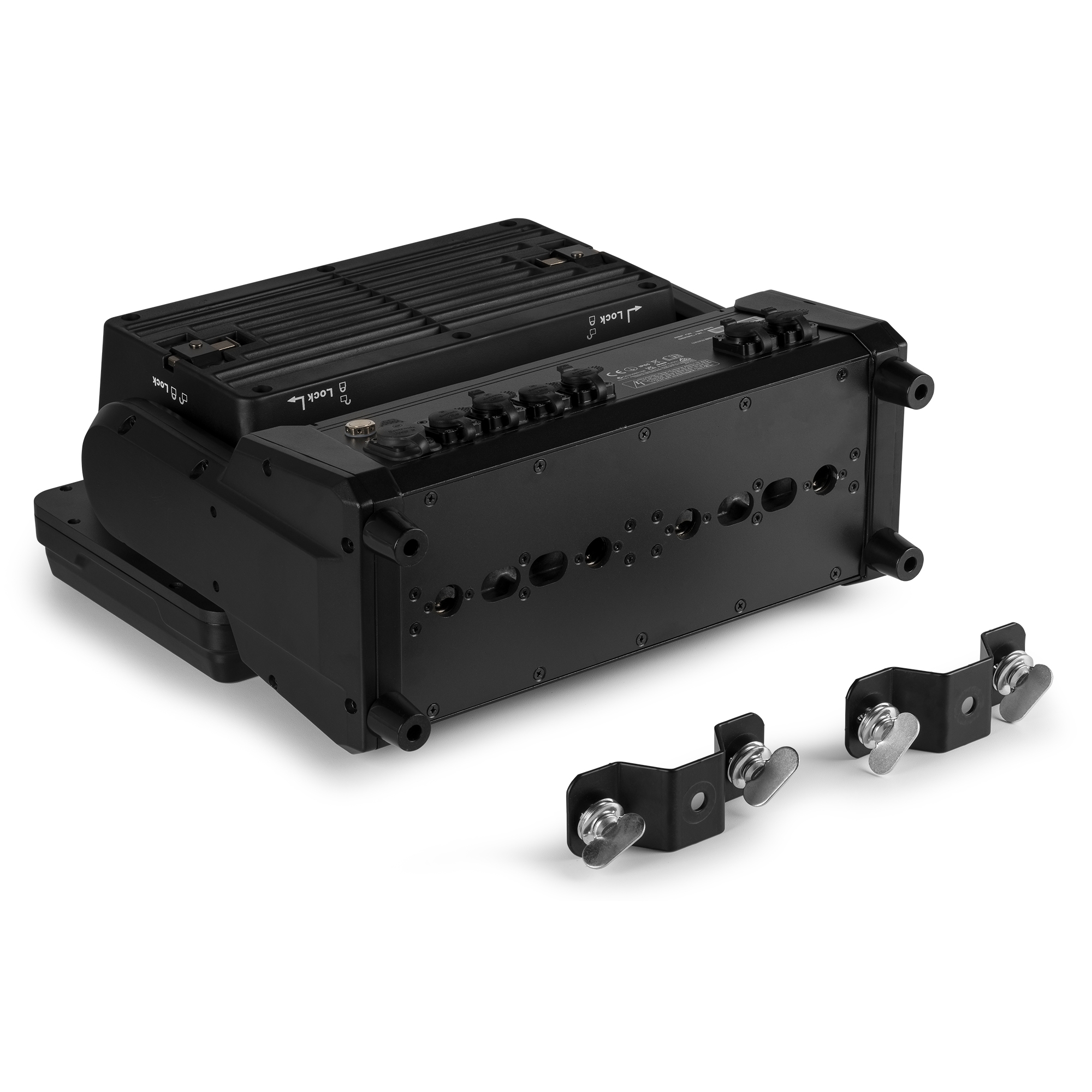

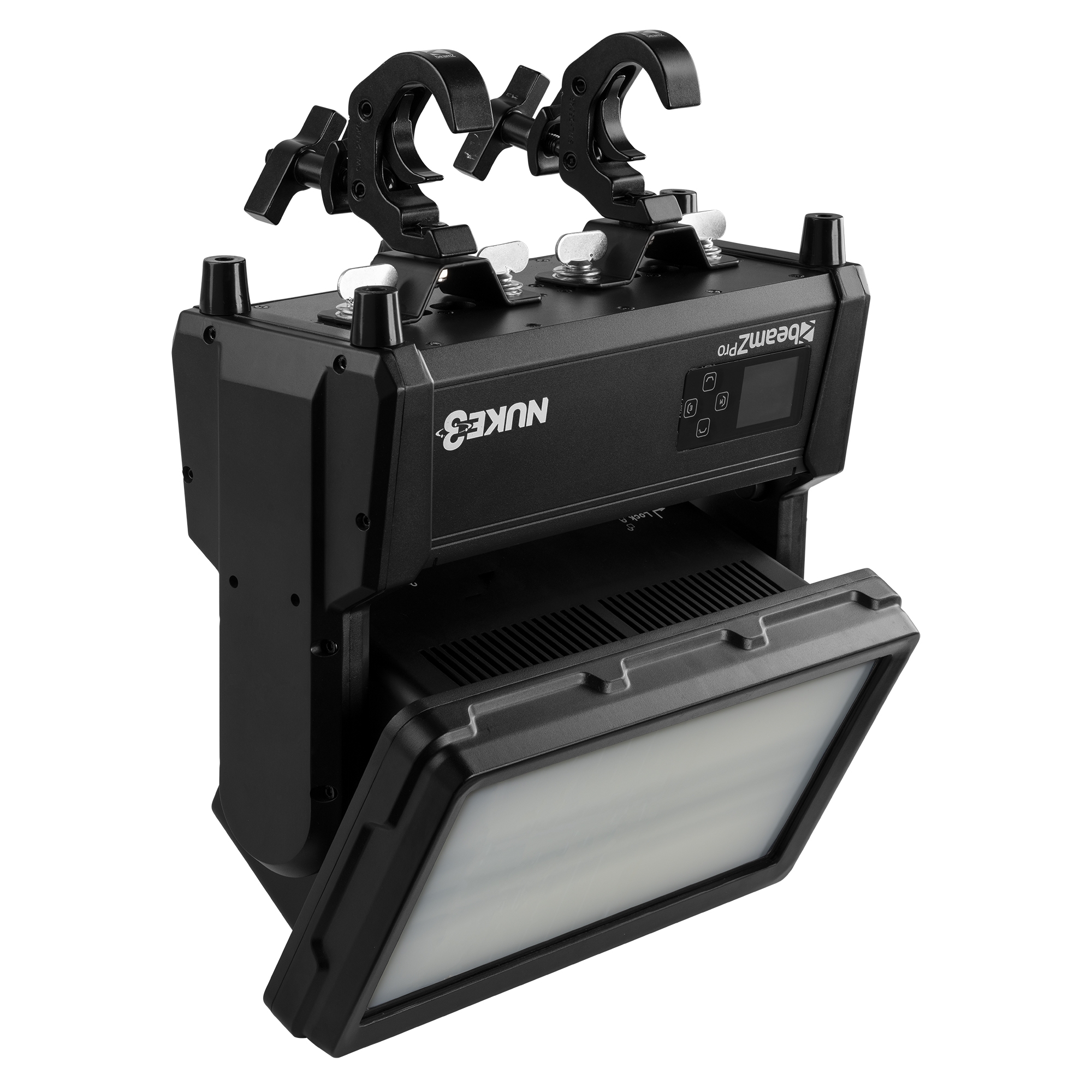

- Omega bracket included
| Product colour | Black |
|---|---|
| Light source | Single colour LED, 3-in-1 LED |
| Colours | Red, Green, Blue, Cool White |
| LED power (single LED) | 0.5W |
| Quantity of LEDs | 864 |
| LED power: Strobe | 10W |
| Quantity of strobe LEDs | 48 + 48 |
| Beam angle | Beam 110°, Pixel 120° |
| Illuminance | 7.157 lx @ 1m (Strobe 32.573 lx @ 1m) |
| IP rating | IP65 |
| DMX channels | 8, 11, 13, 24, 30, 74, 97 |

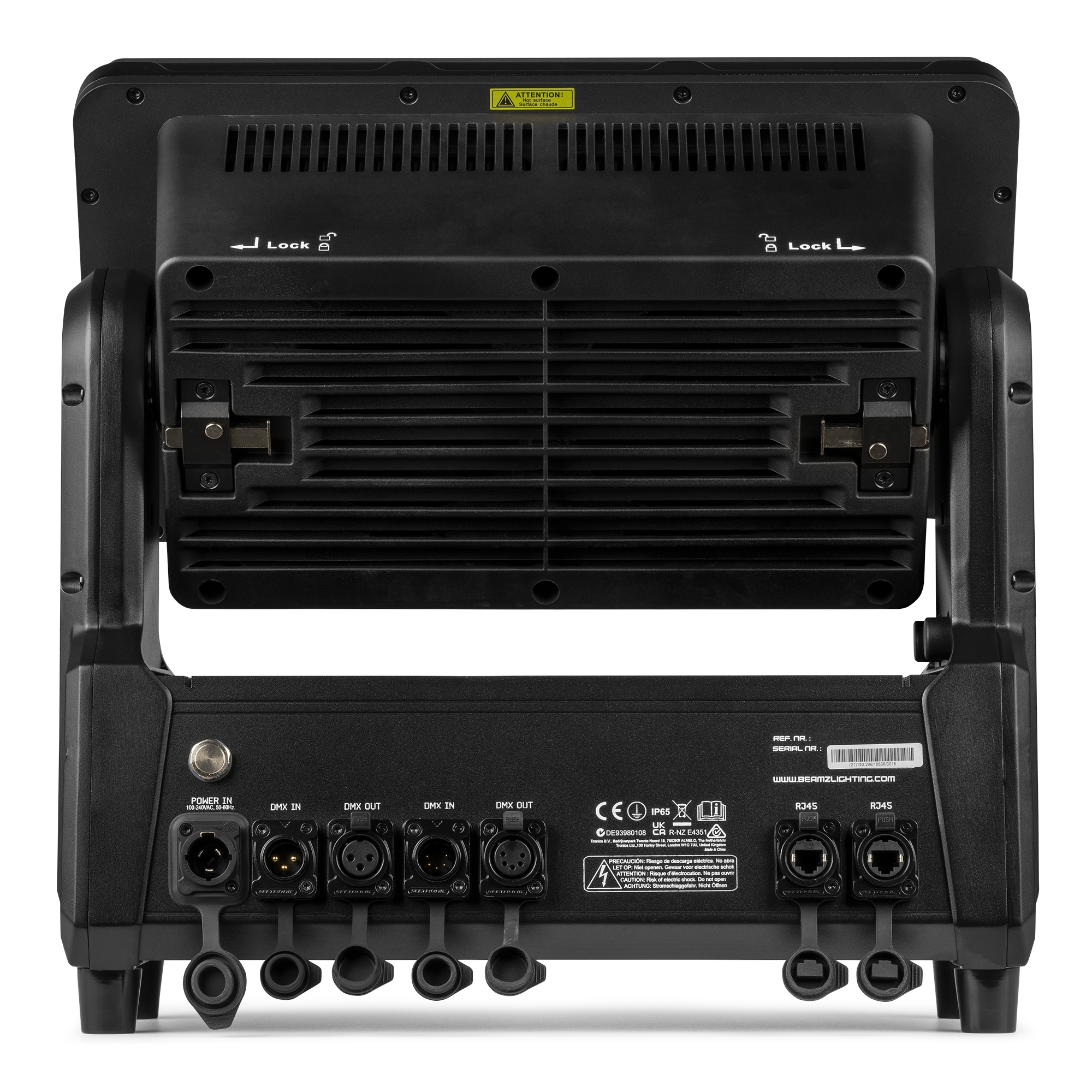

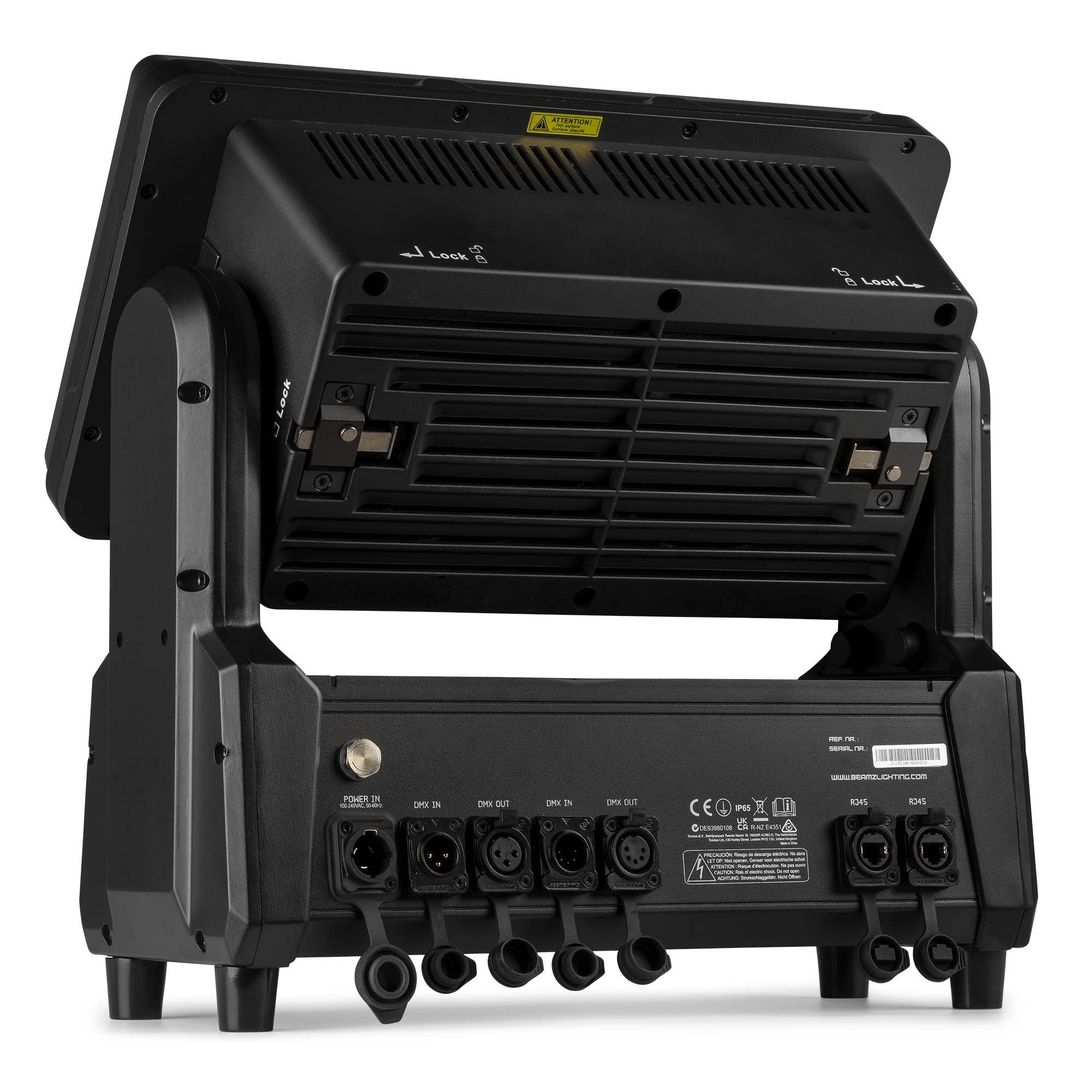

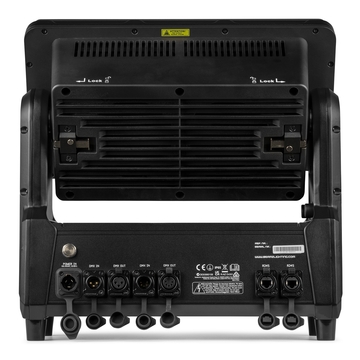

| DMX connection | ART-Net, 3-pin XLR, 5-pin XLR, RJ45 |
| Flash rate per second | 1 - 31Hz |

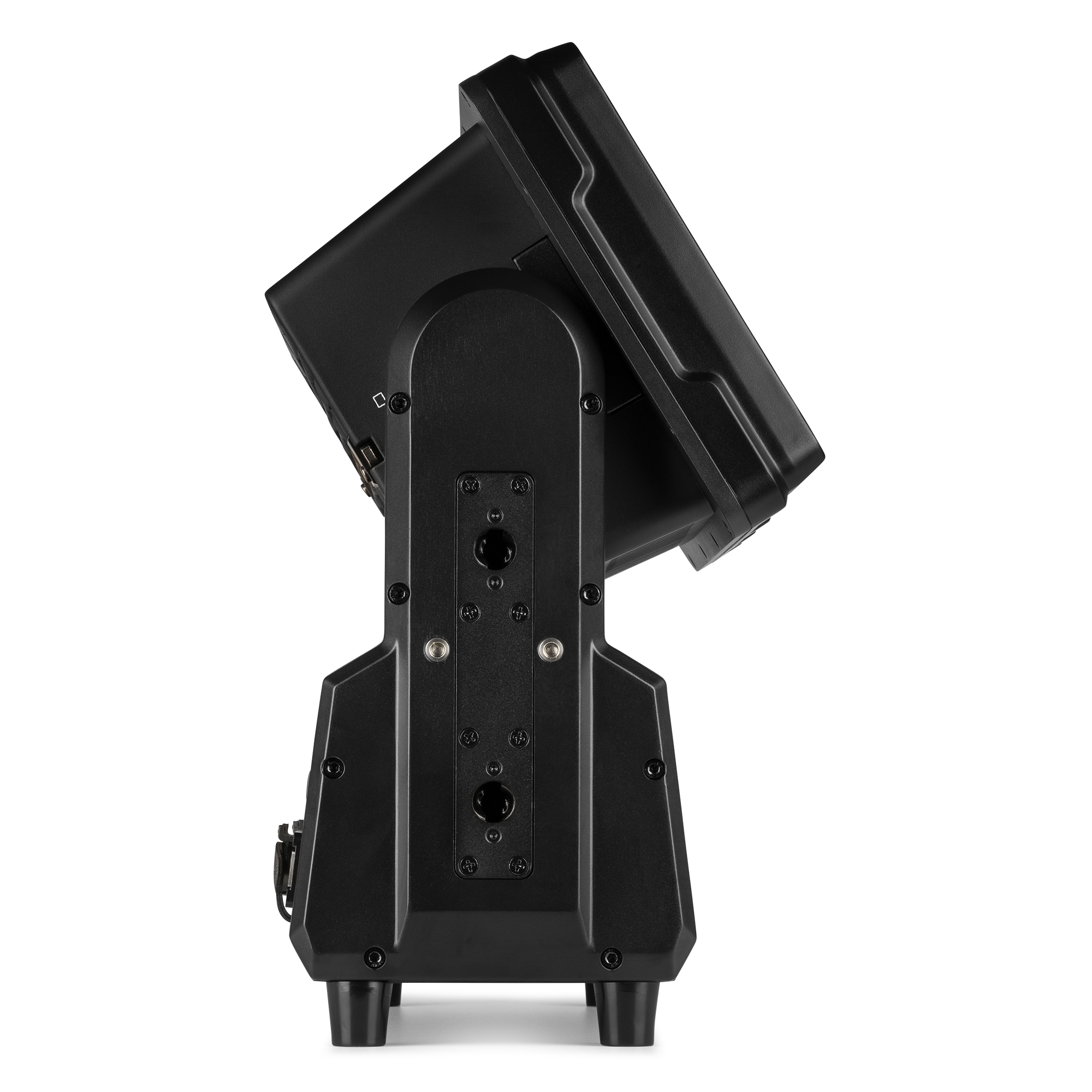

| Head movement: Tilt | 180° |
| Display | LCD |
| Modes | Automatic programs, DMX, Master/Slave |
| Power consumption | 6.040 - 2.890A |
| Power supply | 240VAC 50Hz |
| Included accessories | Mounting bracket, Power cable |
| Dimensions (L x W x H) | 457 x 228 x 390mm |
| Weight (kg) | 20,15 |
