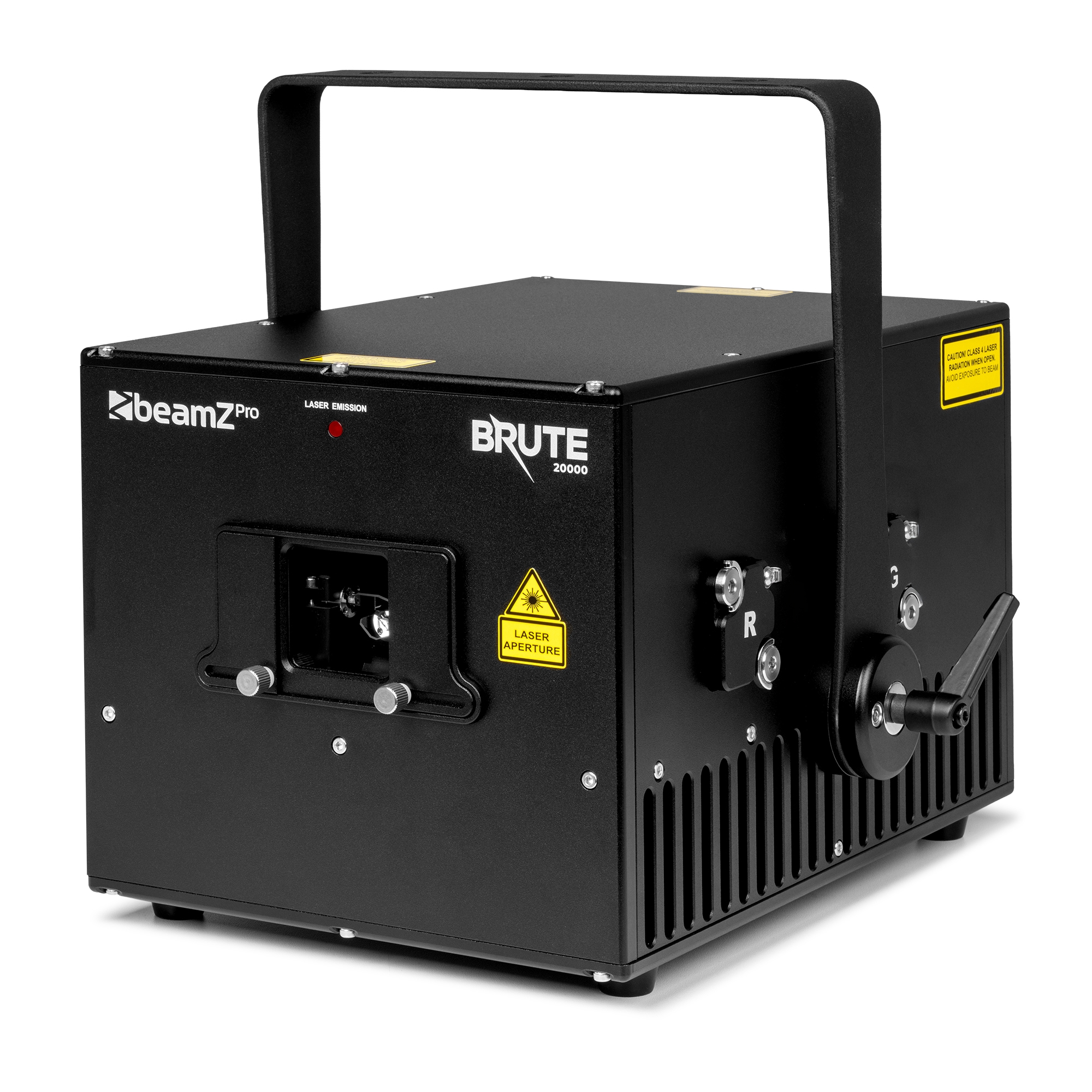

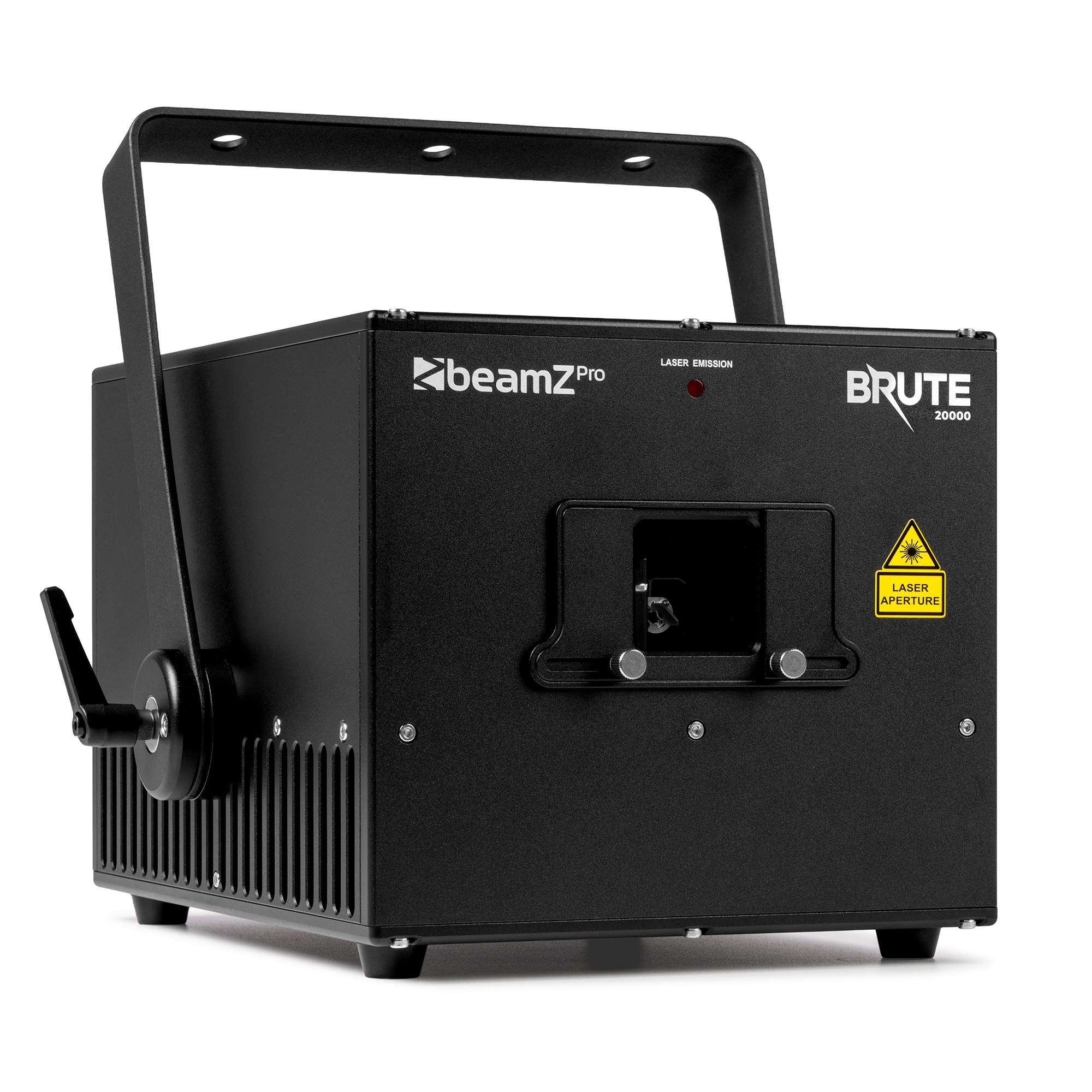

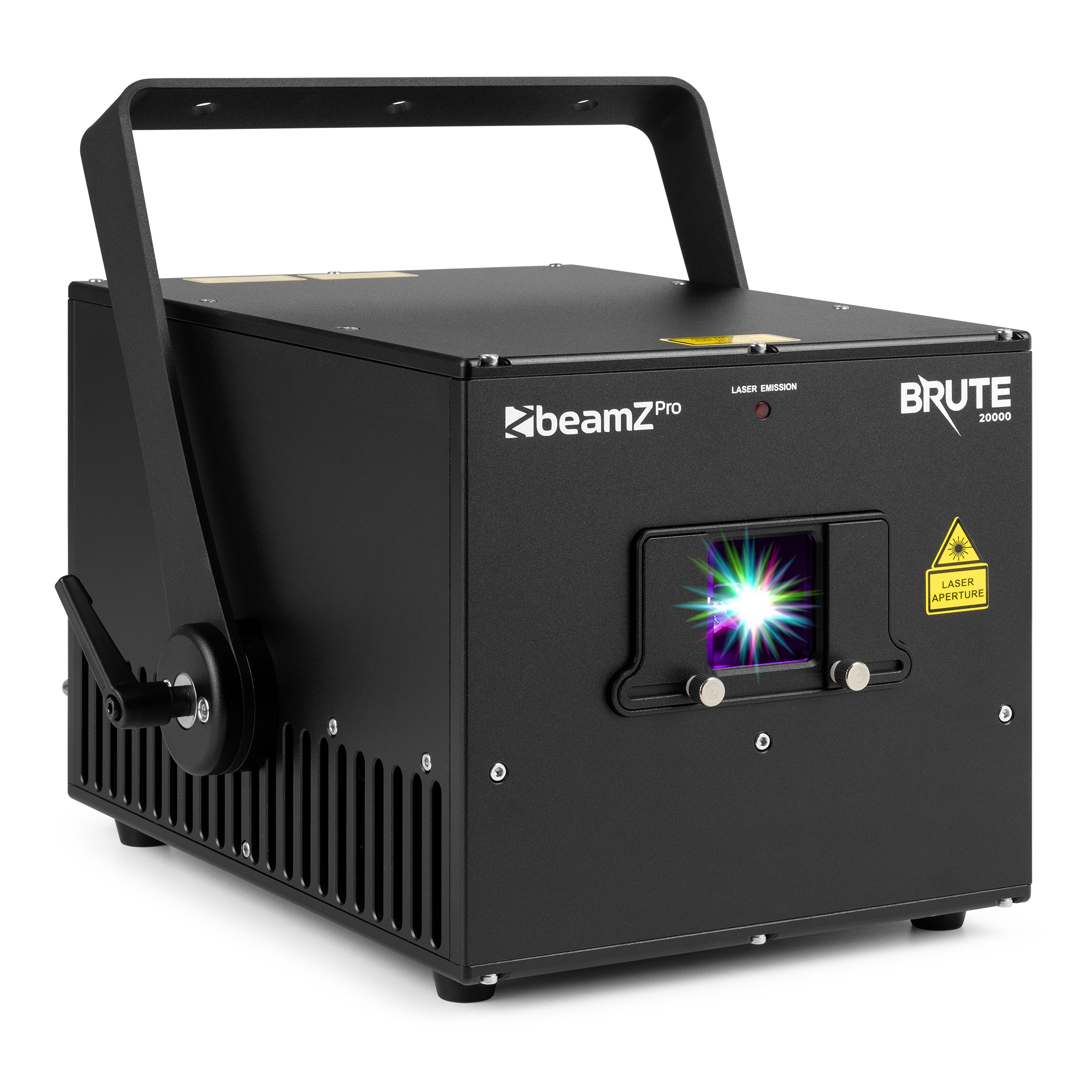

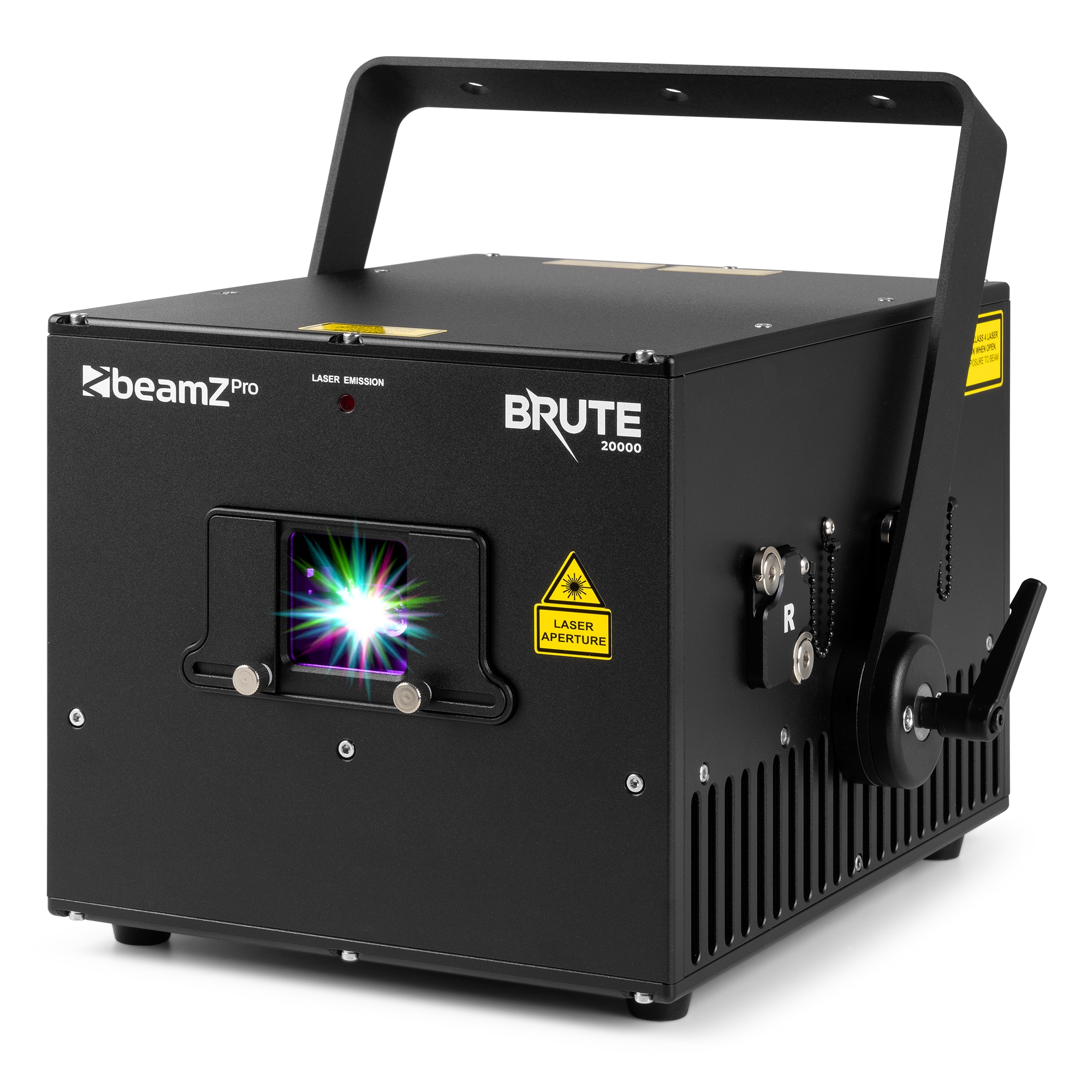

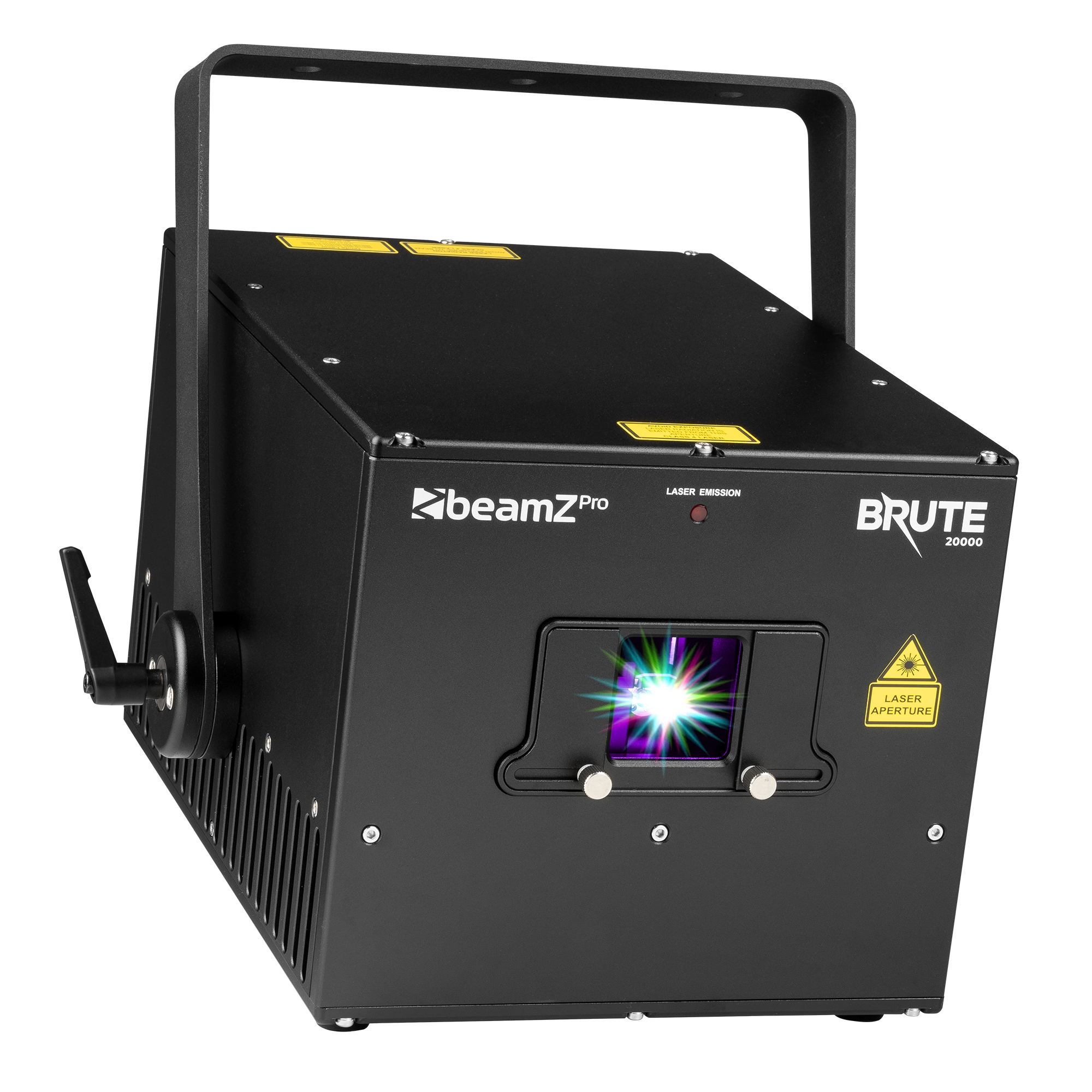

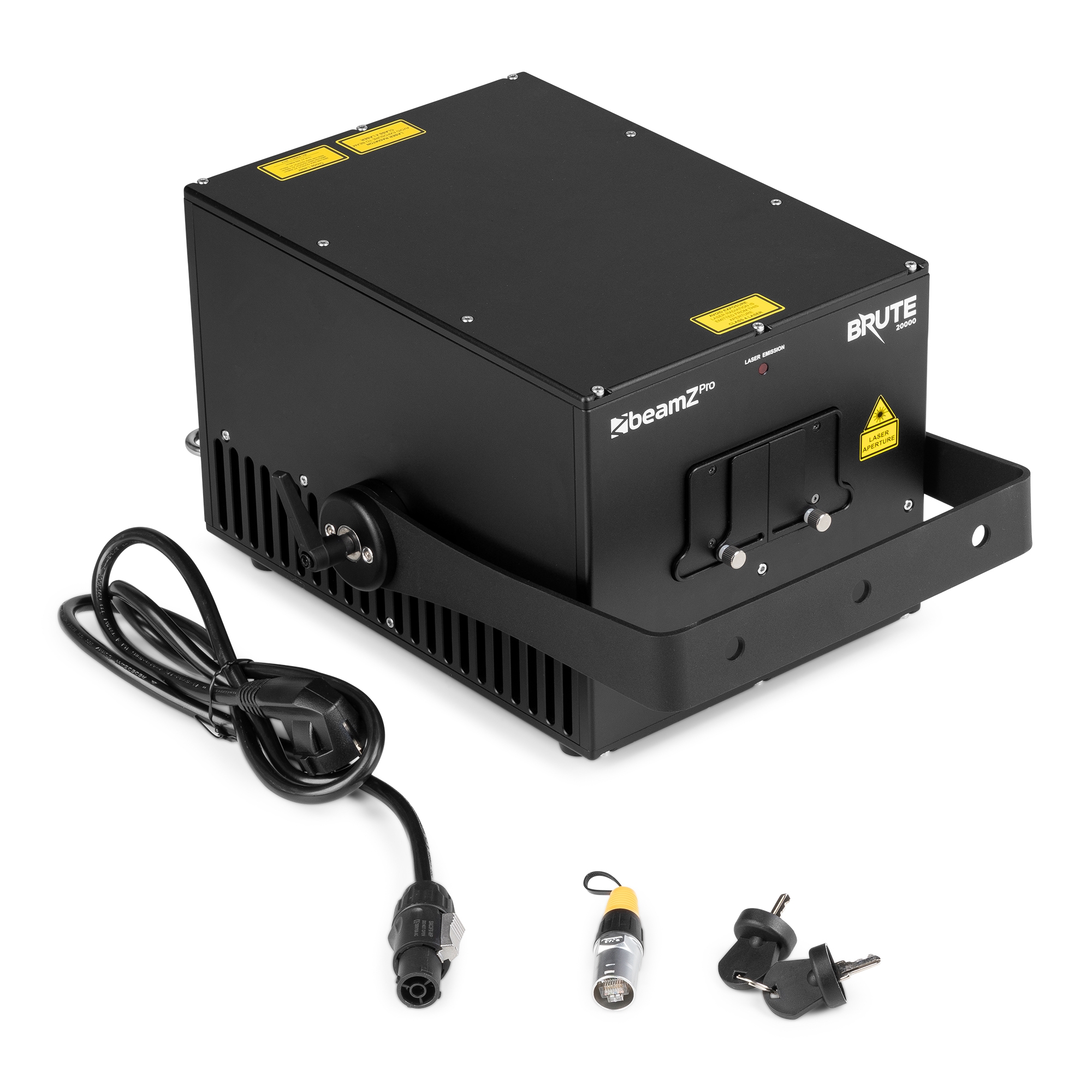

Brute 20000 Pure Diode Laser Outdoor
Guaranteed 20W output
Volume Pricing
Highlights
- Full-colour, IP65 semiconductor diode laser system
- Red (4000mW), Green (4000mW) and Blue (12000mW) Powerful laser
- Guaranteed 20W output
- Dust-proof aluminium housing for minimum maintenance
- LCD display

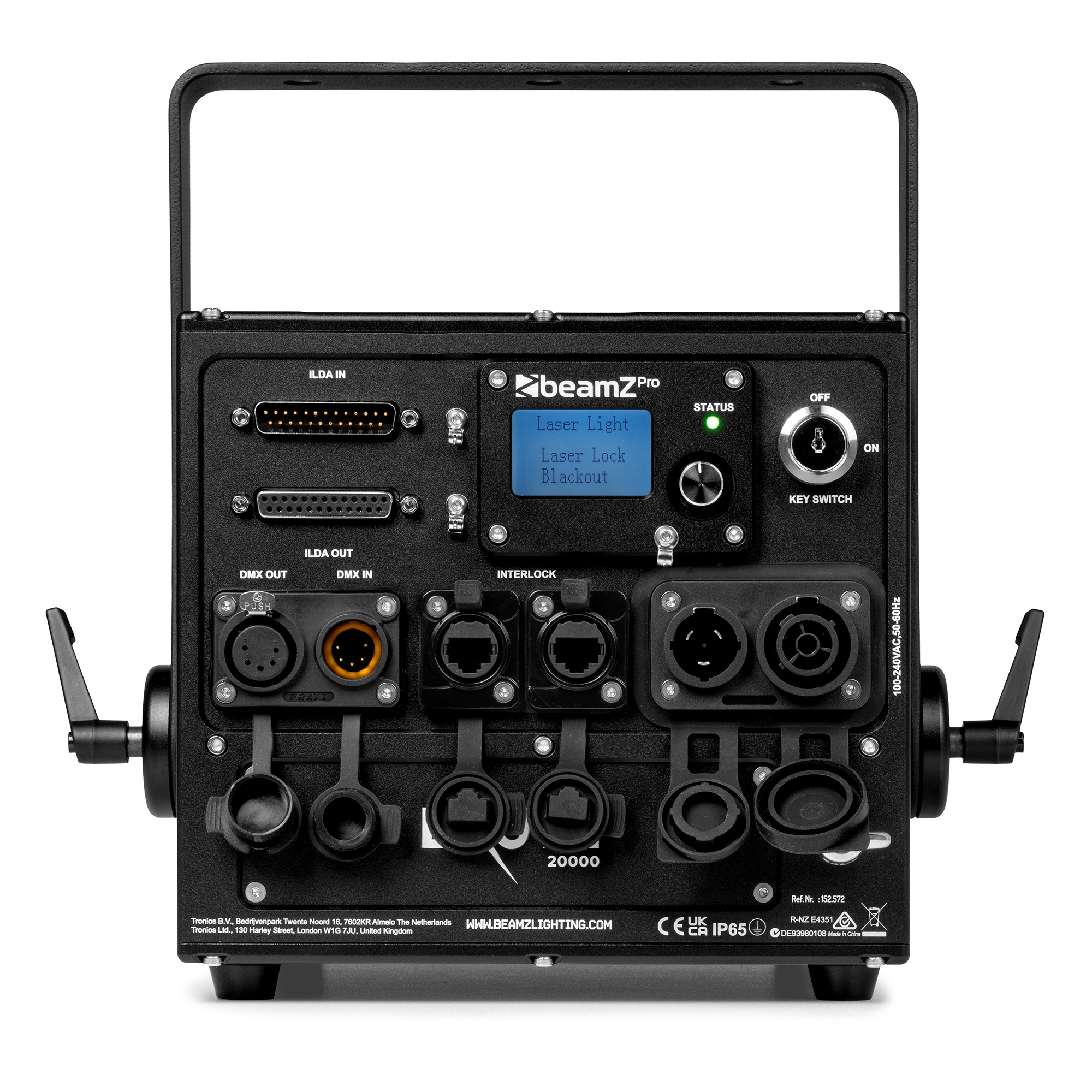

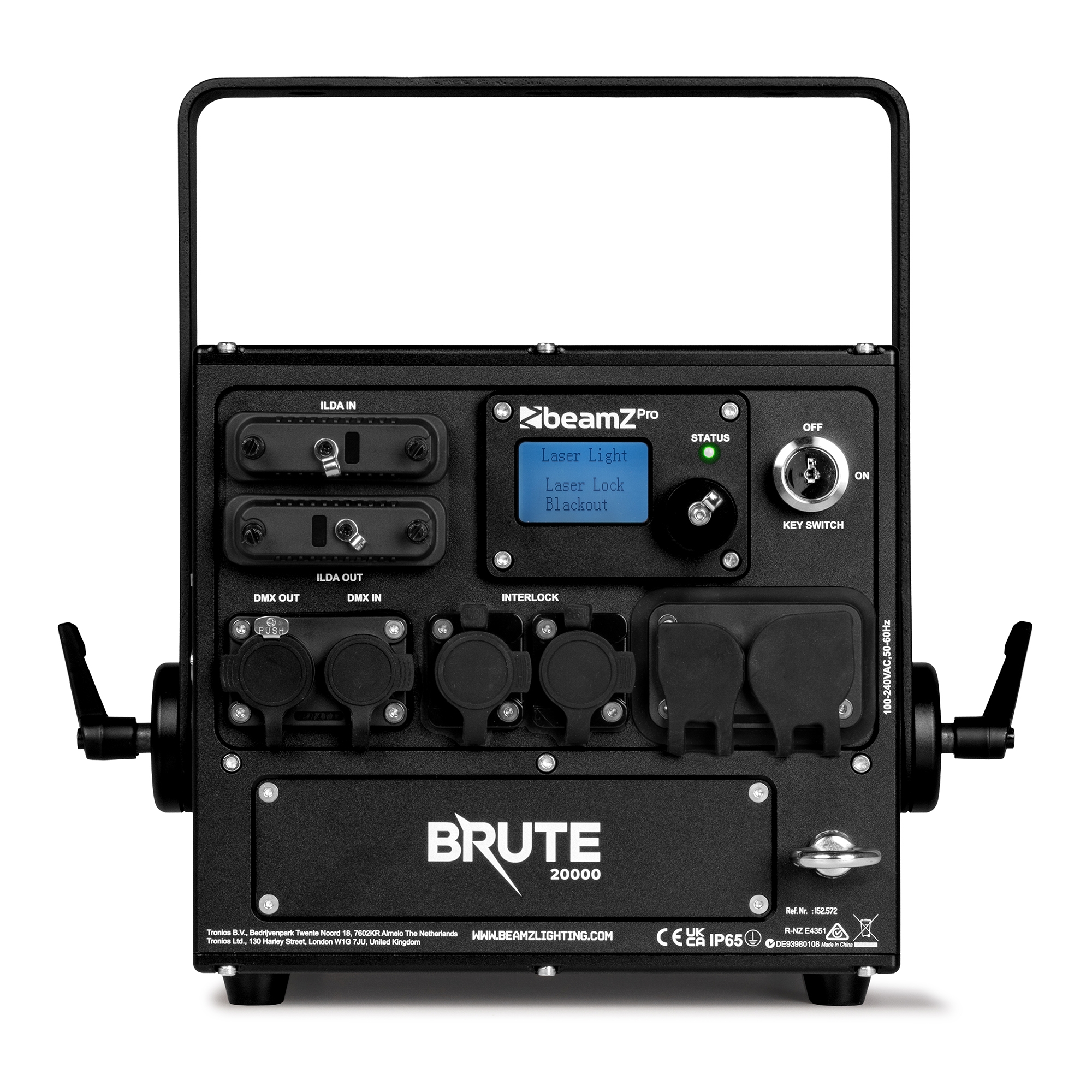

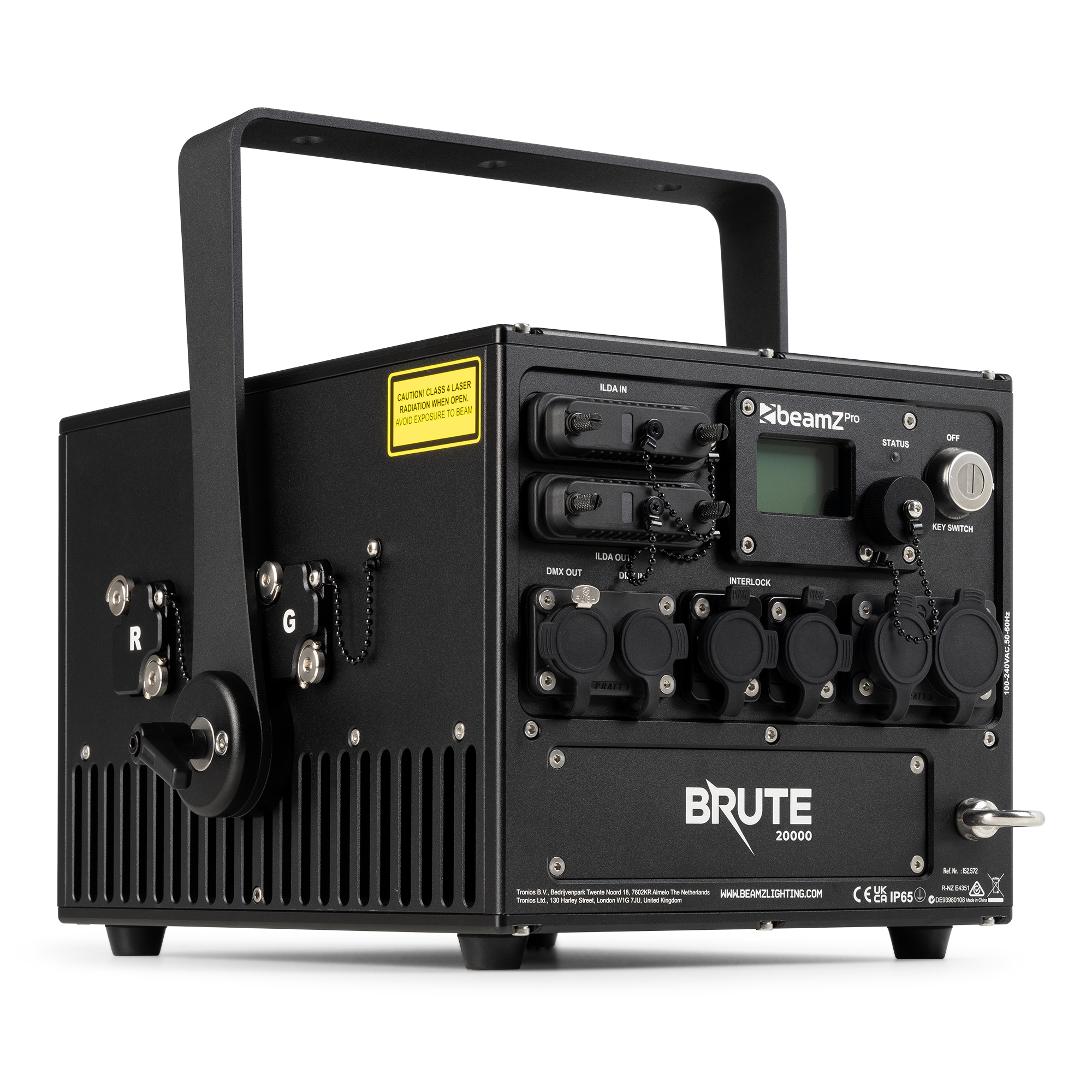

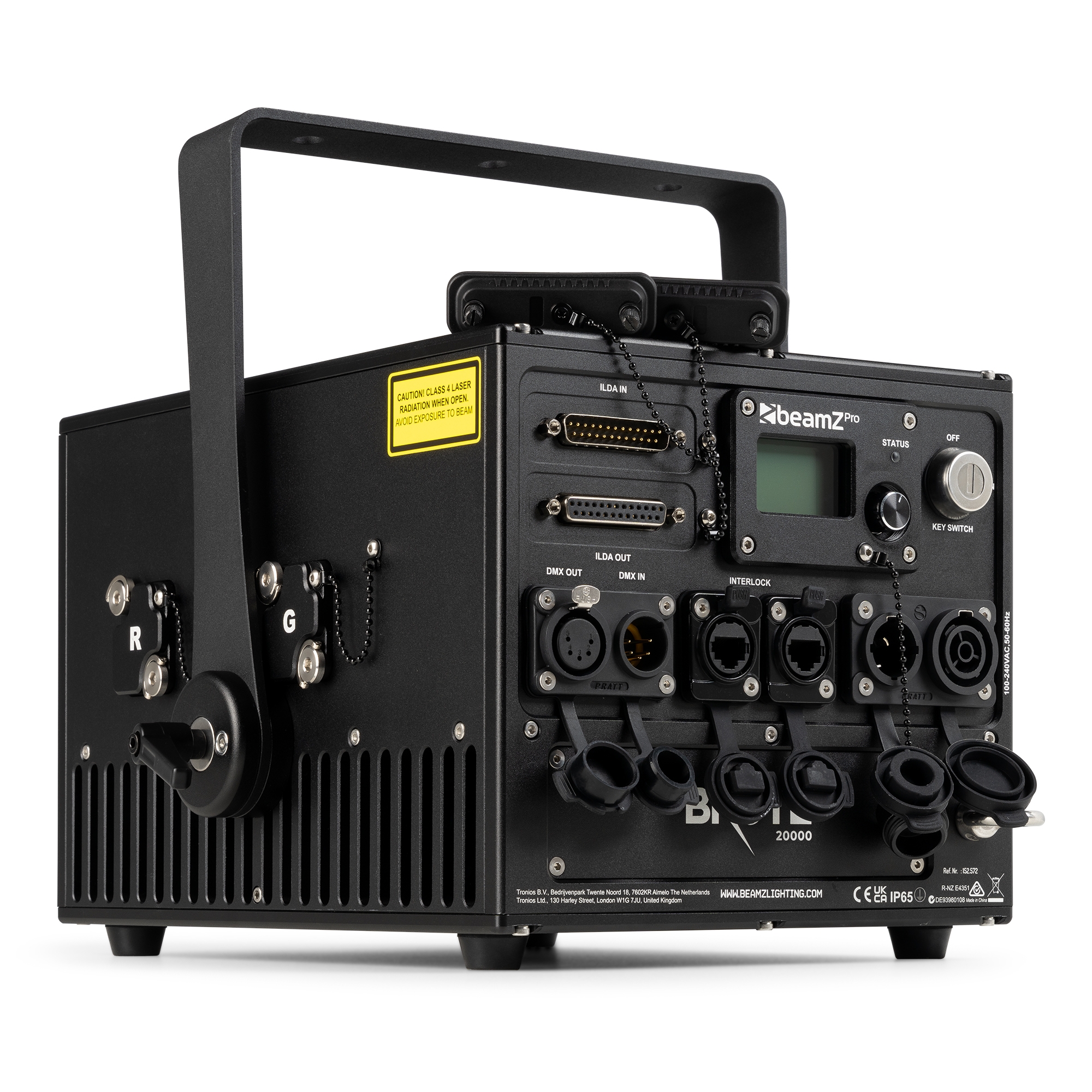

- Interlock emergency stop signal in/output Ethercon
- Scan Fail Safety system
- 35K@8° high speed optical scanner system
- Maximum scan angle 50°

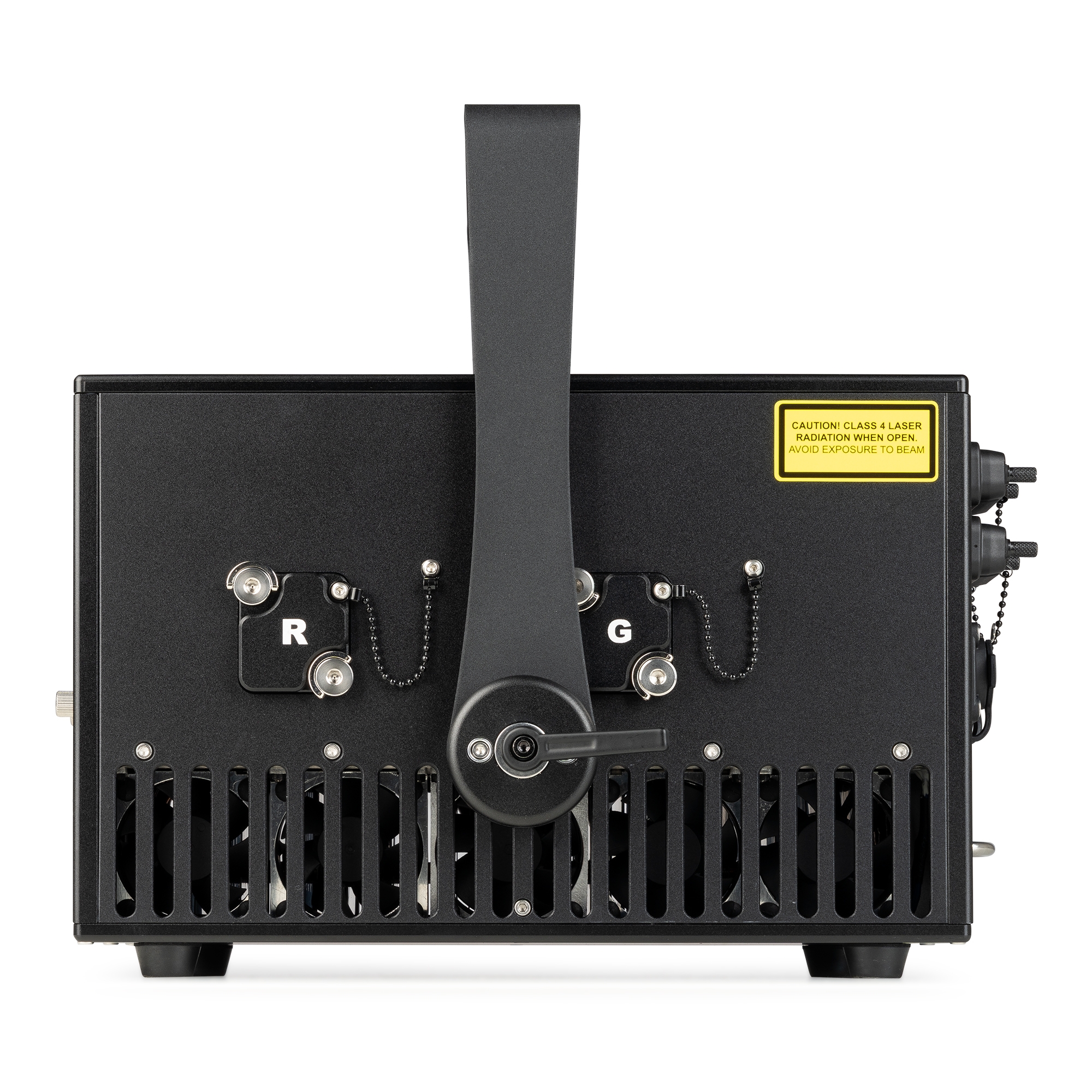

- Temperature-controlled low-noise fan
- DMX in/output via 5-pin XLR
- Ilda in/output
- Auto mode
- X- en Y-Size inverter
- Analog RGB colour modulation
- Powerconnector TR in/output
The Brute 20000 has a guaranteed output power of 20W and provides analogue modulation, ensuring smoother colour fading and a much broader colour spectrum. Combining this high power with its precision 35K graphics scanners, the laser delivers outstanding accuracy and beam quality, making it highly suitable for demanding professional applications. The system can be controlled over ILDA and DMX or run stand-alone in auto or sound activated mode. With its IP65-rated housing, the Brute 20000 is fully protected against dust and water, making it ideal for both indoor and outdoor installations.
Perfect for fixed installations, mobile use, multimedia projects, long-distance outdoor applications, and ultra-precise graphics projections.
| Product colour | Black |
|---|---|
| Input connections | RJ45 (CAT), XLR (5-pin) |
| Output connections | RJ45 (CAT), XLR (5-pin) |
| DMX channels | 10, 34 |
| DMX connection | 5-pin XLR |
| ILDA | DB25 |
| Laser Red | 4000mW @ 638nm |
| Laser Green | 4000mW @ 525nm |
| Laser Blue | 12000mW @ 455nm |
| Scanner system | 35kpps @ 8° |
| Maximum scanner angle | 50 degrees |
| Beam divergence (full angle) | <1.1mrad (full angle) |
| Guaranteed output (99mW) | 20000mW |
| Maximum output (99mW) | 20000mW |
| Power supply | 240VAC 50Hz |
| Dimensions (L x W x H) | 286 x 205 x 182mm (without bracket) |
| Weight (kg) | 8.80 |
Reviews
No reviews yet
Be the first to review this product.
Customers Also Viewed

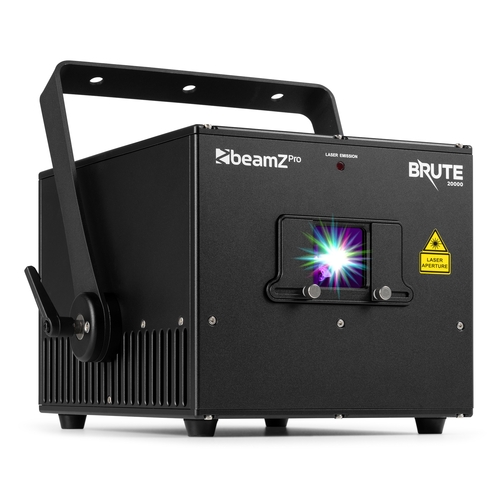

Brute 20000 Pure Diode Laser Outdoor
