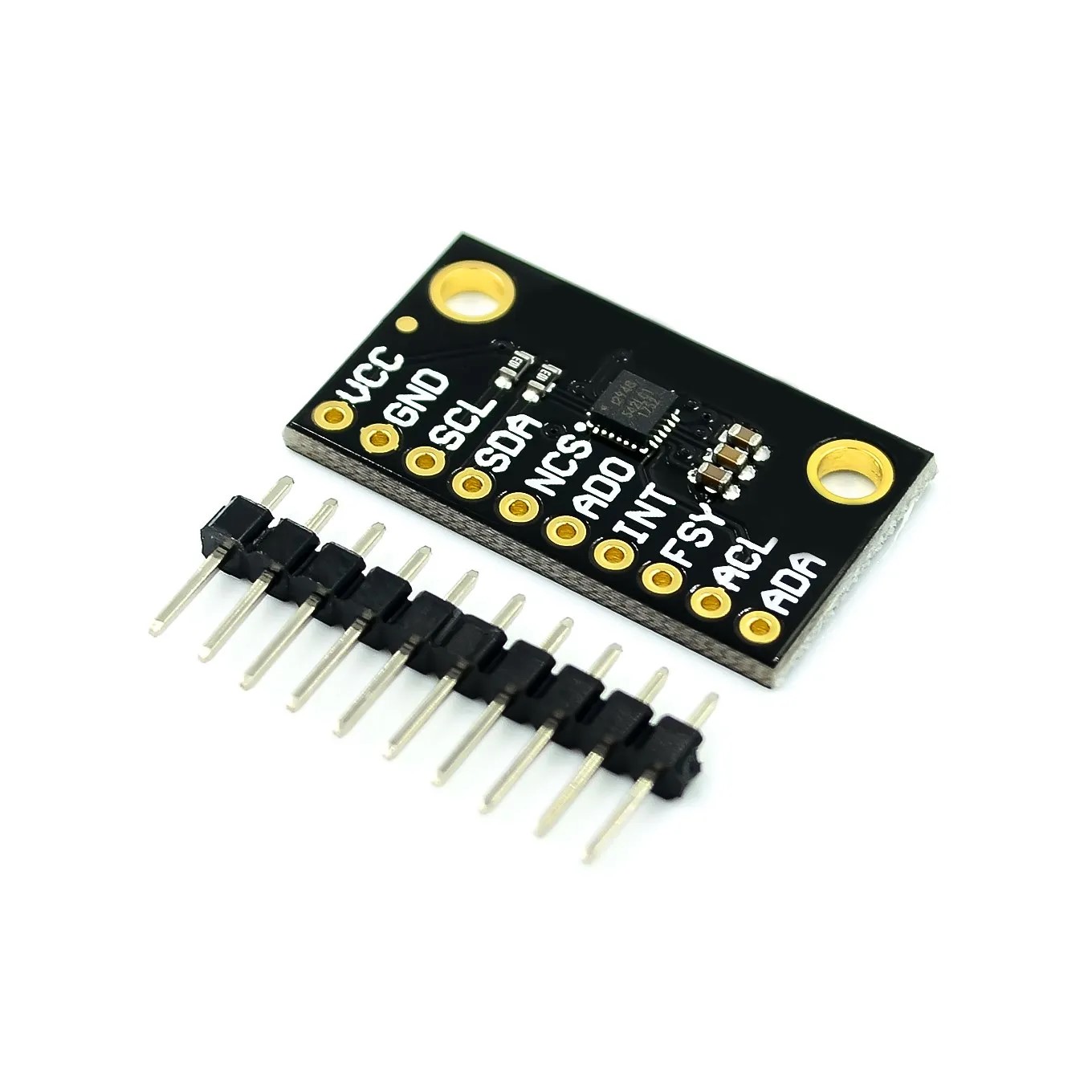

9 Axis MEMS Motion Tracking Device Sensor - ICM-20948

Description

Lowest Power 9-Axis Device at 2.5 mW
3-Axis Gyroscope with Programmable FSR of
±250 dps, ±500 dps, ±1000 dps, and ±2000 dps
3-Axis Accelerometer with Programmable FSR of
±2g, ±4g, ±8g, and ±16g
3-Axis Compass with a wide range to ±4900 T
Onboard Digital Motion Processor (DMP)
Android support
Auxiliary I2C interface for external sensors
On-Chip 16-bit ADCs and Programmable Filters
7 MHz SPI or 400 kHz Fast Mode I⊃2;C
Digital-output temperature sensor
VDD operating range of 1.71V to 3.6V
MEMS structure hermetically sealed and bonded at wafer level
