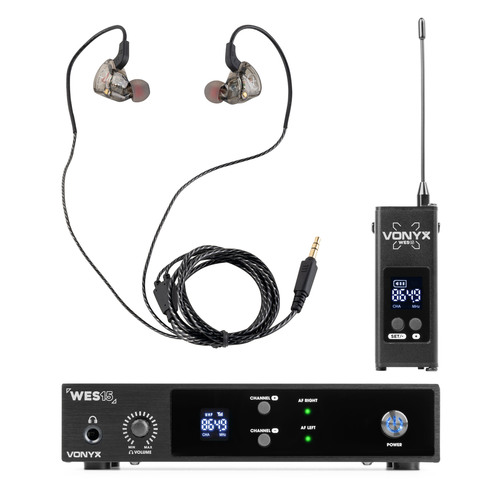

WES15 Single Channel In Ear System UHF
Product Code: 179.015

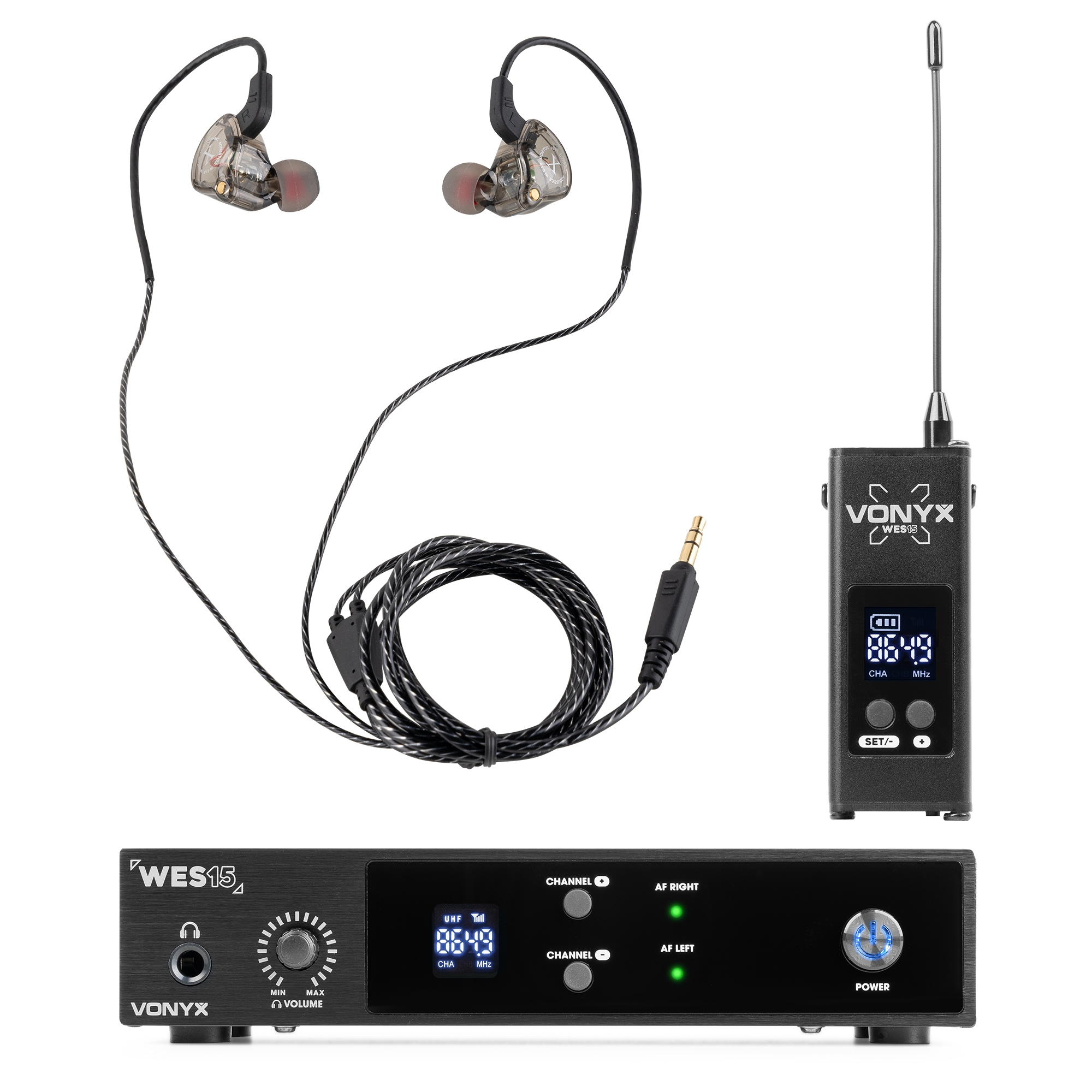

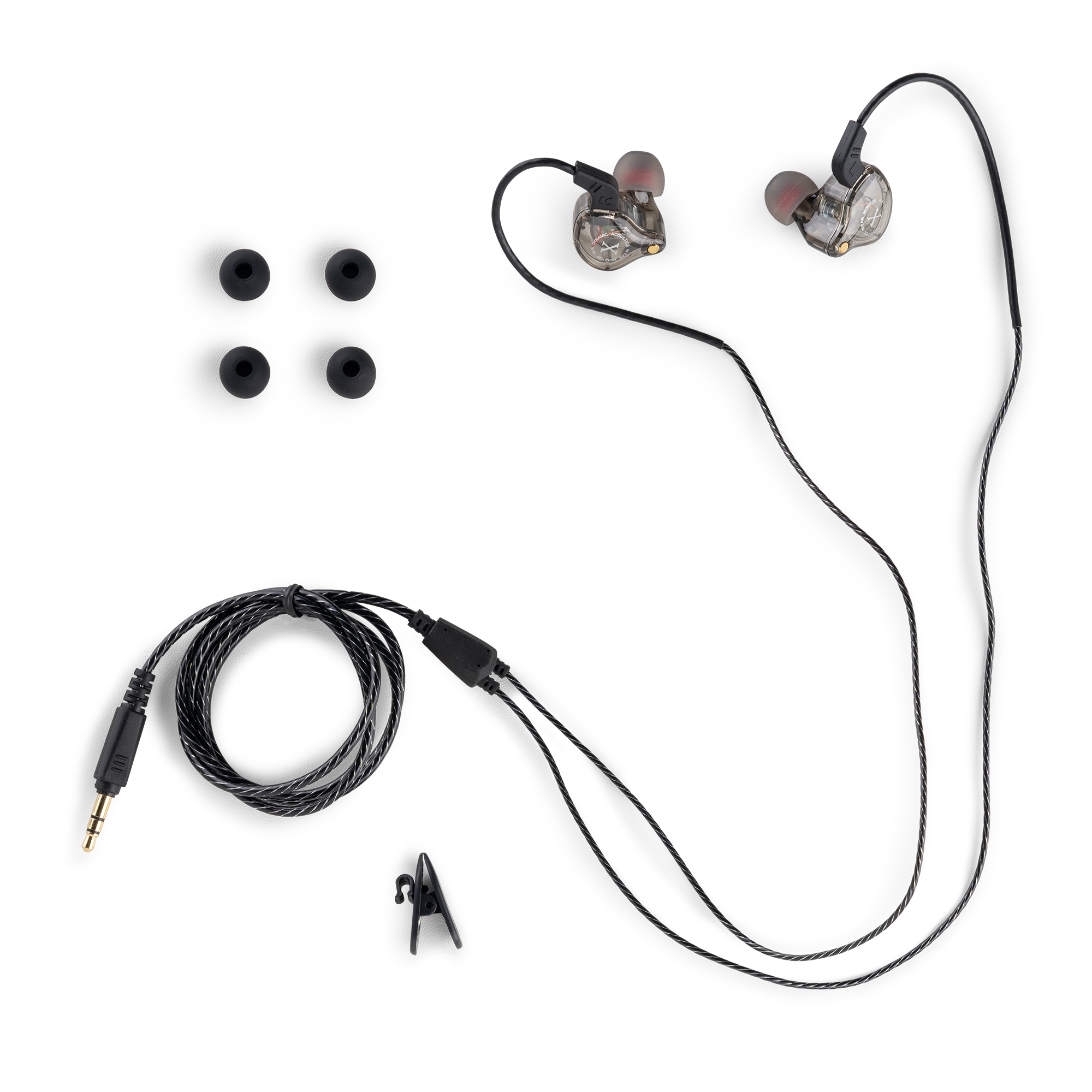

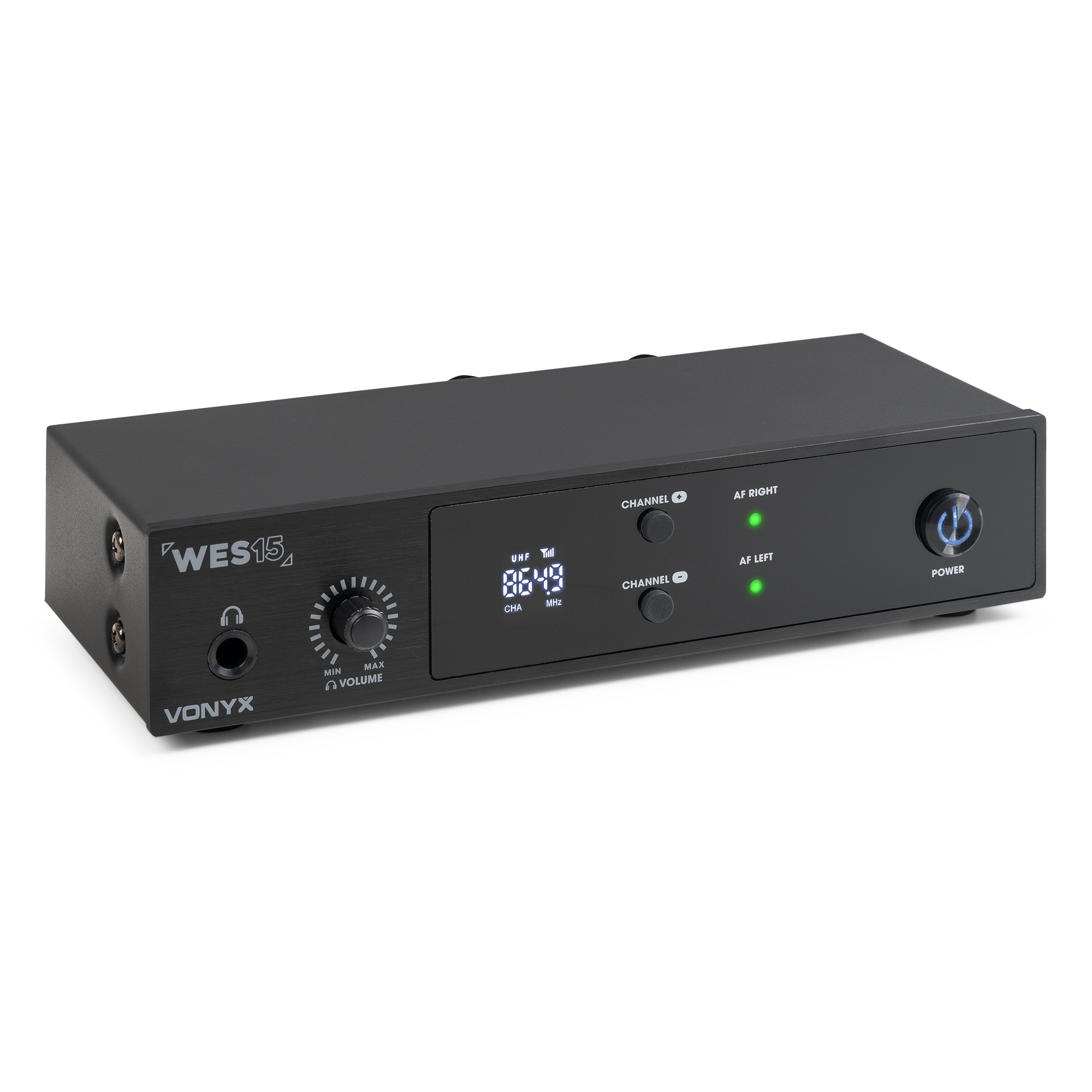

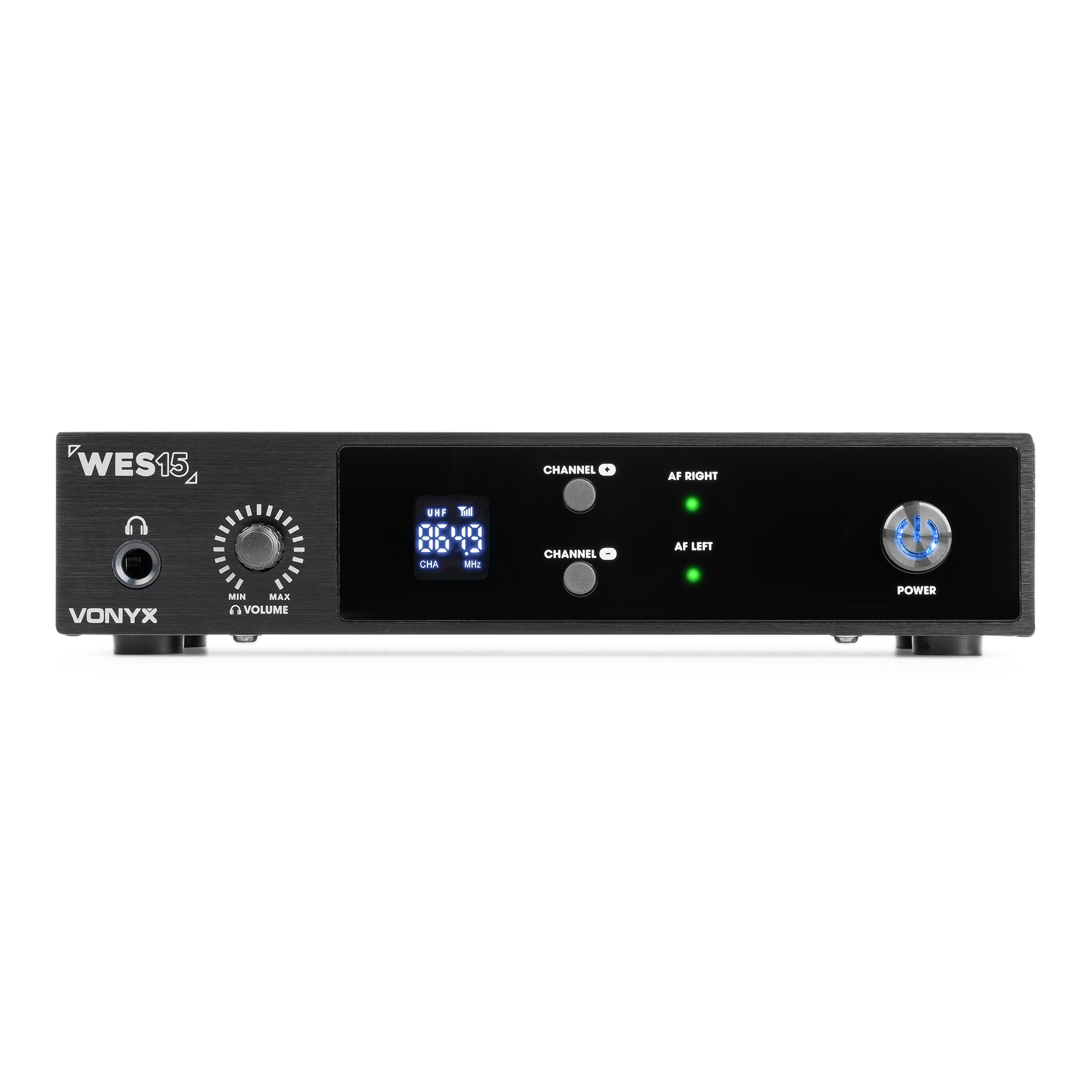

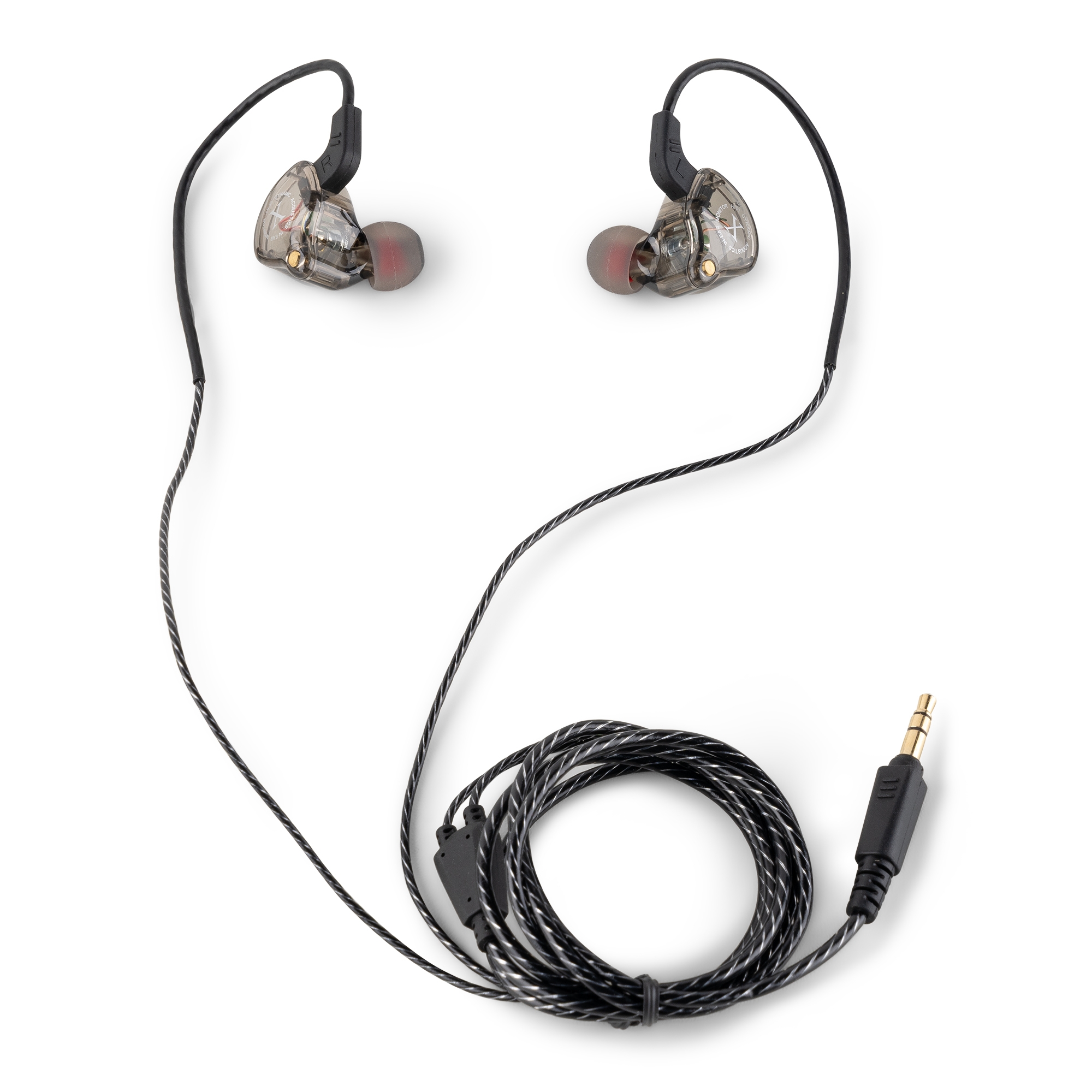

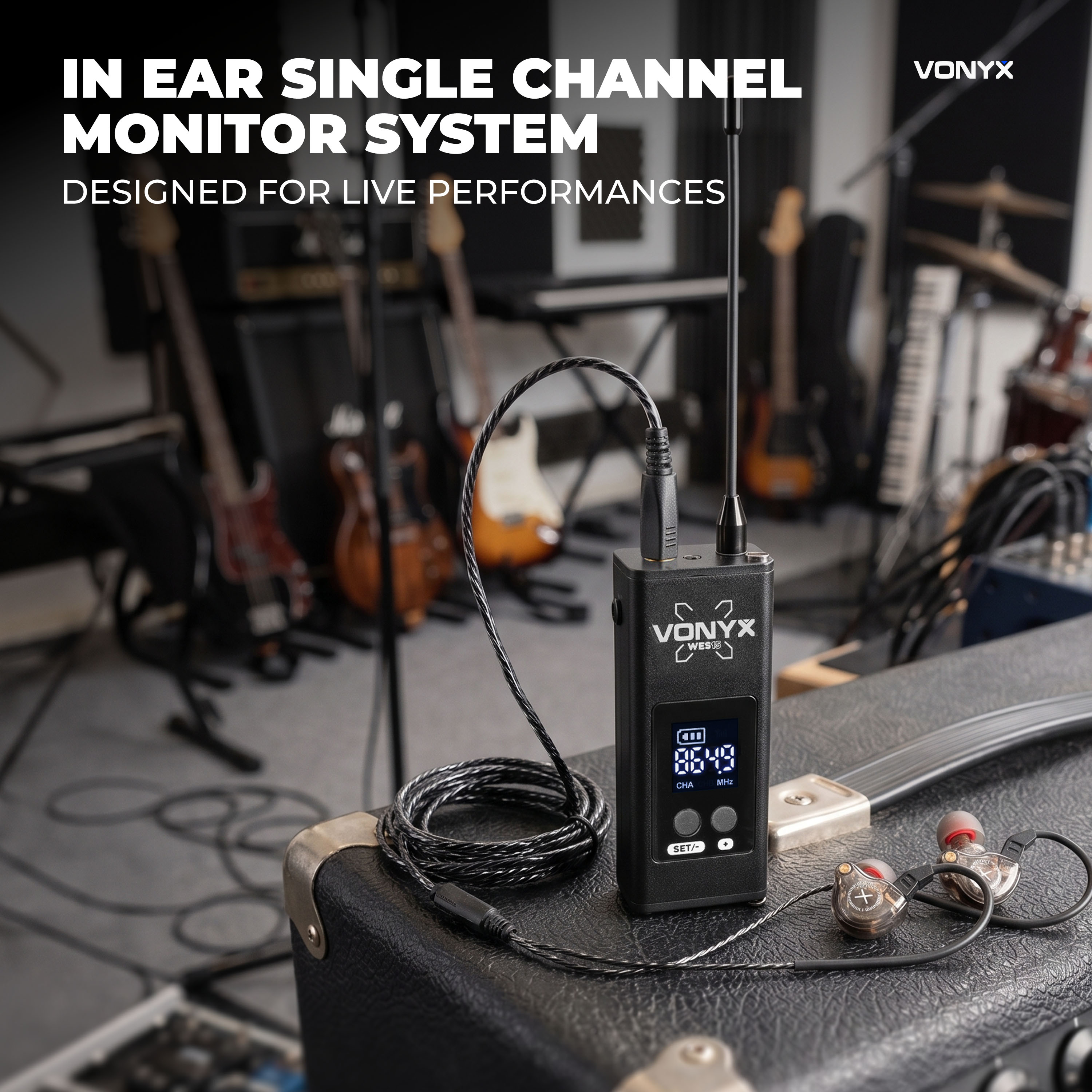

The WES15 In Ear Single Channel Monitor System is an affordable, high-quality In-Ear Monitoring (IEM) system, designed for live performances and broadcasting. Using modern UHF wireless technology, musicians can move freely on stage while hearing themselves with crystal-clear sound, without the risk of hearing damage caused by loud stage monitors. Both the transmitter and receiver feature an easy-to-read backlit LCD display, and the system comes with a comfortable isolated in-ear earphone. You can also connect your own custom in-ear monitors if preferred. Perfect for drummers, keyboard players, guitarists, vocalists, and other performers who need reliable monitoring and total freedom of movement on stage.
- Single channel In Ear System

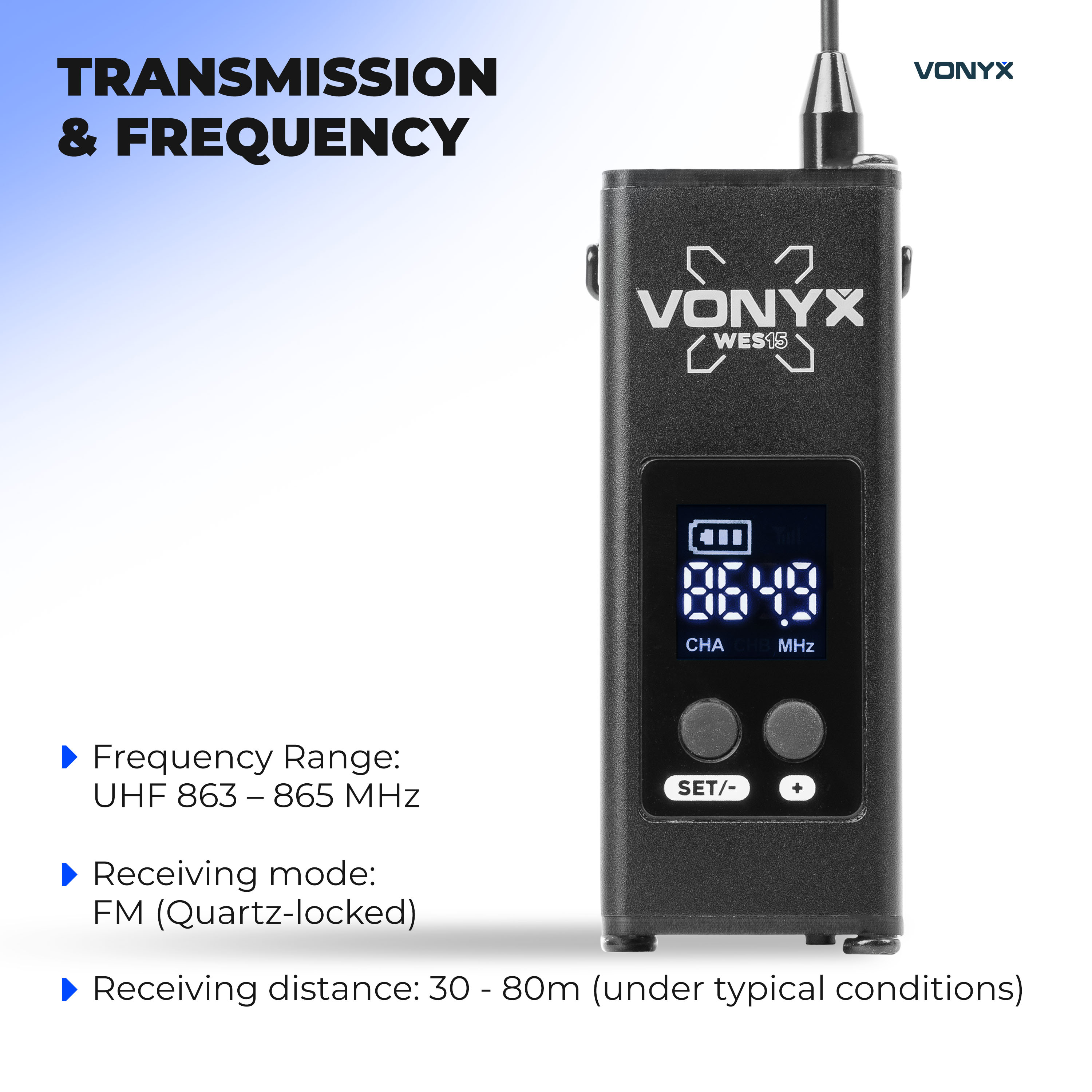

- Frequency Range: UHF mHz
- Receiving distance 30 - 80m (under typical conditions)
- Receiving mode: FM (Quartz-locked)
- 16 selectable channels
- Volume control
- Rugged metal housing

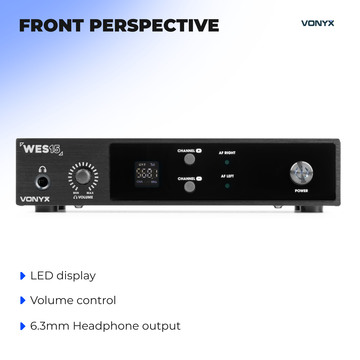

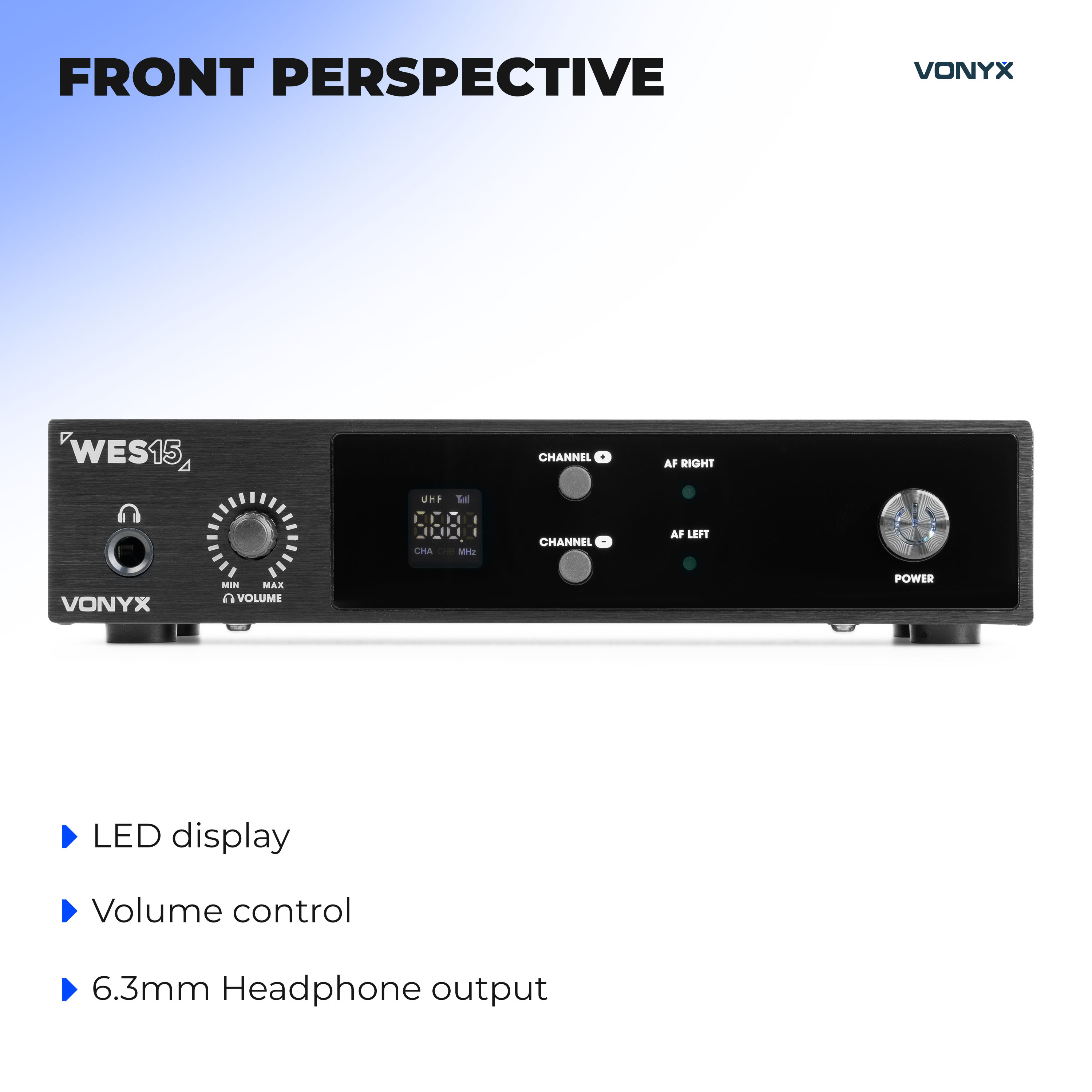

- LED display function with backlight
- Lockable transmitter and receiver

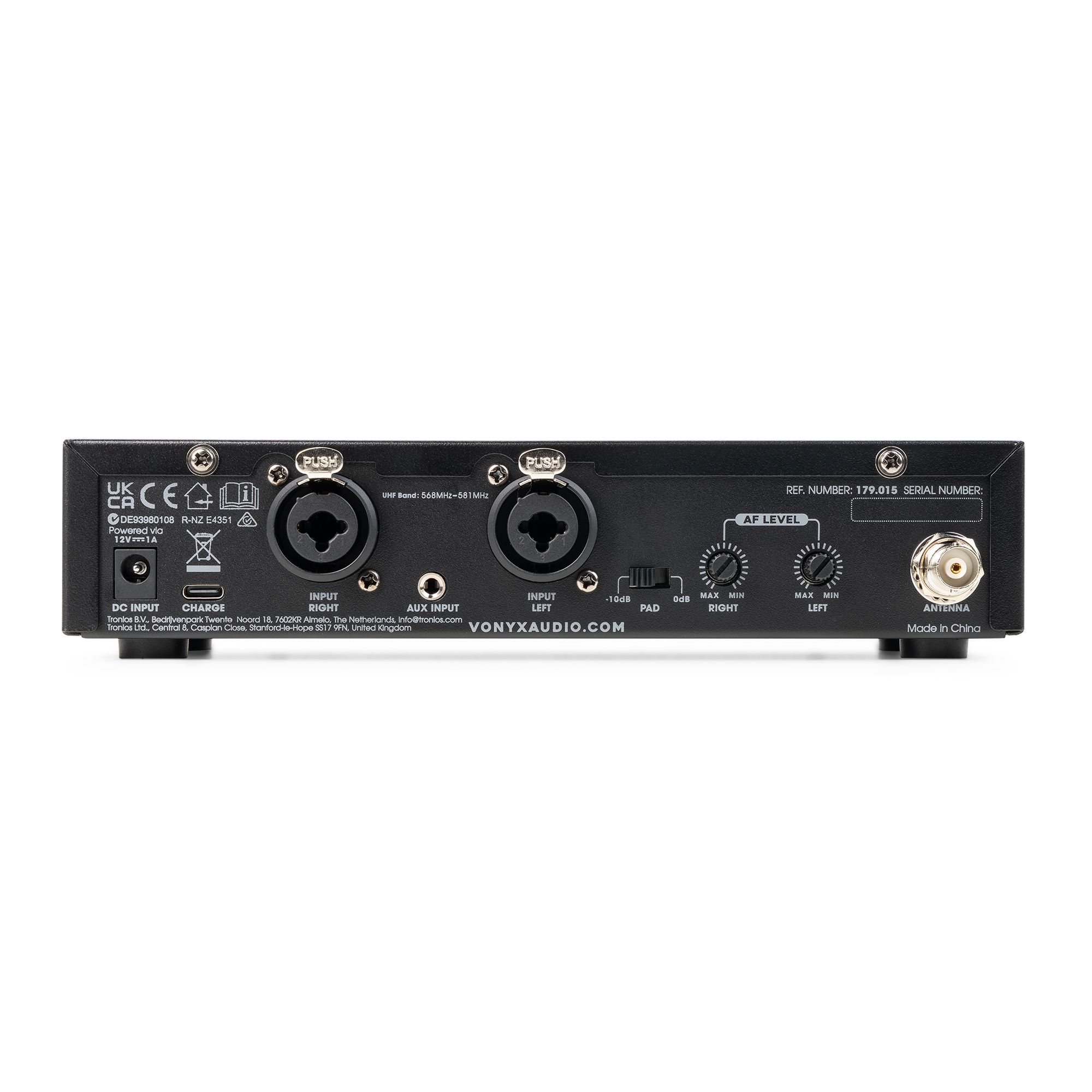

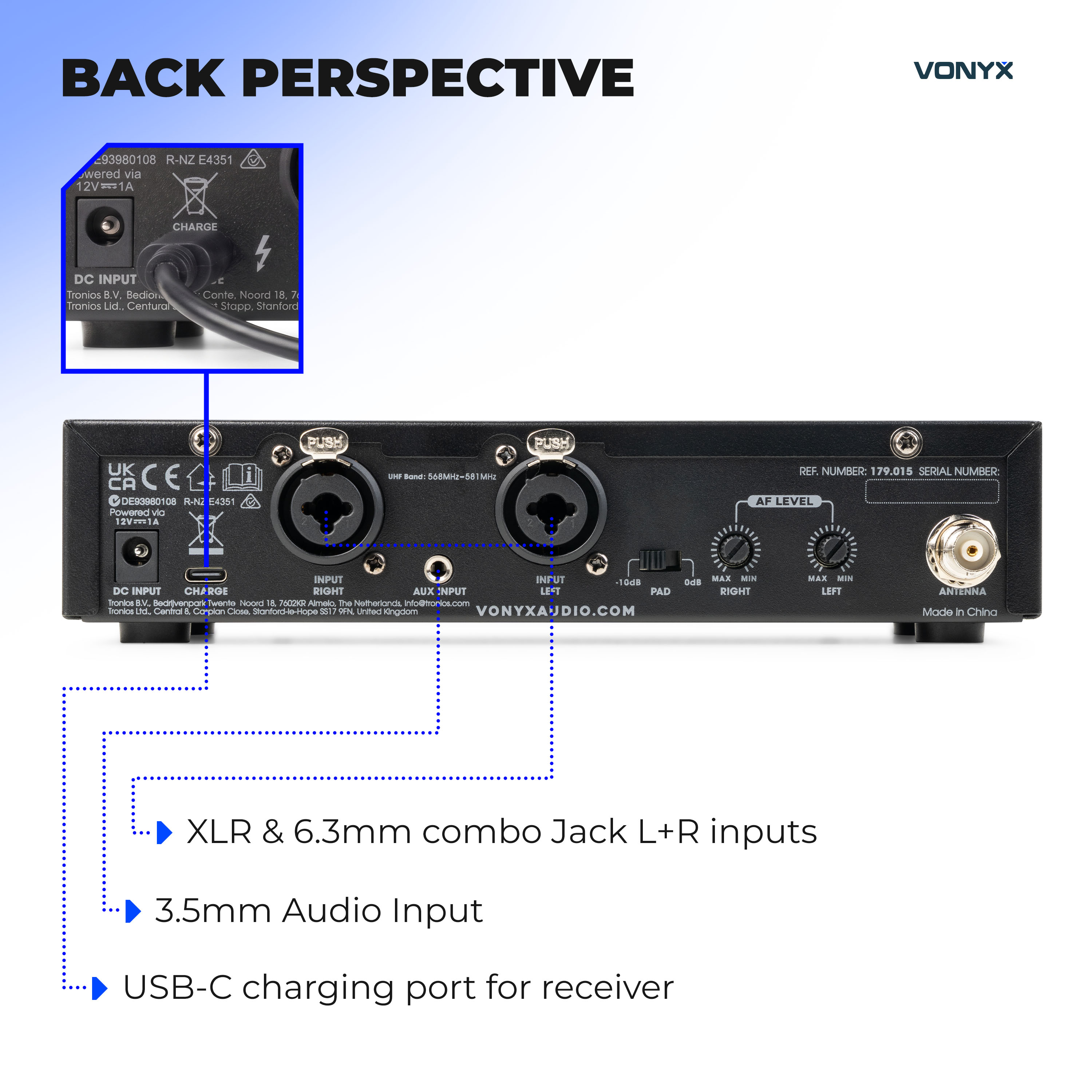

- XLR & 6.3mm combo Jack L+R inputs
- 3.5mm Audio Input

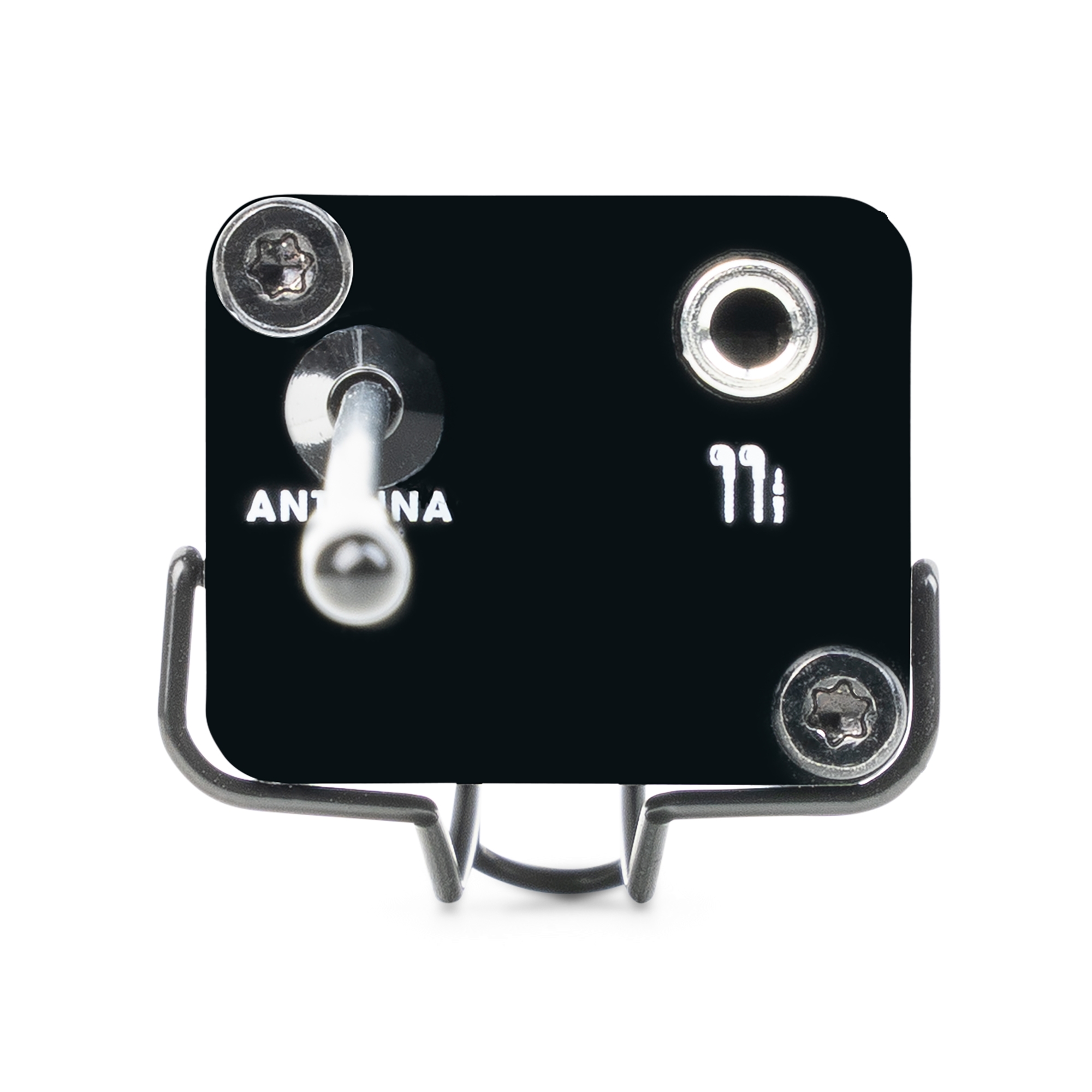

- 6.3mm Headphone output

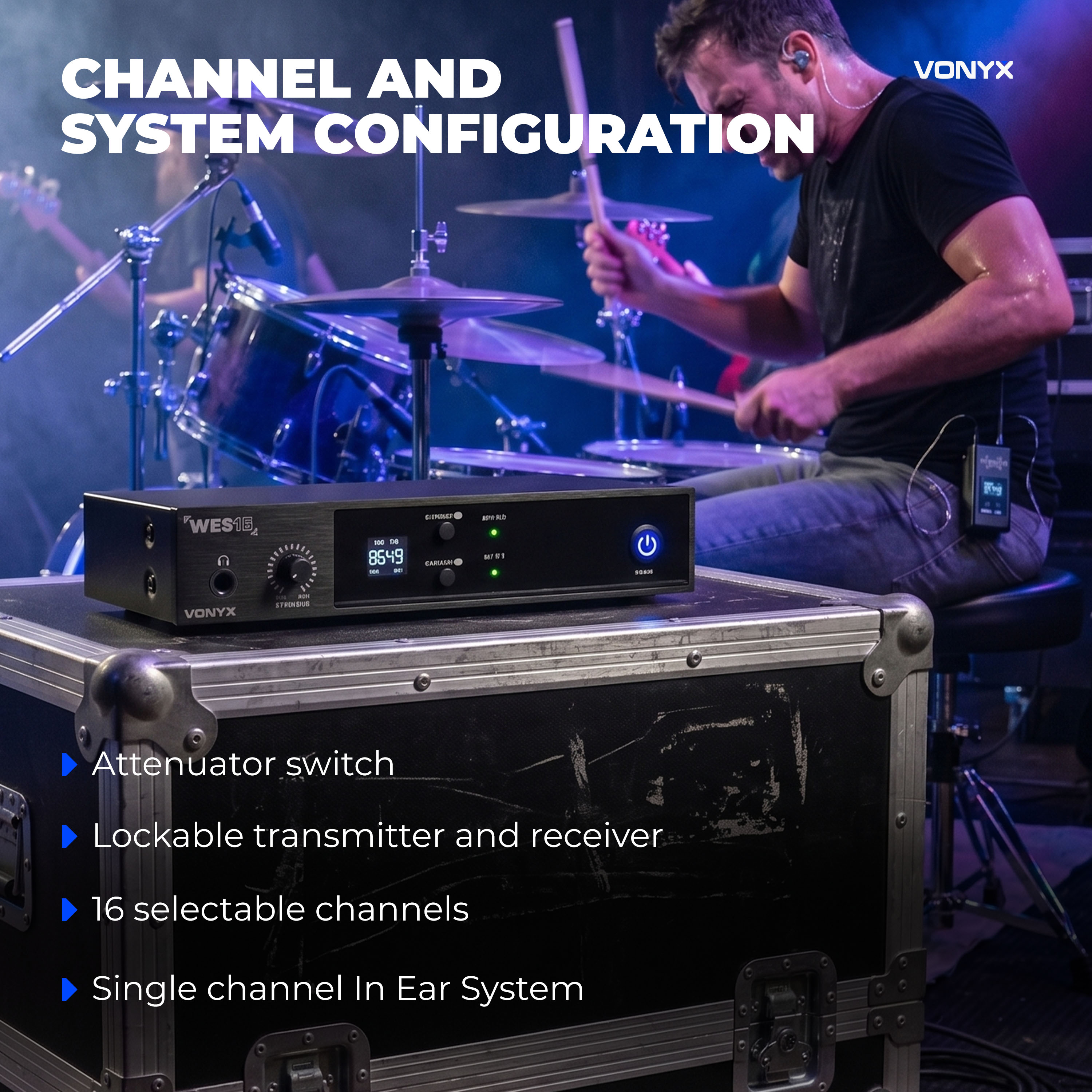

- Attenuator switch

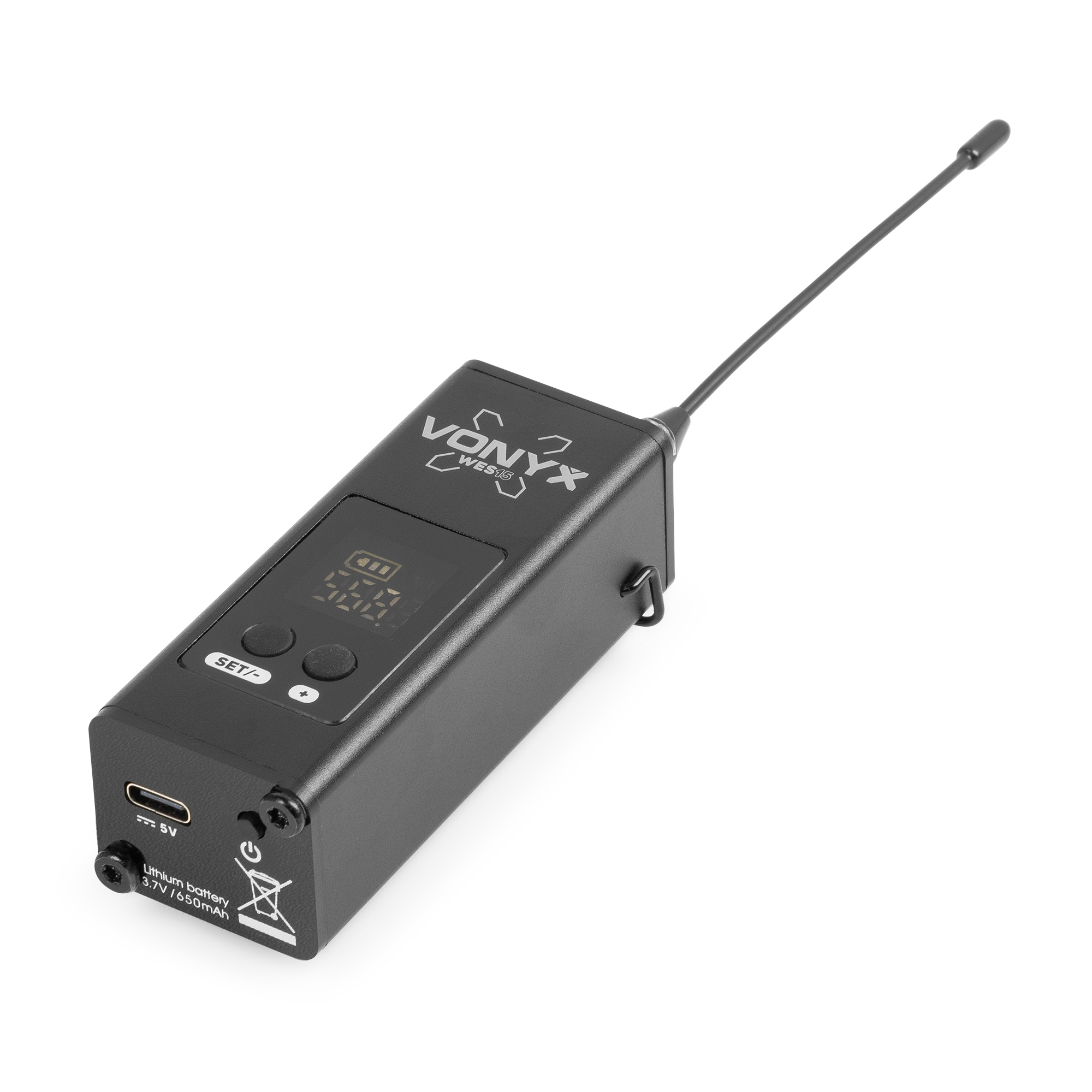

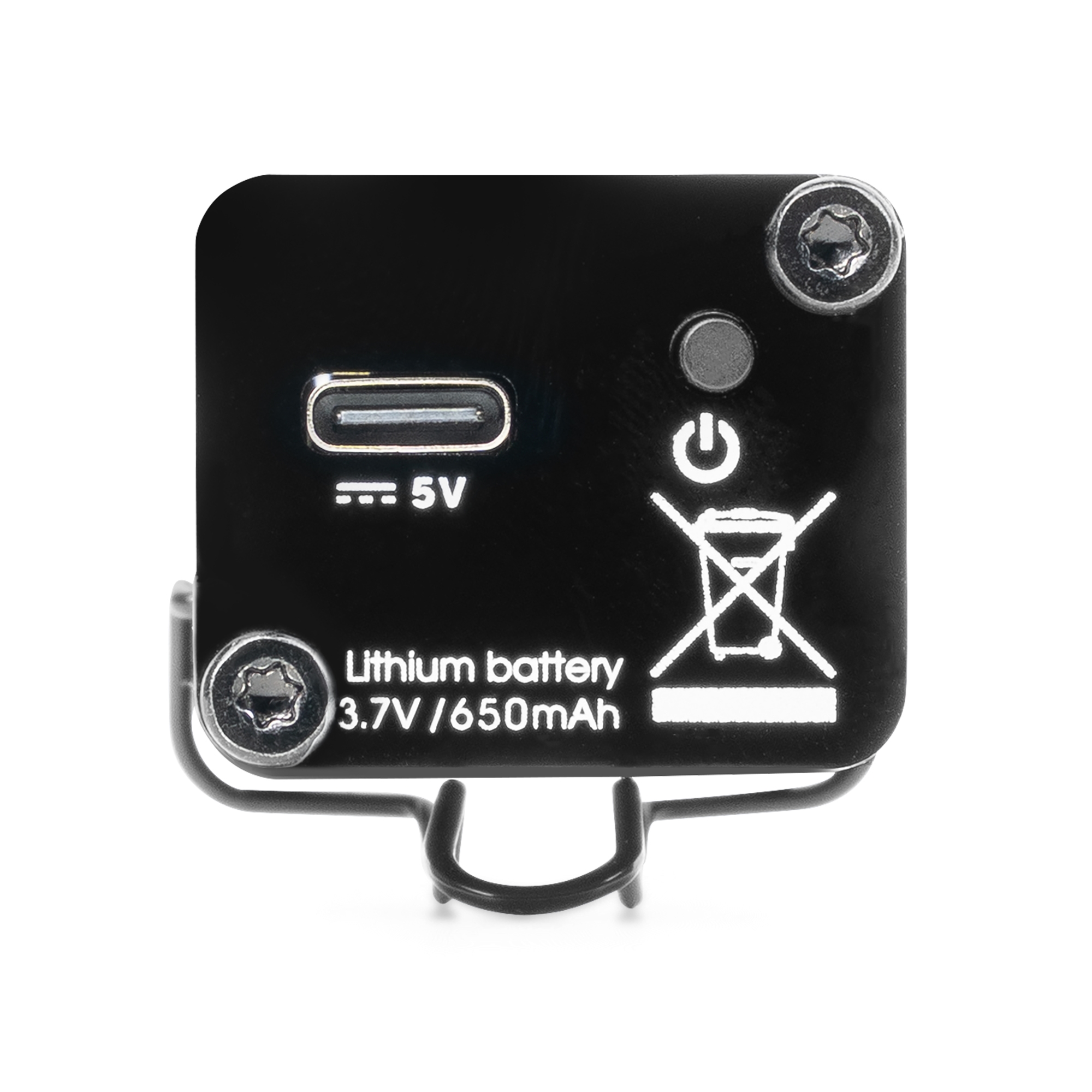

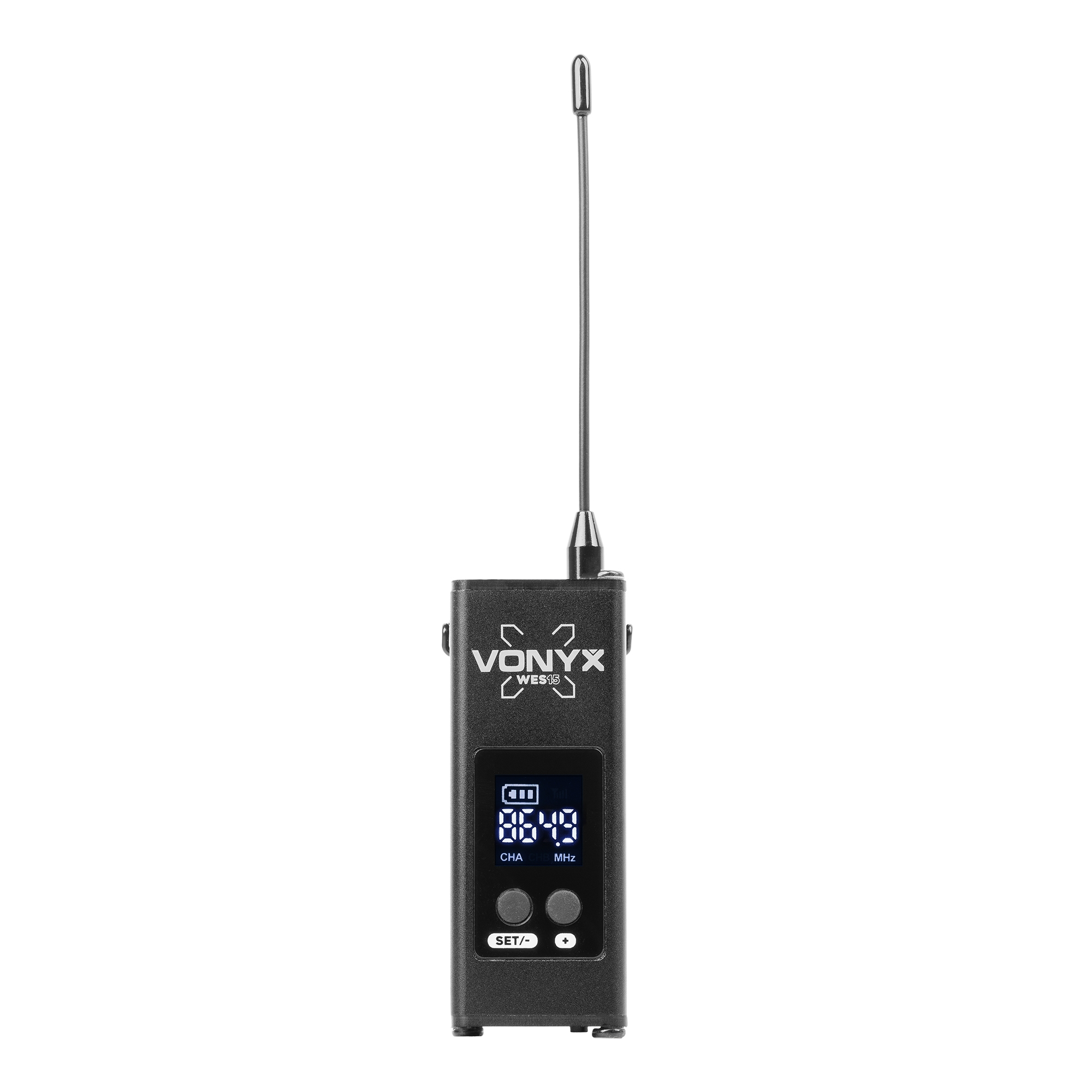

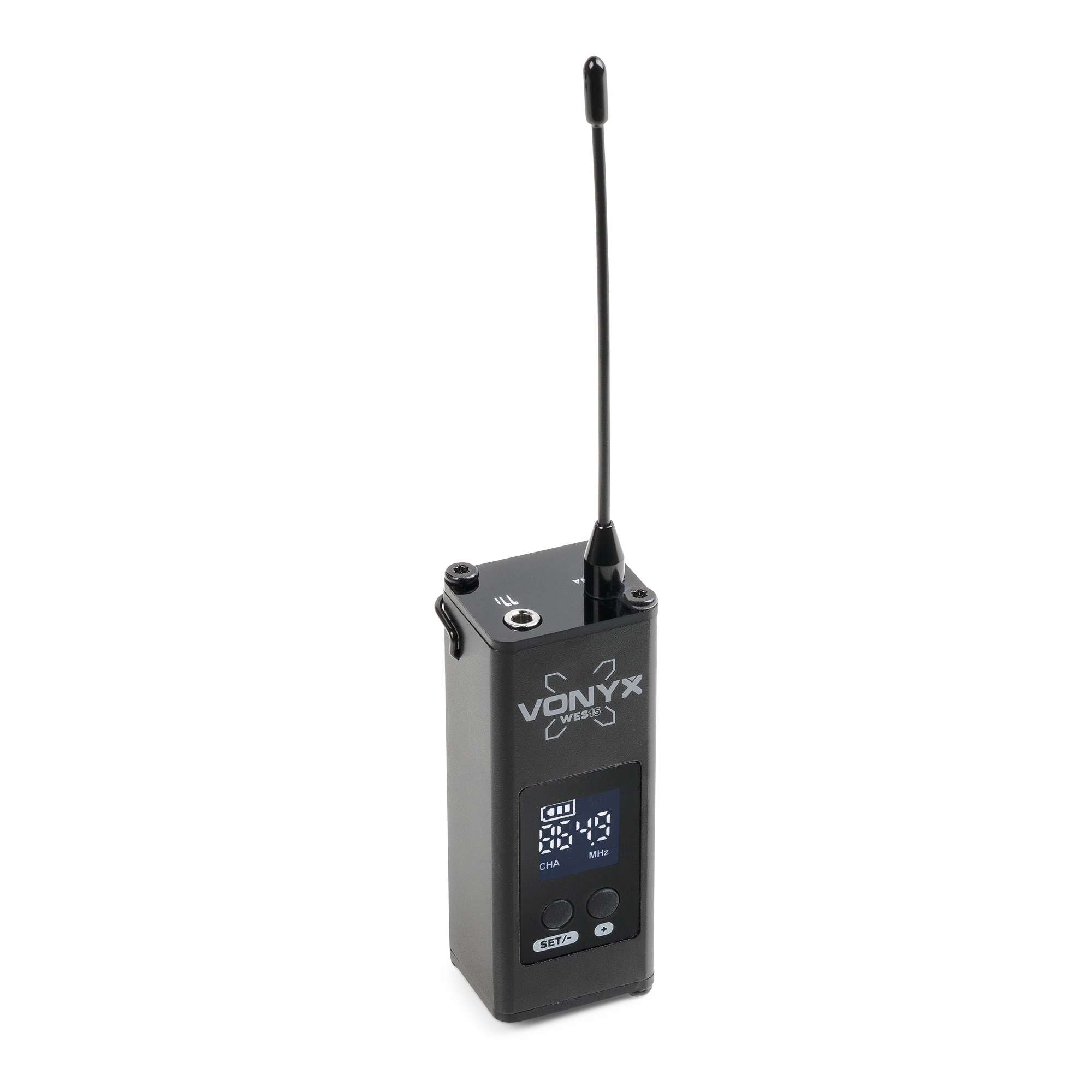

- USB-C charging port for receiver

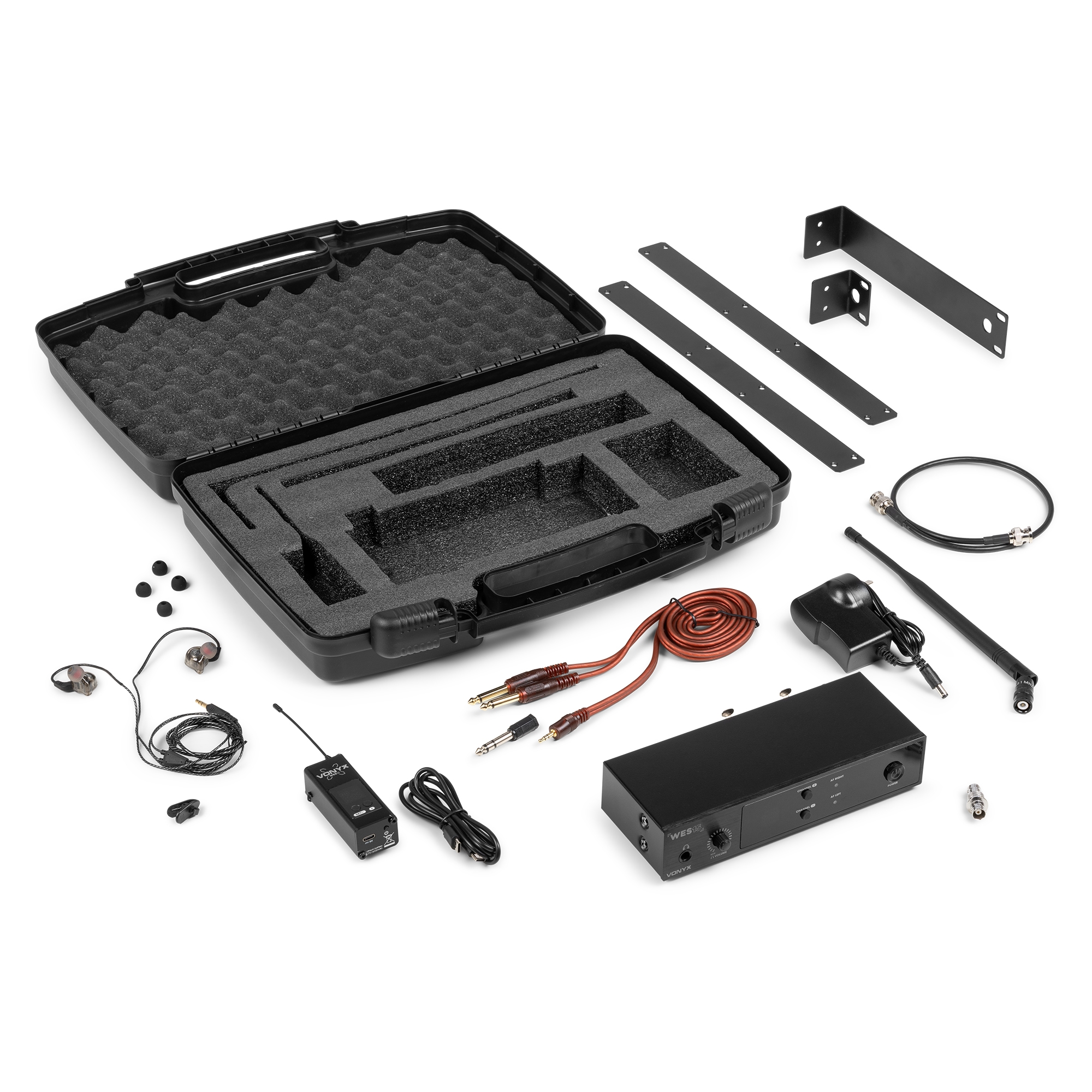

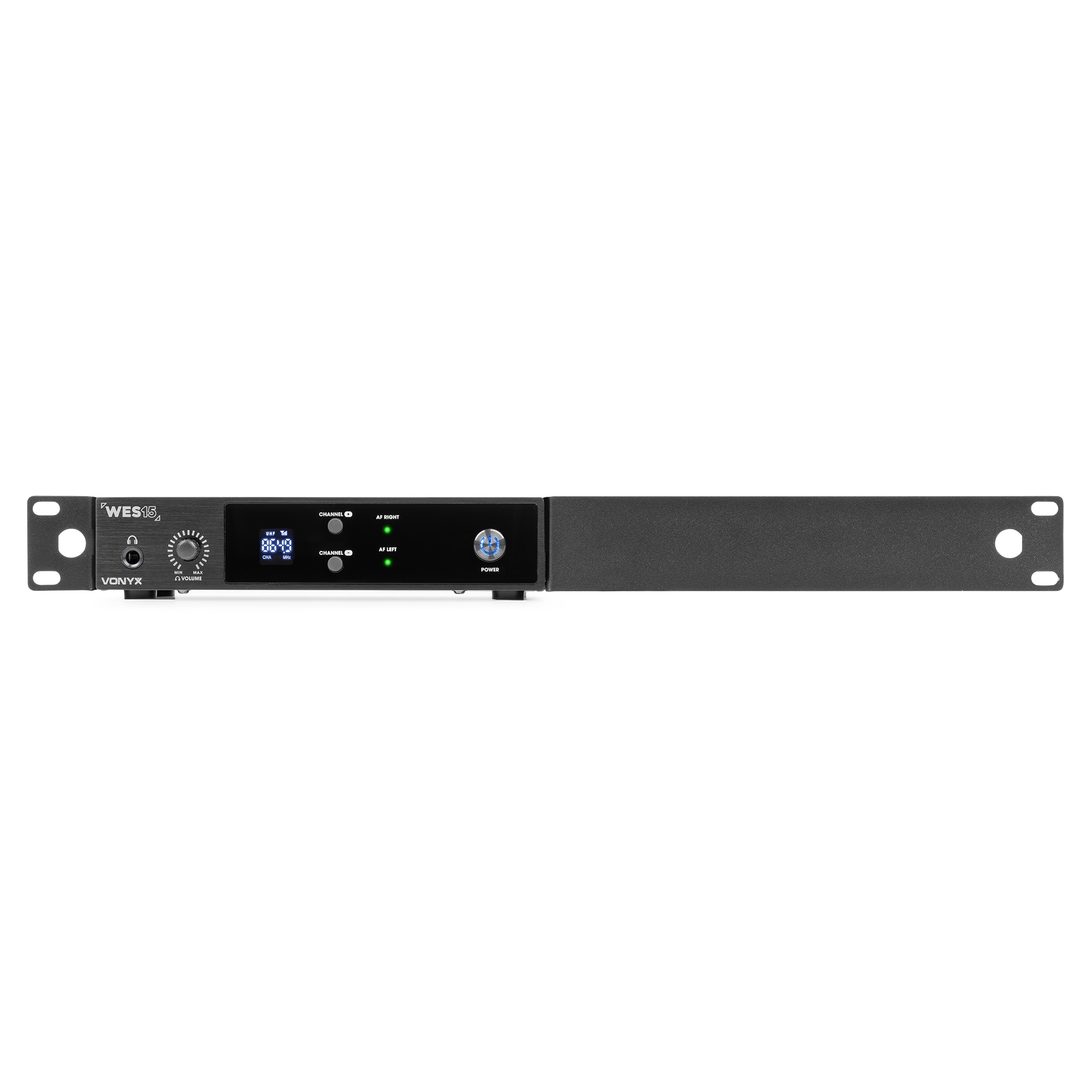

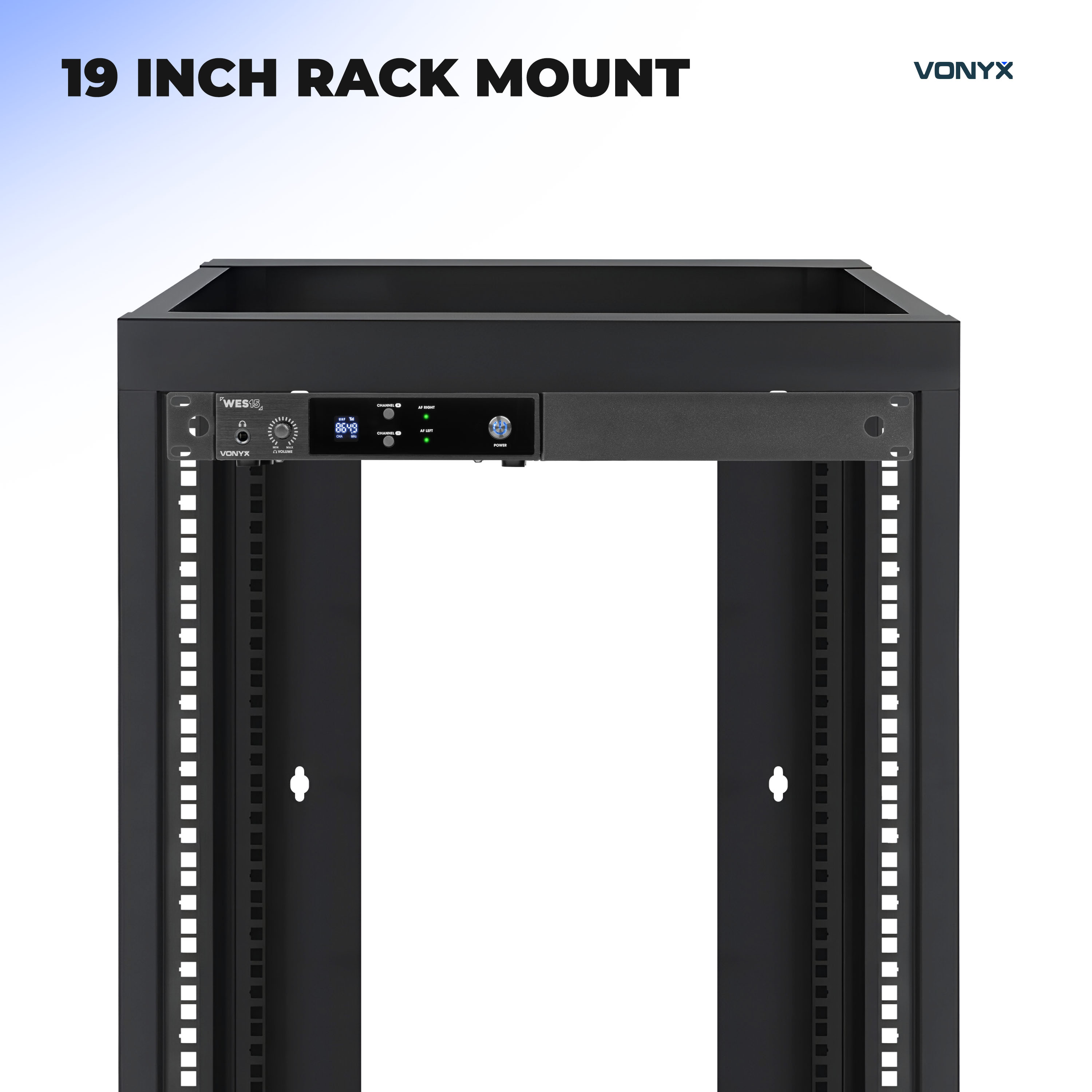

- Including 19" bracket with antenna extension cable
| Product colour | Black |
|---|---|
| Input connections | 3.5mm Jack, 6.3mm Jack, XLR (3-pin) |
| Output connections | 6.3mm Jack |
| Microphone channels | 16 channels |
| Dynamic range | >106dB |
| Frequency | .000 MHz |
| Frequency response | 40Hz - 15.000Hz |
| Frequency stability | 0.005% |
| RF output | <10mW |
| Sensitivity | -95dBm @ 12dB |
| THD | <0,5% |
| Power supply | 240VAC 50Hz (12V Adapter) |
| Power consumption | 0.040 - 0.018A |

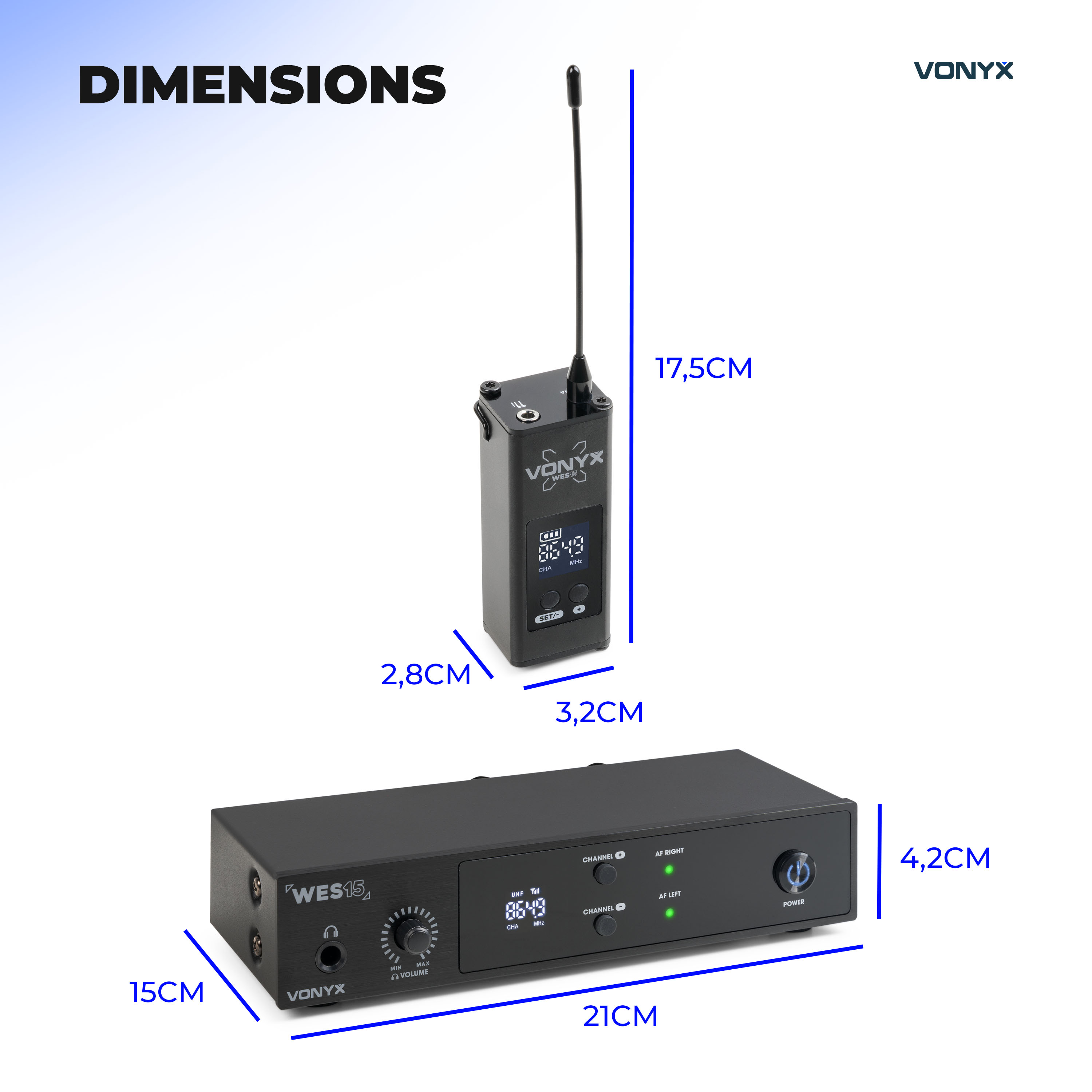

| Dimensions (L x W x H) | 150 x 210 x 42mm (Transmitter) 28 x 32 x 175mm (receiver) |
| Weight (kg) | 0,66 |
