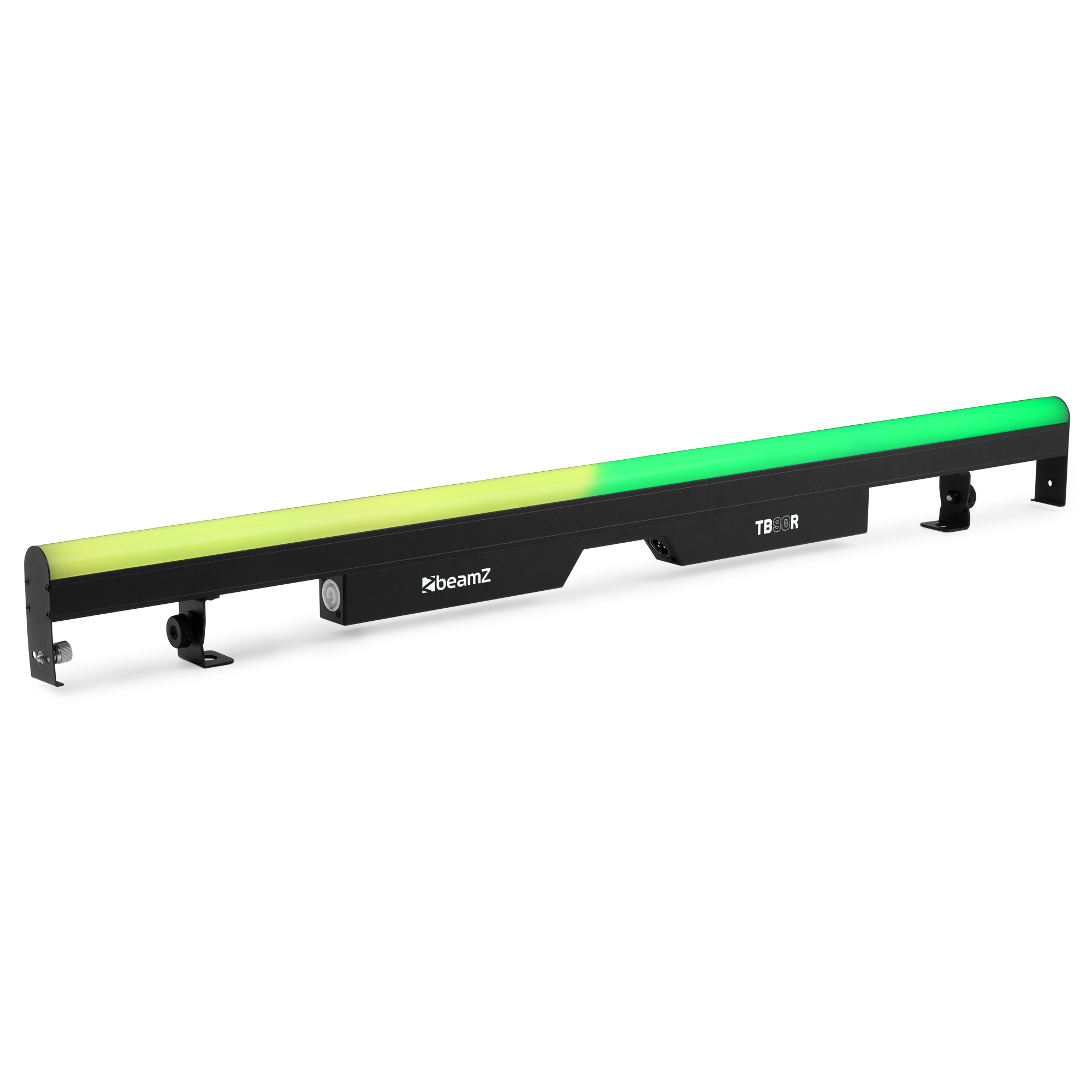

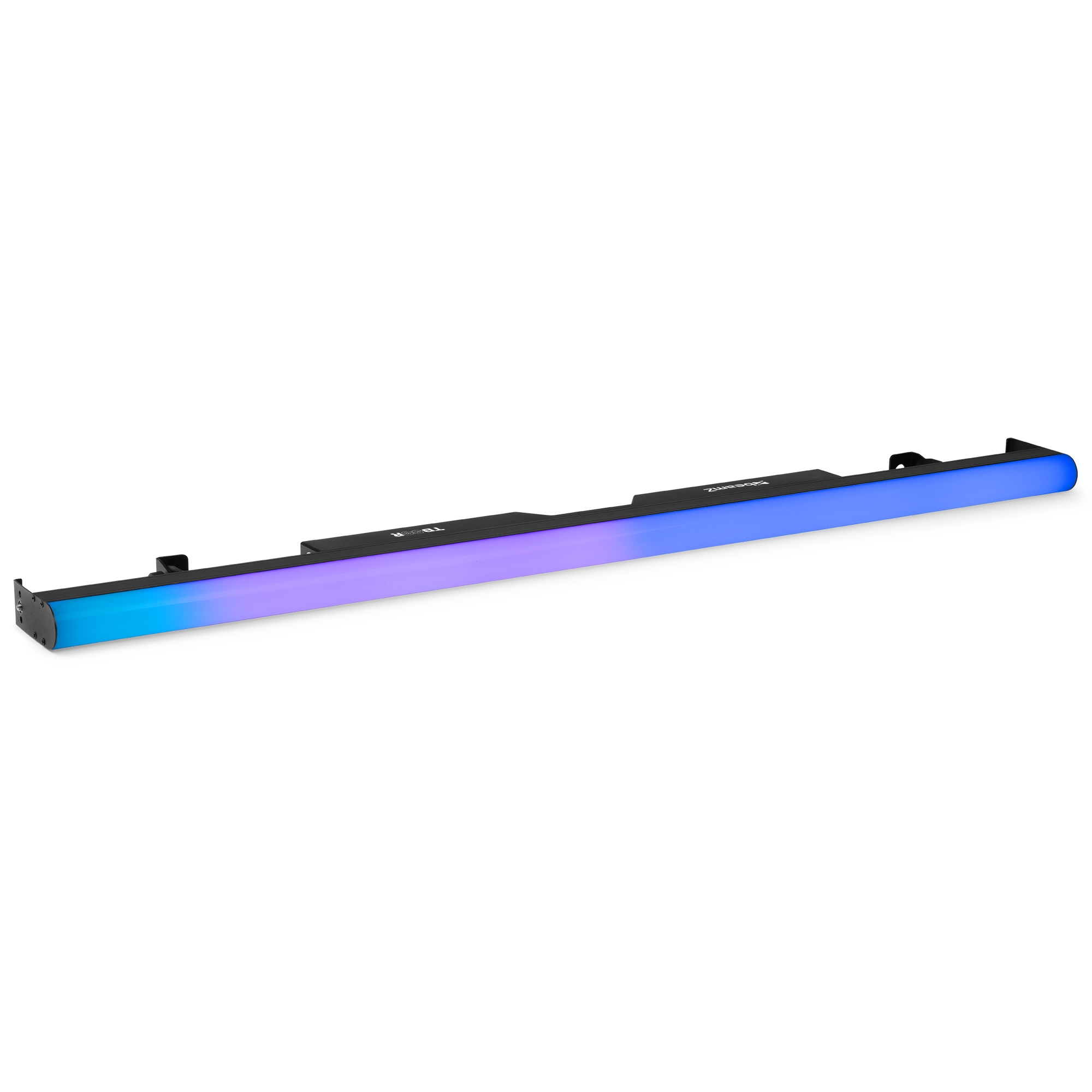

RGB Tube Pixel Bar Round
Product Code: 150.667
The TB90 Tube Bar is a versatile pixel mapping LED effect and is housed in a lightweight aluminium housing, designed for creative light shows and visual designs. Equipped with bright RGB LEDs and pixel control, the TB90 allows stunning chase effects, smooth colour fades and eye-catching patterns. These tubes do not require a LED-controller while they can directly be controlled via DMX. Multiple units can be linked together for endless design possibilities, making it perfect for stage, clubs, TV sets and architectural us
- RGB LED Tube Bar with pixel control
- 90x SMD 3-in-1 LEDs
- Smooth RGB colour mixing
- 67 Auto Mode Programs
- 3 Sound Mode Programs
- Auto, Sound and Master/Slave modes
- RDM & DMX Control
- Linkable design for extended setups
- DMX in-/output via 3-pin XLR
- P-Con input/output

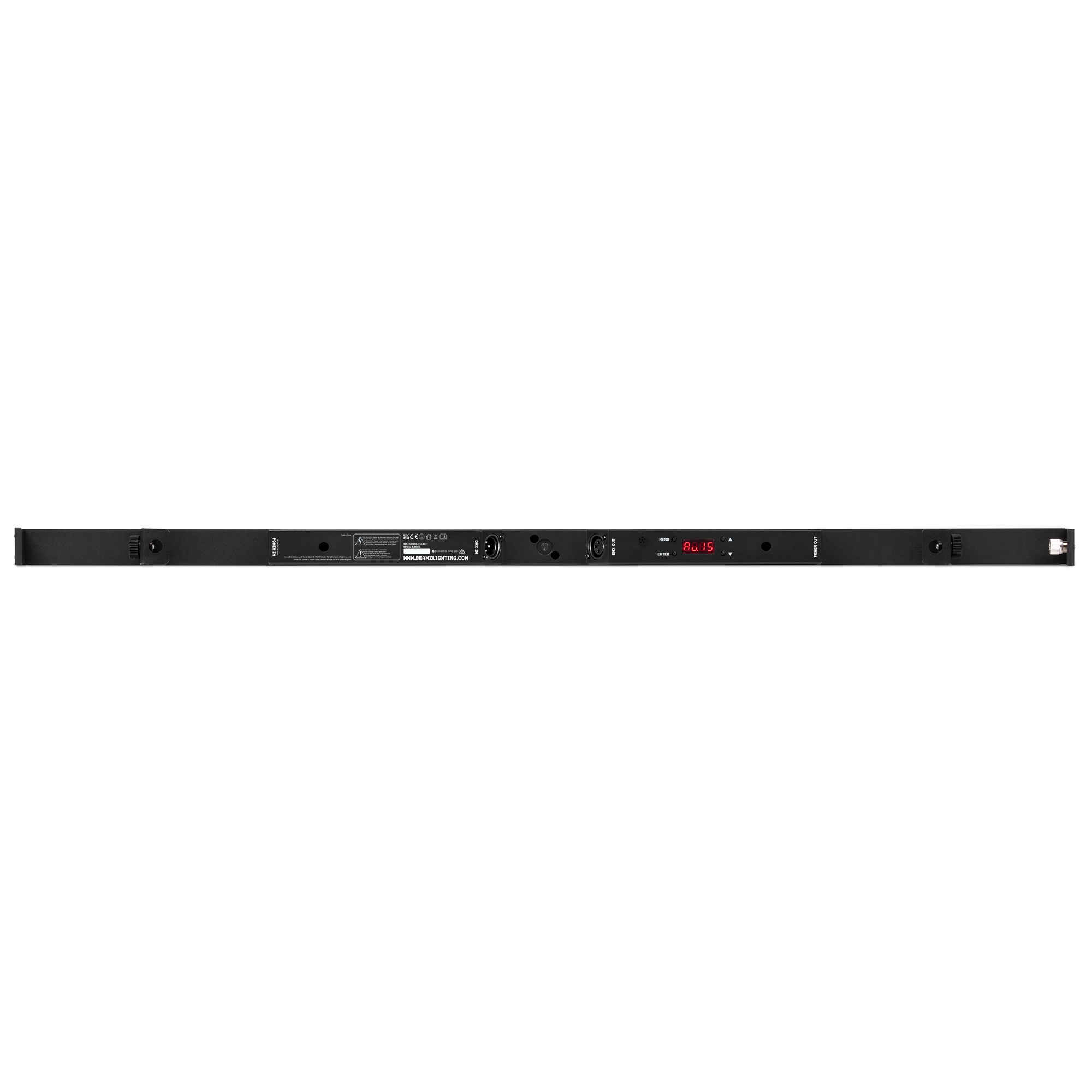

- Control panel with LED display
- Available in round and flat version
- Supplied with mounting brackets
Specifications
| Product colour Black | |
| Light source 3-in-1 LED | |
| Colours Red, Green, Blue | |
| LED power (single LED) 0.2W | |
| Quantity of LEDs 90 | |
| Beam angle 60° | |
| Flash rate per second 1 - 23Hz | |
| Modes Automatic programs, DMX, Master/Slave | |
| Sound to light mode Yes | |
| RDM Yes | |
| DMX channels 3, 5, 8, 90, 94 | |
| DMX connection 3-pin XLR | |
| Daisy chain Yes (max. 12 bars) | |
| IP rating IP20 | |
| Cooling Convection | |
| Display LED | |
| Power plug P-Con | |
| Power consumption 0.338 - 0.204A | |
| Power supply 240VAC 50Hz | |
| Dimensions (L x W x H) 1003 x 35 x 94mm | |
| Weight (kg) 1,25 | |
| Included accessories Mounting bracket, Power cable |
