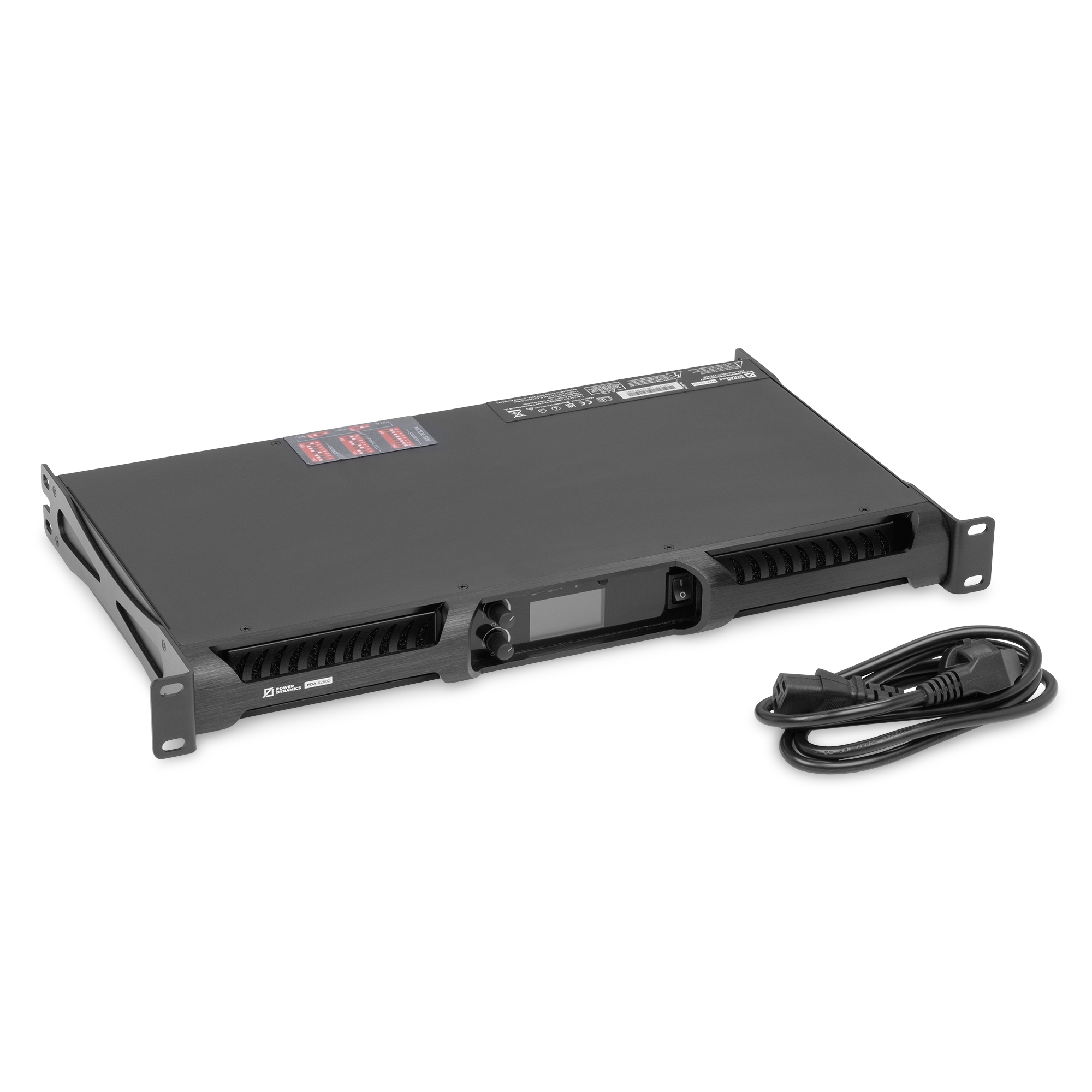

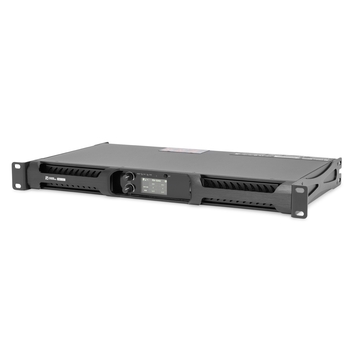

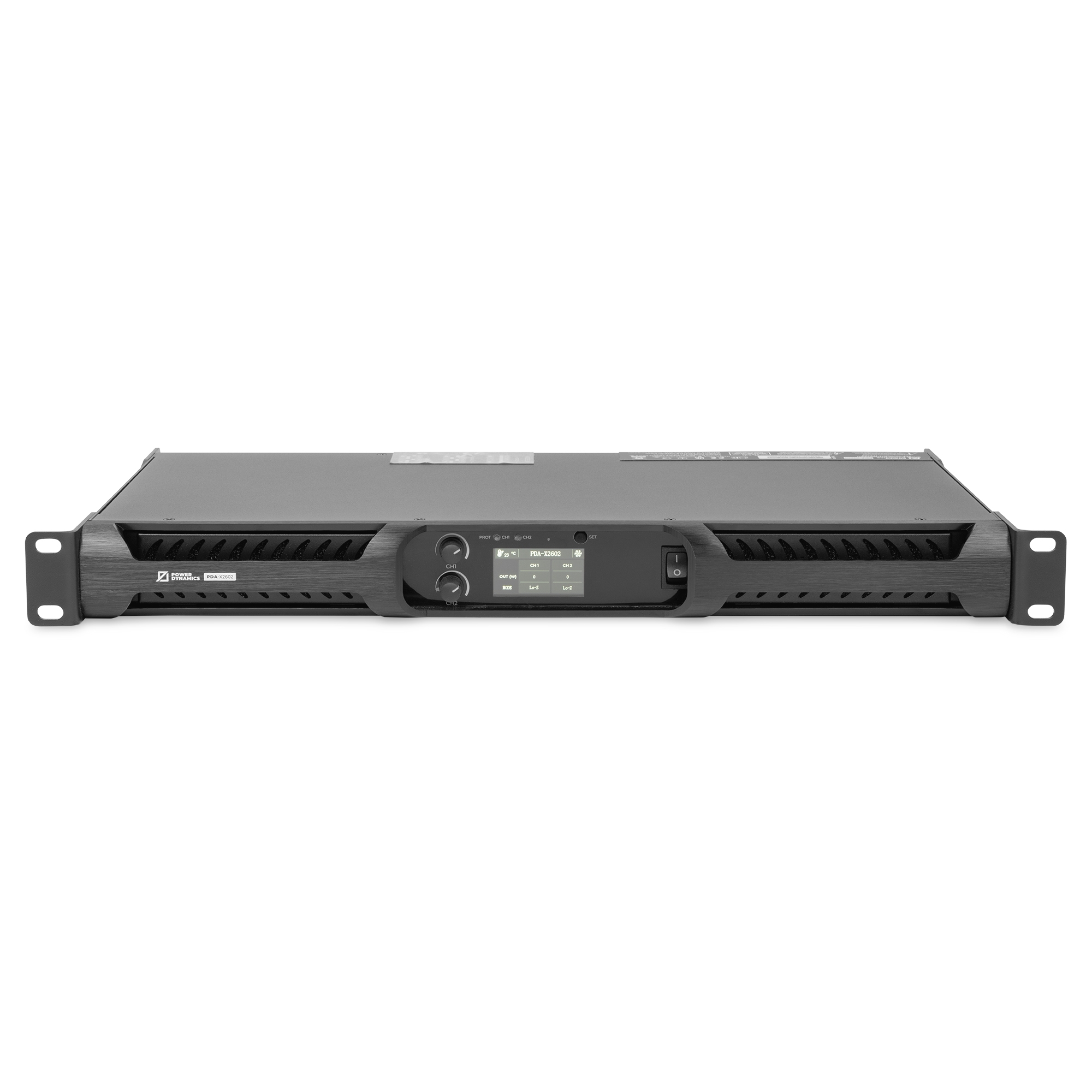

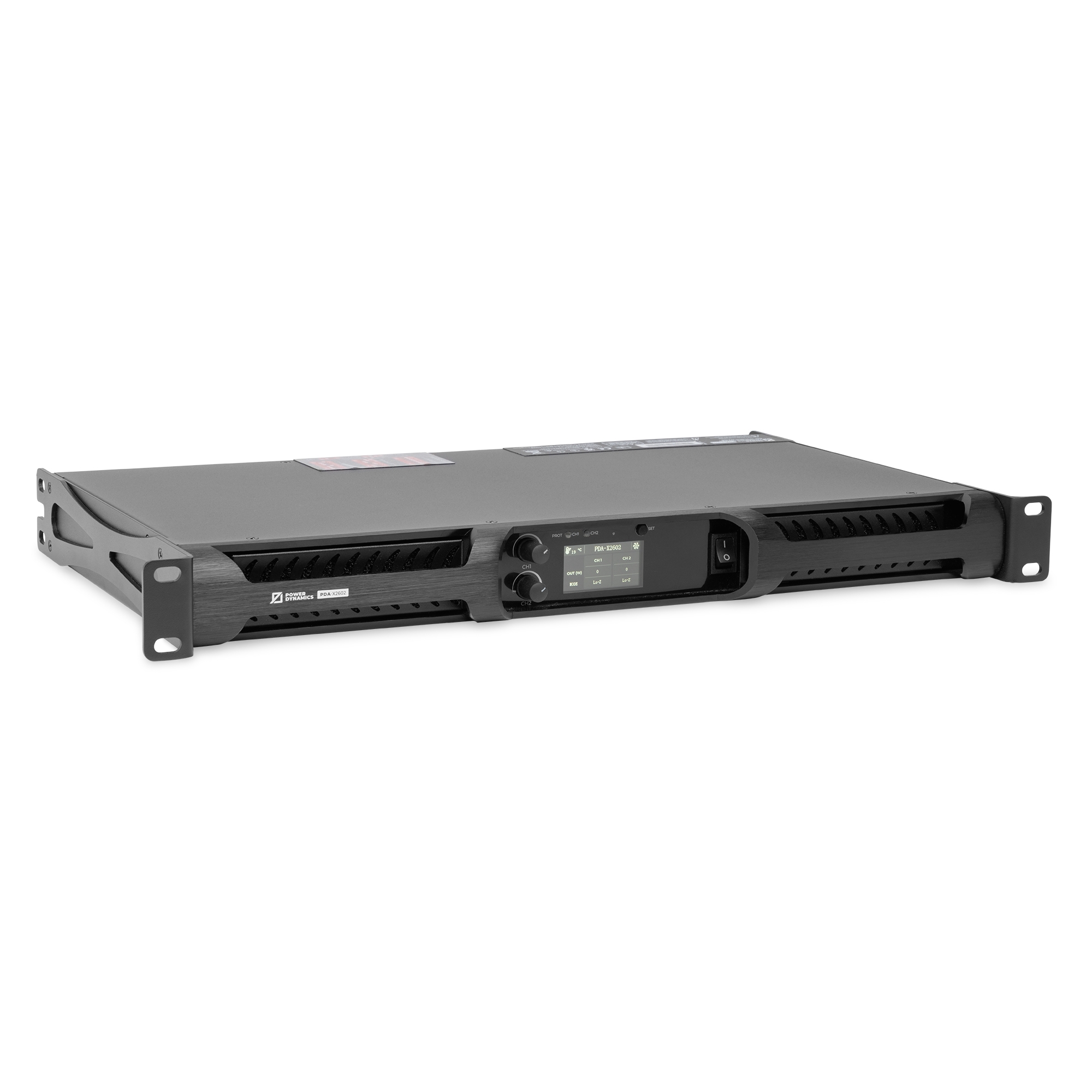

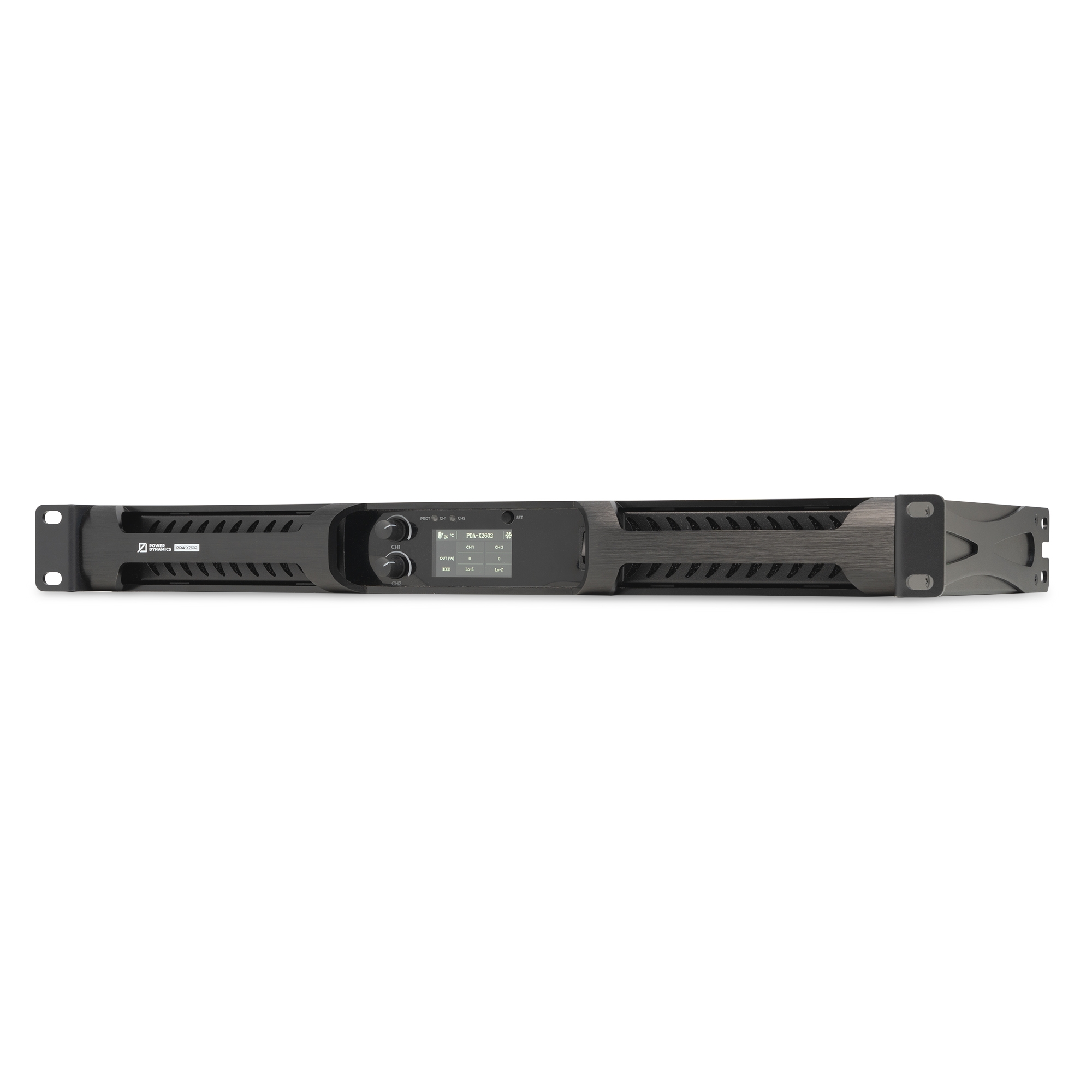

PDA-X2602 Professional Class-D Amplifier 2x 1300W
Product Code: 172.126
The PDA Series includes professional 2-channel and 4-channel Class-D amplifiers, developed for efficient and reliable audio reproduction in a wide range of installation and sound environments. Housed in a compact 1U chassis, these intelligent amplifiers combine high output power with energy-saving operation and low heat generation. The integrated OLED display provides clear system monitoring and easy access to amplifier status and settings. With advanced protection circuits, automatic standby functionality and a lightweight design, the PDA Series is ideal for mobile use, fixed installations and professional audio applications where performance, control and efficiency are essential. Applications: for example, Bars, Restaurants, Clubs, Public Buildings, Offices, Events and Retail spaces.
- Intelligent multifunctional digital amplifier
- High-efficiency Class-D amplifier technology
- Suitable for Hi-Z or Lo-Z (2Ω, 4Ω, 8Ω or 70V/100V)
- Soft Start and Power Factor Correction

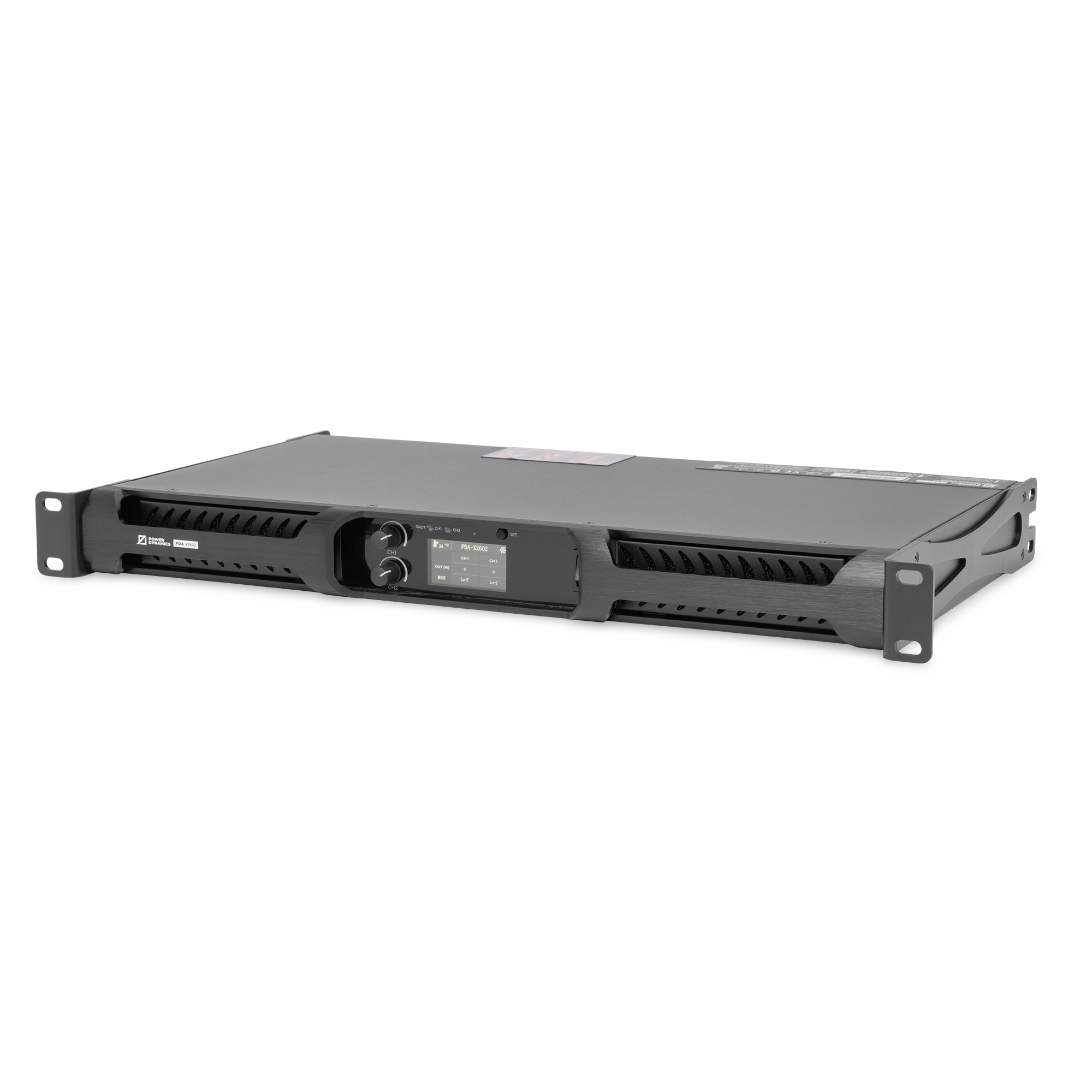

- Compact and lightweight 1U housing
- Intelligent energy-saving design with low heat generation

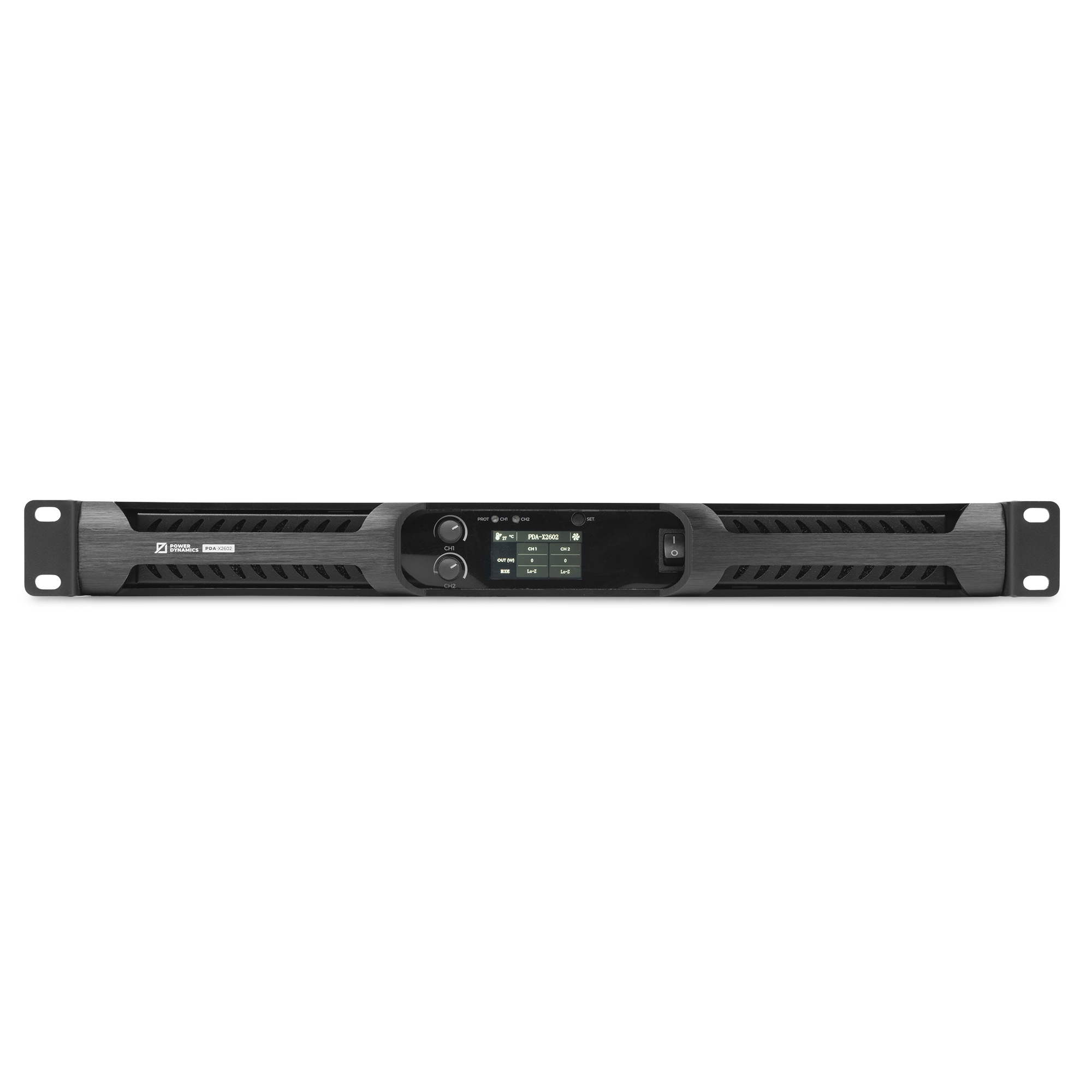

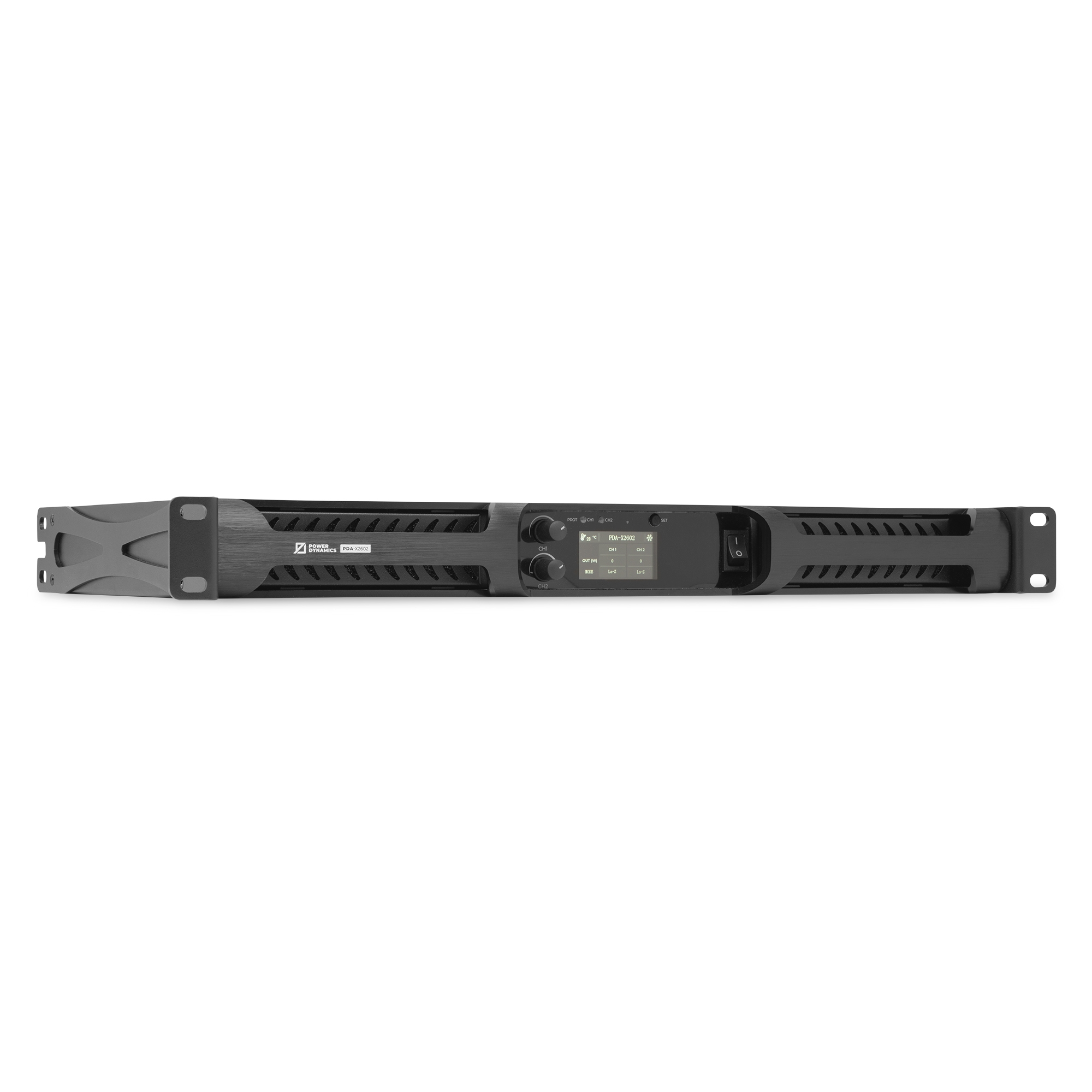

- OLED display for clear status monitoring and control
- Automatic standby mode for reduced power consumption
- Reliable performance for professional installation use
- Advanced protection against short circuit, overload and overheating
- Clip and DC protection for safe long-term operation
- Designed for 19" rack mounting
Specifications
| Product colour Black | |
| Output channels 2 | |
| Output power | RMS @ 2 Ohm per channel 1000W |
|---|---|
| Output power | RMS @ 4 Ohm per channel 2000W |
| Output power | RMS @ 8 Ohm per channel 1300W |
| Output power | RMS @ 8 Ohm bridged 4000W |
| Output power | RMS @ 100V per channel 1000W |
| Impedance 2 Ohm, 4 Ohm, 8 Ohm, 70V, 100V | |

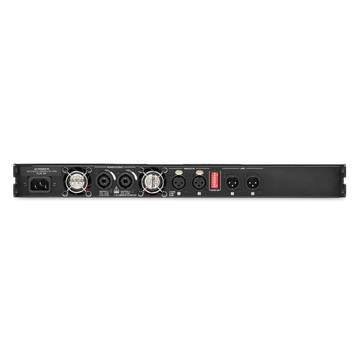

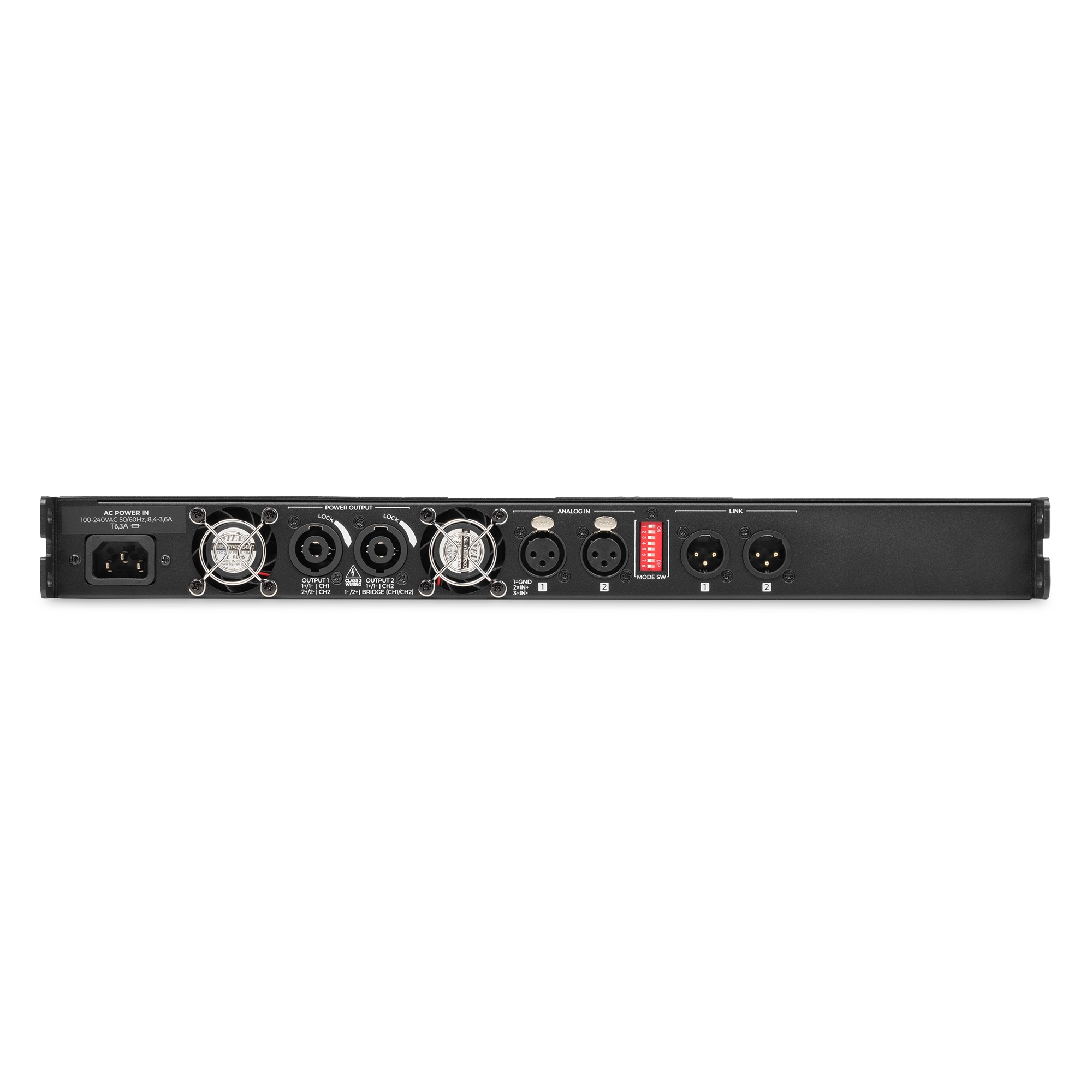

| Input connections XLR (3-pin) | |
| Output connections NL-4 , XLR (3-pin) | |
| Frequency response 20Hz - 20.000Hz | |
| Crosstalk >70dB | |
| THD <0,1% | |
| Signal-to-noise ratio >100dB | |
| Damping Factor 5000 | |
| Input sensitivity line 1.5V | |
| Input impedance 20 kOhm | |
| Power supply 240VAC 50Hz | |
| Dimensions (L x W x H) 483 x 268 x 44mm | |
| Is the item 19"? Yes | |
| Weight (kg) 7,50 | |
