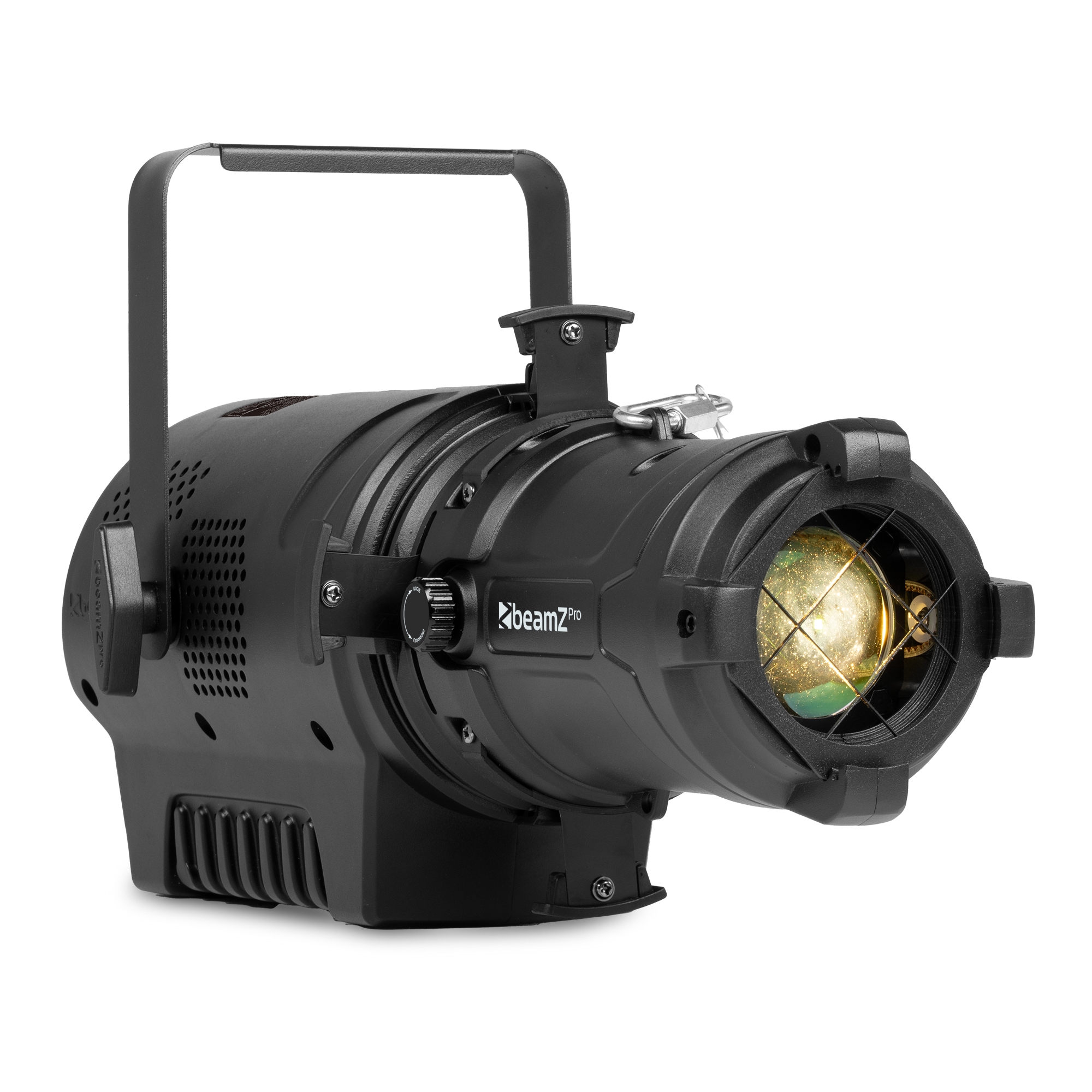

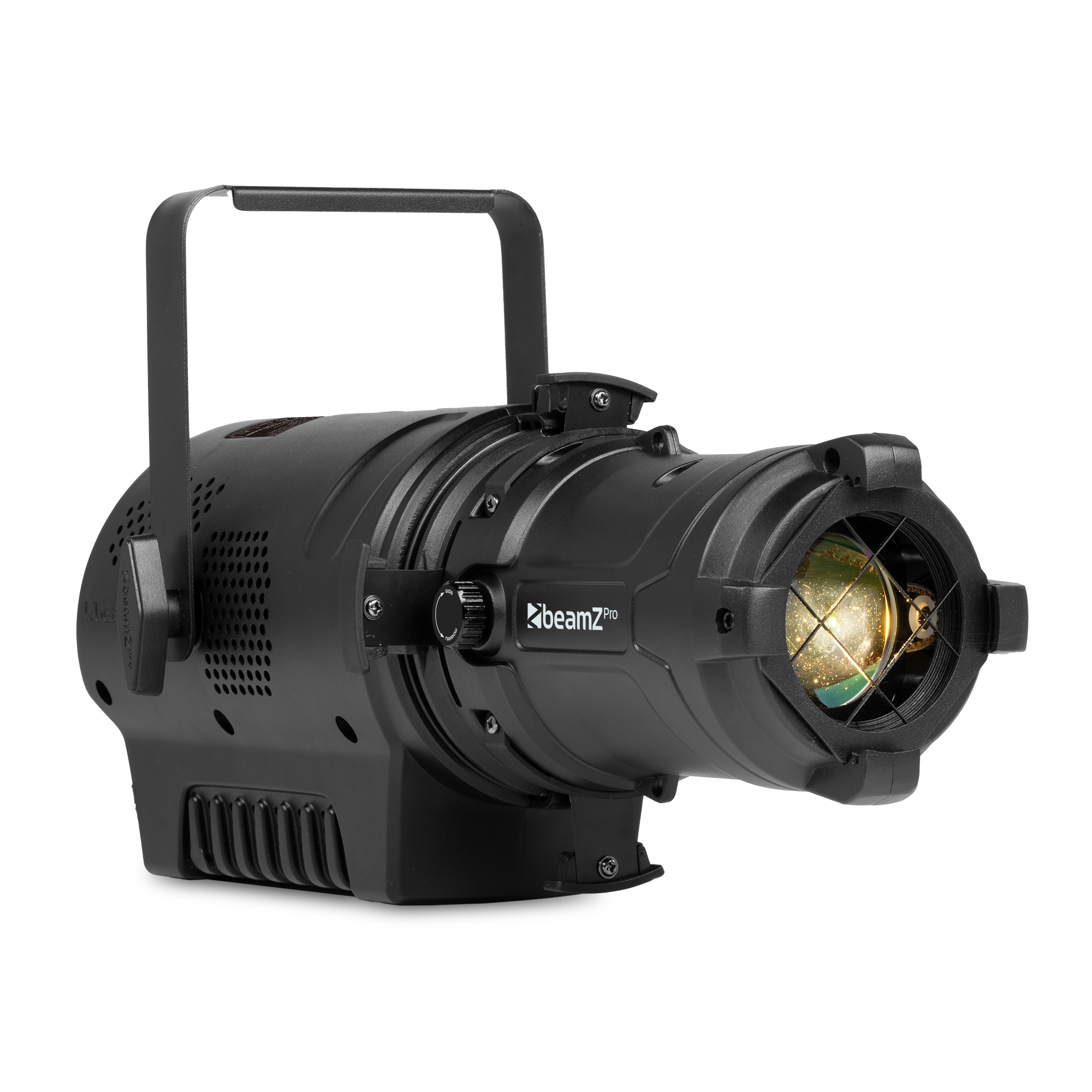

BTS80WW Compact Profile Spot with Zoom 80W WW
Product Code: 155.160
The BTS80WW is a compact and efficient LED profile spot designed for precise lighting in theatres, studios, galleries, and architectural applications. Powered by a high-quality 80W warm white LED, this fixture delivers smooth, even illumination with excellent colour consistency.
Despite its compact housing, the BTS80WW offers professional features such as a precision profile lens, internal shutter blades, and gobo holder for accurate beam shaping and projection. Simple operation is ensured via the OLED display and onboard dimmer encoder, while DMX compatibility allows seamless integration into professional lighting setups.
- Compact LED profile spot design
- 80W warm white LED light source
- Precision profile lens system
- Internal cutting knives for beam shaping
- Integrated gobo holder
- Smooth dimming via encoder

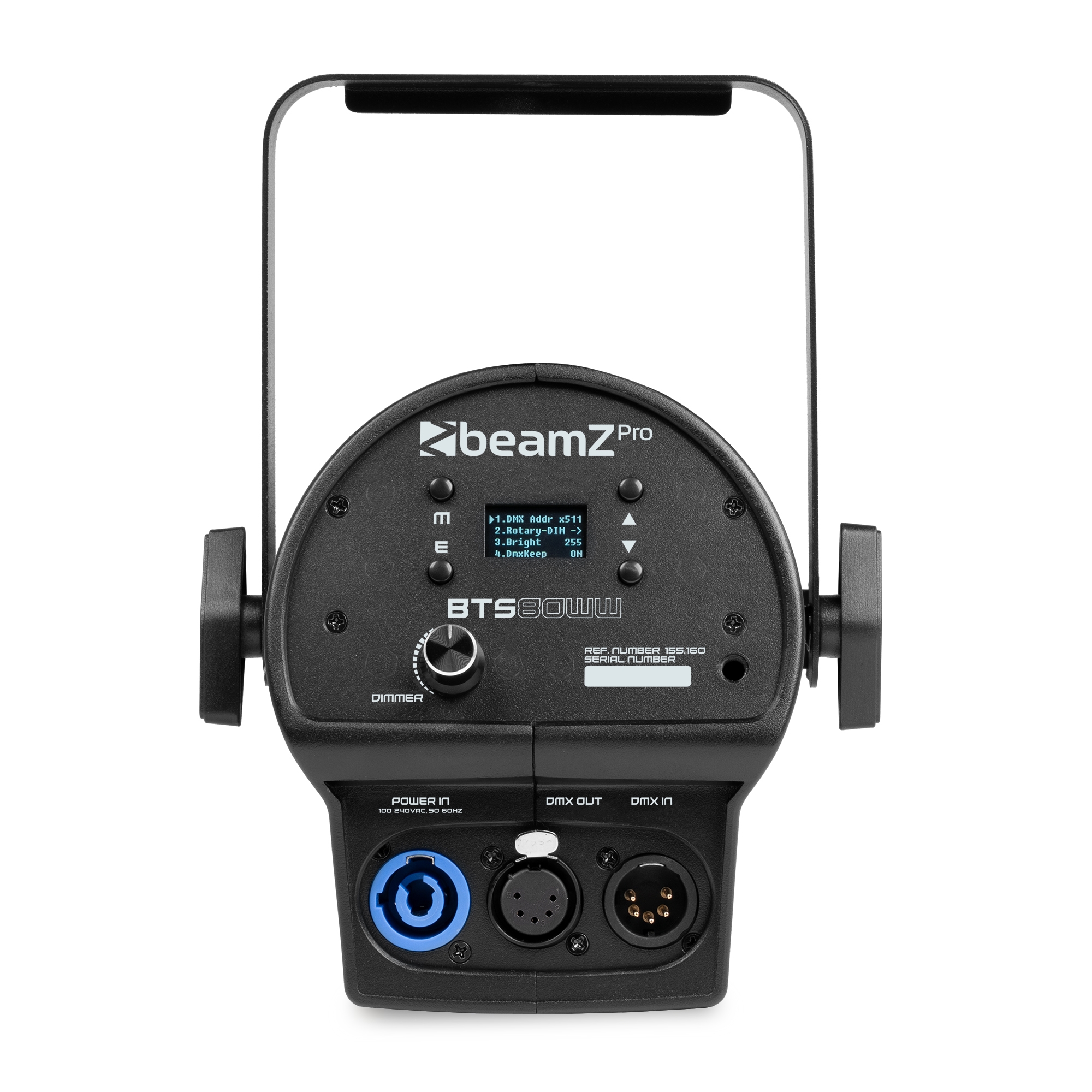

- OLED control display
- 1 or 2 DMX channel modes
- DMX in/output via 5-pin XLR
- Powerconnector power input
- Flicker-free operation
- Ideal for theatre and studio use
Specifications
| Product colour Black | |
| Light source Single colour LED | |
| Colour temperature 3000K | |
| Colours Warm White | |
| LED power (single LED) 80W | |
| Quantity of LEDs 1 | |
| Beam angle | Min 19° |
|---|---|
| Beam angle | Max 31° |
| Illuminance 15.292 lx @ 1m | |
| Flash rate per second 1 - 20Hz | |
| DMX channels 1, 2 | |
| DMX connection 5-pin XLR | |
| Modes Automatic programs, DMX, Master/Slave | |
| IP rating IP20 | |
| Cooling Temperature controlled fan | |
| Display oLed | |
| Power plug P-Con | |
| Power consumption 1.224 - 0.560A | |
| Power supply 240VAC 50Hz | |
| Dimensions (L x W x H) 430 x 190 x 225mm | |
| Weight (kg) 2,77 | |
| Included accessories Mounting bracket, Power cable | |
