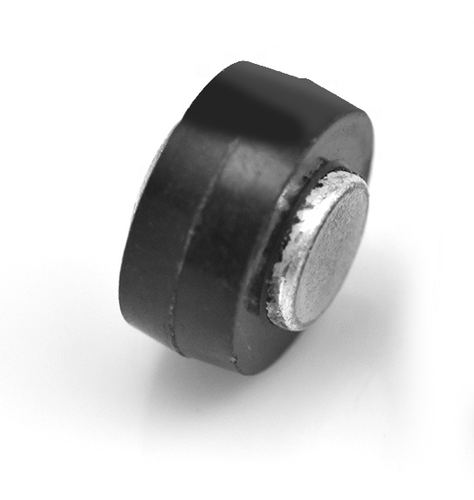

Button Diode - MR2500
50 Volt - 25 Amp High Current
Product Code: CD0140
Medium-Current Silicon Rectifier
. . . compact, highly efficient silicon rectifiers for mediumcurrent
applications requiring:
High Current Surge 400 Amperes @ TJ = 175C
Peak Performance @ Elevated Temperature 25 Amperes @
TC = 150C
25 Amp, 50 Volt
Compact, Molded Package For Optimum Efficiency in a Small
Case Configuration
Mechanical Characteristics:
Case: Epoxy, Molded
Weight: 1.8 grams (approximately)
Finish: All External Surfaces Corrosion Resistant and Terminals are
Readily Solderable
Lead Temperature for Soldering Purposes: requires a custom
temperature soldering profile
Polarity: Cathode Polarity Band
. . . compact, highly efficient silicon rectifiers for mediumcurrent
applications requiring:
High Current Surge 400 Amperes @ TJ = 175C
Peak Performance @ Elevated Temperature 25 Amperes @
TC = 150C
25 Amp, 50 Volt
Compact, Molded Package For Optimum Efficiency in a Small
Case Configuration
Mechanical Characteristics:
Case: Epoxy, Molded
Weight: 1.8 grams (approximately)
Finish: All External Surfaces Corrosion Resistant and Terminals are
Readily Solderable
Lead Temperature for Soldering Purposes: requires a custom
temperature soldering profile
Polarity: Cathode Polarity Band
