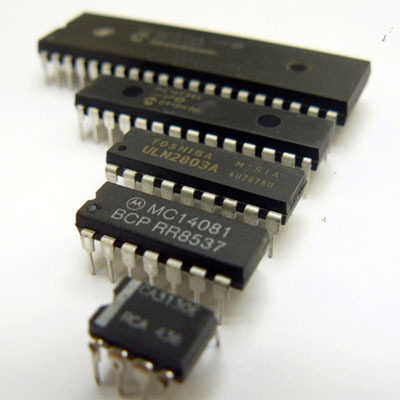

Decade Counter / Divider

CD4017

Product Code: CI4017

$2.50

Pay it in 4 payments of $0.62 with Afterpay

Store Stock:
Henderson In Stock
Albany In Stock

CD4017BM/CD4017BC Decade Counter/Divider with 10 Decoded Outputs

General Description
The CD4017BM/CD4017BC is a 5-stage divide-by-10 Johnson counter with 10 decoded outputs and a carry out bit.

These counters are cleared to their zero count by a logical ‘‘1’’ on their reset line. These counters are advanced on the positive edge of the clock signal when the clock enable signal is in the logical ‘‘0’’ state.
The configuration of the CD4017BM/CD4017BC permits medium speed operation and assures a hazard free counting sequence. The 10/8 decoded outputs are normally in the logical ‘‘0’’ state and go to the logical ‘‘1’’ state only at their respective time slot. Each decoded output remains high for 1 full clock cycle.  The carry-out signal completes a full cycle for every 10/8 clock input cycles and is used as a ripple carry signal to any succeeding stages.


Features

  • Wide supply voltage range 3.0V to 15V
  • High noise immunity 0.45 VDD (typ.)
  • Low power Fan out of 2 driving 74L
  • TTL compatibility or 1 driving 74LS
  • Medium speed operation 5.0 MHz (typ.) with 10V VDD
  • Low power 10 mW (typ.)
  • Fully static operation

Applications

  • Automotive
  • Instrumentation
  • Medical electronics
  • Alarm systems
  • Industrial electronics
  • Remote metering
