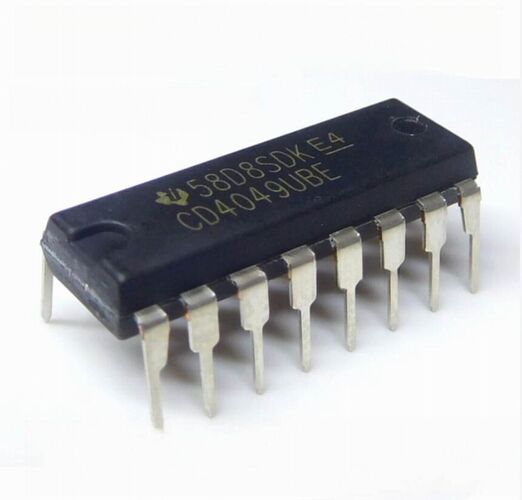

Hex inverting TTL driver - CD4049
CD4049UBE
Product Code: CI4049
Product Category: Buffers & Line Drivers
Logic Family: 4000
Number of Input Lines: 6 Input
Number of Output Lines: 6 Output
Polarity: Inverting
Package/Case: PDIP-16
High Level Output Current: - 5.2 mA
Low Level Output Current: 25 mA
Quiescent Current: 40 nA
Supply Voltage - Min: - 500 mV
Supply Voltage - Max: 20 V
Operating Supply Current: 30 uA
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole 16 pin
Function: Buffer/Converter
Height: 4.57 mm
Input Signal Type: Single-Ended
Length: 19.3 mm
Logic Type: CMOS
Number of Channels: 5 Channel
Operating Supply Voltage: 3 V to 18 V
Output Type: CMOS
Product Type: Buffers & Line Drivers
Propagation Delay Time: 120 ns at 5 V, 65 ns at 10 V, 50 ns at 15 V
Series: CD4049UB
Subcategory: Logic ICs
Supply Current - Max: 20 uA
Technology: CMOS
