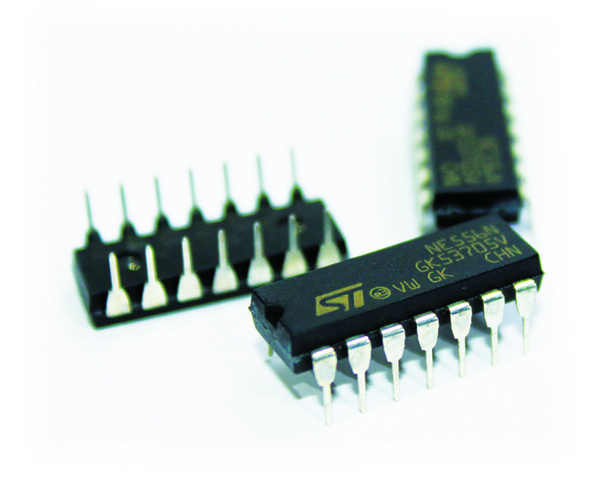

NE556 Timer Dual

Product Code: CS0302

Please be aware this product is a special order product, and may take an extra 2-3 days to arrive.

$3.20

Pay it in 4 payments of $0.80 with Afterpay

Store Stock:
Henderson In Stock
Albany Out of Stock

This IC provides two highly accurate 555 Timer circuits that are capable of producing both time delays or oscillation. It has two 555 timer circuits in a single 14 pin DIL package and can be operated in astable or monostable mode with external (RC) timing control.

The 555 timer is a simple circuit. By taking the trigger signal from high to low the flip-flop is set. This causes the output to go high and the discharge pin to be released from GND (0V). The releasing of the discharge pin from GND causes an external capacitor to begin charging. When the capacitor is charged the voltage across it increases. This results in the voltage on the threshold pin increasing. When this is high enough it will result in the flip-flop to resetting. This causes the output to go low and the discharge pin is also taken back to GND. This discharges the external capacitor ready for the next time the device is triggered.
