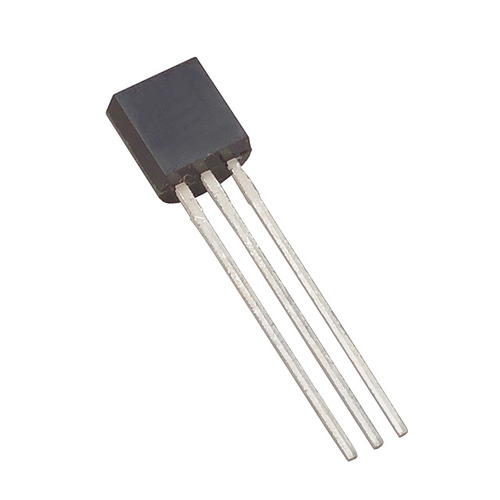

1 Wire Digital Temperature Sensor DS18B20

3 Pin TO92

Product Code: CT0802

$5.80

Pay it in 4 payments of $1.45 with Afterpay

Buy 1+ $5.80 (incl. GST)
Buy 10+ $5.47 (incl. GST)
Buy 25+ $5.02 (incl. GST)

The DS18B20 digital thermometer provides 9-bit to 12-bit Celsius temperature measurements and has an alarm function with nonvolatile user-programmable upper and lower trigger points. The DS18B20 communicates over a 1-Wire® bus that by definition requires only one data line (and ground) for communication with a central microprocessor. It has an operating temperature range of -55°C to +125°C and is accurate to ±0.5°C over the range of -10°C to +85°C. In addition, the DS18B20 can derive power directly from the data line ("parasite power"), eliminating the need for an external power supply.

Each DS18B20 has a unique 64-bit serial code, which allows multiple DS18B20s to function on the same 1-Wire bus. Thus, it is simple to use one microprocessor to control many DS18B20s distributed over a large area. Applications that can benefit from this feature include HVAC environmental controls, temperature monitoring systems inside buildings, equipment, or machinery, and process monitoring and control systems.

Unique 1-Wire Interface Requires Only One Port Pin for Communication
Each Device has a Unique 64-Bit Serial Code Stored in an On-Board ROM
Multidrop Capability Simplifies Distributed Temperature-Sensing Applications
Requires No External Components
Can Be Powered from Data Line; Power Supply Range is 3.0V to 5.5V
Measures Temperatures from -55°C to +125°C (-67°F to +257°F)
±0.5°C Accuracy from -10°C to +85°C
Thermometer Resolution is User Selectable from 9 to 12 Bits
Converts Temperature to 12-Bit Digital Word in 750ms (Max)
User-Definable Nonvolatile (NV) Alarm Settings
Alarm Search Command Identifies and Addresses Devices Whose Temperature is Outside Programmed Limits (Temperature Alarm Condition)
Available in 8-Pin SO (150 mils), 8-Pin µSOP, and 3-Pin TO-92 Packages
Software Compatible with the DS1822
Applications Include Thermostatic Controls, Industrial Systems, Consumer Products, Thermometers, or Any Thermally Sensitive System
