CRO Probe and Cable
Product Code: EQC1902
Clearance
CRO Probe Cable

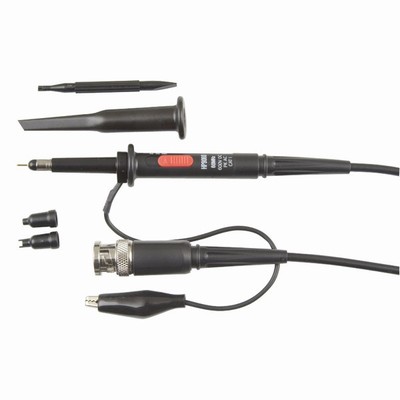

This quality probe set consists of a 1.4m quality cord terminated at one end with a moulded-on stainless steel BNC connector and 1 x, 10x attenuator probe at the other end. An earthing lead 280mm long with alligator clip to connect to the probe at the other end is provided.
Also provided is an adaptor that slides on to the probe to change the probe tip to a spring hook. Suits QC-1901.
*NB: Not to be used for EHT voltage. 100x required for this.
Attenuation 10:1
Bandwidth :DC~40MHz (+/-1dB) DC~60MHz (1dB)
Input: R ~10Mohm
Input: C ~22pFMax
Input Voltage: DC 600V
Attenuation: 1:1
Bandwidth: DC~3MHz (+/-3dB) DC~6MHz (3dB)
Input R: ~1Mohm
Input C: ~180pF
Max Input Voltage: DC 600V
SUITS VIRTUALLY EVERY CRO WE'VE SEEN!!
