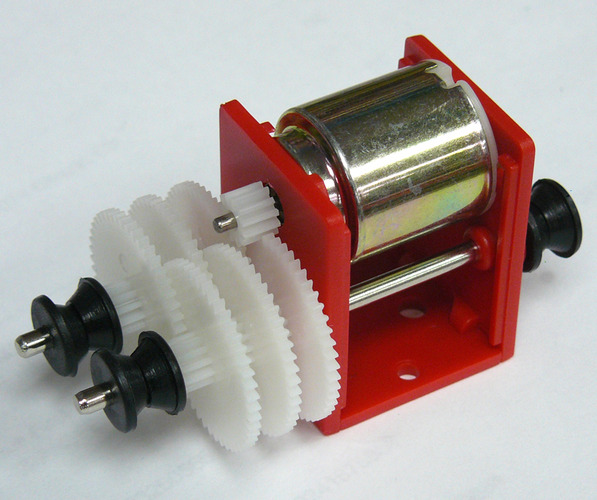

Motor and Gearbox Set

3V DC 12,000 RPM

Product Code: EYG2730

$19.90

Pay it in 4 payments of $4.98 with Afterpay

Store Stock:
Henderson Low Stock - call to confirm
Albany Low Stock - call to confirm

Low Cost Motor Gearbox Set

This unit comes complete with a 3V 12,000 RPM motor- . It can be stepped down (with the consequent torque multiplication) up to six times as follows:
- 12,000 x 12/48 = 3,000RPM
- 3,000 x 12/48 = 750RPM
- 187.5 x 12/48 = 46.875RPM
- 750 x 12/48 = 187.5RPM
- 46.875 x 12/48 = 11.72RPM
- 11.72 x 12/48 = 2.93RPM
Clearly, the motor is fitted with a 12 tooth pinion and the small gear cluster is 12 tooth. The large clusters are all 48 tooth. Not all gears need be used The intermediate output shafts are hardened steel, 3mm dia. Also supplied are press fit pulleys. The whole assembly snaps together. hand tools are almost unnecessary.
- Motor can also be varied by changing input voltage but this lowers torque.
- motor cage - 40H x 25W x 28Dmm
- gearbox cluster - 40W x 25D x 30Hmm
- main & intermediate shafts - 63 x 3mm Dia mm
- Supplied in kit form.
