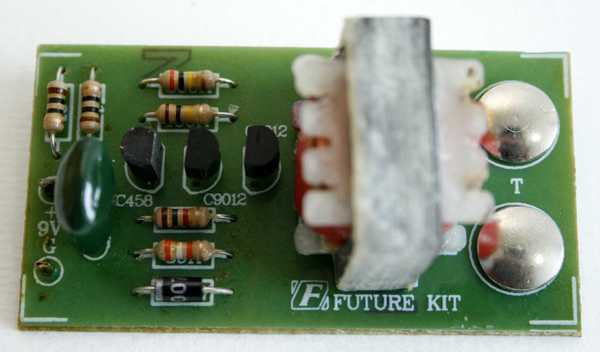

Kit - Electric Shock Machine

Product Code: FK901

$10.20

Pay it in 4 payments of $2.55 with Afterpay

Buy 1+ $10.20 (incl. GST)
Buy 10+ $9.70 (incl. GST)
Buy 25+ $9.20 (incl. GST)

** Future Kit needs to be assembled **

This simple circuit converts 9VDC into a high frequency, high
voltage output as found in most "Shocko" games such as Electric
Shock Roulette or Wrestling Games. Touching the two outputs
will give a tingling but safe shock due to the high circuit
impedance. In class situations, students will use the following
circuit elements. Multivibrator, current amplifier and a
transformer used in low to high turns ratio mode

Detail:
• This electronic circuit will trasform a low voltage of 9v. Batteries into a high enough power shocking effect.
• Recommended housing : FB08
• PCB dimensions : 2.4” X 1.2”
