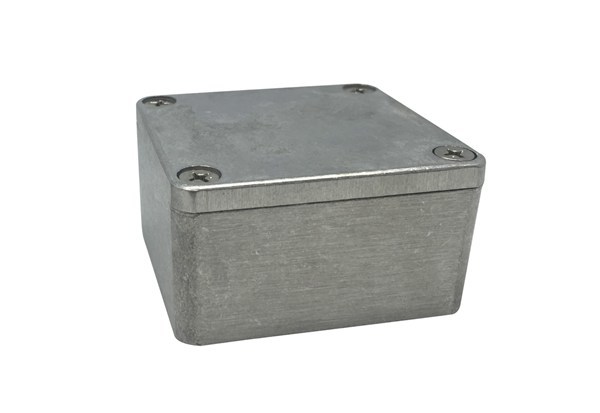

Project Box. Sealed die cast aluminium

100 Series - Sealed Diecast Aluminum Enclosure - 64 x 58 x 35mm

- Ideal for housing sensitive electronic assemblies, pnumatic, hydraulic and electronic devices in
commercial and industrial environments providing effective shielding of EMI and RFI
- Designed to IP65 of IEC529 anf NEMA 4 (dust and hoseproof)
- Wall mounting holes and lid fixing screws are outside the sealing area, thus preventing the ingress of
moisture and dust
- The lid incorporates a recessed neoprene gasket
- Bosses on internal base for fixing PCB's horizontally or connection of earth grounding, terminals, etc
- Internal guide slots for mounting PCB assemblies vertically
- Screw holes for mounting lid are roll threaded. Screws are captive and recessed
- Box and lid are made in Aluminium alloy ADC- 10 to Japan Industrial Standard (JIS) in natural finish
- Finishes available on special orders are painted black and epoxy coated black.

Width Depth Height
64       58      35
