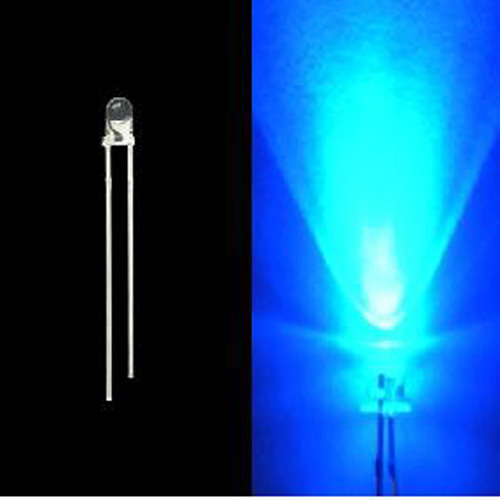

LED 5.0mm Mega Bright 15000 mcd + Blue

Blue 5mm

Product Code: LA0069

$0.70

Pay it in 4 payments of $0.18 with Afterpay

Buy 1+ $0.70 (incl. GST)
Buy 10+ $0.63 (incl. GST)
Buy 100+ $0.38 (incl. GST)
Buy 1000+ $0.24 (incl. GST)
Store Stock:
Henderson In Stock
Albany In Stock

Product Description:

Colour : Blue
Size (mm) : 5mm
Lens Colour : Water
Clear Peak Wave Length (nm) : 465~470
Forward Voltage (V) : 3.2 ~ 3.8
Reverse Current (uA) : <=30
Luminous Intensity Typ Iv (mcd) : Average in 15000
Life Rating : 100,000 Hours Viewing
Angle : 20 ~ 25 Degree
Absolute Maximum Ratings (Ta=25°C)
Max Power Dissipation : 80mw Max Continuous
Forward Current : 30mA
Max Peak Forward Current : 75mA
Reverse Voltage : 5~6V
Lead Soldering Temperature : 240°C (<5Sec)
Operating Temperature Range : -25°C ~ +85°C
Preservative Temperature Range : -30°C ~ +100°C
